GUN125R-BNTSXN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )GGN125,GUN125,126,13#,LAN125,TGN126,136..KEN,SA

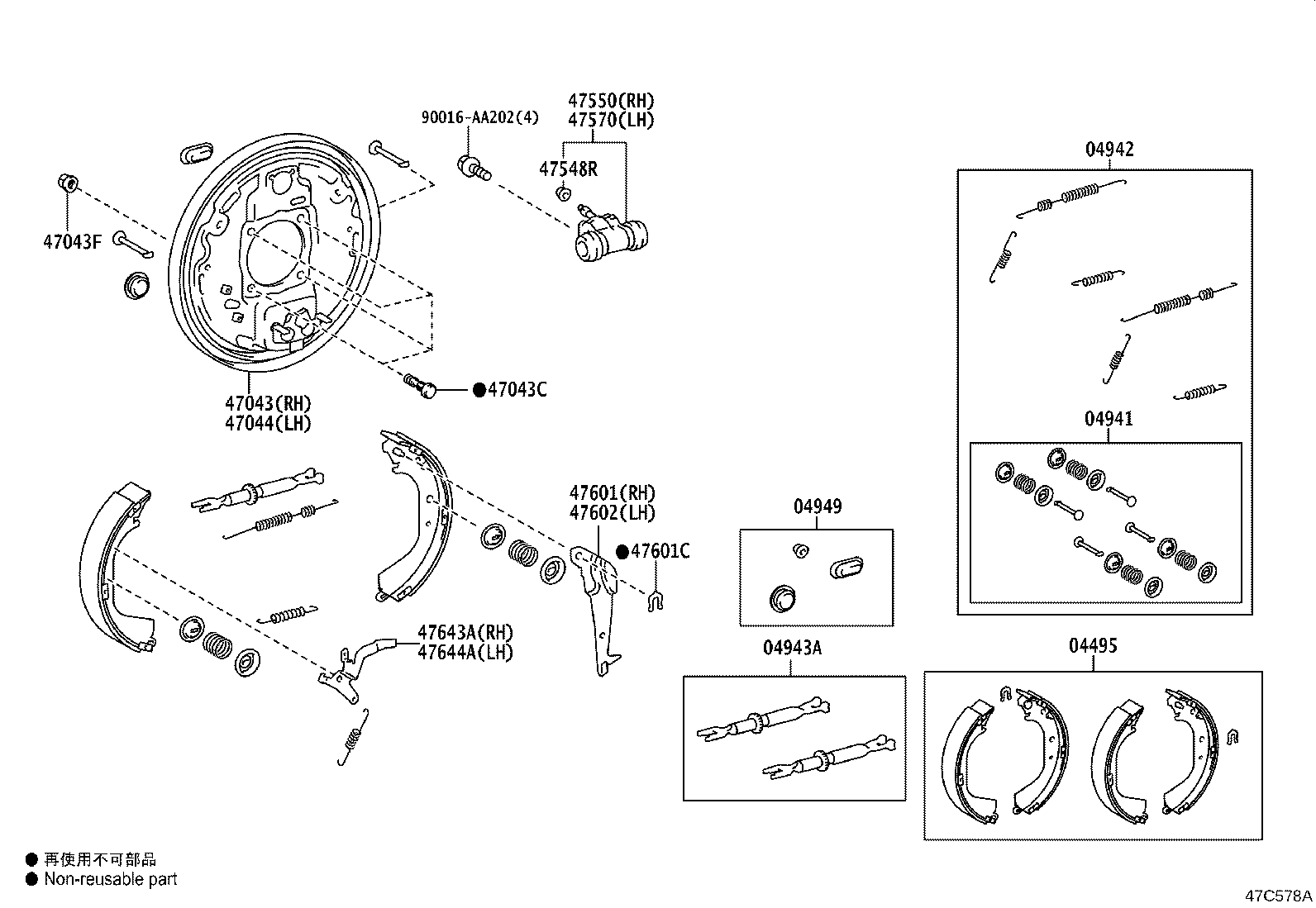

Click highlighted areas on diagram

diagram 04495 04941 04942 04943A 04949 47043 47043C 47043F 47044 47548R 47550 47570 47601 47601C 47602 47643A 47644A 90016AA202
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-0K120

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

MARK NSA LN508

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-0K030

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
04942 - SPRING KIT, REAR BRAKE
04942-0K130

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
04943A - STRUT KIT, REAR BRAKE
04943-0K030

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
04949 - PLUG KIT, REAR BRAKE
04949-0K130

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 2
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-0K130

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90114-T0011

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

*10-1.25PX54.5-30

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90178-T0077

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-0K130

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-0K030

GGN125,GUN125,126,13#,TGN126,128,13#..AD,AS,MD,MMD,MS,TD,TS,TX

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-09070

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-09070

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
47601C - WASHER, C(FOR REAR BRAKE)
90016-AD501

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 2
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-0K050

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-0K050

GGN125,GUN125,126,13#,TGN126,136..MD,MMD,MS,TD,TS,TX

 1
Common parts
90016-AA202
