GUN125R-BNTSXN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )GUN120,125,126,13#..6FC

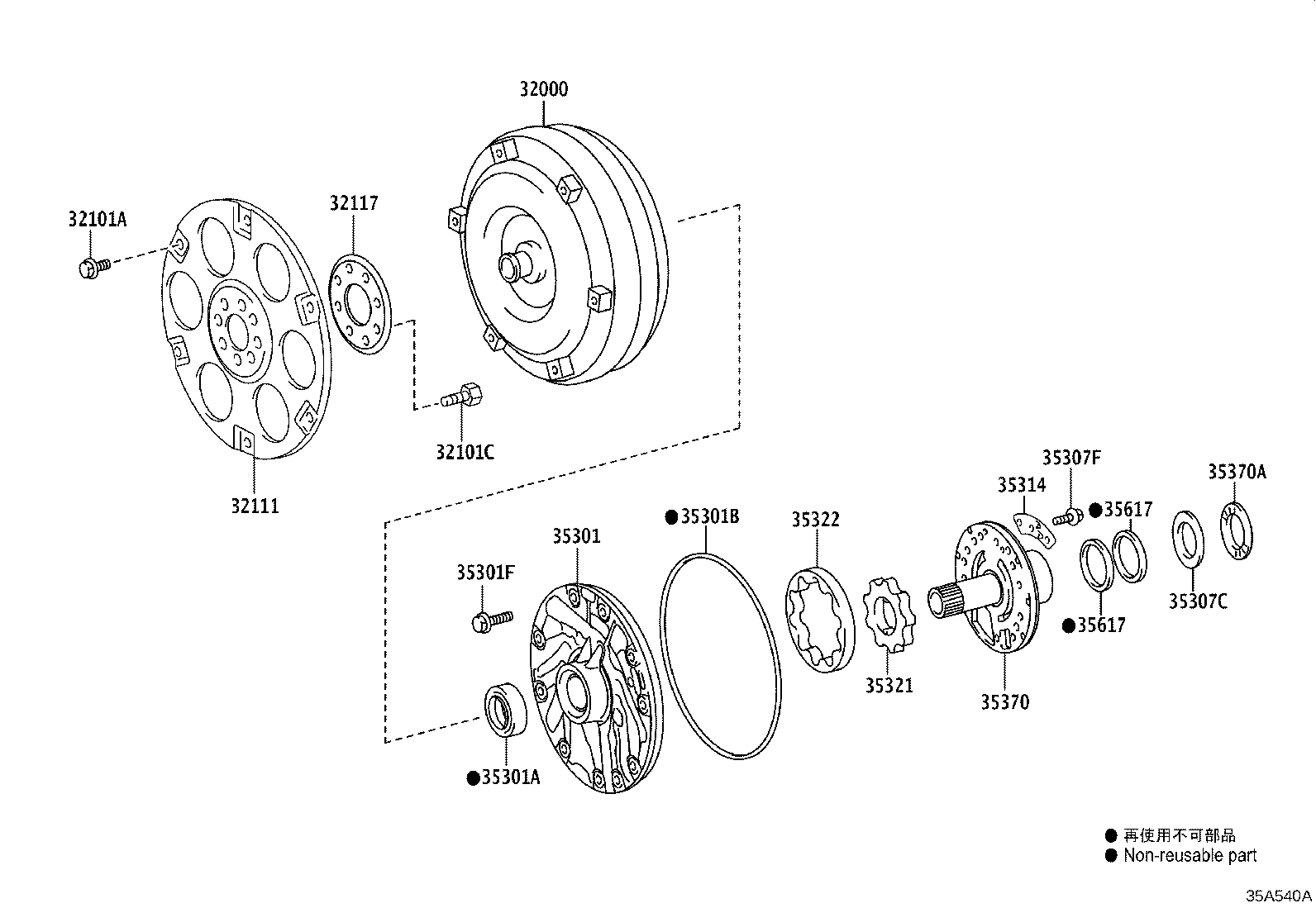

Click highlighted areas on diagram

AC60E,AC60F

diagram 32000 32101A 32101C 32111 32117 35301 35301A 35301B 35301F 35307C 35307F 35314 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price

(2006- )GUN120,125,126,13#..AD,KD,MD,MMD,PD,SD,SS,SX,TD,TS,TX..6FC

Click highlighted areas on diagram

AC60E,AC60F

diagram 32000 32101A 32101C 32111 32117 35301 35301A 35301B 35301F 35307C 35307F 35314 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-0K020

GUN120,125,135..(MD,TD,TS,TX)..6FC

(L)

 1
32000-71040

GUN120,125,135..(MD,TD,TS,TX)..6FC

(J)

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-10413

GUN120,125,126,13#..(TD,TS,TX)..6FC

*10-1.5PX11-8,(J),SILVER WHITE

 5
90105-T0237

GUN120,125,126,13#..(TD,TS,TX)..6FC

*10-1.5PX11-8,(L),SILVER WHITE

 5
90105-T0237

GUN125,126,13#..6FC..(MA,SA)

*10-1.5PX11-8,(L),SILVER WHITE

 5
90105-10546

GUN125,126,13#..6FC..(MA,SA)

*10-1.5PX11-8,BLACK

 1
90105-10413

GUN125,126,13#..6FC..(MA,SA)

*10-1.5PX11-8,(J),SILVER WHITE

 5
90105-10546

GUN120,125,126,13#..(TD,TS,TX)..6FC

*10-1.5PX11-8,BLACK

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-T0203

GUN120,125,126,13#..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

*13-1.5PX43.5-23.5

 8
32111 - PLATE, PUMP IMPELLER DRIVE
32111-0K030

GUN125,126,13#..6FC..(MA,SA)

(L)

 1
32111-71010

GUN125,126,13#..6FC..(MA,SA)

(J)

 1
32111-71010

GUN125..RHD..6FC..L;GUN125,126,135..AD..6FC..LA;GUN126,13#..6FC..(ARL,BZAG,KEN)

(J)

 1
32111-0K030

GUN125..RHD..6FC..L;GUN125,126,135..AD..6FC..LA;GUN126,13#..6FC..(ARL,BZAG,KEN)

(L)

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60050

GUN125,126,13#..6FC..(MA,SA)

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-71010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(J)

 1
35301-0K010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(L)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38101

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
35697-60010

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

*8-1.25PX35-35

 10
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-71070

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 1
35307F - BOLT (FOR STATOR SHAFT)
90148-60079

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(J)

 10
90148-T0024

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(L)

 10
35314 - PLATE, FRONT OIL PUMP
35314-71020

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(J)

 1
35314-0K020

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(L)

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-0K010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(L)

 1
35321-71010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

T=9.977-9.983,(J)

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-71010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

T=9.977-9.983,(J)

 1
35322-0K010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

T=9.977-9.983,(L)

 1
35370 - SHAFT ASSY, STATOR
35370-71010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(J)

 1
35370-0K010

GGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC

(L)

 1
35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
90374-71002

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

GGN125,GUN120,125,126,13#,TGN121,126,128,138..(AD,KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC

 2
