GUN125R-BNTSXN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101E 11101U 11114A 11115 11117E 11122 11126 11155A 11155A 11159A 11159A 11159A 11159H 11159H 11201 11213 11214 11382C 1201 12108 12108A 12281A 12282D 12284A 12601B 12631A 12632 1905 1905 23682 8405 8405 90105T0052 90105T0073 9010906384 9010906385 90109T0055 90109T0062 90119T0219 90119T0238 90119T0260 90119T0342 9012606030 9017608058 90178T0018 9155180625 9155281025 9167180820 9167180825 9167180835 9415180600
Part # Description Qty Price
Common parts
90105-T0052
90105-T0073
90109-06384
90109-06385
90109-T0055
90109-T0062
90119-T0219
90119-T0238
90119-T0260
90119-T0342
90126-06030
90176-08058
90178-T0018
91551-80625
91552-81025
91671-80820
91671-80825
91671-80835
94151-80600
Linked diagrams
1201
1905
8405

ILLUST NO. 1 OF 2(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

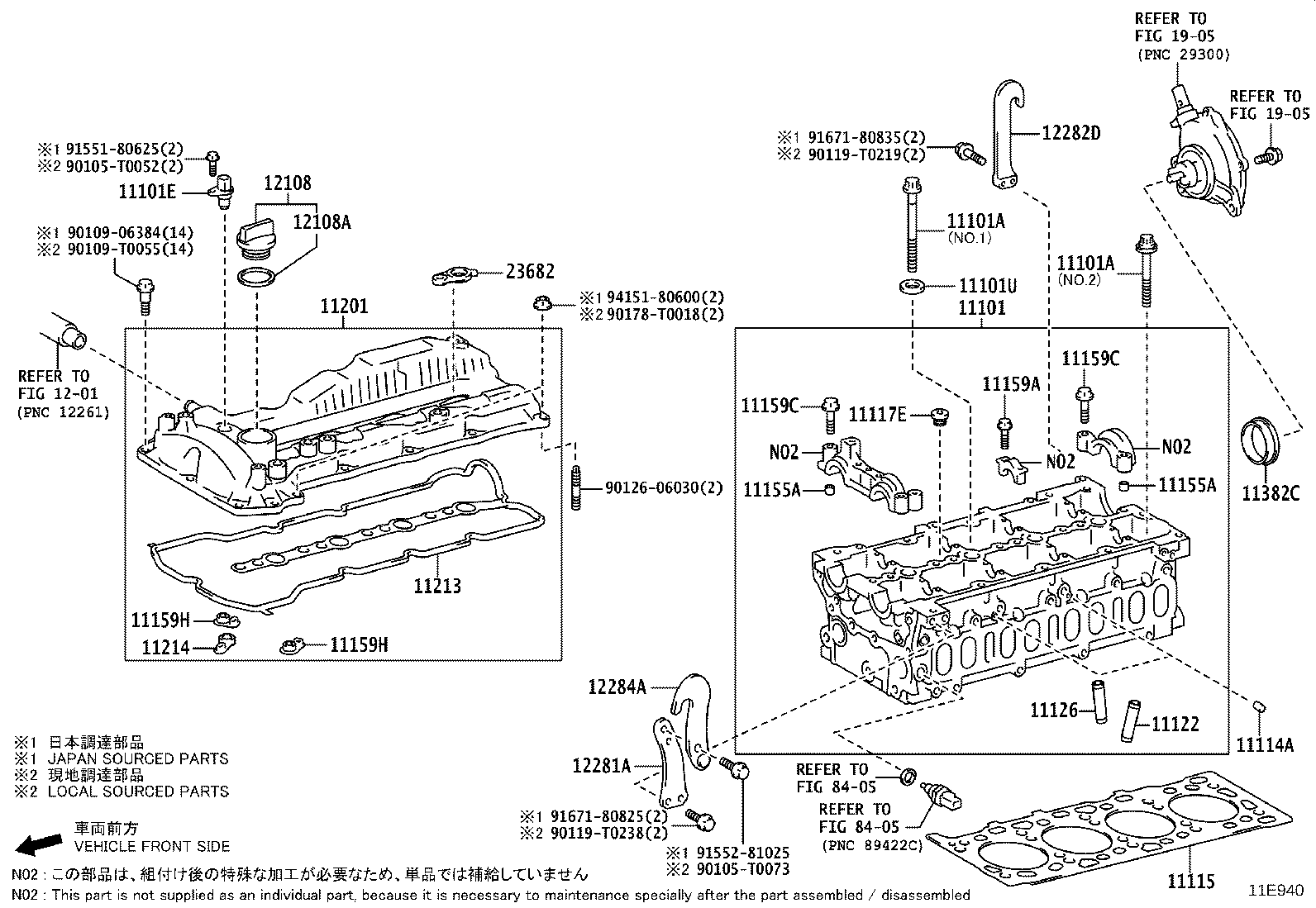

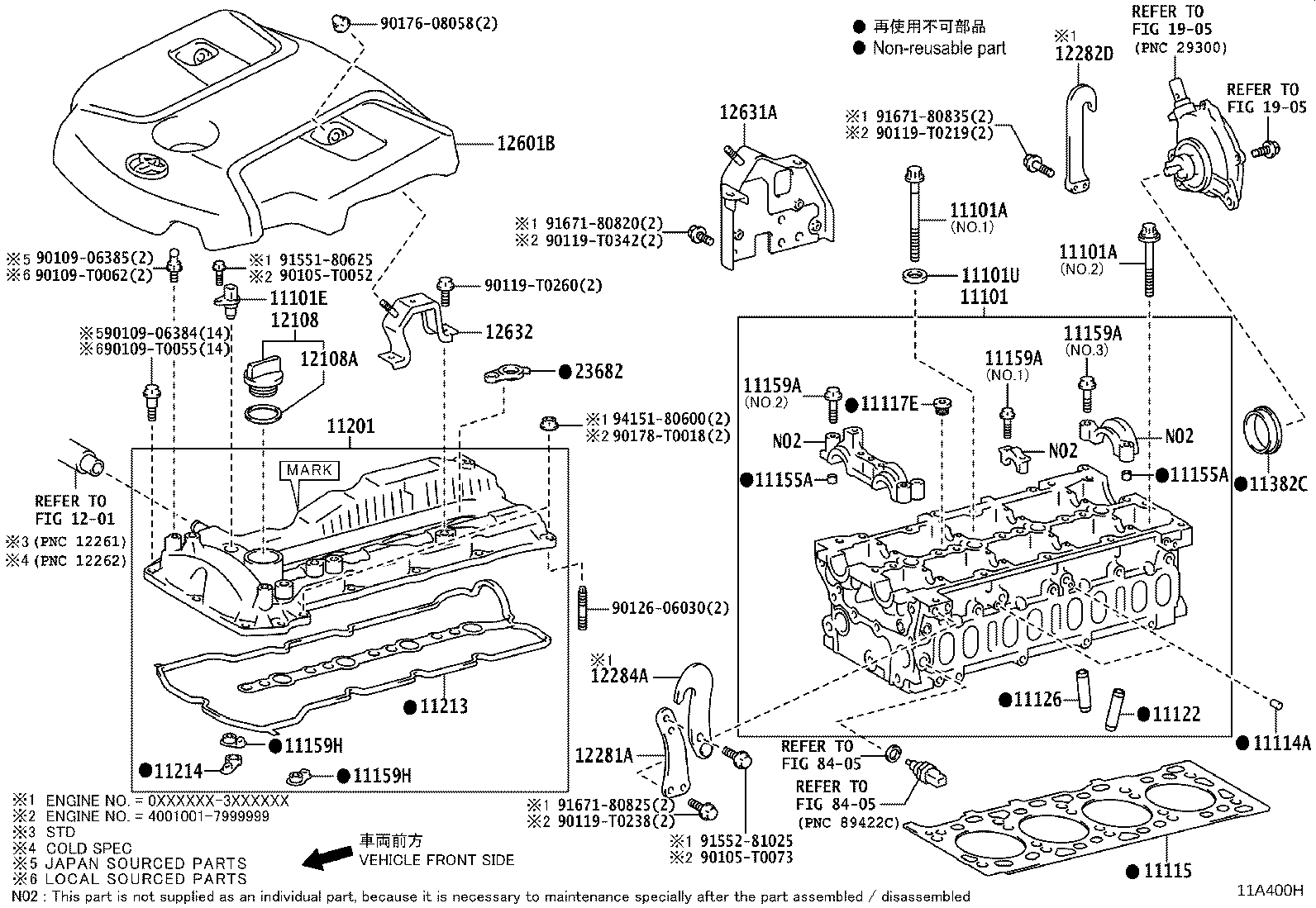

CYLINDER HEAD & CYLINDER HEAD COVER

diagram 11101 11101A 11101A 11101E 11101U 11114A 11115 11117E 11122 11126 11155A 11155A 11159A 11159C 11159C 11159H 11159H 11201 11213 11214 11382C 1201 12108 12108A 12281A 12282D 12284A 1905 1905 23682 8405 8405 90105T0052 90105T0073 9010906384 90109T0055 90119T0219 90119T0238 9012606030 90178T0018 9155180625 9155281025 9167180825 9167180835 9415180600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-0E011

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

THA SOURCED PARTS

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-T2010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L),NO.1

 6
90910-T2011

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L),NO.2

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-T2010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L),NO.1

 6
90910-T2011

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L),NO.2

 4
11101E - SENSOR, CAM POSITION
90919-05060

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-T0026

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 6
11114A - PIN, STRAIGHT
90250-T0011

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

L=8,OD=5,(L)

 2
11115 - GASKET, CYLINDER HEAD
11115-0E020A0

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

MARK A,(L)

 1
11115-0E020D0

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

MARK D,(L)

 1
11115-0E020C0

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

MARK C,(L)

 1
11115-0E020B0

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

MARK B,(L)

 1
11115-0E020E0

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

MARK E,(L)

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-T0005

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 4
11122 - BUSH, INTAKE VALVE GUIDE
11123-30020

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

STD

 8
11122-30020

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-30020

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

STD

 8
11122-30020

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

O/S 0.05

 8
11155A - PIN, RING W/HEAD
90253-11021

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(J)

 4
11155A - PIN, RING W/HEAD
90253-11021

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(J)

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(J)

 16
90119-T0551

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 16
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-T0130

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 2
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-T0130

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0E011

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
11382C - RETAINER, CAMSHAFT OIL SEAL
11382-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0H020

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43027

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
12281A - HANGER, ENGINE, NO.1
12281-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

THA SOURCED PARTS

 1
12282D - HANGER, ENGINE, NO.2
12282-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
12284A - HANGER, ENGINE, NO.1 UPPER
12284-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 1
23682 - GASKET, NOZZLE HOLDER
23682-0E010

1GDFTV,2GDFTV..GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

(L)

 4
Common parts
90105-T0052
90105-T0073
90109-06384
90109-T0055
90119-T0219
90119-T0238
90126-06030
90178-T0018
91551-80625
91552-81025
91671-80825
91671-80835
94151-80600
Linked diagrams
1201
1905
8405

ILLUST NO. 2 OF 2(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

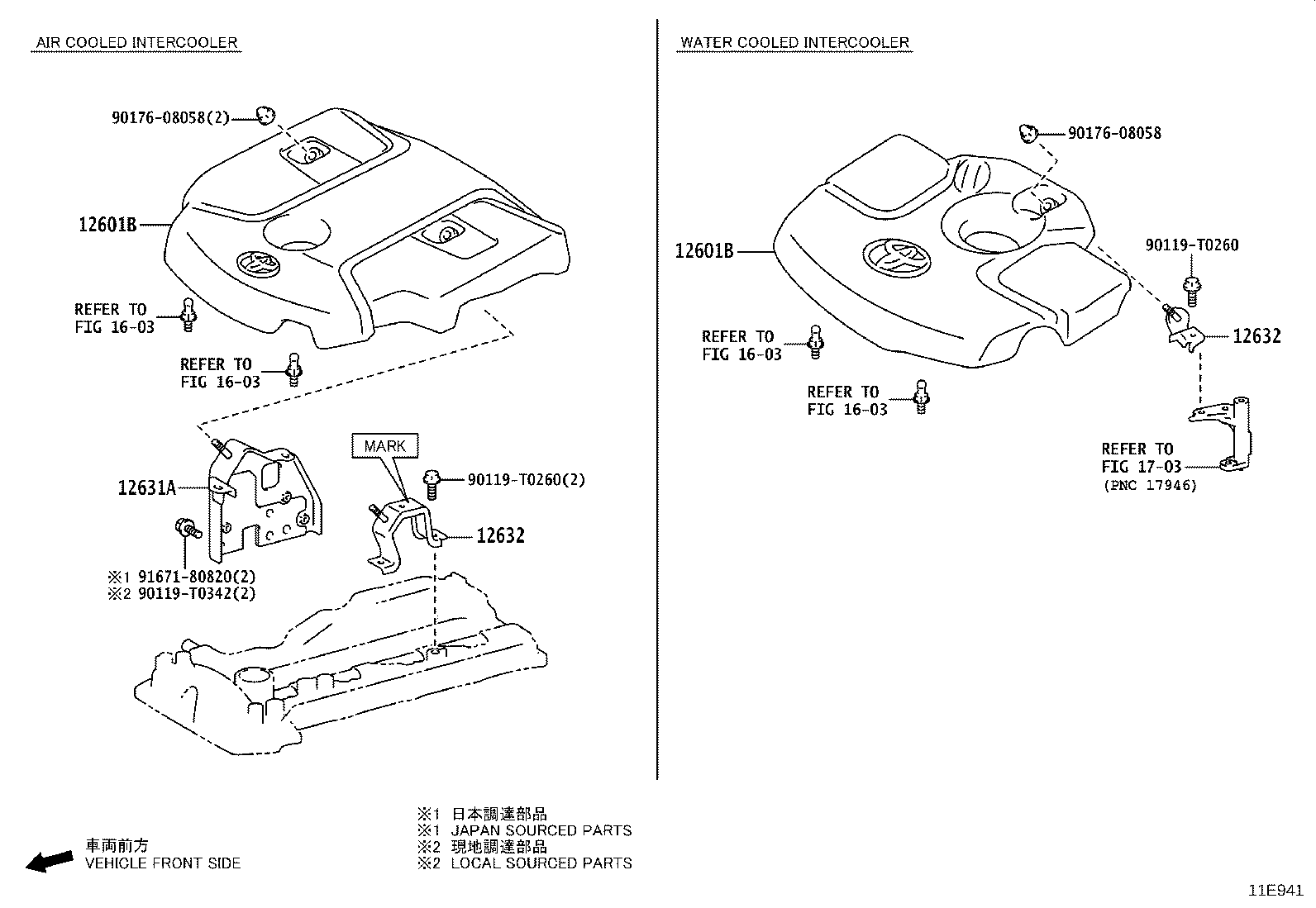

ENGINE COVER

diagram 12601B 12601B 12631A 12632 12632 1603 1603 1603 1603 1703 90119T0260 90119T0260 90119T0342 9017608058 9017608058 9167180820
Part # Description Qty Price
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-0E010

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-0E010

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

 1
12631A - BRACKET, ENGINE COVER
12631-0E010

2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;2GDFTV..GUN125..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,VN

THA SOURCED PARTS

 1
12632 - BRACKET, ENGINE COVER, NO.2
12632-0E010

1GDFTV..GUN126..LHD..L;2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;1GDFTV..GUN126..(H,S)..(ARL,BZAG,GCC,GEN,KEN,LA,MA,MMR,PH,SA,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,125,136..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX

MARK=1

 1
12632 - BRACKET, ENGINE COVER, NO.2
12632-0E010

1GDFTV..GUN126..LHD..L;2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;1GDFTV..GUN126..(H,S)..(ARL,BZAG,GCC,GEN,KEN,LA,MA,MMR,PH,SA,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,125,136..AD,KD,KS,MD,MS,SD,SS,SX,TD,TS,TX

MARK=1

 1
Common parts
90119-T0260
90119-T0342
90176-08058
91671-80820
Linked diagrams
1603
1703
