GUN125L-BNFXHN (2017)

Toyota Hilux

Production Oct 2017 - Sep 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )KUN112,12#,13#..DCR..GCC,GEN,LA,PKN,SA,VN

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87208 87208A 87245A 87245B 87246A 87246B 90119T0260 90178T0018 90466T0010 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 9167380616
Part # Description Qty Price

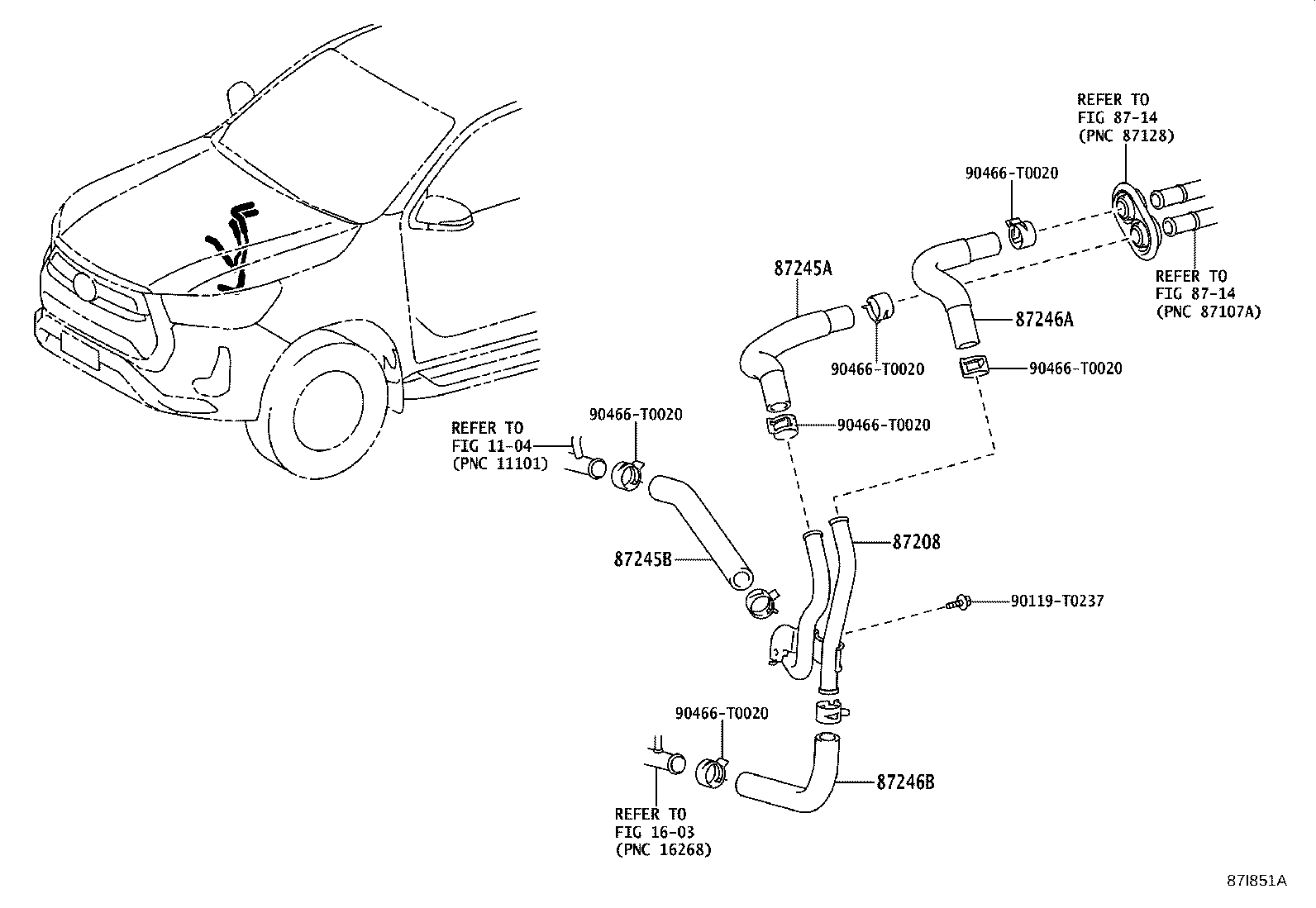

87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K360

KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..DCR..(GCC,GEN,LA,SA,VN)

 1

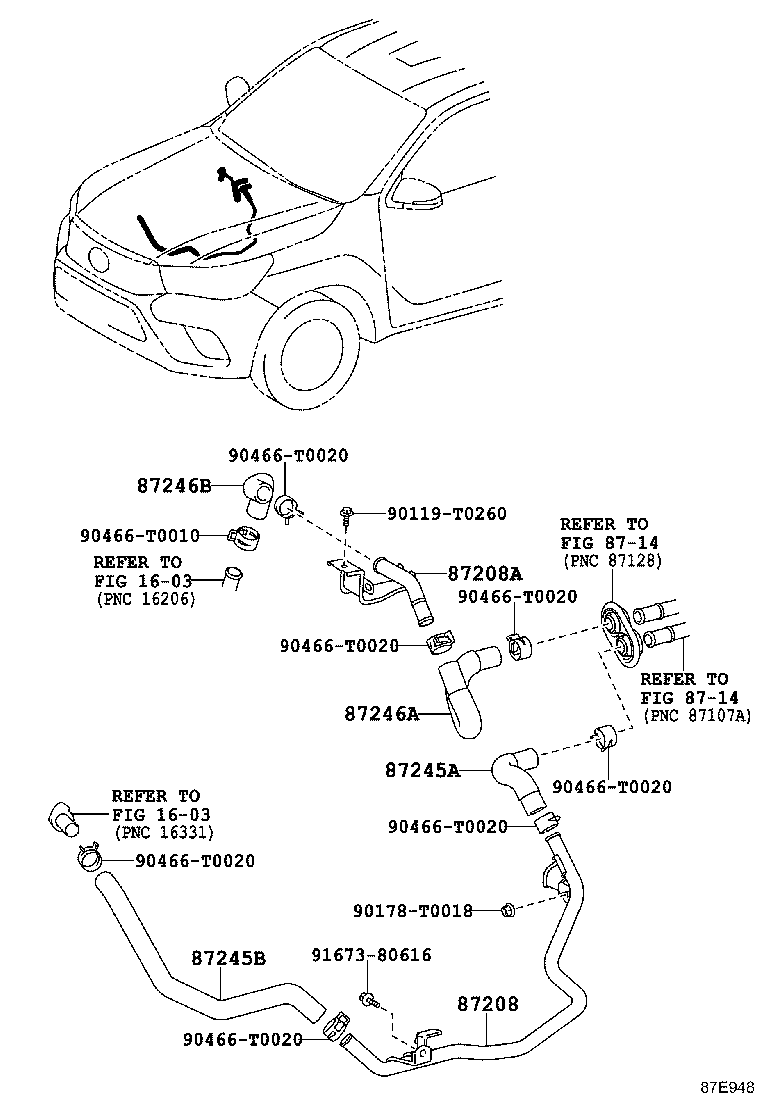

87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-0K410

KUN112,12#,13#..DCR..(GCC,GEN,LA,PKN,SA,VN)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0KJ60

KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..DCR..(GCC,GEN,LA,SA,VN)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0K310

KUN125..M..IDN;KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..(GCC,GEN,LA,SA,VN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0KB10

KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..DCR..(GCC,GEN,LA,SA,VN)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0KK10

KUN112,12#,13#..DCR..(GCC,GEN,LA,PKN,SA,VN)

 1
Common parts
90119-T0260
90178-T0018
90466-T0010
90466-T0020
91673-80616
Linked diagrams
1603
8714

(1505- )GUN112,12#,13#

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 8712 87124 87124A 87124F 8714 8714 87209 87245A 87245B 87246A 87246B 90105T0235 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020
Part # Description Qty Price

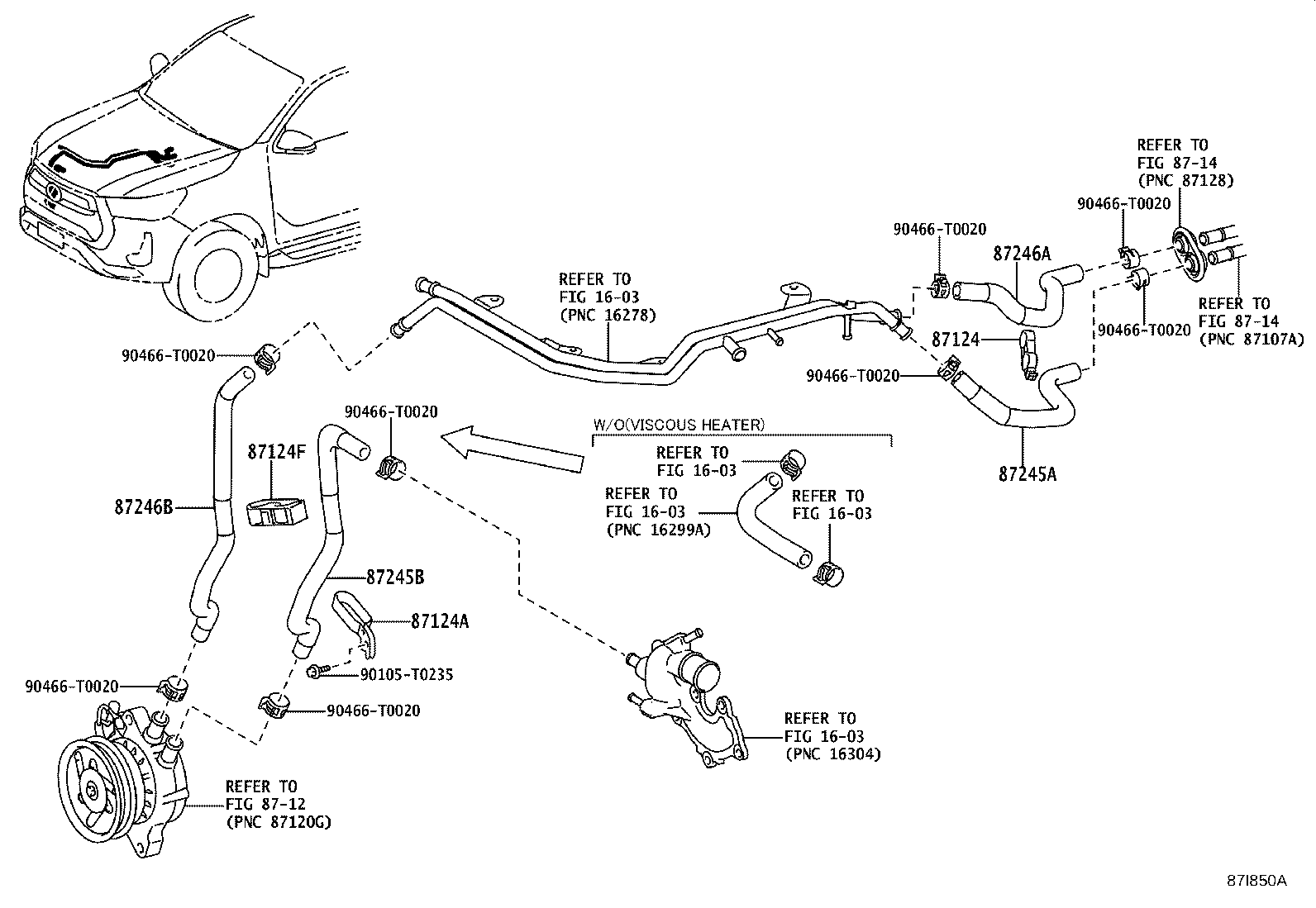

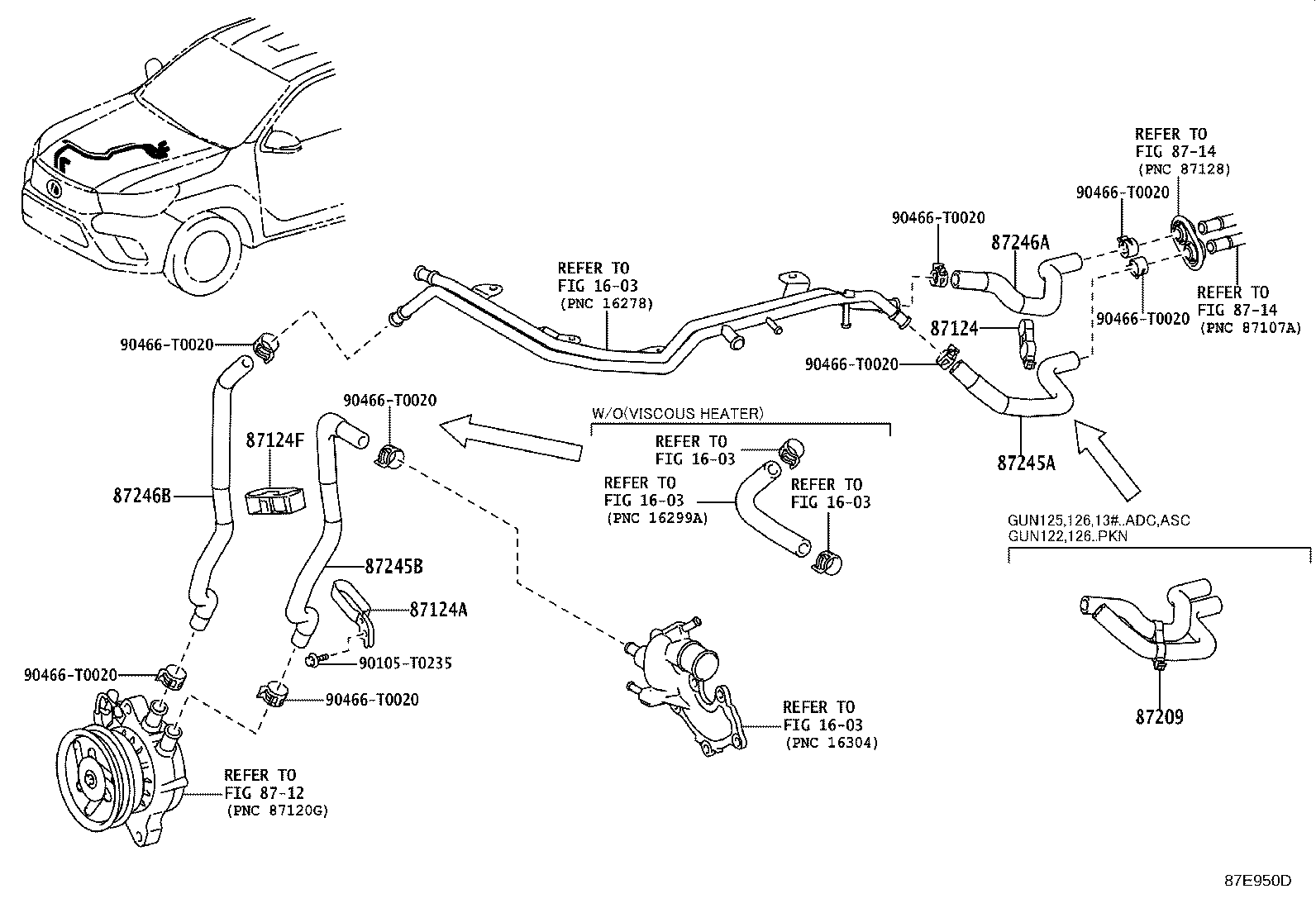

87124 - CLAMP, HEATER
87124-0K240

GUN126..TDC..X;GUN122,125..M..(IDN,TH);GUN135..(SSC,TDC,TSC,TXT)..(H,M,X);GUN126,136..(SDC,SSC,SXT,TDC,TSC,TXT)..(H,L,M,S);GUN135..(SDC,SSC,SXT,TDC)..(L,S)..(GEN,LA,SA,VN);GUN112,122,123,125..(SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,SA,VN)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0KJ60

KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..DCR..(GCC,GEN,LA,SA,VN)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0K310

KUN125..M..IDN;KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..(GCC,GEN,LA,SA,VN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0KB10

KUN112,12#,13#..(SDC,SSC,SXT,TDC,TSC,TXT)..DCR..(GCC,GEN,LA,SA,VN)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0KK10

KUN112,12#,13#..DCR..(GCC,GEN,LA,PKN,SA,VN)

 1
Common parts
90105-T0235
90466-T0020
Linked diagrams
1603
8712
8714

(2005- )GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 8712 87124 87124A 87124F 8714 8714 87245A 87245B 87246A 87246B 90105T0235 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020
Part # Description Qty Price
Common parts
90105-T0235
90466-T0020
Linked diagrams
1603
8712
8714

(2005- )TGN11#,12#,13#..LHD

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87208 87245A 87245B 87246A 87246B 90119T0237 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020
Part # Description Qty Price
Common parts
90119-T0237
90466-T0020
Linked diagrams
1104
1603
8714
