GUN125L-BNFXHN (2017)
Toyota Hilux
ILLUST NO. 2 OF 2(0408- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

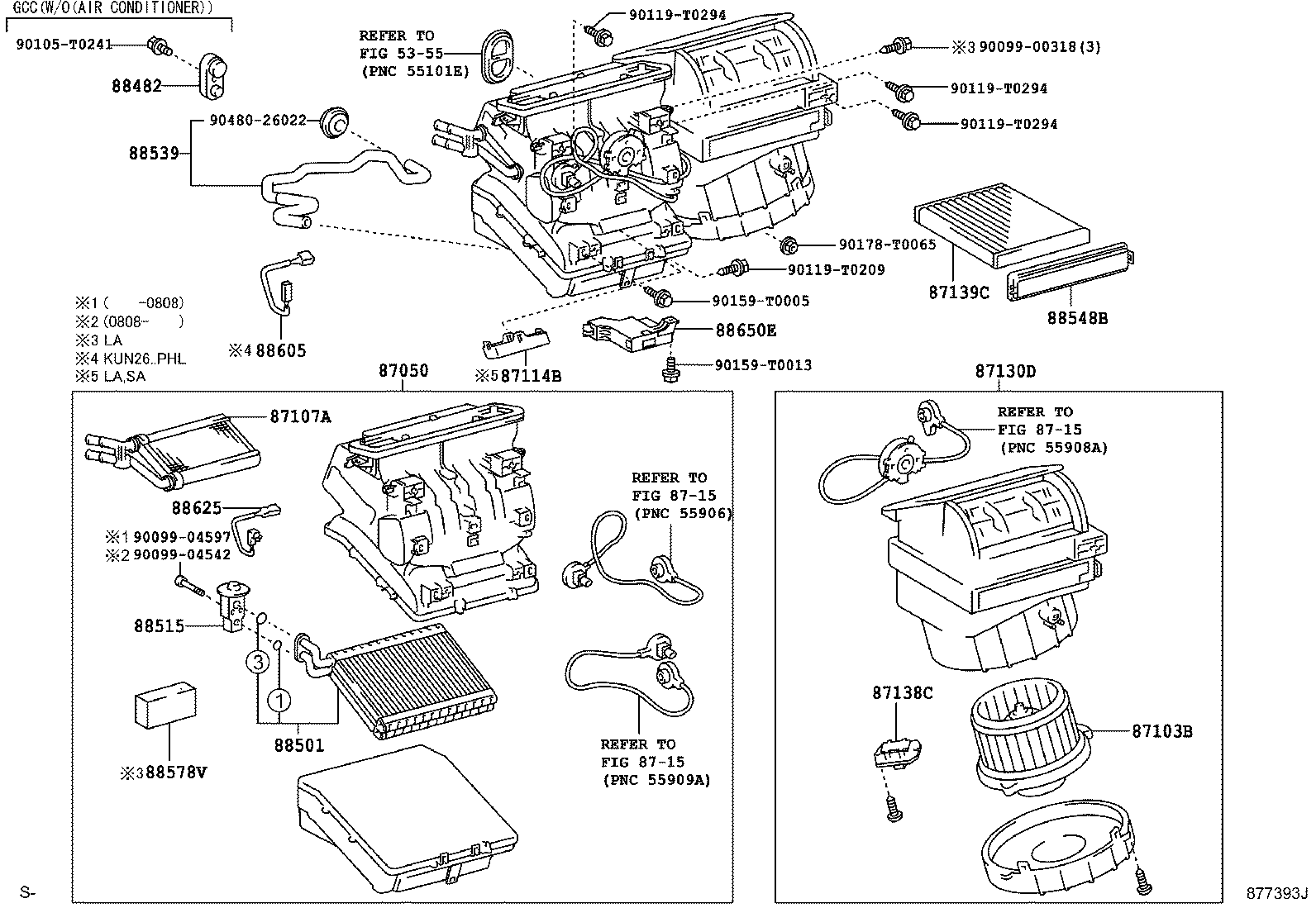

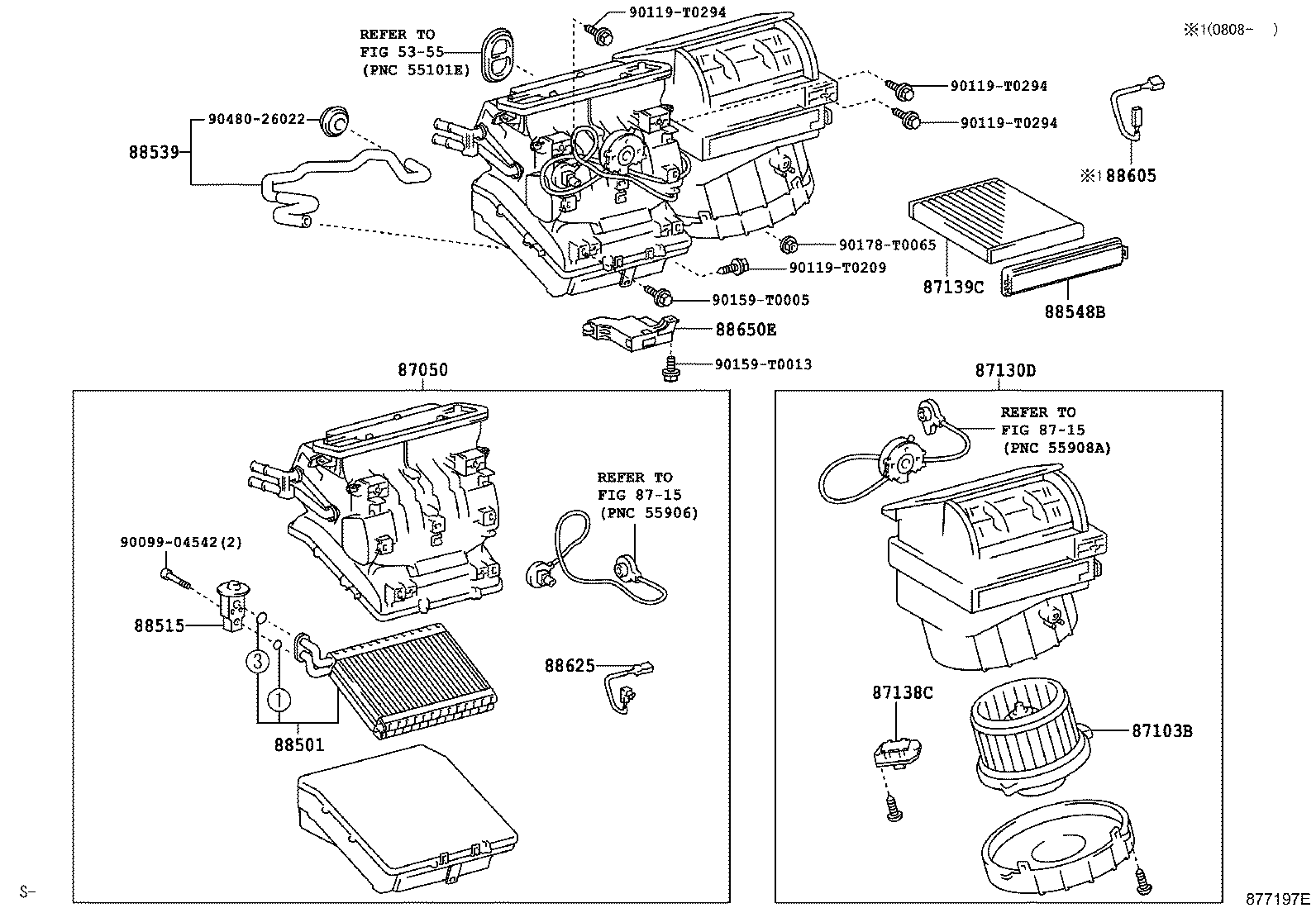

ILLUST NO. 1 OF 2(0408- )LHD
FRONT---BOOST VENTILATOR(W/COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04542 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||

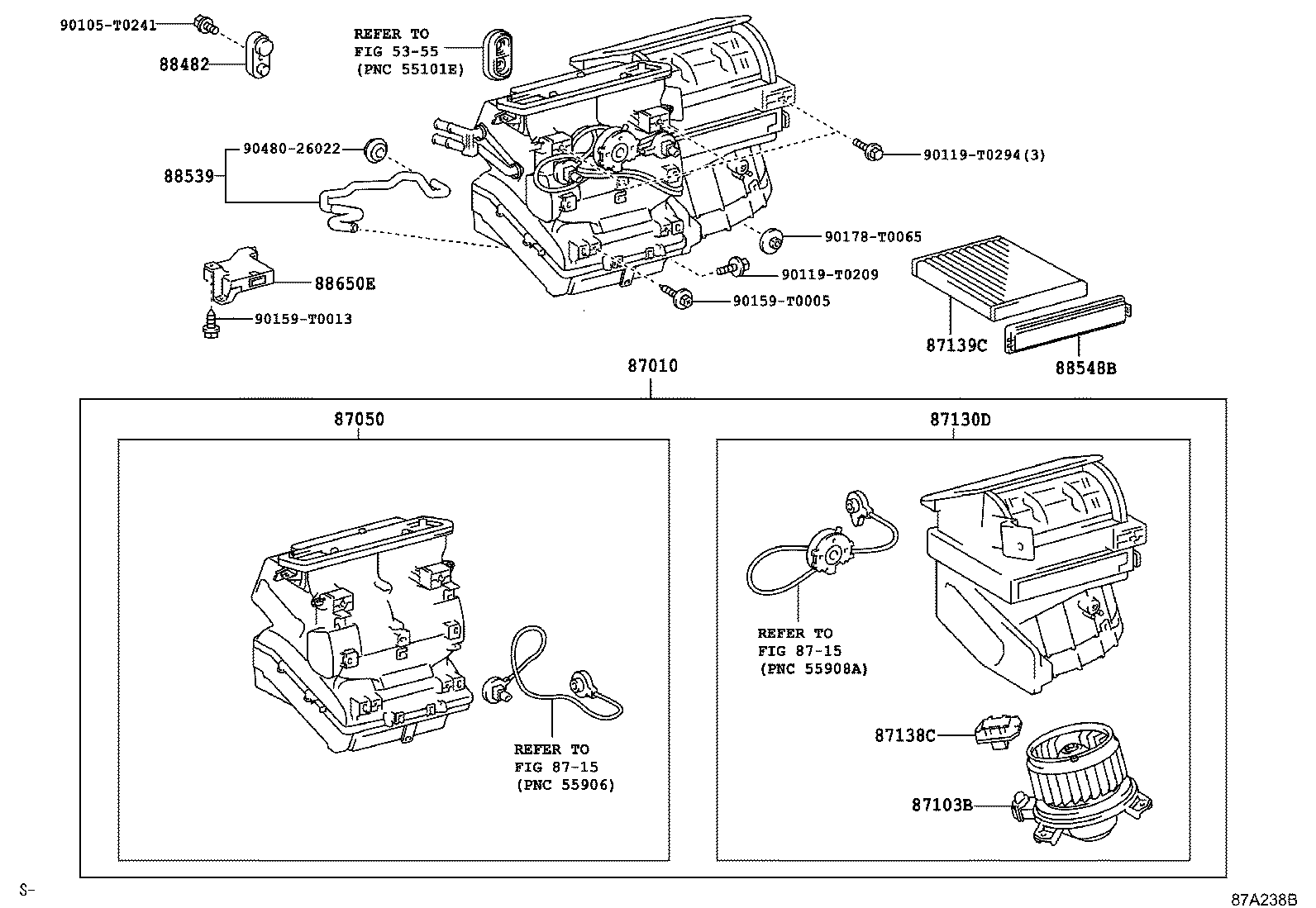

ILLUST NO. 1 OF 2(0408- )LHD
FRONT---MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0408- )LHD
FRONT---MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00318 | ||||
| 90099-04542 | ||||
| 90099-04597 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0408- )LHD
FRONT---BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||

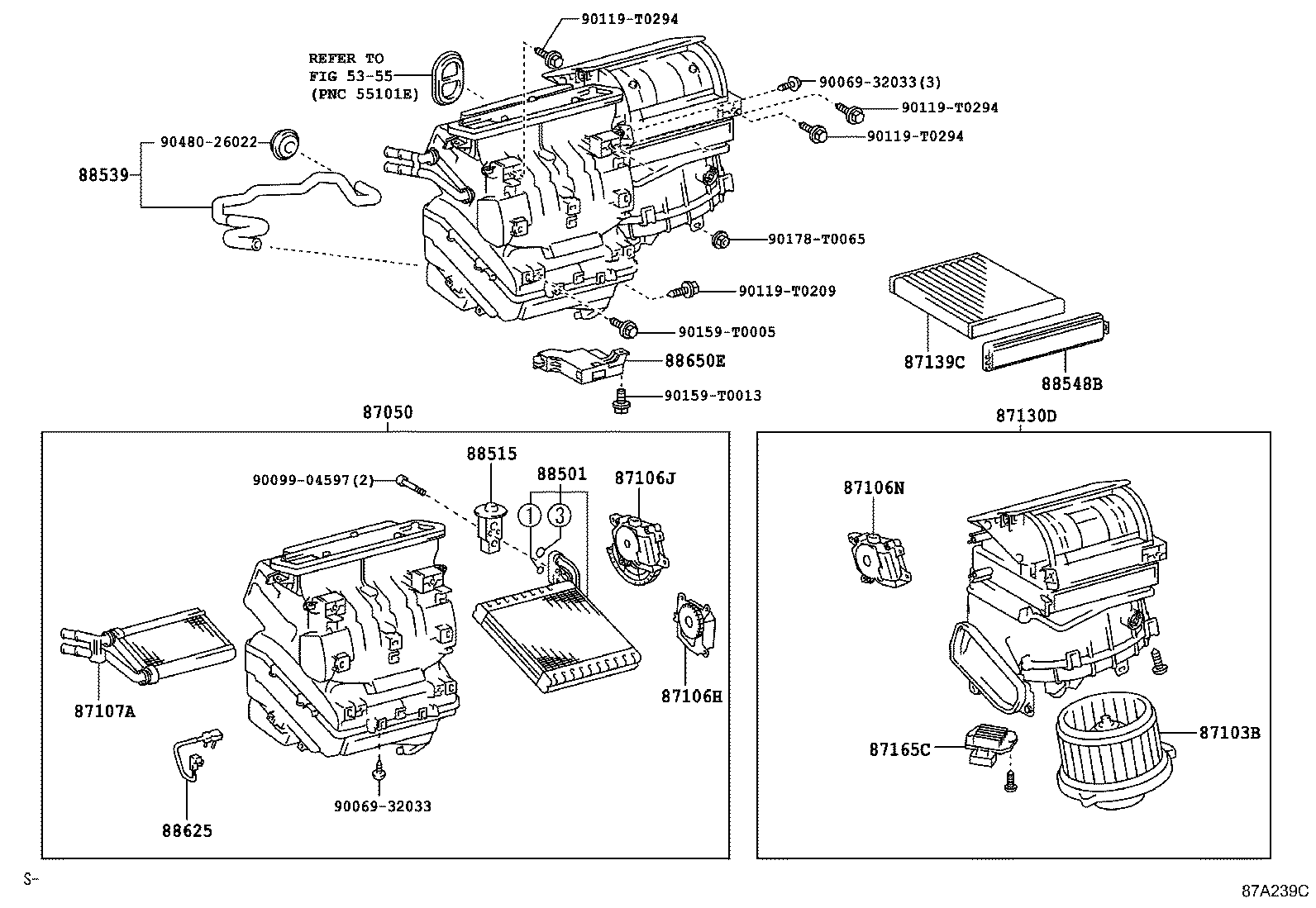

ILLUST NO. 1 OF 2(0408- )LHD
FRONT---AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-32033 | ||||
| 90099-04597 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 2(1107- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

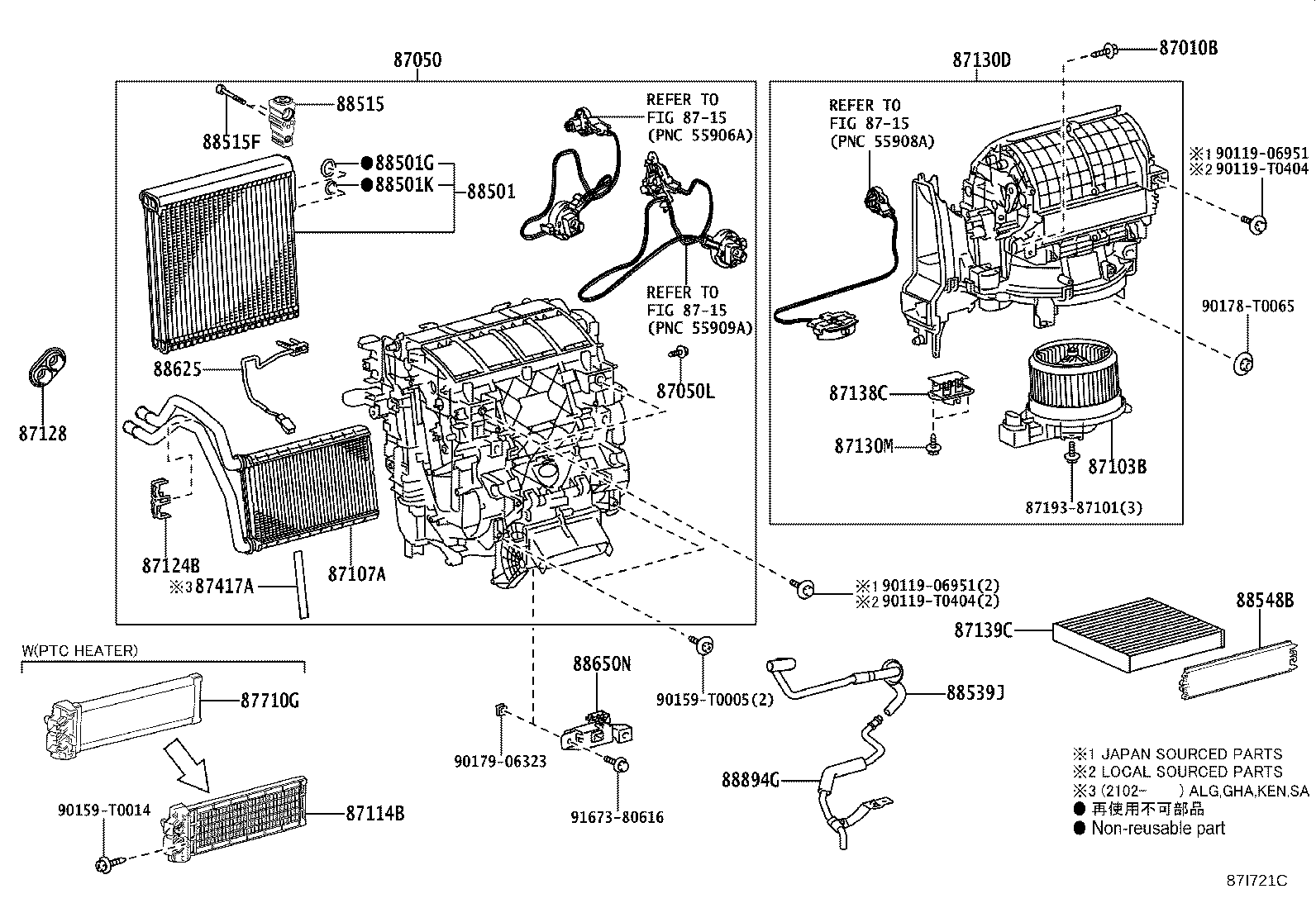

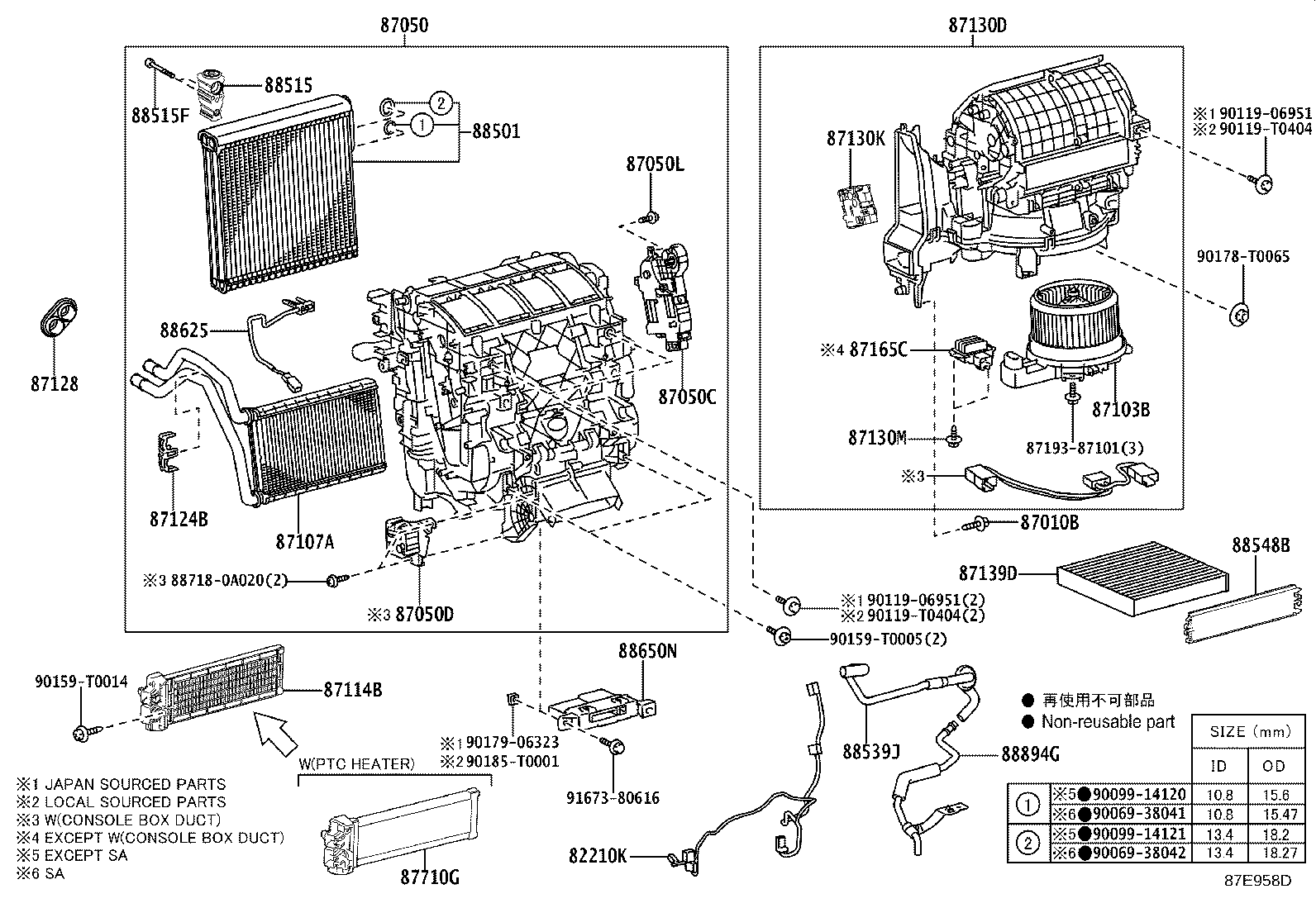

(1505- )LHD..BZAGT,GCC,GEN,LA,PH,SA,TAIW,VN
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0K050 |
KUN126..RHD..SA;GUN126,KUN126..RHD..ATM..M..GEN;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0K210 |
KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..MTM..M..LA;GUN126,136,TGN138..S..(HTWCF,IART);GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..(5F,5FC,6FC)..M..(GEN,LA) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K501 |
GUN122,125,126,135,LAN125,TGN121,126..LHD..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K761 |
GUN122,125,135,LAN125,TGN121,126..LHD..(S,X)..SA |
1 | ||
| 87130-0K601 |
GUN125,126..LHD..M..SA |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K240 |
KUN126..LHD..H..GEN;GUN126..LHD..M..(SA,VN);GUN122,KUN125..M..(GCC,SA);GUN126,KUN13#,TGN138..MTM..(H,M)..(DCR,HTWCF,IART);GUN125,KUN126,TGN126,136..LHD..(H,M)..(BZAGT,SA,VN) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DEODORANT FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0K060 |
KUN126..RHD..SA;KUN126..6F..M..LA;GUN135..6FC..S..MA;KUN126..5FC..M..(GEN,LA);GUN126..RHD..6FC..M..GEN;GUN126,136,TGN138..S..(HTWCF,IART);GUN126,TGN126,136..(5F,6FC)..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87165-0K060 |
GUN125,TGN126..LHD..TDC..M..GEN;GUN125,126,KUN12#..RHD..H..(GEN,PKN);GUN126,KUN126..LHD..(5FC,6F)..M..(SA,VN);GUN126..(SDC,TDC,TXT)..(H,M)..(ARL,PH,SA,TH);GUN136..(ADC,SDC,TDC,TXT)..(H,M)..(ARL,LA,SA,TH);GGN125,135,GUN122,125,135,KUN125,136..M..(ARL,IDN,LA,PH,SA,TH,VN) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K400 |
GUN122,125,135,LAN125,TGN126..LHD..X..SA FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650-0K440 |
KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K400 |
KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-0A020 | ||||
| 90069-38041 | ||||
| 90069-38042 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||

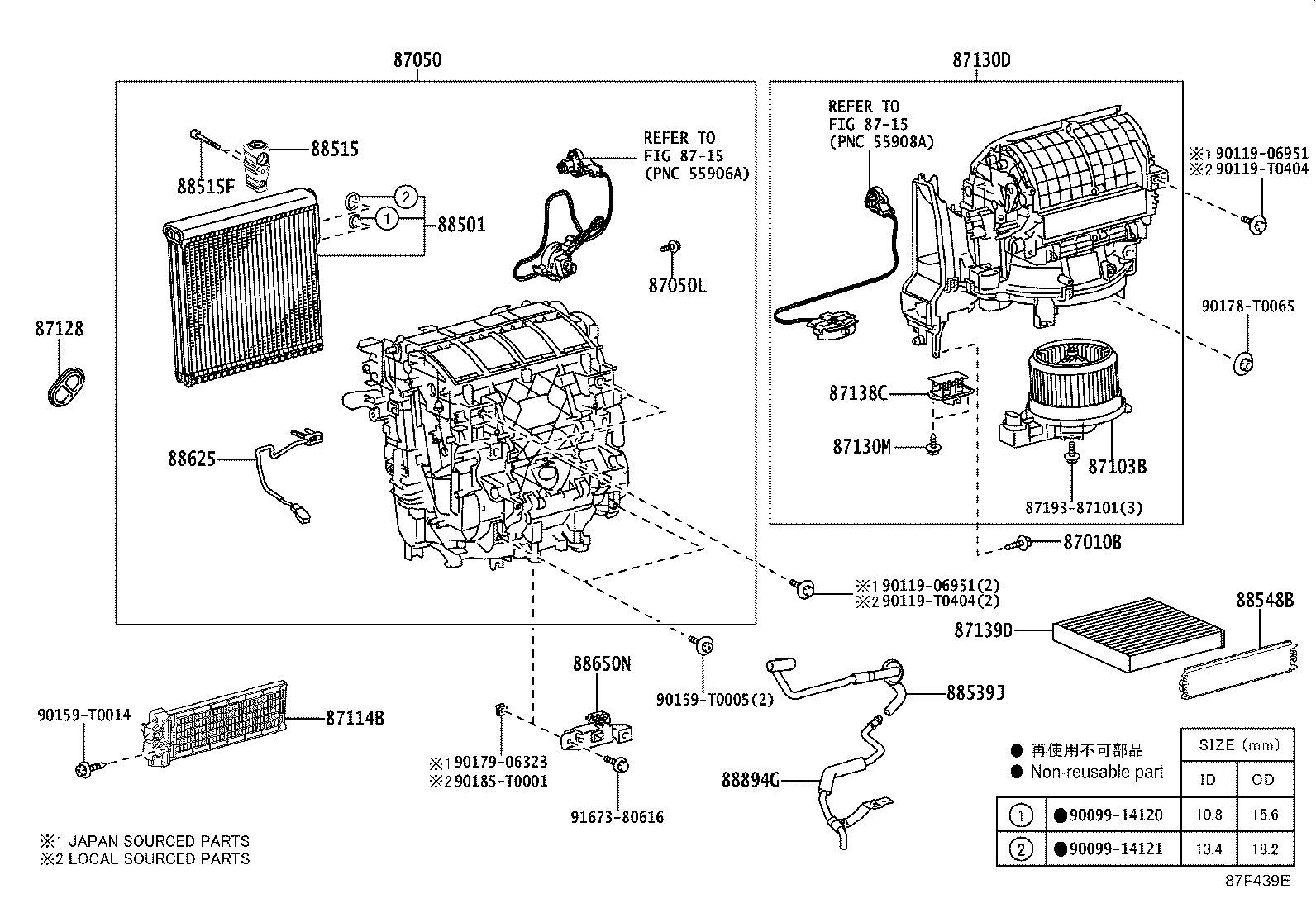

(1505- )LHD..BZAGT,GCC,GEN,LA,PH,SA,TAIW,VN
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K501 |
GUN122,125,126,135,LAN125,TGN121,126..LHD..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K761 |
GUN122,125,135,LAN125,TGN121,126..LHD..(S,X)..SA |
1 | ||
| 87130-0K601 |
GUN125,126..LHD..M..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
TGN126..M..LA;TGN121..GEN..IV3;GUN126,135..LHD..(L,S,X);GUN126..LHD..M..(GEN,LA);TGN121,126..LHD..(L,S,X)..CBU;GUN122..LHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(SDC,TDC)..(L,S,X);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);KUN125..LHD..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN122,KUN126..LHD..(ADC,TDC)..(L,M,S,X)..(GEN,LA,PH);GUN122,136,TGN13#..(ADC,ASC,TDC)..(L,S,X)..(BZAGT,GCC);KUN125..LHD..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(GEN,LA,SA);GUN112,KUN112,122,135,LAN125,TGN11#,120,136..LHD..(L,M,S,X)..(GCC,GEN,LA,SA,VN) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DEODORANT FILTER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K400 |
GUN122,125,135,LAN125,TGN126..LHD..X..SA FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650-0K440 |
KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K400 |
KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1505- )LHD..BZAGT,GCC,GEN,LA,PH,SA,TAIW,VN
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K501 |
GUN122,125,126,135,LAN125,TGN121,126..LHD..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K761 |
GUN122,125,135,LAN125,TGN121,126..LHD..(S,X)..SA |
1 | ||
| 87130-0K601 |
GUN125,126..LHD..M..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
TGN126..M..LA;TGN121..GEN..IV3;GUN126,135..LHD..(L,S,X);GUN126..LHD..M..(GEN,LA);TGN121,126..LHD..(L,S,X)..CBU;GUN122..LHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(SDC,TDC)..(L,S,X);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);KUN125..LHD..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN122,KUN126..LHD..(ADC,TDC)..(L,M,S,X)..(GEN,LA,PH);GUN122,136,TGN13#..(ADC,ASC,TDC)..(L,S,X)..(BZAGT,GCC);KUN125..LHD..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(GEN,LA,SA);GUN112,KUN112,122,135,LAN125,TGN11#,120,136..LHD..(L,M,S,X)..(GCC,GEN,LA,SA,VN) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DEODORANT FILTER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K400 |
GUN122,125,135,LAN125,TGN126..LHD..X..SA FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650-0K440 |
KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K400 |
KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

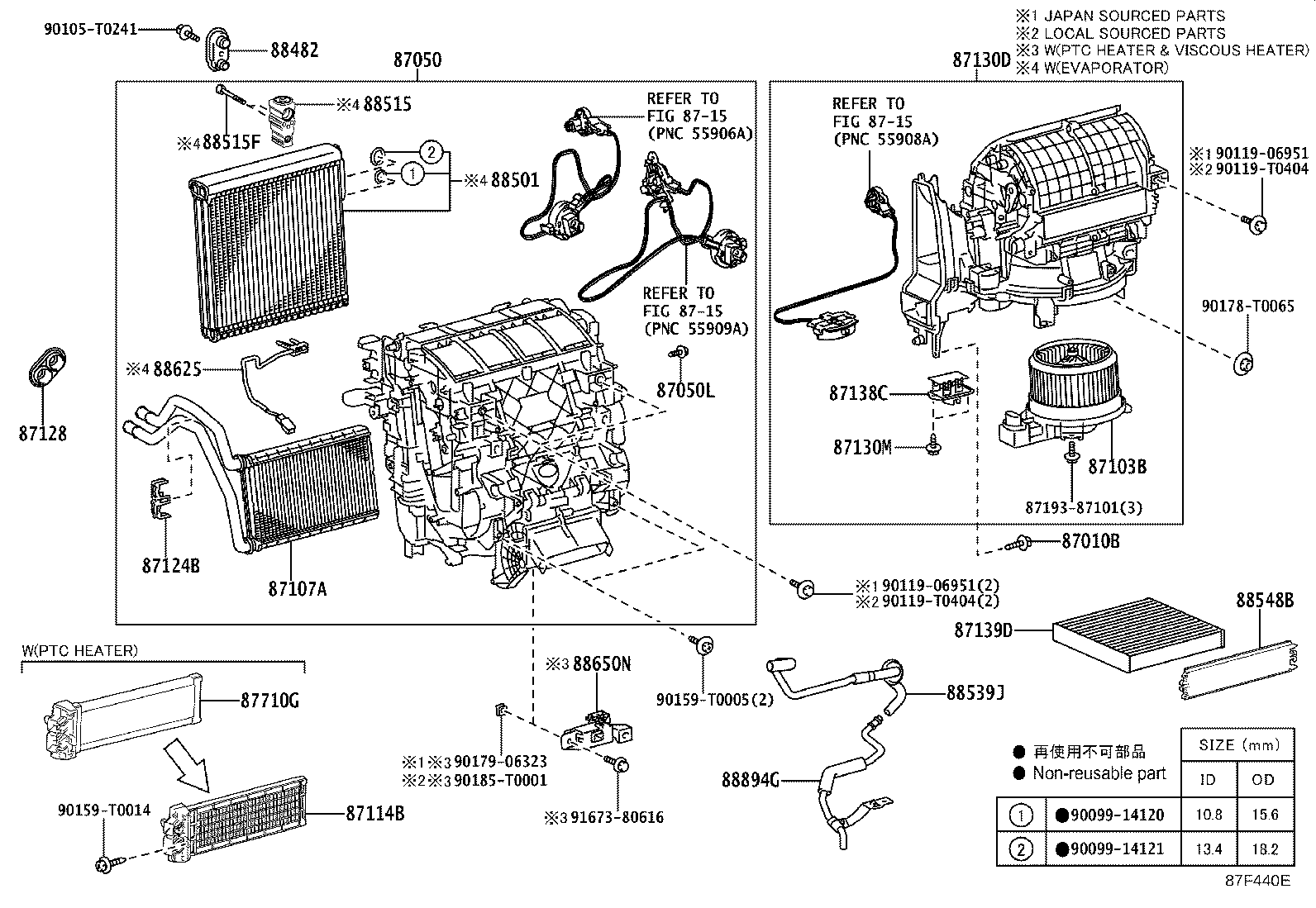

(1505- )LHD..BZAGT,GCC,GEN,LA,PH,SA,TAIW,VN
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K501 |
GUN122,125,126,135,LAN125,TGN121,126..LHD..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K761 |
GUN122,125,135,LAN125,TGN121,126..LHD..(S,X)..SA |
1 | ||
| 87130-0K601 |
GUN125,126..LHD..M..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
TGN126..M..LA;TGN121..GEN..IV3;GUN126,135..LHD..(L,S,X);GUN126..LHD..M..(GEN,LA);TGN121,126..LHD..(L,S,X)..CBU;GUN122..LHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(SDC,TDC)..(L,S,X);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);KUN125..LHD..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN122,KUN126..LHD..(ADC,TDC)..(L,M,S,X)..(GEN,LA,PH);GUN122,136,TGN13#..(ADC,ASC,TDC)..(L,S,X)..(BZAGT,GCC);KUN125..LHD..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(GEN,LA,SA);GUN112,KUN112,122,135,LAN125,TGN11#,120,136..LHD..(L,M,S,X)..(GCC,GEN,LA,SA,VN) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN121..M,S,X;TGN121..L..CBU;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT DEODORANT FILTER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN121..M,S,X;TGN121..L..CBU;GUN126..6F..H..TH;KUN125..SDC..(M,S);GUN135..(SDC,SSC)..S;GUN125..TDC..6FC..ARL;GUN122,KUN122..LHD..SSC;GUN125..ADC,ASC,TSC,TXT;GUN135,KUN125..LHD..X..SA;GUN125..LHD..(SDC,SSC,TDC)..X;GUN126..H..(BZAGT,GEN,PKN,VN);GUN122,KUN122..PSC,SDC,TDC,TSC,TXT;KUN125..ADC,ASC,SSC,SXT,TDC,TSC,TXT;GUN135..ADC,ASC,MDC,SXT,TDC,TSC,TXT;GUN125..(SDC,SSC,SXT,TDC)..(H,L,M,S);TGN120,126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN12#,135,GUN112,120,123,136,KUN112,126,13#,LAN125,TGN11#,128,138..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K400 |
GUN122,125,135,LAN125,TGN126..LHD..X..SA FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650-0K440 |
KUN126..RHD..SA;GUN135..6FC..S..MA;KUN126,TGN126..TDC..MTM..M..LA;GUN125,126,136,KUN125..(SSC,SXT,TSC)..M;GUN126,KUN126,TGN136..TDC..(5F,5FC,6FC)..M..(GEN,LA) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K400 |
KUN126..L..GEN;KUN122..LHD..SSC;KUN126..RHD..(M,S);KUN125..LHD..X..SA;TGN126..TDC..M..LA;GUN122..LHD..TDC..X;GUN125..(TSC,TXT)..CBU;GUN122..(M,S)..DCR..GEN;GUN135..LHD..(SDC,TDC,TSC)..X;GUN125..(SDC,SSC,SXT,TDC)..(L,S);GUN122..LHD..(L,S,X)..(GCC,PH,SA);KUN125..(SDC,TDC)..(L,S)..(GCC,SA);KUN126..LHD..TDC..(M,S,X)..(GEN,LA);GUN125..LHD..(SDC,SSC,TDC)..X..(LA,SA);GUN135..(MDC,SDC,SSC,SXT,TDC,TXT)..(L,S);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);GUN126..(PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN126..(SDC,SSC,TDC,TSC)..(L,S,X)..(GCC,GEN,LA,SA,TH);GUN122,136..RHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA,TH);KUN125..(SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN123,KUN122,TGN120,136..(SDC,TDC,TSC,TXT)..(L,M,S,X)..(GCC,GEN,LA,SA,TH);GGN12#,GUN112,120,KUN112,13#,LAN125,TGN11#,121,126..(SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,GCC,GEN,LA,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0241 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

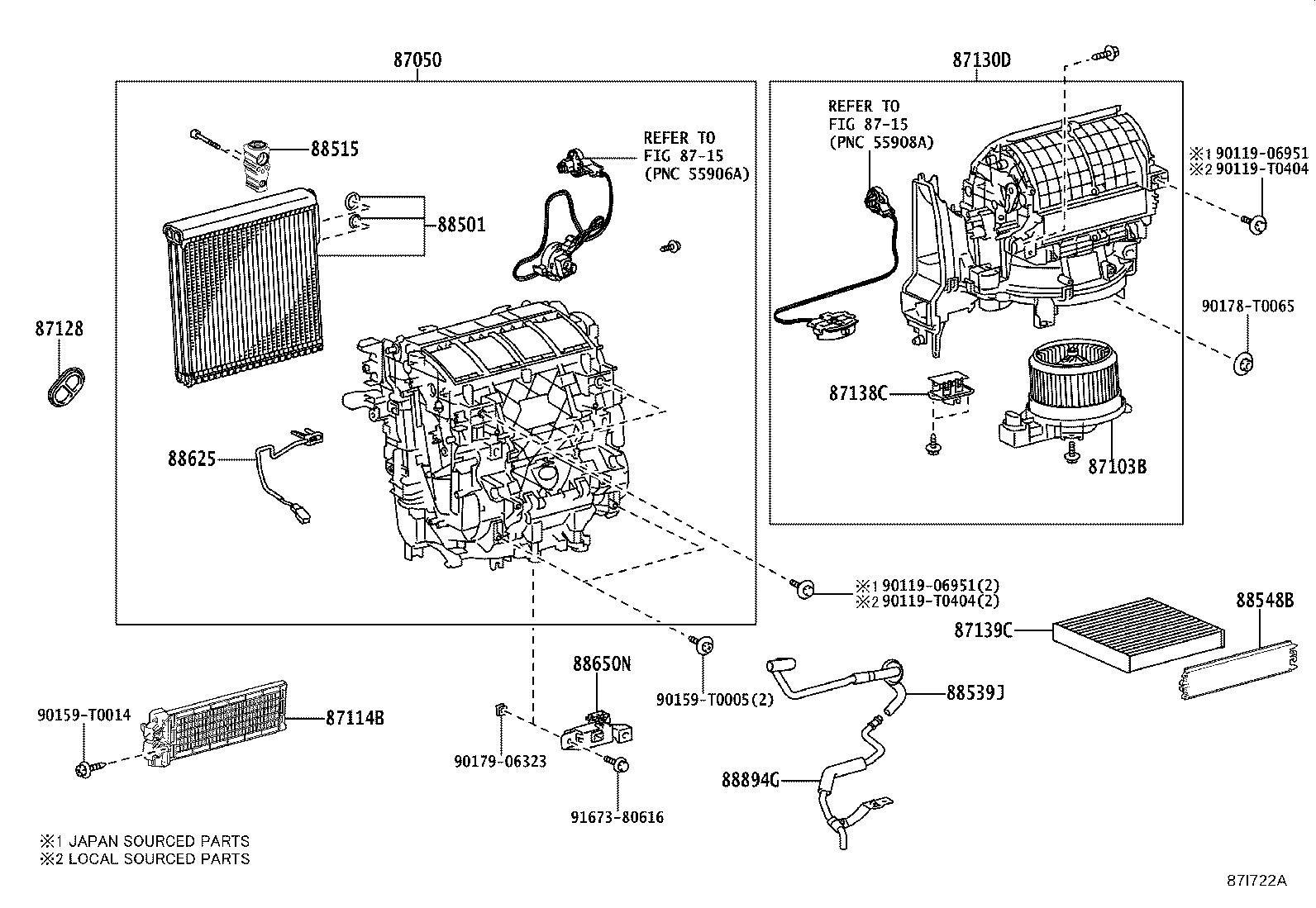

(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

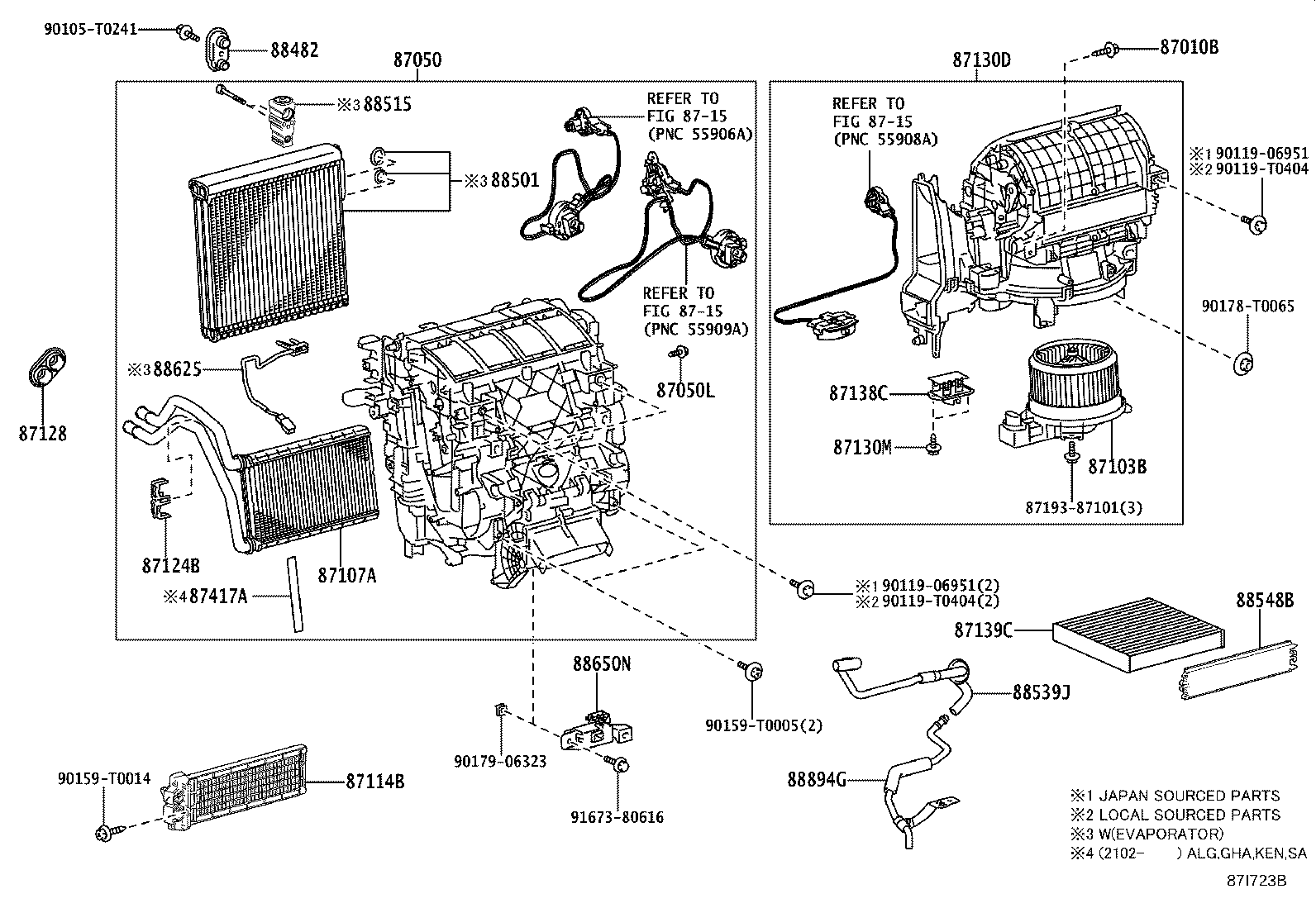

(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90105-T0241 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
