GUN125L-BNFXHN (2017)

Toyota Hilux

Production Oct 2017 - Sep 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

FRONT FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58227B 58228B 58280A 58280A 58280A 58387H 90105T0063 90105T0077 90105T0077 90105T0077 90105T0077 90115T0011 90159T0014 90159T0014 9017606027 9017606027 90189T0013 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
Common parts
90105-T0063
90105-T0077
90115-T0011
90159-T0014
90176-06027
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
Linked diagrams
5752

ILLUST NO. 3 OF 3(1505- )GUN112,120,122,123,125,13#,KUN112,125,135,LAN125,TGN11#,120,121,126,136.

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51771E 51772D 51773C 51774C 51795A 51796 90119T0422 90119T0422 90119T0438 90119T0438 90119T0438 90119T0438 9026905048
Part # Description Qty Price
Common parts
90119-T0422
90119-T0438
90269-05048

ILLUST NO. 1 OF 3(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

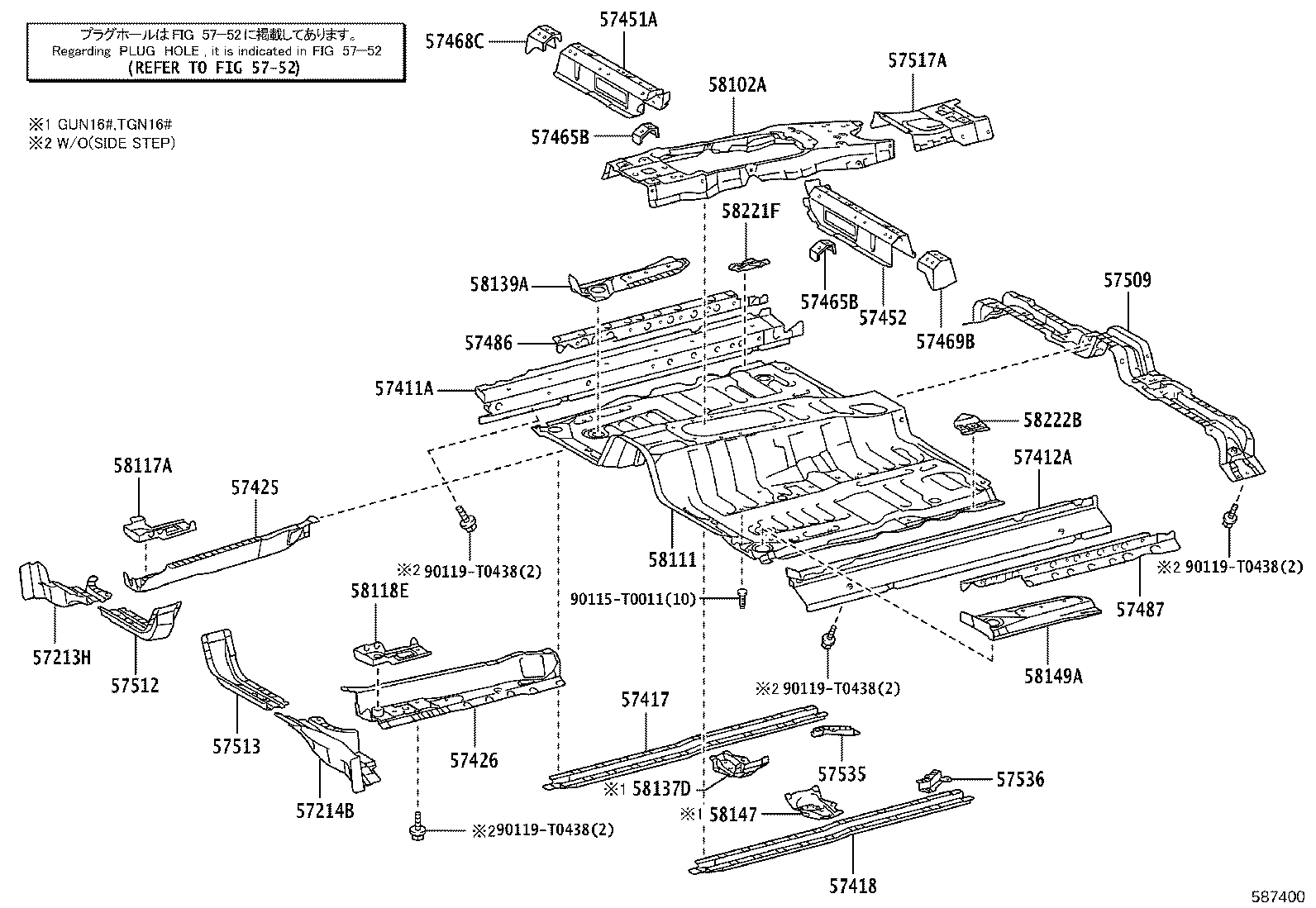

FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57465B 57468C 57469B 57486 57487 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118E 58137D 58139A 58147 58149A 58221F 58222B 90115T0011 90119T0438 90119T0438 90119T0438 90119T0438
Part # Description Qty Price
57213H - BRACKET, BODY MOUNTING, NO.2 RH
57213-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57214B - BRACKET, BODY MOUNTING, NO.2 LH
57214-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-KK020

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-KK020

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0K010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-0K010

TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138

 1
57418-0K011

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,126,13#,KUN122,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-KK010

GUN136..LA;GUN135..MA,VN;GUN126..X..LA;GUN125..S..IV3;GUN126..LHD..SA;GUN126..6FC..S..LA;KUN122..L..GCC..IV3;TGN126..TDC..S..GCC;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN122..DCR..(GEN,PKN)..CBU;GUN125..RHD..6F..S..(GEN,IDN);GUN125,126..LHD..6F..(H,L)..GEN;GUN126..6F..M..(GCC,GEN,PKN,VN);GUN122,TGN121..(6F,6FC)..(GCC,TH);GUN126,136..(L,S)..(GCC,GEN,PKN,SA);GUN125..RHD..(H,L,M,X)..(GEN,IDN,SA);GUN125..LHD..(SSC,TDC)..(M,X)..(SA,VN);GUN120,KUN122,126,TGN138..BZAGT,PKN,TH;GUN125,135..6FC..(H,M,S)..(GEN,LA,PH,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN13#..(ADC,SDC,SSC,TDC)..6F..(H,X)..(BZAGT,GEN,SA);GUN122,LAN125,TGN120,121,126..5F..(GCC,PKN,SA,TH)..IV3;GUN122,126..(PDC,SSC,SXT,TDC)..(5F,6FC)..(H,M,X)..HDCR..(GCC,GEN,PKN,SA,TAIW,VN);GGN125,GUN112,136,TGN128..(ADC,SSC,SXT,TDC,TSC)..(5F,6FC)..(H,M,X)..(BZAGT,GCC,IDN,LA,SA)

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-KK010

GUN136..LA;GUN135..MA,VN;GUN126..X..LA;GUN125..S..IV3;GUN126..LHD..SA;GUN126..6FC..S..LA;KUN122..L..GCC..IV3;TGN126..TDC..S..GCC;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN122..DCR..(GEN,PKN)..CBU;GUN125..RHD..6F..S..(GEN,IDN);GUN125,126..LHD..6F..(H,L)..GEN;GUN126..6F..M..(GCC,GEN,PKN,VN);GUN122,TGN121..(6F,6FC)..(GCC,TH);GUN126,136..(L,S)..(GCC,GEN,PKN,SA);GUN125..RHD..(H,L,M,X)..(GEN,IDN,SA);GUN125..LHD..(SSC,TDC)..(M,X)..(SA,VN);GUN120,KUN122,126,TGN138..BZAGT,PKN,TH;GUN125,135..6FC..(H,M,S)..(GEN,LA,PH,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN13#..(ADC,SDC,SSC,TDC)..6F..(H,X)..(BZAGT,GEN,SA);GUN122,LAN125,TGN120,121,126..5F..(GCC,PKN,SA,TH)..IV3;GUN122,126..(PDC,SSC,SXT,TDC)..(5F,6FC)..(H,M,X)..HDCR..(GCC,GEN,PKN,SA,TAIW,VN);GGN125,GUN112,136,TGN128..(ADC,SSC,SXT,TDC,TSC)..(5F,6FC)..(H,M,X)..(BZAGT,GCC,IDN,LA,SA)

 1
57465B - BRACKET, FRONT SEAT, INNER
57465-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
57465B - BRACKET, FRONT SEAT, INNER
57465-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
57468C - BRACKET, FRONT SEAT, OUTSIDE, RH
57468-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57469B - BRACKET, FRONT SEAT, OUTSIDE LH
57469-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-KK020

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-0K030

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-0K010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-KK020

GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM

 1
57535 - BRACE, FRONT FLOOR, RH
57535-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
57536 - BRACE, FRONT FLOOR, LH
57536-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-KK020

GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM

 1
58111 - PAN, FRONT FLOOR
58111-KK020

GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-KK010

GUN136..LA;GUN135..MA,VN;GUN126..X..LA;GUN125..S..IV3;GUN126..LHD..SA;GUN126..6FC..S..LA;KUN122..L..GCC..IV3;TGN126..TDC..S..GCC;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN122..DCR..(GEN,PKN)..CBU;GUN125..RHD..6F..S..(GEN,IDN);GUN125,126..LHD..6F..(H,L)..GEN;GUN126..6F..M..(GCC,GEN,PKN,VN);GUN122,TGN121..(6F,6FC)..(GCC,TH);GUN126,136..(L,S)..(GCC,GEN,PKN,SA);GUN125..RHD..(H,L,M,X)..(GEN,IDN,SA);GUN125..LHD..(SSC,TDC)..(M,X)..(SA,VN);GUN120,KUN122,126,TGN138..BZAGT,PKN,TH;GUN125,135..6FC..(H,M,S)..(GEN,LA,PH,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN13#..(ADC,SDC,SSC,TDC)..6F..(H,X)..(BZAGT,GEN,SA);GUN122,LAN125,TGN120,121,126..5F..(GCC,PKN,SA,TH)..IV3;GUN122,126..(PDC,SSC,SXT,TDC)..(5F,6FC)..(H,M,X)..HDCR..(GCC,GEN,PKN,SA,TAIW,VN);GGN125,GUN112,136,TGN128..(ADC,SSC,SXT,TDC,TSC)..(5F,6FC)..(H,M,X)..(BZAGT,GCC,IDN,LA,SA)

 1
58118E - BRACKET, JACK SET
58118-KK010

GUN136..LA;GUN135..MA,VN;GUN126..X..LA;GUN125..S..IV3;GUN126..LHD..SA;GUN126..6FC..S..LA;KUN122..L..GCC..IV3;TGN126..TDC..S..GCC;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN122..DCR..(GEN,PKN)..CBU;GUN125..RHD..6F..S..(GEN,IDN);GUN125,126..LHD..6F..(H,L)..GEN;GUN126..6F..M..(GCC,GEN,PKN,VN);GUN122,TGN121..(6F,6FC)..(GCC,TH);GUN126,136..(L,S)..(GCC,GEN,PKN,SA);GUN125..RHD..(H,L,M,X)..(GEN,IDN,SA);GUN125..LHD..(SSC,TDC)..(M,X)..(SA,VN);GUN120,KUN122,126,TGN138..BZAGT,PKN,TH;GUN125,135..6FC..(H,M,S)..(GEN,LA,PH,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN13#..(ADC,SDC,SSC,TDC)..6F..(H,X)..(BZAGT,GEN,SA);GUN122,LAN125,TGN120,121,126..5F..(GCC,PKN,SA,TH)..IV3;GUN122,126..(PDC,SSC,SXT,TDC)..(5F,6FC)..(H,M,X)..HDCR..(GCC,GEN,PKN,SA,TAIW,VN);GGN125,GUN112,136,TGN128..(ADC,SSC,SXT,TDC,TSC)..(5F,6FC)..(H,M,X)..(BZAGT,GCC,IDN,LA,SA)

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-KK010

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
Common parts
90115-T0011
90119-T0438
Linked diagrams
5752

ILLUST NO. 2 OF 3(1505- )GUN112,122,123,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#.

Click highlighted areas on diagram

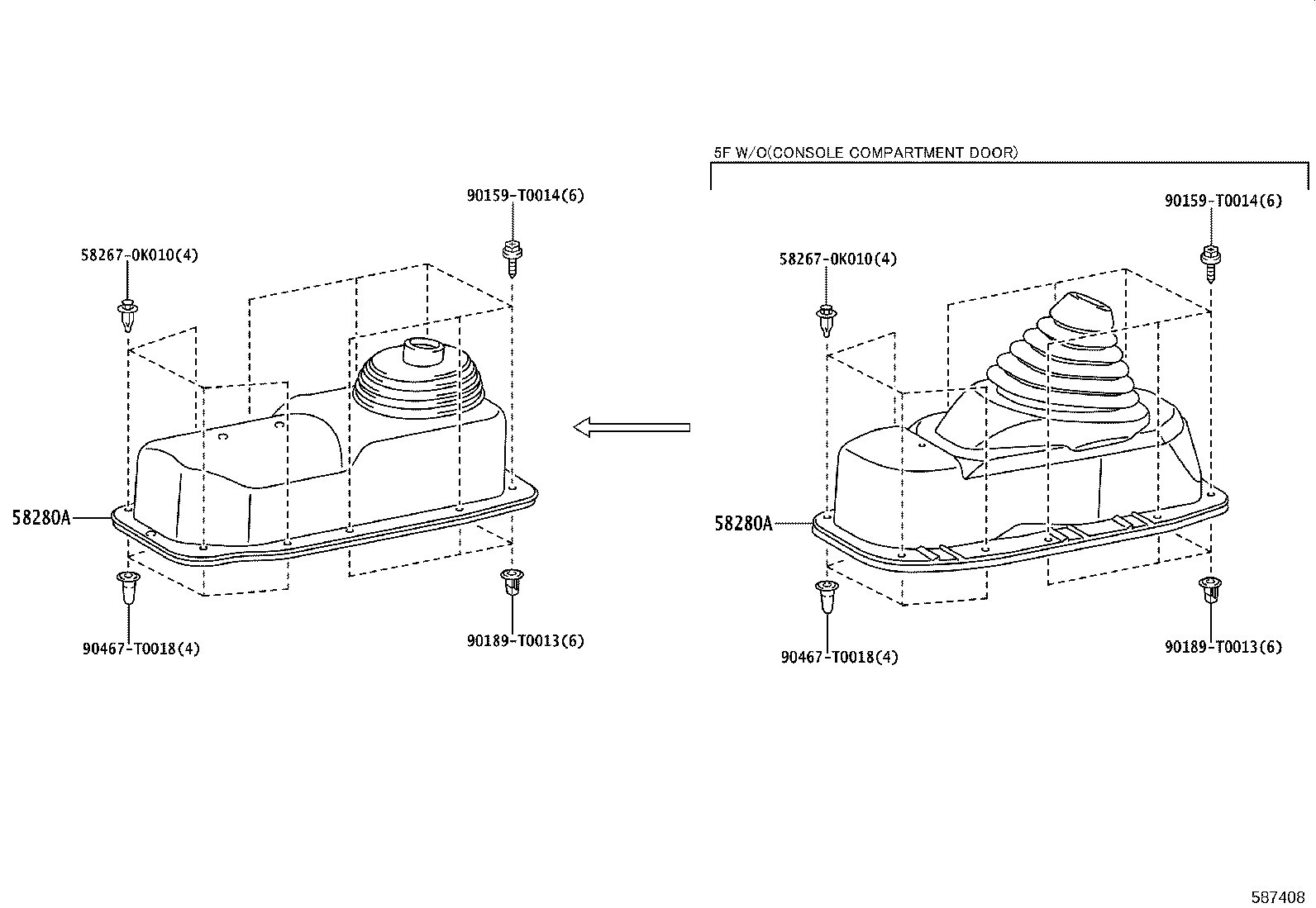

SHIFT LEVER BOOT

diagram 582670K010 582670K010 58280A 58280A 90159T0014 90159T0014 90189T0013 90189T0013 90467T0018 90467T0018
Part # Description Qty Price
58280A - BOOT ASSY, SHIFT LEVER
58280-KK070

GUN125..TSC..S..GCC;GUN126..LHD..(ASC,TSC)..6F;GUN126,KUN126..6F..(L,X)..(DCR,HDCR);GUN125,KUN125..TDC..6F..(L,X)..(GCC,GEN,LA);GUN125,KUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..6F..(L,X)

 1
58280-KK010

GUN126..6F..M..GCC;GUN125..LHD..TDC..6F..S;KUN125,126..6F..(H,M,S);GUN125..LHD..TDC..6F..M..(GCC,GEN);GUN125,KUN125..TDC..6F..(L,M)..(IDN,VN);GUN126..6F..(H,L,M,S)..(ARL,BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..RHD..(SXT,TDC,TXT)..6F..(H,M,S,X)..(GEN,IDN,SA,TH);GUN125..(ADC,SDC,SSC,SXT,TSC,TXT)..6F..(M,S)..(BZAGT,GEN,LA,SA)

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-KK070

GUN125..TSC..S..GCC;GUN126..LHD..(ASC,TSC)..6F;GUN126,KUN126..6F..(L,X)..(DCR,HDCR);GUN125,KUN125..TDC..6F..(L,X)..(GCC,GEN,LA);GUN125,KUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..6F..(L,X)

 1
58280-KK010

GUN126..6F..M..GCC;GUN125..LHD..TDC..6F..S;KUN125,126..6F..(H,M,S);GUN125..LHD..TDC..6F..M..(GCC,GEN);GUN125,KUN125..TDC..6F..(L,M)..(IDN,VN);GUN126..6F..(H,L,M,S)..(ARL,BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..RHD..(SXT,TDC,TXT)..6F..(H,M,S,X)..(GEN,IDN,SA,TH);GUN125..(ADC,SDC,SSC,SXT,TSC,TXT)..6F..(M,S)..(BZAGT,GEN,LA,SA)

 1
Common parts
58267-0K010
90159-T0014
90189-T0013
90467-T0018

ILLUST NO. 1 OF 3(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57465B 57468C 57469B 57486 57487 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118E 58137D 58139A 58147 58149A 58221F 58222B 90115T0011 90119T0438 90119T0438 90119T0438 90119T0438
Part # Description Qty Price
Common parts
90115-T0011
90119-T0438
Linked diagrams
5752

ILLUST NO. 3 OF 3(2005- )AS,KS,MS,PS,SS,TS

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51771E 51772D 51773C 51774C 51795A 51796 90119T0422 90119T0422 90119T0438 90119T0438 90119T0438 90119T0438 9026905048
Part # Description Qty Price
Common parts
90119-T0422
90119-T0438
90269-05048

ILLUST NO. 2 OF 3(2005- )MTM..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TH,VN

Click highlighted areas on diagram

SHIFT LEVER BOOT

diagram 582670K010 582670K010 58280A 58280A 90159T0014 90159T0014 90189T0013 90189T0013 90467T0018 90467T0018
Part # Description Qty Price
Common parts
58267-0K010
90159-T0014
90189-T0013
90467-T0018
