Toyota Hilux GUN125 HOOD & FRONT FENDER

Manufacturers Home
Toyota
US
HILUX
GUN125L-BNFXHN (2017)
5353 - HOOD & FRONT FENDER

GUN125L-BNFXHN (2017)

Toyota Hilux

Production Oct 2017 - Sep 2020

Engine 2GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-T0047
90119-T0004
90178-T0029
90467-07175
90950-T6002

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty	Price
Common parts
90159-60496
90189-T0014
Linked diagrams
5252

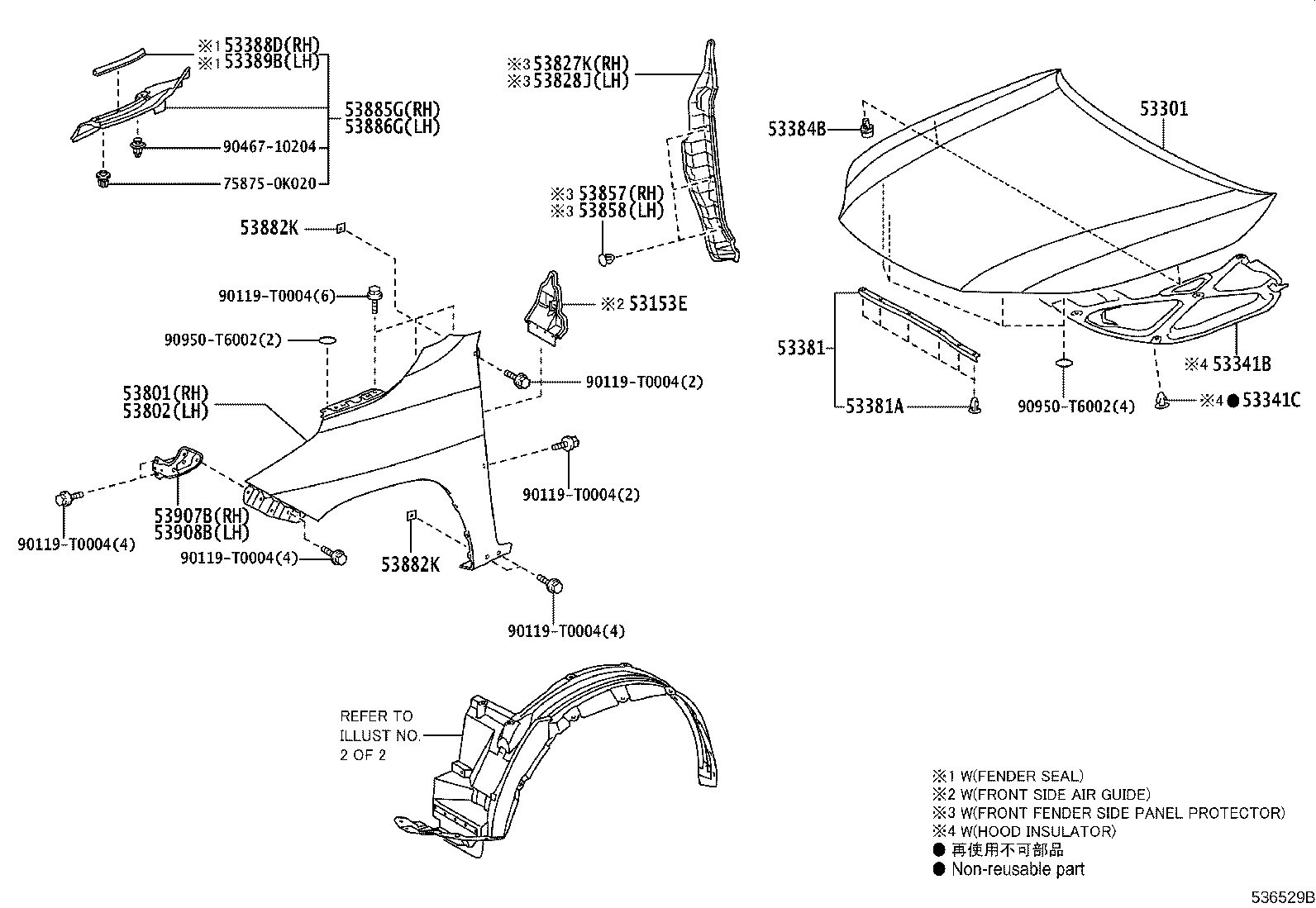

ILLUST NO. 1 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

W(RESIN BUMPER)

Part #	Description	Period	Qty
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014	TGN126..BZAGT,LA;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135,TGN120..GEN,LA,SA;TGN121..(M,X)..(ARL,GCC,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..ARL,BZAGT,GCC,GEN,LA,MA,PH,SA,TH,VN;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(BZAGT,LA,SA,TH);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K080	LAN125..SSC..X;LAN125,TGN136..SDC;GGN125,GUN122,125,126,13#,TGN120,121,126..SA	05/2015 - 11/2019	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53384B - CUSHION, HOOD, CENTER
53384-0K040	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
53801 - FENDER SUB-ASSY, FRONT RH
53811-KK030	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53811-KK020	GUN126..SSC..S;GUN126..TDC..6F..X;TGN126,136..SDC..S;GUN125..TDC..L..GEN;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125..RHD..(SDC,SSC,TSC)..6FC..(L,S);GUN135..(SDC,SSC,TDC)..(L,S)..(GEN,SA);GUN125,KUN125,135,LAN125..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53811-KK030	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53811-KK010	KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)	05/2015 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-KK030	GUN125..LHD..(SDC,SSC)..6F..S;GUN125,135,TGN136..RHD..SDC..S;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53812-KK020	GUN126..SSC..S;GUN126..TDC..6F..X;TGN126,136..SDC..S;GUN125..TDC..L..GEN;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125..RHD..(SDC,SSC,TSC)..6FC..(L,S);GUN135..(SDC,SSC,TDC)..(L,S)..(GEN,SA);GUN125,KUN125,135,LAN125..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53812-KK030	TGN126..S..SA;GUN126,KUN126..ADC..ATM..X;GUN125,135,TGN136..RHD..SDC..S;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN125,135,KUN125,135,TGN126,136..ADC..X..LA TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53812-KK010	KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)	05/2015 - 12/2999	1
53812-KK030	GUN125,KUN135..ADC..S..LA;GUN126,135..6F..(M,S)..VN;GUN126,KUN125..(ADC,SXT)..S;GUN126..(ADC,KDC,SDC,SSC,SXT)..(H,L,M);GUN135,TGN126,136..(ADC,MDC,SXT)..(L,M,S);GUN125,136,KUN125..(ADC,SDC,SSC,SXT)..(H,M);GUN125,136,TGN136..(ADC,SXT)..(L,S,X)..(BZAGT,SA);GGN125,135,KUN126,136,TGN128,138..(ADC,SDC,SSC,SXT)..(H,L,M,S)	05/2015 - 02/2021	1
53882K - SEAL, FRONT FENDER
53882-33060	GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53882K - SEAL, FRONT FENDER
53882-33060	GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53907-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53907-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53907-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53907-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53908-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53908-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53908-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53908-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
Common parts
75875-0K020
90109-T0047
90119-T0004
90178-T0029
90467-10204
90904-67036
90950-T6002

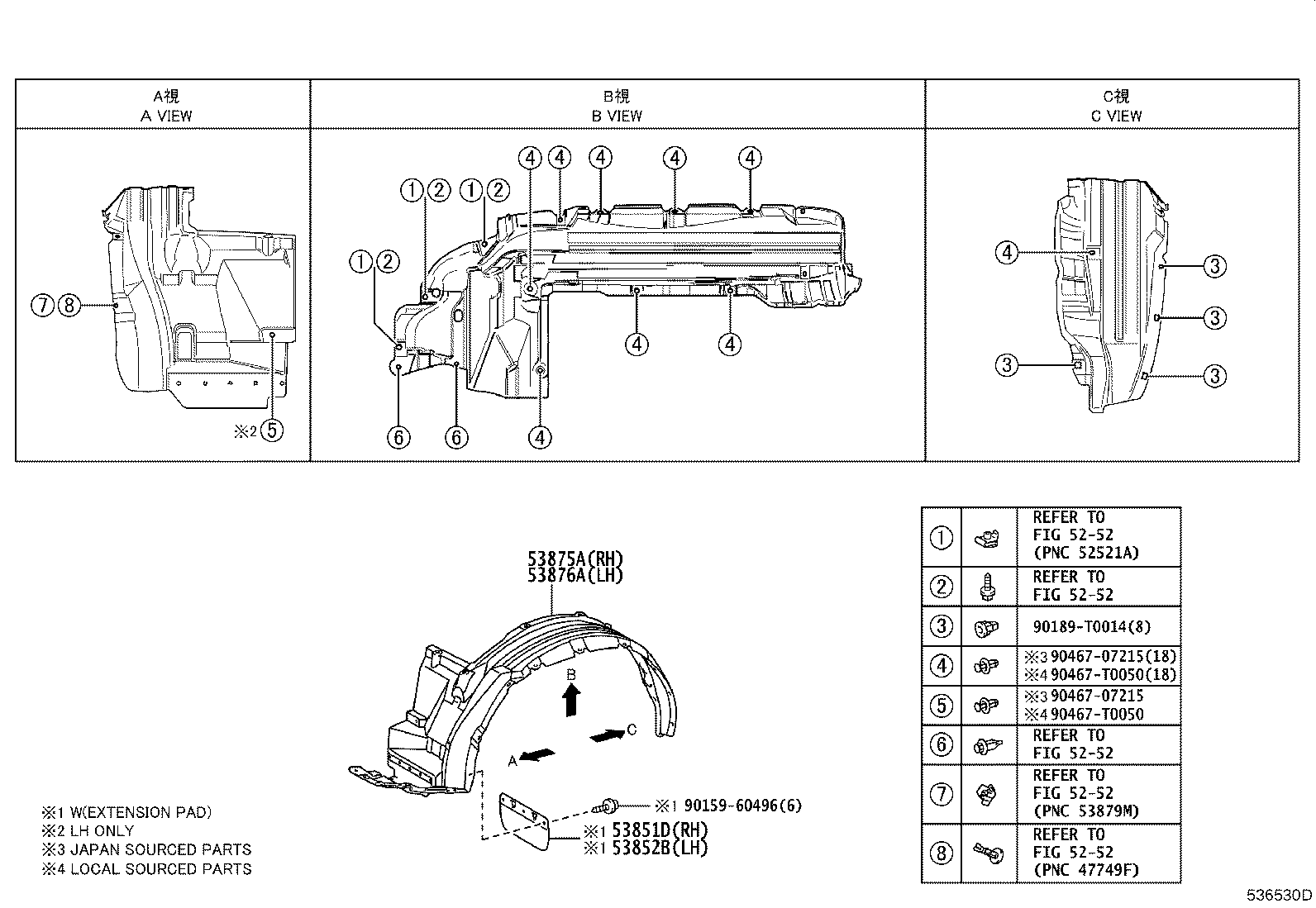

ILLUST NO. 2 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

FENDER LINER W(RESIN BUMPER)

Part #	Description	Period	Qty
53875A - LINER, FRONT FENDER, RH
53805-YP050	GUN125..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)	12/2017 - 06/2018	1
53805-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53805-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53805-YP060	GUN125..M..SA EXPORT FROM SOUTH AFRICA& PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)	08/2018 - 09/2020	1
53876A - LINER, FRONT FENDER, LH
53806-YP050	GUN125..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)	12/2017 - 06/2018	1
53806-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53806-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53806-YP060	GUN125..M..SA EXPORT FROM SOUTH AFRICA& PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)	08/2018 - 09/2020	1
Common parts
90159-60496
90189-T0014
90467-07215
Linked diagrams
5252

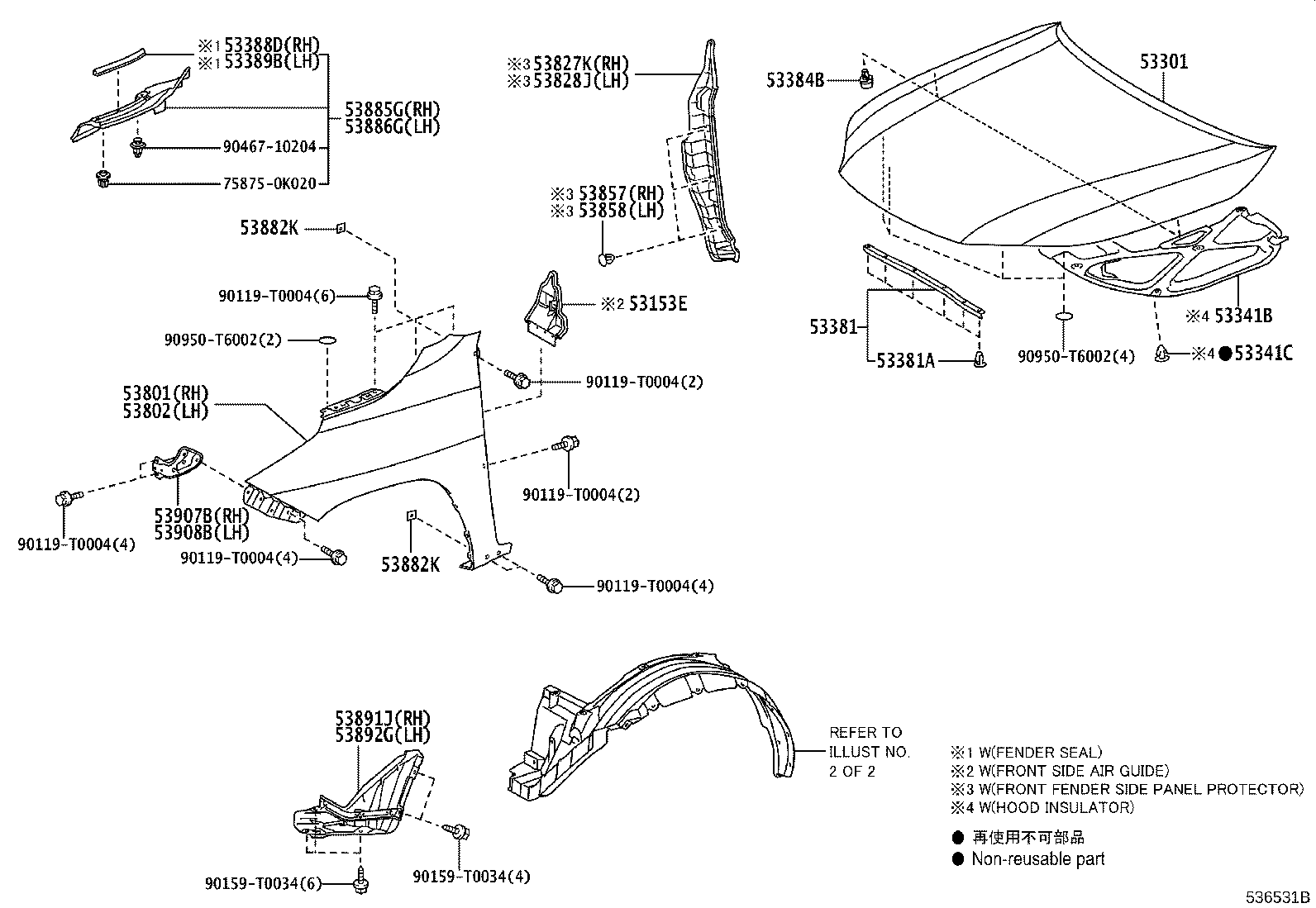

ILLUST NO. 1 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

W(STEEL BUMPER)

Part #	Description	Period	Qty
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014	TGN126..BZAGT,LA;TGN121..(L,S)..TH;TGN126..M..(GCC,GEN);GUN125..TDC..6FC..ARL;KUN135,TGN120..GEN,LA,SA;TGN121..(M,X)..(ARL,GCC,SA,TH);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN125..ARL,BZAGT,GCC,GEN,LA,MA,PH,SA,TH,VN;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(BZAGT,LA,SA,TH);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K080	LAN125..SSC..X;LAN125,TGN136..SDC;GGN125,GUN122,125,126,13#,TGN120,121,126..SA	05/2015 - 11/2019	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53384B - CUSHION, HOOD, CENTER
53384-0K040	GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	2
53801 - FENDER SUB-ASSY, FRONT RH
53811-KK030	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53811-KK020	GUN126..SSC..S;GUN126..TDC..6F..X;TGN126,136..SDC..S;GUN125..TDC..L..GEN;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125..RHD..(SDC,SSC,TSC)..6FC..(L,S);GUN135..(SDC,SSC,TDC)..(L,S)..(GEN,SA);GUN125,KUN125,135,LAN125..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53811-KK030	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53811-KK010	KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)	05/2015 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-KK030	GUN125..LHD..(SDC,SSC)..6F..S;GUN125,135,TGN136..RHD..SDC..S;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53812-KK020	GUN126..SSC..S;GUN126..TDC..6F..X;TGN126,136..SDC..S;GUN125..TDC..L..GEN;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125..RHD..(SDC,SSC,TSC)..6FC..(L,S);GUN135..(SDC,SSC,TDC)..(L,S)..(GEN,SA);GUN125,KUN125,135,LAN125..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53812-KK030	TGN126..S..SA;GUN126,KUN126..ADC..ATM..X;GUN125,135,TGN136..RHD..SDC..S;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN125,135,KUN125,135,TGN126,136..ADC..X..LA TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53812-KK010	KUN122..L..GCC;GUN125,135..S..PH;GUN125..TSC..L..GCC;KUN122..(L,S,X)..(GEN,PKN,SA);KUN125,TGN126..LHD..(SDC,SSC)..S;KUN125..LHD..(SDC,TSC,TXT)..(L,X);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT)..(L,S,X);GUN122,TGN136..(ADC,TXT)..5F..X..(LA,TH);TGN121,136..(ASC,SDC,SSC,TDC,TSC)..(L,X);GGN120,GUN123,LAN125,TGN110,120..ARL,GCC,IDN,SA;GUN125,135,KUN135..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN122,TGN136..(SDC,TDC,TSC)..S..(DCR,HTWC)..(GEN,SA);GUN112,KUN112,126,TGN111,126..(L,X)..(GCC,GEN,IDN,LA,PKN,SA);GUN122,126,KUN125..(ADC,ASC,TDC)..(L,X)..(ARL,GCC,GEN,IDN,LA,PH);GUN125,126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,TH)	05/2015 - 12/2999	1
53812-KK030	GUN125,KUN135..ADC..S..LA;GUN126,135..6F..(M,S)..VN;GUN126,KUN125..(ADC,SXT)..S;GUN126..(ADC,KDC,SDC,SSC,SXT)..(H,L,M);GUN135,TGN126,136..(ADC,MDC,SXT)..(L,M,S);GUN125,136,KUN125..(ADC,SDC,SSC,SXT)..(H,M);GUN125,136,TGN136..(ADC,SXT)..(L,S,X)..(BZAGT,SA);GGN125,135,KUN126,136,TGN128,138..(ADC,SDC,SSC,SXT)..(H,L,M,S)	05/2015 - 02/2021	1
53882K - SEAL, FRONT FENDER
53882-33060	GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53882K - SEAL, FRONT FENDER
53882-33060	GUN125..TDC..6FC..ARL;KUN126,135..GEN,LA,PKN,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,120,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,136,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	6
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53907-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53907-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH
53907-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53907-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53907-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53908-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53908-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH
53908-KK020	GUN125,135..RHD..SDC..S;TGN136..(SDC,TDC)..(GEN,SA);GUN125..LHD..(SDC,SSC)..6F..S;GUN125,KUN125..RHD..TDC..6F..L..GEN;KUN125,135,LAN125,TGN126..(SDC,SSC)..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 09/2020	1
53908-KK020	TGN126..S..SA;GUN126..TDC..6F..X;GUN125..TDC..L..GEN;GUN125,TGN136..RHD..SDC..S;KUN125..(ADC,TDC)..(L,X)..(GEN,LA);GUN135..(SDC,TDC)..(L,S)..(GEN,SA);GUN125,135,KUN135..(ADC,TDC)..X..LA;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..MTM..S;GUN126,KUN126,TGN126,136..(ADC,TDC)..(5F,5FC,6FC)..(L,X)..(GEN,LA) TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)	05/2015 - 10/2020	1
53908-KK010	TGN126..L,X;TGN136..SDC;GUN125..TSC..LA;TGN136..ADC..X..LA;TGN136..(ASC,TDC,TSC)..X;GUN125..RHD..(SDC,SSC,TSC);GUN125,135..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..RHD..(SDC,SSC,TSC,TXT);KUN125..LHD..(SDC,TSC,TXT)..(L,X);KUN125,TGN126..LHD..(SDC,SSC,TSC)..S;GUN126,135,KUN135..(ADC,TDC)..(L,X)..(GEN,LA);GUN126,13#,KUN135..(ASC,PDC,PSC,SDC,SSC,TSC)..(L,S,X);GUN125..LHD..(ASC,SDC,SSC,TSC)..(L,S,X)..(BZAGT,GCC,SA);GUN125,KUN126..(ADC,ASC,PDC,PSC,TDC)..(L,X)..(GCC,GEN,LA,PKN);GGN120,GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121..5F,6FC	05/2015 - 12/2999	1
Common parts
75875-0K020
90119-T0004
90159-T0034
90467-10204
90950-T6002

ILLUST NO. 2 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

FENDER LINER W(STEEL BUMPER)

Part #	Description	Period	Qty
53875A - LINER, FRONT FENDER, RH
53805-YP050	GUN125..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)	12/2017 - 06/2018	1
53805-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53805-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53805-YP060	GUN125..M..SA EXPORT FROM SOUTH AFRICA& PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)	08/2018 - 09/2020	1
53876A - LINER, FRONT FENDER, LH
53806-YP050	GUN125..H PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)	12/2017 - 06/2018	1
53806-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53806-0K170	TGN126..S..SA;GUN125..LHD..SSC..S;GUN125..RHD..SDC..6F..S;GUN135,LAN125,TGN136..SDC..MTM..S TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)	08/2018 - 09/2020	1
53806-YP060	GUN125..M..SA EXPORT FROM SOUTH AFRICA& PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)	08/2018 - 09/2020	1
Common parts
90189-T0014
90467-07215

ILLUST NO. 1 OF 2(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(RESIN BUMPER)

Part #	Description	Period	Qty	Price
Common parts
75875-0K020
90119-T0004
90467-10204
90950-T6002

ILLUST NO. 2 OF 2(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FENDER LINER,W(RESIN BUMPER)

Part #	Description	Period	Qty	Price
Common parts
90159-60496
90189-T0014
90467-07215
90467-T0050
Linked diagrams
5252

ILLUST NO. 1 OF 2(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(STEEL BUMPER)

Part #	Description	Period	Qty	Price
Common parts
75875-0K020
90119-T0004
90159-T0034
90467-10204
90950-T6002

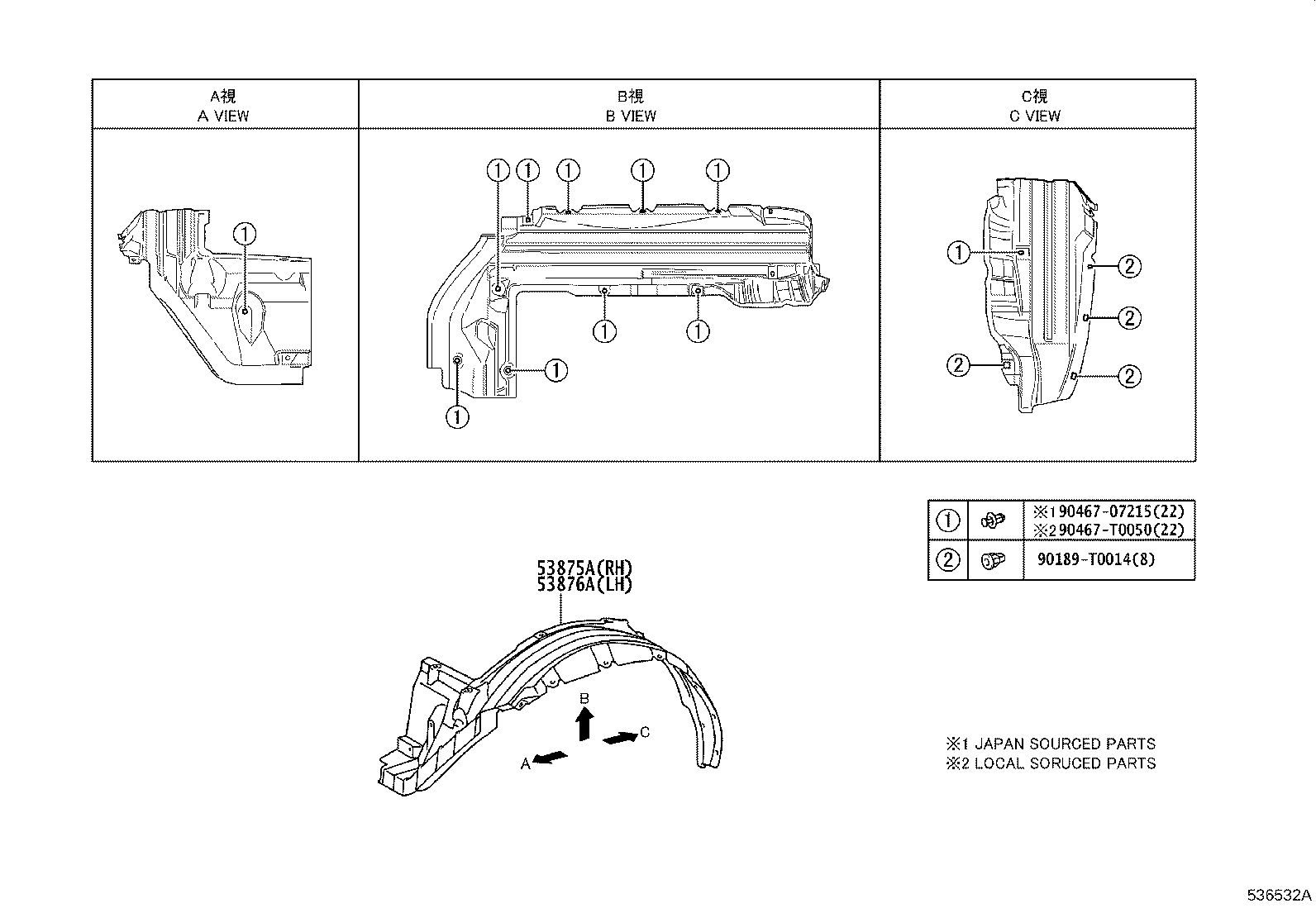

ILLUST NO. 2 OF 2(2005- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FENDER LINER,W(STEEL BUMPER)

Part #	Description	Period	Qty	Price
Common parts
90189-T0014
90467-07215
90467-T0050
