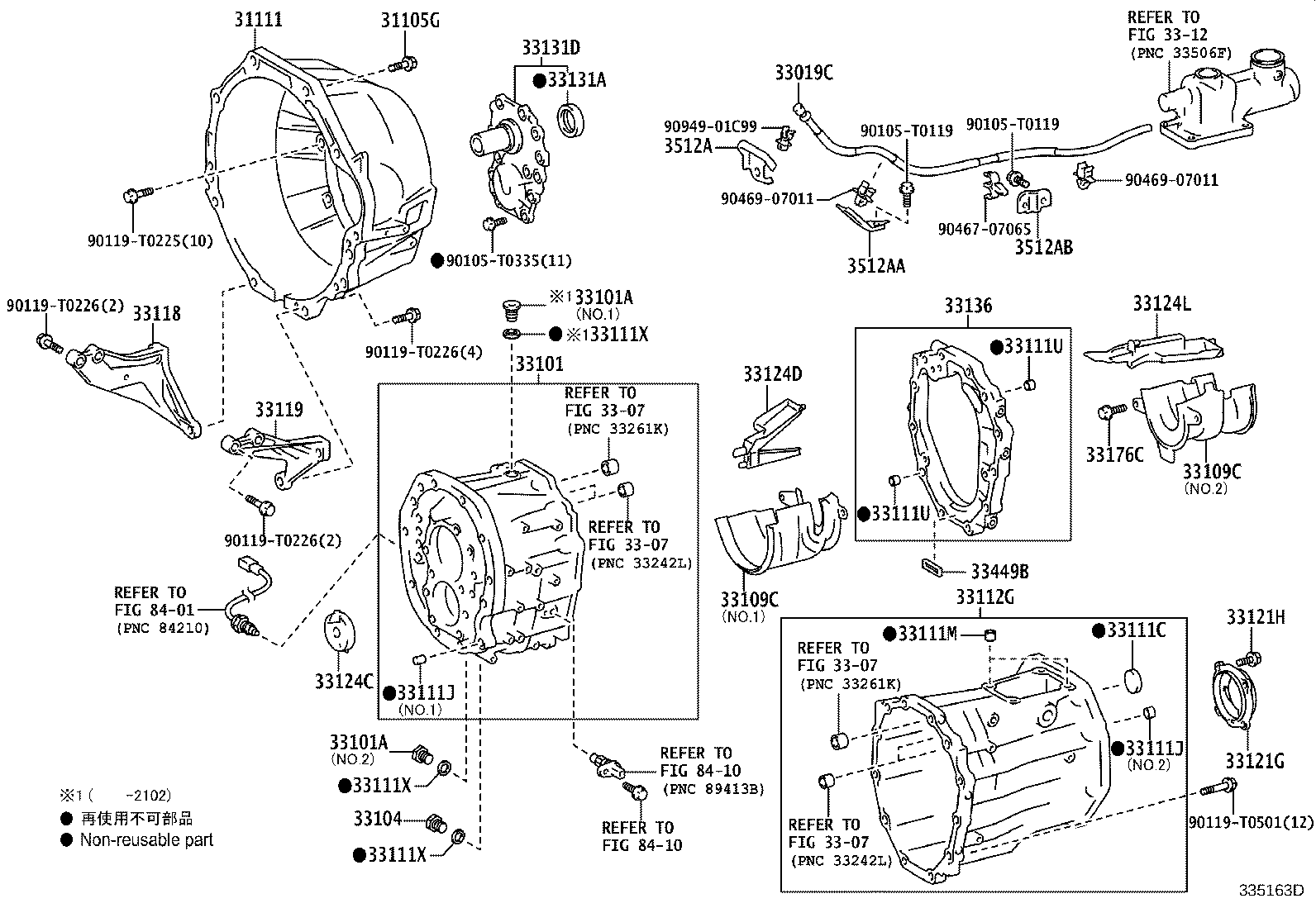

GUN125L-BNFXHN (2017)
Toyota Hilux
(1505- )GUN125,126..6F
RC60F,RC61F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-T0227 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,LAN125..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K150 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 31111-0K140 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-0K100 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-0K080 |
GUN126..6F..(L,S,X);GUN136..6F..S..(BZAGT,SA);GUN126,136..6F..M..(GEN,LA,PKN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F;GUN122,135,KUN125,126,13#..6F..(BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TH,VN) TYPE B:REFER 33-01 |
1 | ||
| 33101-0K070 |
GUN126,136..6F..M..(GEN,LA);GUN122,135,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F;GUN126,136..6F..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18032 |
GUN122,126,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 90341-18032 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 90341-18033 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18032 |
GUN122,126,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 90341-18032 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 90341-18033 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GUN125..S..IV3;TGN136..ADC..M;GUN126..ADC..6F..X;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN135..(L,X)..(SA,VN);GUN136..(SDC,TSC)..6F..S;TGN126,138..5F..M..BZAGT;GUN125..RHD..TDC..M..GEN;GUN126..6F..M..(GCC,GEN,PKN);TGN121,126..(TDC,TSC,TXT)..5F;GUN125,126..LHD..6F..(H,L)..GEN;GUN112,122,123,KUN112,122,TGN11#;GUN125..RHD..6F..(H,S)..(GEN,IDN);GUN135..6F..(H,S,X)..(ARL,GEN,MA);TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH);GUN126,TGN120..MTM..(L,S)..(GCC,GEN,PKN,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN125,136..(ADC,TDC)..6F..(L,M)..(IDN,LA,VN);GUN125,136..LHD..(ADC,SSC)..6F..(H,X)..(BZAGT,SA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT)..6F..(L,M,X)..(GEN,IDN,SA) TYPE A:REFER 33-01 |
1 | ||
| 90341-18034 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 33109-0K040 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 33109-0K040 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-30004 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=16,OD=12,T/P A:SEE 33-01,NO.1 |
2 | ||
| 90250-11003 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=11,OD=11,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-T0020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=16,OD=12,T/P B:SEE 33-01,NO.1 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=16,OD=12,T/P A:SEE 33-01,NO.1 |
2 | ||
| 90250-11003 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=11,OD=11,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-T0020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=16,OD=12,T/P B:SEE 33-01,NO.1 |
2 | ||
| 33111M - PIN, RING(FOR TRANSMISSION CASE) | ||||
| 90253-11021 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN122,126,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0025 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE A:REFER 33-01 |
3 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN122,126,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0025 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE A:REFER 33-01 |
3 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN122,126,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0025 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE A:REFER 33-01 |
3 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-0K010 |
GUN126..BZAGT..IV3;GUN126..6F..M..IART;GUN125..(ADC,ASC,SDC,SSC,SXT,TXT)..6F;GUN125..(TDC,TSC)..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..(ADC,ASC,TXT)..6F..(L,S,X)..(ARL,BZAGT)..CBU;GUN126,KUN125,126..6F..(GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN) TYPE A:REFER 33-01 |
1 | ||
| 33102-0K020 |
GUN126..BZAGT..IV3;GUN126..6F..M..IART;GUN125..(ADC,ASC,SDC,SSC,SXT,TXT)..6F;GUN125..(TDC,TSC)..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..(ADC,ASC,TXT)..6F..(L,S,X)..(ARL,BZAGT)..CBU;GUN126,KUN125,126..6F..(GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN) TYPE B:REFER 33-01 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN112,12#,13#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33121-0K030 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-T0500 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN125,126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0K070 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K070 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33124-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-0K090 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K090 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0066 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 90311-T0066 |
GUN126..BZAGT..IV3;GUN126..TDC..6F..(H,M,X);GUN126..TDC..6F..S..(GEN,LA);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TSC,TXT)..6F..CBU;GUN122,13#,KUN125,126,13#..6F..(BZAGT,GCC,GEN,IDN,LA,MA,PH,PKN,SA,TH,VN) TYPE B:REFER 33-01 |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33108-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33108-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33106-0K010 |
GUN122,126,13#,KUN125,126,13#..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125..(ADC,ASC,KDC,KSC,SDC,SSC,SXT,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33106-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-T0334 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
2 | ||
| 90105-T0334 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
2 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 33449-60010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 3512A - BRACKET, TRANSMISSION BREATHER, NO.1 | ||||
| 3512A-0K010 |
KUN122..SSC;GUN122,125,126,13#..MTM..SA |
1 | ||
| 3512AA - BRACKET, TRANSMISSION BREATHER, NO.2 | ||||
| 3512A-0K030 |
GUN125,126,13#..6F..(KEN,SA) |
1 | ||
| 3512AB - BRACKET, TRANSMISSION BREATHER, NO.3 | ||||
| 3512A-0K050 |
GUN125,126,13#..6F..SA |
1 | ||
| Common parts | ||||
| 90105-T0119 | ||||
| 90105-T0335 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0501 | ||||
| 90467-07065 | ||||
| 90469-07011 | ||||
| 90949-01C99 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 3312 | ||||
| 8401 | ||||
| 8410 | ||||
(2006- )GUN125,126..6F..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TH,VN
RC6#F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0119 | ||||
| 90105-T0335 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0501 | ||||
| 90467-07065 | ||||
| 90469-07011 | ||||
| 90949-01C99 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 3312 | ||||
| 8401 | ||||
| 8410 | ||||
