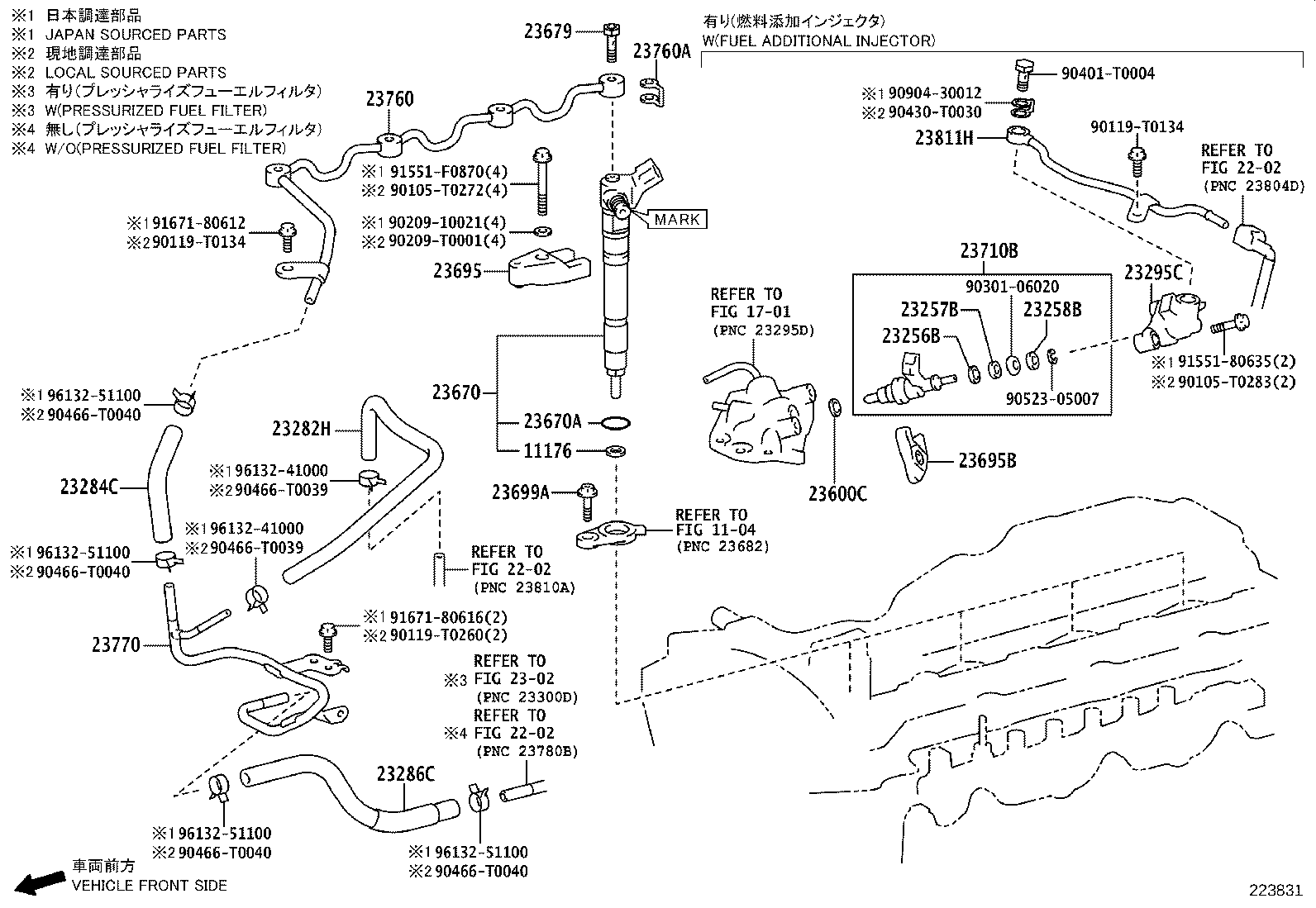

GUN125L-BNFXHN (2017)
Toyota Hilux
(1505- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-33010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
4 | ||
| 11176-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(ADC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..HDCR;1GDFTV,2GDFTV..GUN112,120,122,123,13#..(ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(DCR,HDCR) (L) |
4 | ||
| 23282H - HOSE, FUEL, NO.4 | ||||
| 23282-0E010 |
1GDFTV,2GDFTV..GUN112,12#,13# *582 |
1 | ||
| 23282-0E010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
1 | ||
| 23282-0E011 |
2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN125..LHD..SSC..S;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..LHD..(ASC,SDC)..(M,X)..CBU;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT) *272,MARK=WHITE |
1 | ||
| 23282-0E011 |
1GDFTV,2GDFTV..GUN112,12#,13# *582,MARK=WHITE |
1 | ||
| 23282-0E012 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582,MARK=PINK |
1 | ||
| 23284C - HOSE, FUEL, NO.5 | ||||
| 23284-11010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
1 | ||
| 23284-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
1 | ||
| 23286C - HOSE, FUEL, NO.6 | ||||
| 23286-11010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
1 | ||
| 23286-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV,2GDFTV..GUN112,120,122,123,126,13#;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT *582 |
1 | ||
| 23286-0E011 |
1GDFTV,2GDFTV..GUN12#,13#..BZAGT,LA,PKN,SA *582 |
1 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09430 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
4 | ||
| 23670-09430 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN112,120,122,135..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 90401-06002 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) (J) |
4 | ||
| 90401-T0007 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) (L) |
4 | ||
| 90401-T0007 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-11010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
4 | ||
| 23695-11010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (J) |
4 | ||
| 23695-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT (L) |
4 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-11010 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) (J) |
4 | ||
| 23699-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT THA SOURCED PARTS |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0E010 |
2GDFTV..GUN125..LHD..SSC..S;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125..LHD..SDC..(M,X);2GDFTV..GUN125,135..RHD..6F..S..SA..CBU *272 |
1 | ||
| 23760-0E010 |
1GDFTV..GUN126..6F..IV3;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN126..L..BZAGT;2GDFTV..GUN125..6FC..CBU;2GDFTV..GUN122..6F..(L,S,X);1GDFTV..GUN126..6FC..(H,M,S,X);2GDFTV..GUN125..6F..(L,M)..GCC;2GDFTV..GUN122..DCR..(GEN,PH,SA);2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..TDC..6F..S..(GCC,VN);2GDFTV..GUN125..(ASC,TXT)..(M,S,X)..CBU;1GDFTV,2GDFTV..GUN112,120,123..GCC,IDN,TH;2GDFTV..GUN122,135..(5F,6FC)..(L,S)..(GCC,VN);1GDFTV..GUN126..(ASC,TDC)..6F..(ARL,BZAGT)..CBU;2GDFTV..GUN135..(ASC,TDC)..(L,M,X)..(BZAGT,VN)..CBU;1GDFTV..GUN126..6F..HDCR..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);1GDFTV,2GDFTV..GUN13#..(ADC,SDC,SSC,SXT,TDC,TSC,TXT)..HDCR..(ARL,BZAGT,GEN,LA,PH,SA,TH);2GDFTV..GUN125..(ADC,MDC,MSC,SDC,SSC,SXT,TDC,TSC)..6F..(ARL,BZAGT,GEN,IDN,LA,MA,PH,SA,TH) THA SOURCED PARTS |
1 | ||
| 23760-0E011 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,120,122,123,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 23760A - GASKET | ||||
| 90430-06013 |
2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X) *272 |
4 | ||
| 90430-T0017 |
2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN112,120,122,123,126,136..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *582 |
4 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-0E010 |
2GDFTV..GUN125..LHD..SSC..S;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125..LHD..SDC..(M,X);2GDFTV..GUN125,135..RHD..6F..S..SA..CBU *272 |
1 | ||
| 23770-0E010 |
2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV,2GDFTV..GUN112,120,122,123,126,13#;2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);2GDFTV..GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT *582 |
1 | ||
| 23770-0E011 |
1GDFTV,2GDFTV..GUN12#,13#..BZAGT,LA,PKN,SA *582 |
1 | ||
| Common parts | ||||
| 90105-T0272 | ||||
| 90105-T0283 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-06020 | ||||
| 90401-12097 | ||||
| 90401-T0004 | ||||
| 90430-T0030 | ||||
| 90466-T0039 | ||||
| 90466-T0040 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80635 | ||||
| 91551-F0870 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 2202 | ||||
| 2302 | ||||
(2006- )1GDFTV,2GDFTV..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0272 | ||||
| 90105-T0283 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-06020 | ||||
| 90401-T0004 | ||||
| 90430-T0030 | ||||
| 90466-T0039 | ||||
| 90466-T0040 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80635 | ||||
| 91551-F0870 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 2202 | ||||
| 2302 | ||||
