GUN122R-BPMLYP3 (2020)

Toyota Hilux

Production Jul 2020 - Sep 9999
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

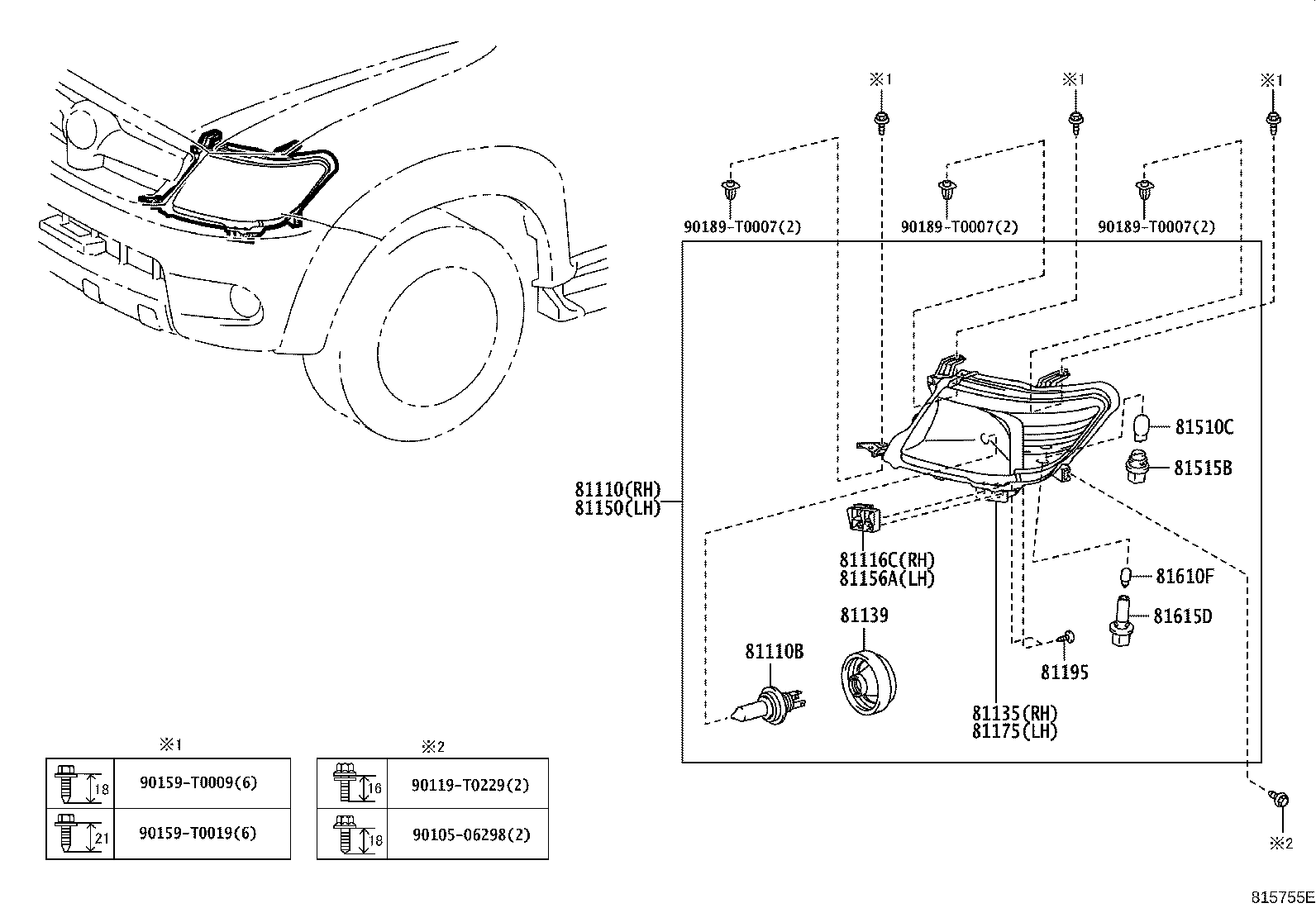

(1107- )

Click highlighted areas on diagram

diagram 81110 81110B 81116C 81135 81139 81150 81156A 81175 81195 81510C 81515B 81610F 81615D 9010506298 90119T0229 90159T0009 90159T0019 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
Common parts
90105-06298
90119-T0229
90159-T0009
90159-T0019
90189-T0007

(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

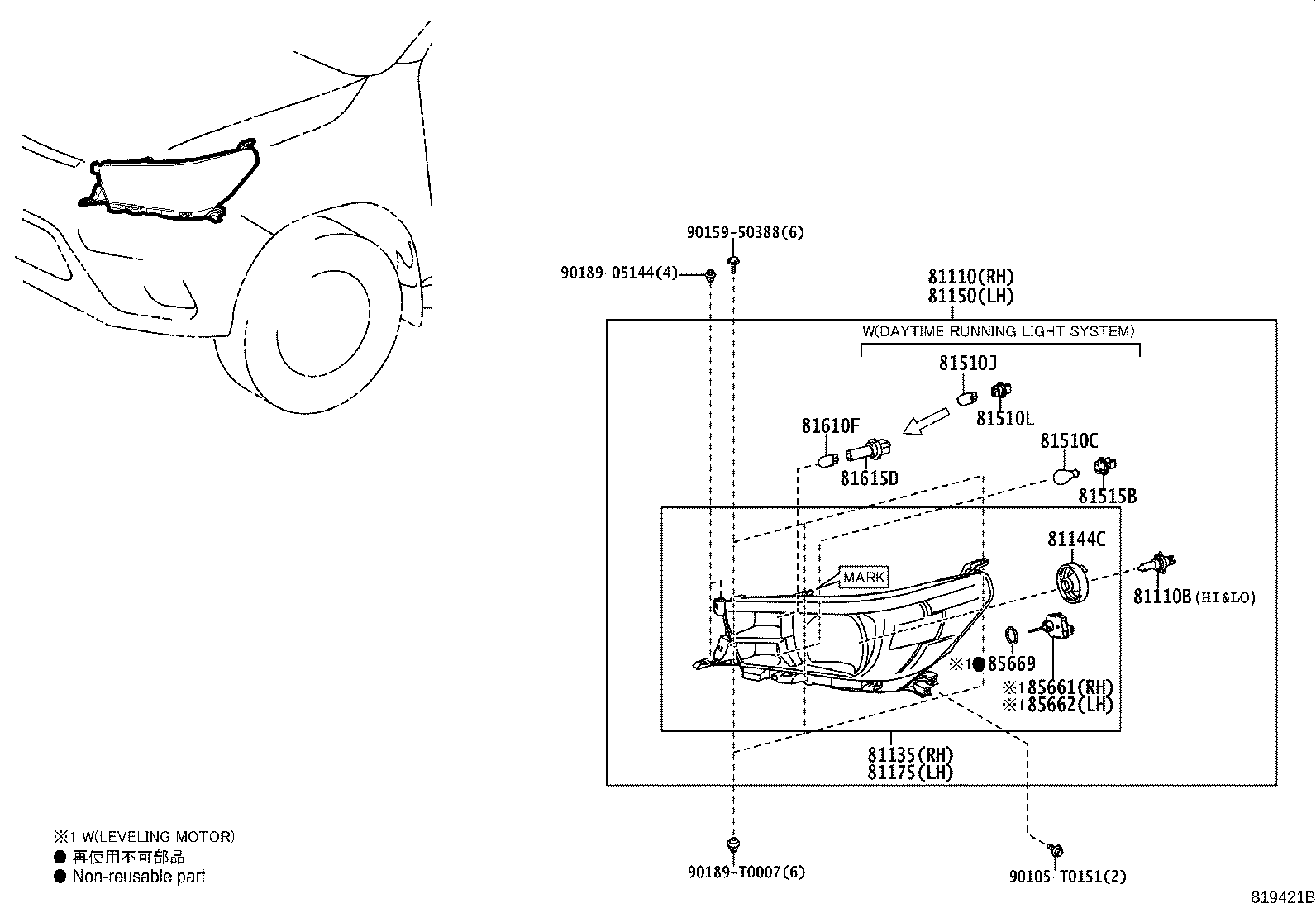

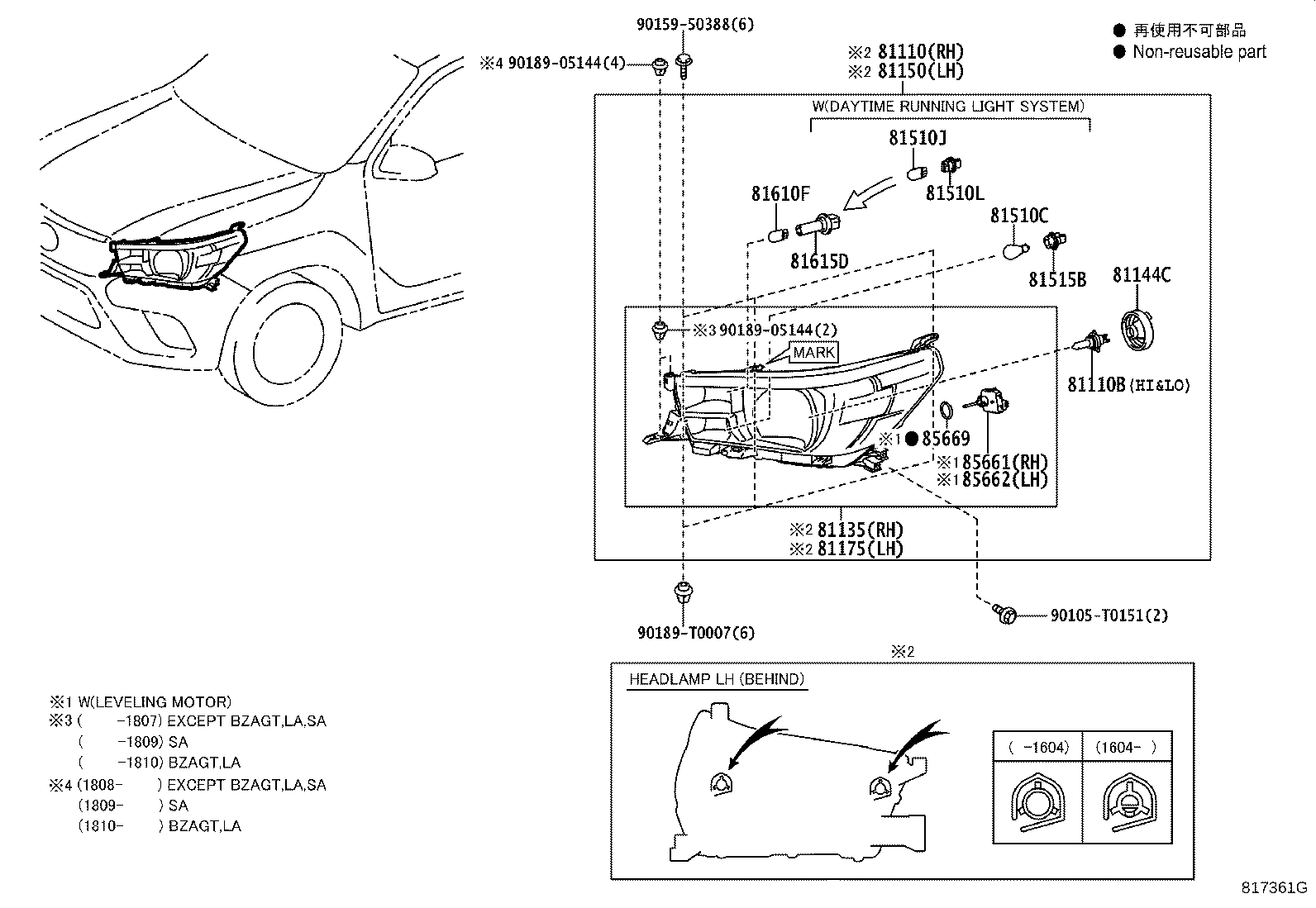

HALOGEN HEADLAMP(KOITO)

diagram 81110 81110B 81135 81144C 81150 81175 81510C 81510J 81510L 81515B 81610F 81615D 85661 85662 85669 90105T0151 9015950388 9018905144 9018905144 90189T0007
Part # Description Qty Price
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

GUN126..L,S,X;GUN136..TDC..S;GUN122..RHD..SA;GUN136..TDC..LA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN126..ADC..6F..(S,X);GUN125..LHD..(SXT,TSC,TXT);GUN122,TGN121..PSC,TDC,TSC,TXT;GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);KUN125,126..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GUN125..(ADC,ASC,TDC)..(L,M,S,X)..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN);GGN120,135,GUN112,120,123,KUN112,122,136,LAN125,TGN11#,120,126,128,138;GGN125,KUN135,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH,VN)

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

GUN126..L,S,X;GUN136..TDC..S;GUN122..RHD..SA;GUN136..TDC..LA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN126..ADC..6F..(S,X);GUN125..LHD..(SXT,TSC,TXT);GUN122,TGN121..PSC,TDC,TSC,TXT;GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);KUN125,126..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GUN125..(ADC,ASC,TDC)..(L,M,S,X)..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN);GGN120,135,GUN112,120,123,KUN112,122,136,LAN125,TGN11#,120,126,128,138;GGN125,KUN135,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH,VN)

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

TGN126..L..GEN;TGN126..TSC..GCC;GUN125..LHD..L..GEN;KUN126..ADC..6F..(S,X);GUN126..6F..(M,S)..IART;GUN122..LHD..(L,M,S)..DCR;GUN125..TDC..(GCC,LA,PH,VN);TGN126..(ADC,TDC)..(GCC,LA);GUN122..5F..(PH,PKN,TH)..IV3;GUN122,136..6F..(L,S,X)..(DCR,IART);GUN120,KUN13#..(L,M,S,X)..(GEN,LA,TH,VN);GUN125..LHD..(ADC,ASC,TSC,TXT)..(GCC,GEN,LA);KUN125,126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);GUN122,125..RHD..(L,M,S,X)..(GEN,IDN,PKN)..CBU;GUN122,TGN138..LHD..(ADC,TDC)..(L,X)..(BZAGT,GEN);GUN126,13#,TGN136..(L,M,S,X)..(GCC,GEN,LA,PH,PKN,VN);GGN125,GUN112,KUN112,122,TGN11#,120,121..GCC,GEN,IDN,PKN

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

TGN126..L..GEN;GUN126..LHD..SA;TGN126..TSC..GCC;GUN125..LHD..L..GEN;GUN120,KUN122,LAN125;KUN126..ADC..6F..(S,X);GUN126..6F..(M,S)..IART;GUN122..LHD..(L,M,S)..DCR;GUN122..5F..(PH,PKN,SA,TH)..IV3;GUN126..M..(GCC,GEN,LA,PH,PKN,VN);GUN122,135..RHD..(GEN,PKN,SA)..CBU;TGN126..(ADC,SDC,TDC)..(GCC,LA,SA);GUN126..(L,S,X)..(GCC,GEN,LA,PKN,SA);GUN125..RHD..(L,M,S,X)..(GEN,IDN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC)..(GEN,LA,SA);GUN125..LHD..(SSC,TDC)..(M,X)..(GCC,LA,SA,VN);GUN125..LHD..(SDC,TDC)..(L,S)..(GCC,LA,PH,SA,VN);GUN13#,TGN121..LHD..(L,M,S,X)..(GCC,GEN,LA,PH,VN);GUN122,TGN138..LHD..(ADC,TDC)..(L,X)..(BZAGT,GEN);GUN122,136,KUN135..(6F,6FC)..(L,S,X)..(LA,SA,TH,VN);GUN125..LHD..(ADC,ASC,SXT,TSC,TXT)..(GCC,GEN,LA,SA);KUN125,126..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GGN125,GUN112,136,KUN112,136,TGN11#,120..(ADC,SSC,TDC,TSC)..(L,M,S,X)..(DCR,HTWC,IART)..(BZAGT,GCC,GEN,IDN,LA,SA)

 2
Common parts
90105-T0151
90159-50388
90189-05144
90189-T0007

(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

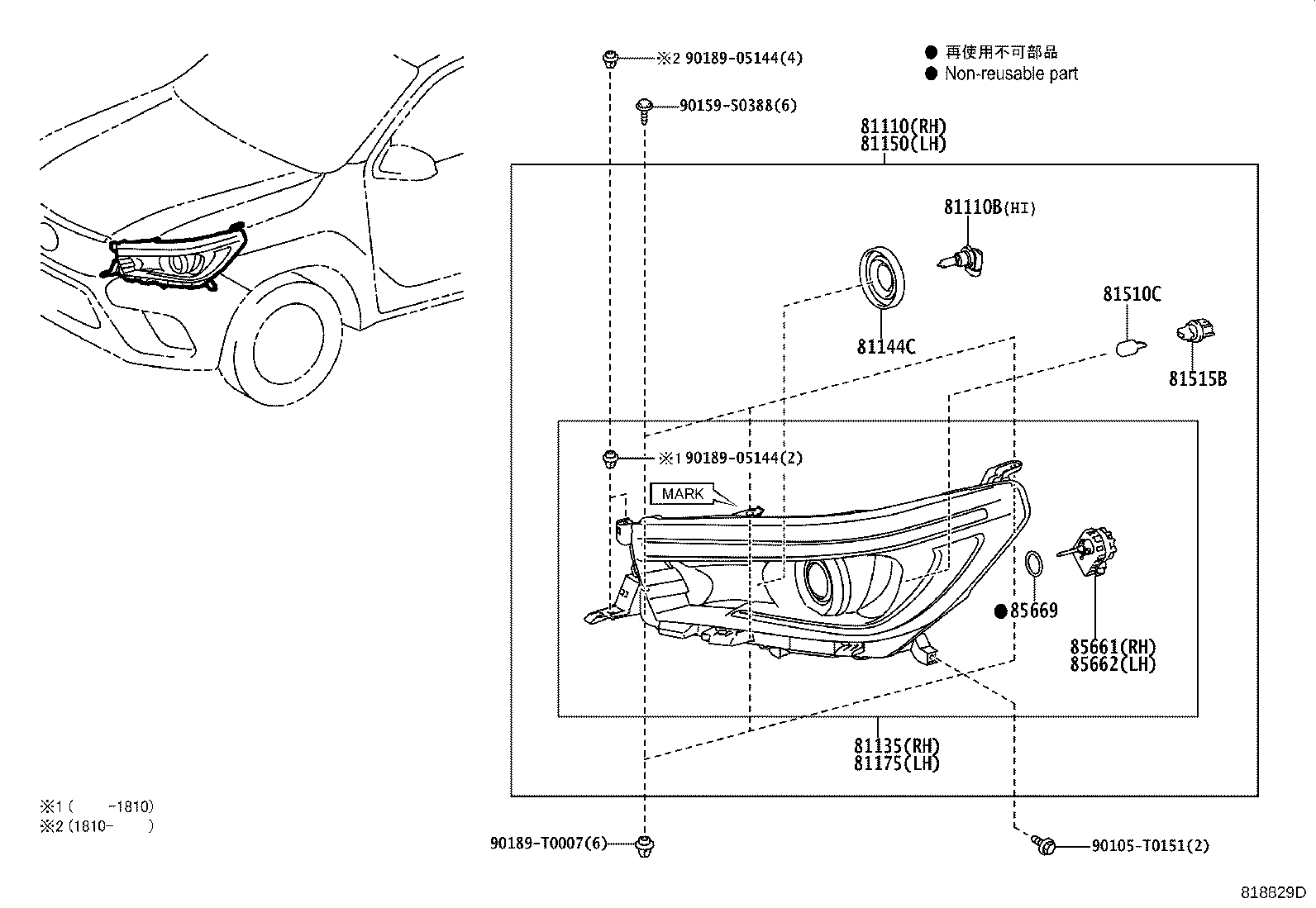

LED HEADLAMP

diagram 81110 81110B 81135 81144C 81150 81175 81510C 81515B 85661 85662 85669 90105T0151 9015950388 9018905144 9018905144 90189T0007
Part # Description Qty Price
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

GUN126..L,S,X;GUN136..TDC..S;GUN122..RHD..SA;GUN136..TDC..LA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN126..ADC..6F..(S,X);GUN125..LHD..(SXT,TSC,TXT);GUN122,TGN121..PSC,TDC,TSC,TXT;GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);KUN125,126..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GUN125..(ADC,ASC,TDC)..(L,M,S,X)..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN);GGN120,135,GUN112,120,123,KUN112,122,136,LAN125,TGN11#,120,126,128,138;GGN125,KUN135,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH,VN)

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

GUN126..L,S,X;GUN136..TDC..S;GUN122..RHD..SA;GUN136..TDC..LA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN126..ADC..6F..(S,X);GUN125..LHD..(SXT,TSC,TXT);GUN122,TGN121..PSC,TDC,TSC,TXT;GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);GGN125,GUN125..TDC..6FC..(S,X)..ARL;GUN136..(ADC,SDC,SSC,SXT,TSC,TXT)..(M,S);GUN126..M..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN135..(L,M,S,X)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);KUN125,126..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X);GUN125..(ADC,ASC,TDC)..(L,M,S,X)..(BZAGT,GCC,GEN,IDN,LA,PH,TH,VN);GGN120,135,GUN112,120,123,KUN112,122,136,LAN125,TGN11#,120,126,128,138;GGN125,KUN135,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X)..(BZAGT,GCC,GEN,LA,SA,TH,VN)

 2
Common parts
90105-T0151
90159-50388
90189-05144
90189-T0007

(2006- )ARL,GCC,GEN,IDN,MA,MMR,PH,PKN,TH,TWN,VN

Click highlighted areas on diagram

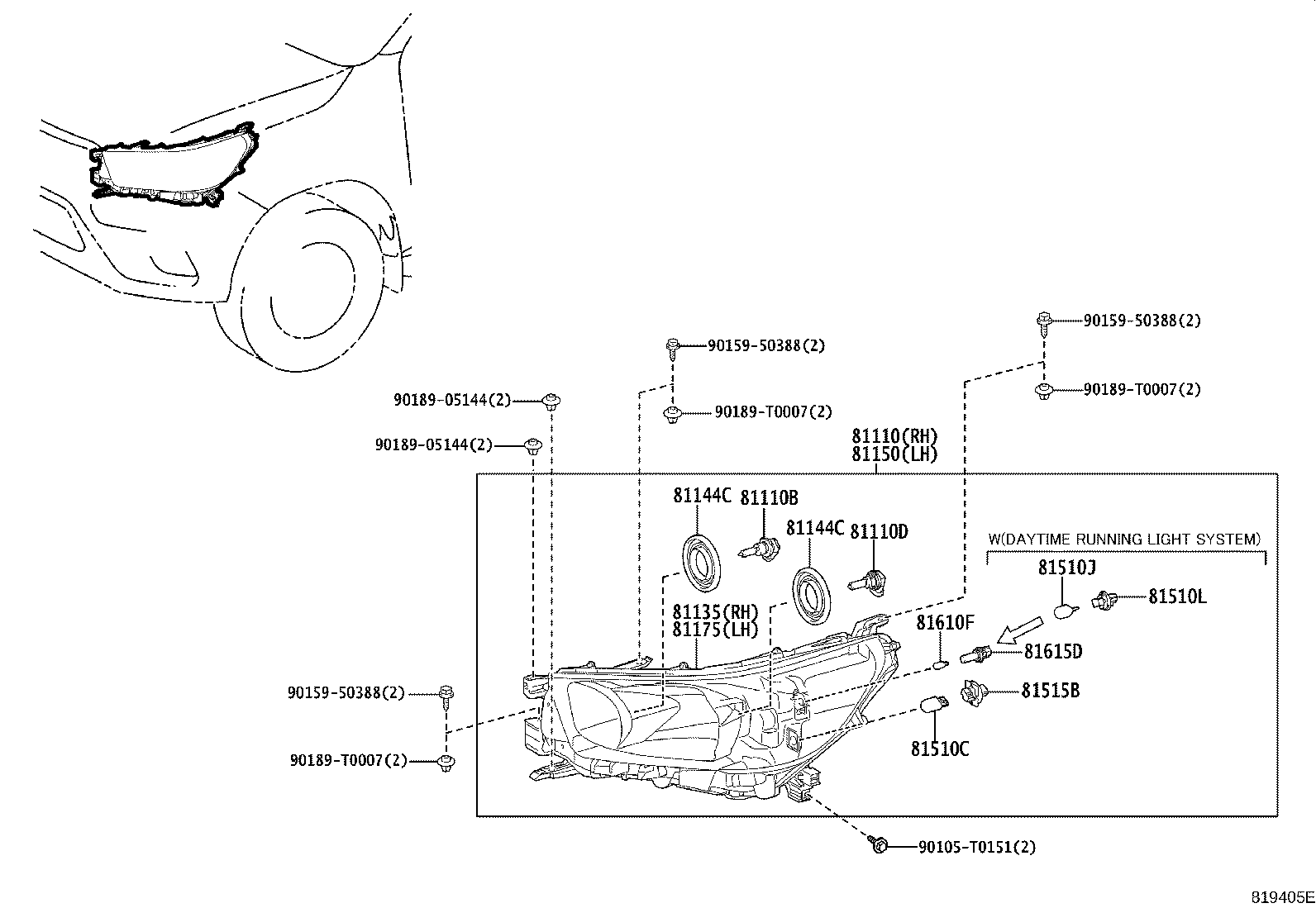

HALOGEN HEADLAMP(4BEAM TYPE)

diagram 81110 81110B 81110D 81135 81144C 81144C 81150 81175 81510C 81510J 81510L 81515B 81610F 81615D 90105T0151 9015950388 9015950388 9015950388 9018905144 9018905144 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
Common parts
90105-T0151
90159-50388
90189-05144
90189-T0007

(2006- )GGN125,GUN112,120,122,123,126,136,LAN125,TGN11#,120,121,126,136..AS,KD,M

Click highlighted areas on diagram

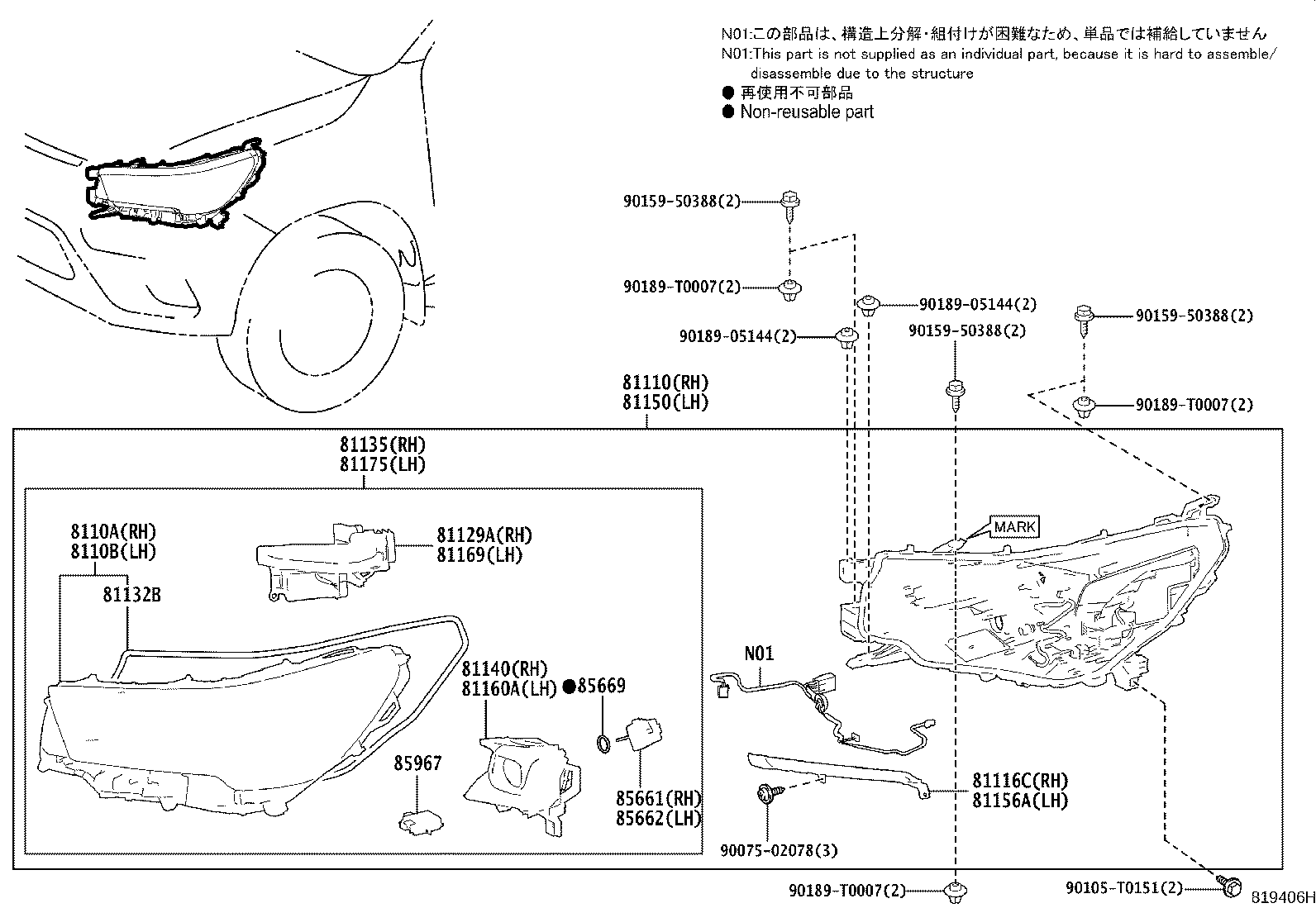

LED HEADLAMP

diagram 8110A 8110B 81110 81116C 81129A 81132B 81135 81140 81150 81156A 81160A 81169 81175 85661 85662 85669 85967 9007502078 90105T0151 9015950388 9015950388 9015950388 9018905144 9018905144 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
Common parts
90075-02078
90105-T0151
90159-50388
90189-05144
90189-T0007

(2006- )AD,AS,MD,MMD,MS,PD,PS,TD,TS,TX

Click highlighted areas on diagram

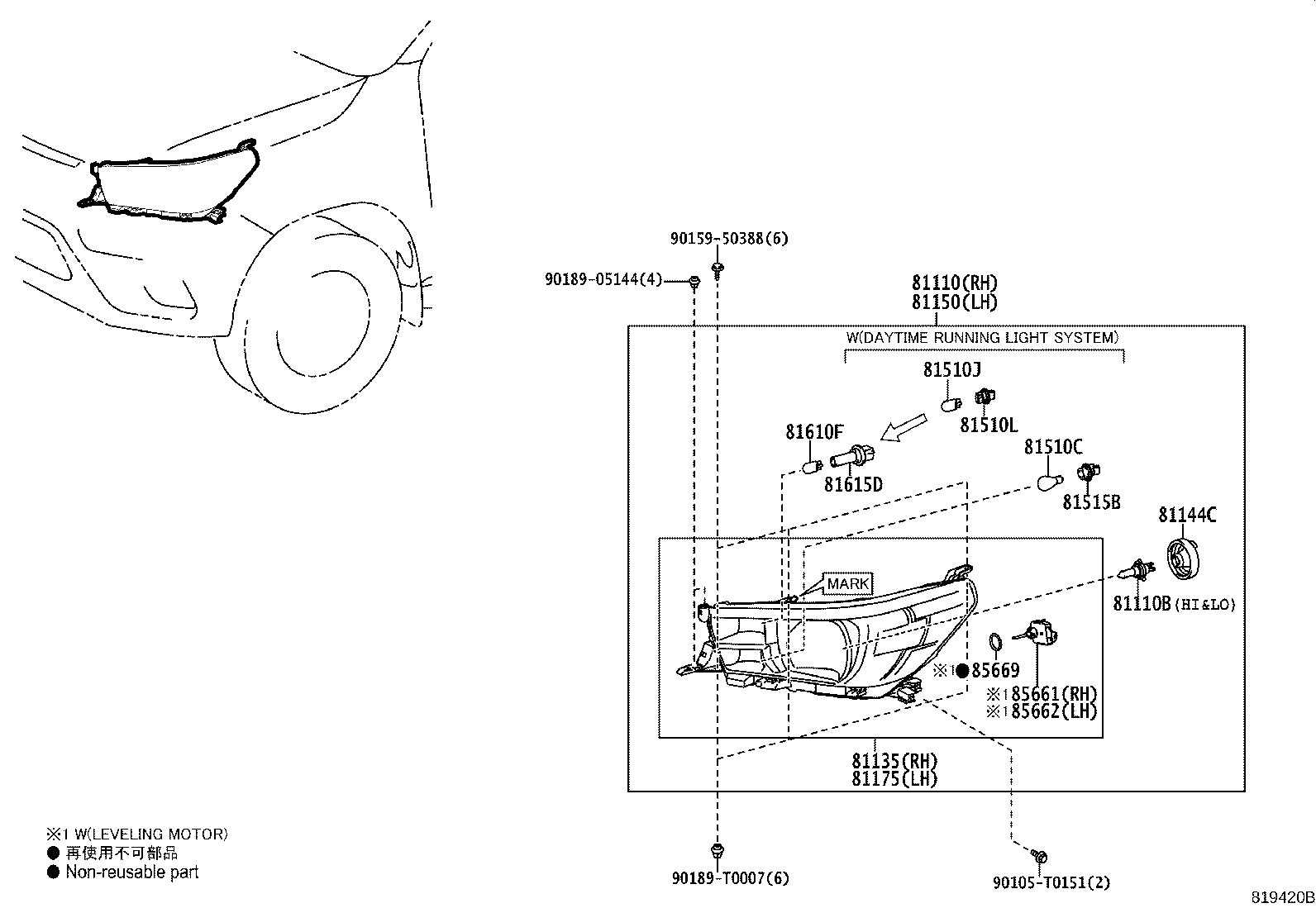

HALOGEN HEADLAMP(KOITO 2BEAM TYPE)

diagram 81110 81110B 81135 81144C 81150 81175 81510C 81510J 81510L 81515B 81610F 81615D 85661 85662 85669 90105T0151 9015950388 9018905144 90189T0007
Part # Description Qty Price
Common parts
90105-T0151
90159-50388
90189-05144
90189-T0007

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

HALOGEN HEADLAMP(VALEO 2BEAM TYPE)

diagram 81110 81110B 81135 81144C 81150 81175 81510C 81510J 81510L 81515B 81610F 81615D 85661 85662 85669 90105T0151 9015950388 9018905144 90189T0007
Part # Description Qty Price
Common parts
90105-T0151
90159-50388
90189-05144
90189-T0007
