Toyota Hilux GUN122 REAR AXLE HOUSING & DIFFERENTIAL

Manufacturers Home
Toyota
US
HILUX
GUN122R-BPMLYP3 (2020)
4101 - REAR AXLE HOUSING & DIFFERENTIAL

GUN122R-BPMLYP3 (2020)

Toyota Hilux

Production Jul 2020 - Sep 9999

Engine 2GDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

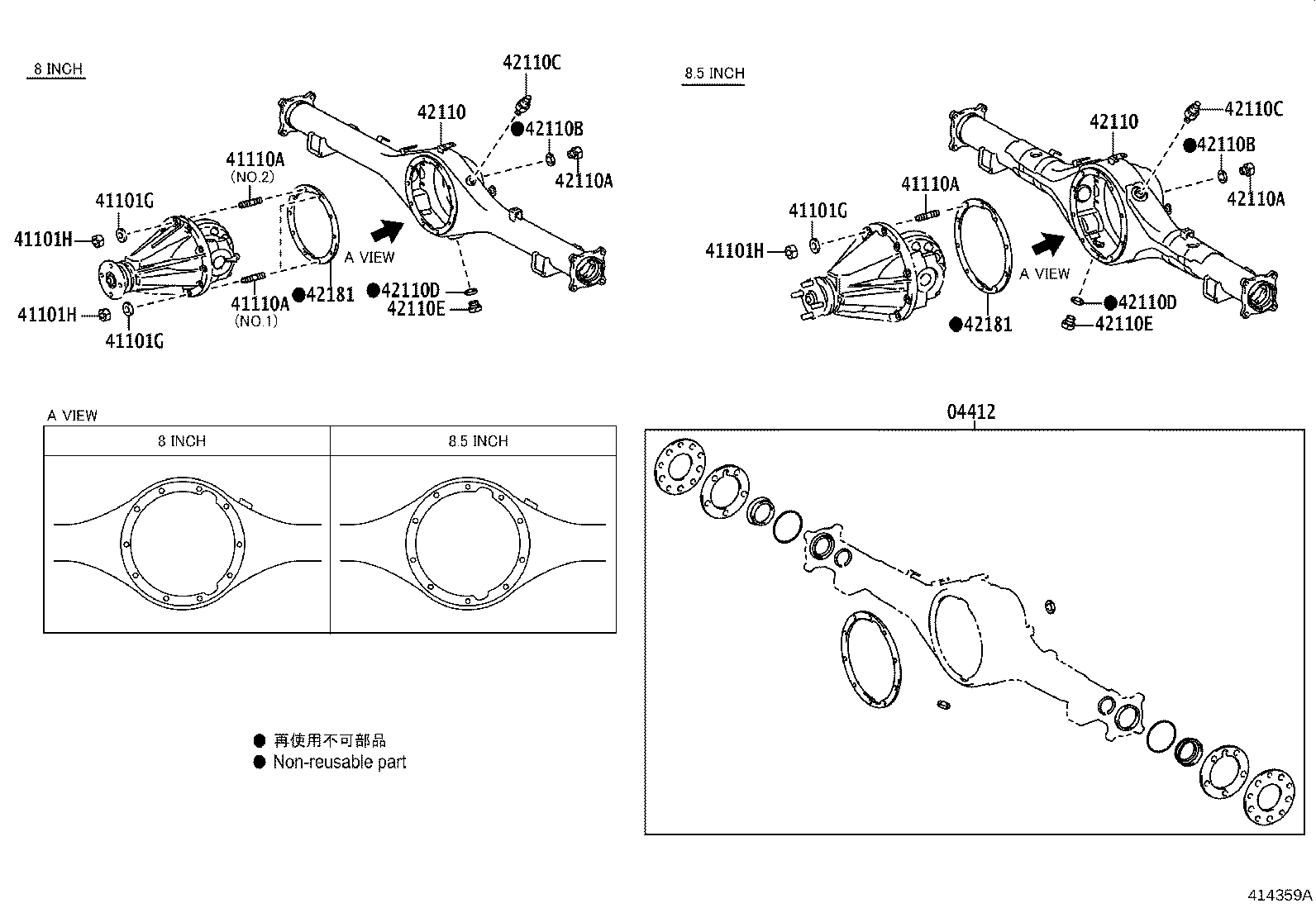

ILLUST NO. 3 OF 3(1505- )GGN120,GUN112,123,KUN112,122,TGN11#,120

Click highlighted areas on diagram

Part #	Description	Period	Qty
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-0K500	KUN112,122,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)	05/2015 - 09/2020	1
04412-0K500	KUN112,122,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)	05/2015 - 09/2020	1
04412-0K550	GUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA	05/2015 - 12/2999	1
04412-0K550	GUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA	05/2015 - 12/2999	1
41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET)
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET)
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET)
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90201-08002	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
94621-11000	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET)
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET)
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET)
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0009	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
90170-T0017	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	10
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-10074	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN) S=16 & 12.5,L=40.5	05/2015 - 12/2999	10
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08233	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=14 & 14,L=42,NO.1:REFER ILLUST.	05/2015 - 09/2020	2
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
90116-08329	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH S=17 & 12,L=37,NO.2:REFER ILLUST.	05/2015 - 09/2020	8
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90341-18006	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90341-18006	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031	KUN126..PDC..L;GUN125..TDC..6FC..ARL;KUN126..5FC..(GEN,PKN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(TSC,TXT)..(ARL,GCC,GEN,IDN,TH);GUN125,KUN126..(PSC,TDC)..(6F,6FC)..(GCC,GEN,IDN,PH,PKN,TH,VN);GGN12#,GUN112,120,123,126,KUN112,125,TGN11#,126..ARL,GCC,GEN,IDN,PH,PKN,TAIW,TH,VN;GGN135,GUN122,13#,KUN122,13#,TGN120,121,138..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90930-03031	KUN126..PDC..L;GUN125..TDC..6FC..ARL;KUN126..5FC..(GEN,PKN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(TSC,TXT)..(ARL,GCC,GEN,IDN,TH);GUN125,KUN126..(PSC,TDC)..(6F,6FC)..(GCC,GEN,IDN,PH,PKN,TH,VN);GGN12#,GUN112,120,123,126,KUN112,125,TGN11#,126..ARL,GCC,GEN,IDN,PH,PKN,TAIW,TH,VN;GGN135,GUN122,13#,KUN122,13#,TGN120,121,138..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031	KUN126..PDC..L;GUN125..TDC..6FC..ARL;KUN126..5FC..(GEN,PKN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(TSC,TXT)..(ARL,GCC,GEN,IDN,TH);GUN125,KUN126..(PSC,TDC)..(6F,6FC)..(GCC,GEN,IDN,PH,PKN,TH,VN);GGN12#,GUN112,120,123,126,KUN112,125,TGN11#,126..ARL,GCC,GEN,IDN,PH,PKN,TAIW,TH,VN;GGN135,GUN122,13#,KUN122,13#,TGN120,121,138..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90930-03031	KUN126..PDC..L;GUN125..TDC..6FC..ARL;KUN126..5FC..(GEN,PKN,VN);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(TSC,TXT)..(ARL,GCC,GEN,IDN,TH);GUN125,KUN126..(PSC,TDC)..(6F,6FC)..(GCC,GEN,IDN,PH,PKN,TH,VN);GGN12#,GUN112,120,123,126,KUN112,125,TGN11#,126..ARL,GCC,GEN,IDN,PH,PKN,TAIW,TH,VN;GGN135,GUN122,13#,KUN122,13#,TGN120,121,138..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
12157-10010	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90341-18057	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
90341-18057	KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GGN12#,135,GUN112,120,135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN122,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	05/2015 - 12/2999	1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-0K030	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
42181-0K030	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
42181-KK010	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	1
42181-KK010	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-0K030	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
42181-0K030	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
42181-KK010	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	1
42181-KK010	KUN126..PDC..L;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN122,135..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN120,126,136,KUN125,13#,TGN111,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN126,TGN121..(ADC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)	05/2015 - 12/2999	1

ILLUST NO. 2 OF 3(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

Part #	Description	Period	Qty
41039 - GEAR KIT, DIFFERENTIAL, REAR
41039-71011	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
41039-71070	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	1
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-0K060	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH	05/2015 - 09/2020	1
41342-0K070	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)	05/2015 - 12/2999	2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-0K020	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.55	05/2015 - 09/2020	2
41361-0K050	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.70	05/2015 - 09/2020	2
41361-0K040	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.65	05/2015 - 09/2020	2
41361-0K060	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.75	05/2015 - 09/2020	2
41361-0K090	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.90	05/2015 - 09/2020	2
41361-0K030	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.60	05/2015 - 09/2020	2
41361-0K070	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.80	05/2015 - 09/2020	2
41361-0K080	TGN136..6FC;KUN112,122,TGN110,120;GUN122,TGN121..5F..(PH,TH);GUN112,123,LAN125..IDN,SA,TH T=1.85	05/2015 - 09/2020	2
41361-0K310	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.55	05/2015 - 12/2999	2
41361-0K370	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.85	05/2015 - 12/2999	2
41361-0K300	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.50	05/2015 - 12/2999	2
41361-0K110	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.45	05/2015 - 12/2999	2
41361-0K350	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.75	05/2015 - 12/2999	2
41361-0K320	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.60	05/2015 - 12/2999	2
41361-0K330	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.65	05/2015 - 12/2999	2
41361-0K360	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.80	05/2015 - 12/2999	2
41361-0K340	TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN) T=1.70	05/2015 - 12/2999	2
Common parts
41245-0K010
90148-T0021
90151-A0006
90151-T0004

ILLUST NO. 2 OF 3(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

Part #	Description	Period	Qty	Price
Common parts
41245-0K010
90148-T0021

ILLUST NO. 3 OF 3(2006- )GUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
