GUN122R-BPMLYP3 (2020)
Toyota Hilux

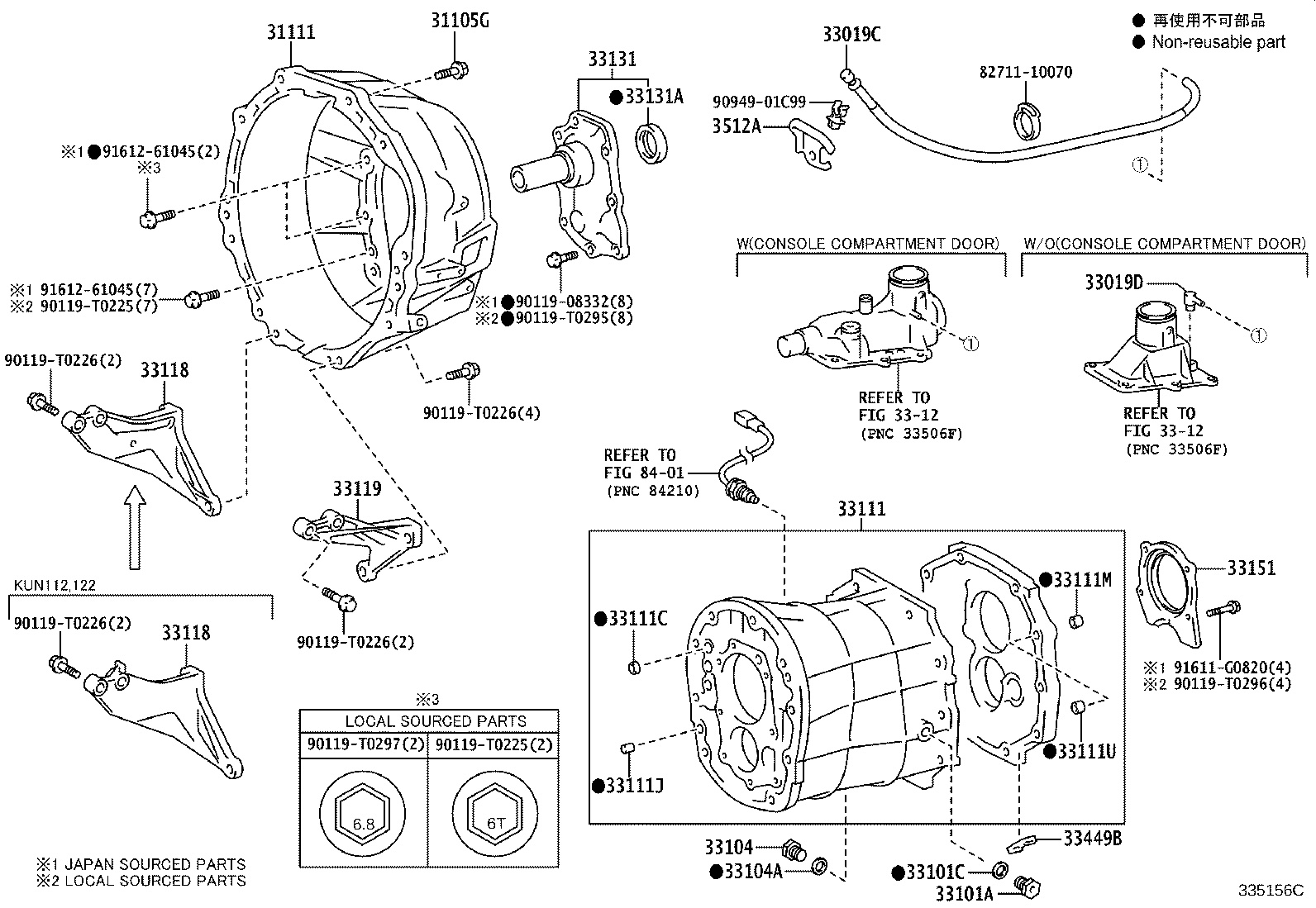

(1505- )GUN112,122,123,KUN112,122..5F
R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-T0227 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,LAN125..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-35102 |
GUN112,122,123,KUN112,122..5F TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-0K061 |
GUN112,122,123,KUN112,122..5F TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-0K010 |
GUN112,122,123,KUN112,122..5F TYPE A:REFER 33-01 |
1 | ||
| 31111-0K090 |
GUN112,122,123,KUN112,122..5F TYPE C:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-0K080 |
KUN122..L,X;GUN122..TXT..5F..X;GUN122,KUN122..S..GCC;GUN112,KUN112..GCC,IDN;GUN122..TDC..(L,X)..(GCC,GEN,PH);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X) |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 33191-0K010 |
TGN126..TSC..S;TGN121..TSC..5F;GUN122..TXT..5F..X;GUN122,KUN122..S..GCC;TGN121..LHD..TDC..5F..(L,S);TGN126..(TDC,TSC)..5F..(L,X);GUN122..TDC..(L,X)..(GCC,GEN,PH);GUN112,KUN112,TGN11#,120..GCC,IDN;GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X);KUN122,TGN136..(ASC,PSC,SDC,SSC,TDC,TSC,TXT)..(L,X)..(GCC,GEN,LA,PKN,SA) TYPE A:REFER 33-01 |
1 | ||
| 33191-71010 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-T0021 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 90430-T0021 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GUN125..S..IV3;TGN136..ADC..M;GUN126..ADC..6F..X;GUN135..(ASC,TSC)..LA;GUN125..LHD..(SXT,TXT);GUN135..(L,X)..(SA,VN);GUN136..(SDC,TSC)..6F..S;TGN126,138..5F..M..BZAGT;GUN125..RHD..TDC..M..GEN;GUN126..6F..M..(GCC,GEN,PKN);TGN121,126..(TDC,TSC,TXT)..5F;GUN125,126..LHD..6F..(H,L)..GEN;GUN112,122,123,KUN112,122,TGN11#;GUN125..RHD..6F..(H,S)..(GEN,IDN);GUN135..6F..(H,S,X)..(ARL,GEN,MA);TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH);GUN126,TGN120..MTM..(L,S)..(GCC,GEN,PKN,SA);GUN125..LHD..(SDC,TDC)..6F..S..(GCC,PH,SA,VN);GUN125,136..(ADC,TDC)..6F..(L,M)..(IDN,LA,VN);GUN125,136..LHD..(ADC,SSC)..6F..(H,X)..(BZAGT,SA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT)..6F..(L,M,X)..(GEN,IDN,SA) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-T0021 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 90430-T0021 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K040 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 33101-0K040 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
GUN122..PKN OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F OD=18,TYPE C:REFER 33-01 |
3 | ||
| 96411-41800 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) OD=18,TYPE A:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F L=16,OD=12,TYPE B:REFER 33-01 |
2 | ||
| 90250-T0020 |
GUN122..PKN L=16,OD=12,TYPE B:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 33111M - PIN, RING(FOR TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN122..PKN TYPE B:REFER 33-01 |
2 | ||
| 90253-15001 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN122..PKN L=14,OD=15,TYPE B:REFER 33-01 |
2 | ||
| 90253-15001 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F L=14,OD=15,TYPE B:REFER 33-01 |
2 | ||
| 90253-15001 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0027 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 90311-T0027 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K040 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33151-0K010 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K030 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 33151-0K030 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GUN122..PKN TYPE B:REFER 33-01 |
1 | ||
| 33449-35030 |
GUN122..(SDC,SSC,TDC,TSC,TXT)..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE B:REFER 33-01 |
1 | ||
| 33449-35030 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33449-35030 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
1 | ||
| 3512A - BRACKET, TRANSMISSION BREATHER, NO.1 | ||||
| 3512A-0K010 |
KUN125,126..6F;GUN125..(ADC,ASC,TSC,TXT)..6F;KUN122,135..ADC,ASC,PSC,SDC,TDC,TSC,TXT;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90949-01C99 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
(2006- )GUN112,122,123..PS,SD,SS,TD,TS..5F
R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10070 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90949-01C99 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
