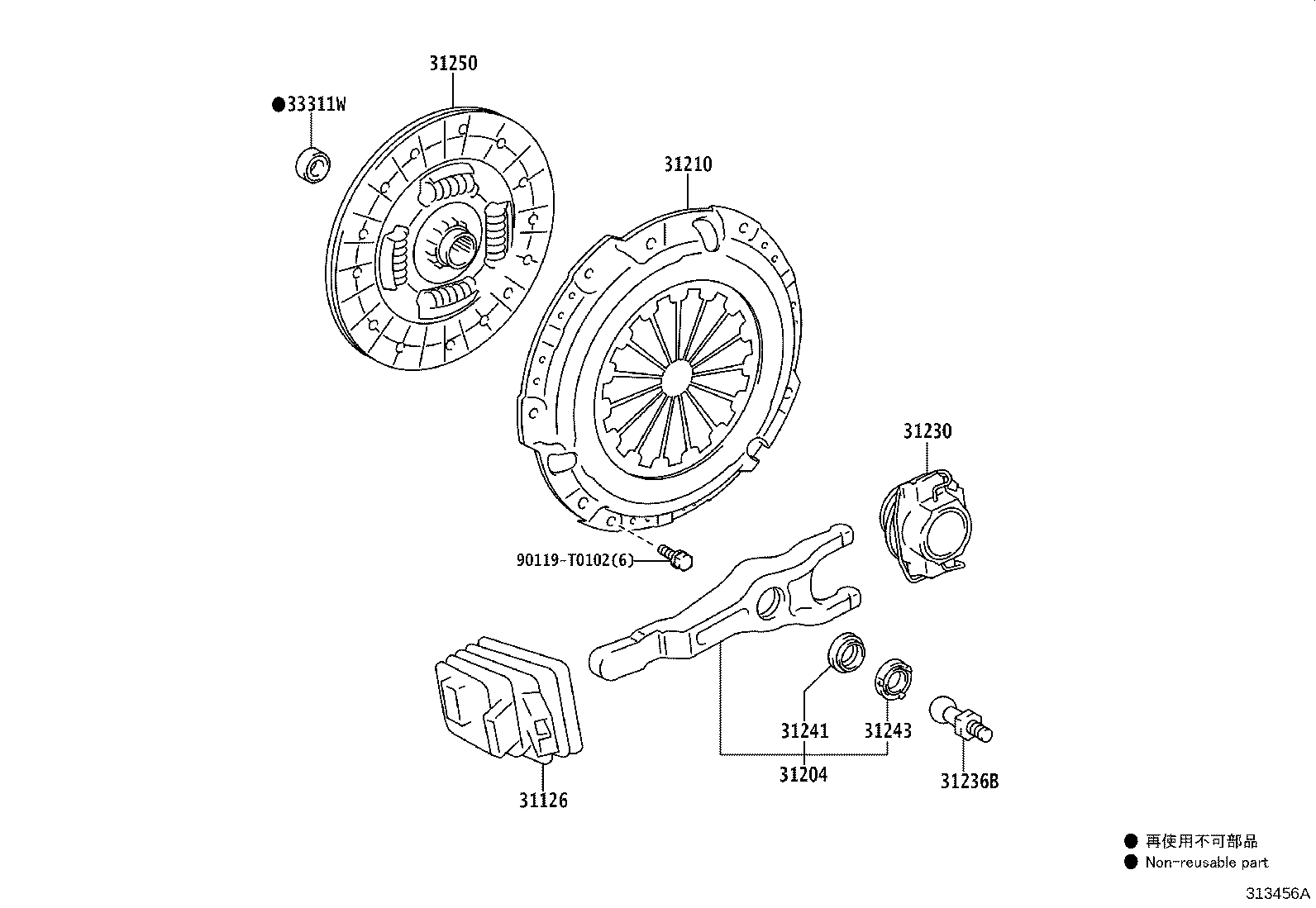

Toyota Hilux GUN122 CLUTCH & RELEASE FORK

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-0K100	GUN112,122,123,KUN112,122..5F TYPE B:REFER 33-01	05/2015 - 09/2020	1
31126-0K100	GUN112,122,123,KUN112,122..5F TYPE A:REFER 33-01,TYPE C:REFER 33-01	05/2015 - 12/2999	1
31126 - BOOT, CLUTCH RELEASE FORK
31126-0K100	GUN112,122,123,KUN112,122..5F TYPE B:REFER 33-01	05/2015 - 09/2020	1
31126-0K100	GUN112,122,123,KUN112,122..5F TYPE A:REFER 33-01,TYPE C:REFER 33-01	05/2015 - 12/2999	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K110	GUN122..PKN TYPE B:REFER 33-01	05/2015 - 09/2020	1
31204-0K110	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01	05/2015 - 12/2999	1
31204-0K110	GUN112,122,123,KUN112,122..5F TYPE C:REFER 33-01	05/2015 - 12/2999	1
31210 - COVER ASSY, CLUTCH
31210-0K310	KUN125..6F..IDN;KUN126,136..(PDC,PSC,TDC)..6F;GUN112,122,123,KUN135..(L,M,S,X)..(ARL,GCC,GEN,IDN,PH,PKN,TH,VN)	05/2015 - 12/2999	1
31236B - SUPPORT, RELEASE FORK
31236-0K030	GUN112,122,123..5F TYPE B:REFER 33-01	05/2015 - 09/2020	1
31236-0K030	GUN112,122,123..5F TYPE A:REFER 33-01,TYPE C:REFER 33-01	05/2015 - 12/2999	1
31241 - SEAL, CLUTCH RELEASE FORK DUST
31241-71010	GUN122..PKN TYPE B:REFER 33-01	05/2015 - 09/2020	1
31241-71010	GUN112,122,123,KUN112,122..5F TYPE C:REFER 33-01	05/2015 - 12/2999	1
31241-71010	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01	05/2015 - 12/2999	1
31243 - COLLAR, CLUTCH RELEASE FORK
31243-0K010	GUN122..PKN TYPE B:REFER 33-01	05/2015 - 09/2020	1
31243-0K010	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01	05/2015 - 12/2999	1
31243-0K010	GUN112,122,123,KUN112,122..5F TYPE C:REFER 33-01	05/2015 - 12/2999	1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006	KUN12#,135..MTM;GUN125..(ADC,ASC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
Common parts
90119-08079
90119-T0102

GUN122R-BPMLYP3 (2020)

(1505- )KUN112,12#,13#..MTM

(2006- )GUN112,122,123..PS,SD,SS,TD,TS,TX
