GUN122L-BTMXY (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

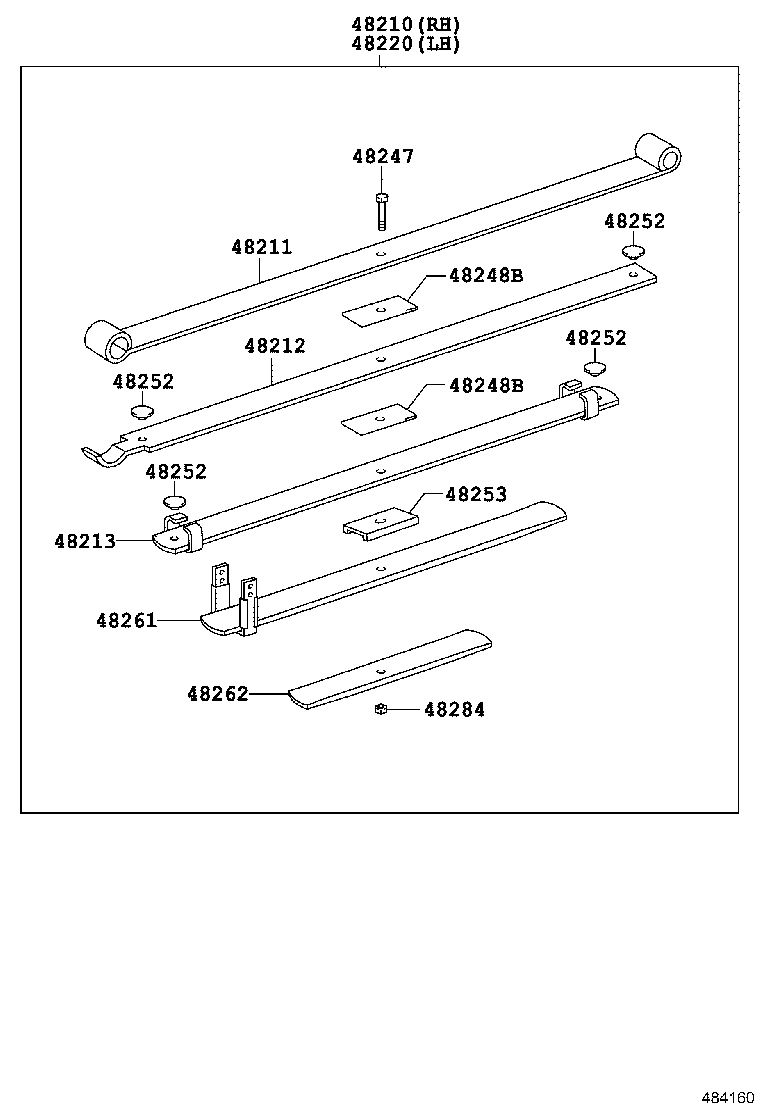

ILLUST NO. 2 OF 2(1505- )GUN120,122,123,KUN122,TGN120,121..PSC,TSC

Click highlighted areas on diagram

5-LEAF

diagram 48210 48211 48212 48213 48220 48247 48248B 48248B 48252 48252 48252 48252 48253 48261 48262 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

5-LEAF

 1
48211 - LEAF, REAR SPRING, NO.1
48201-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48213 - LEAF, REAR SPRING, NO.3
48204-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48220 - SPRING ASSY, REAR LH
48210-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K010

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

GUN122..TSC..S;TGN121..S..GCC;GUN135..6FC..(ARL,GEN,PH,VN);GUN120,122..(TSC,TXT)..(L,X);TGN121..(TDC,TSC,TXT)..(L,M,X);GUN135..TDC..6F..(GEN,LA,PH,VN);GGN12#,GUN112,123,KUN112,122,126,136,TGN11#,120..PDC,TDC,TSC,TXT;GUN122,125,126,136,KUN125,135,TGN126,136..(TDC,TXT)..(ARL,GCC,GEN,IDN,LA,PH,TAIW,VN)

 4
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

GUN122..TSC..S;TGN121..S..GCC;GUN135..6FC..(ARL,GEN,PH,VN);GUN120,122..(TSC,TXT)..(L,X);TGN121..(TDC,TSC,TXT)..(L,M,X);GUN135..TDC..6F..(GEN,LA,PH,VN);GGN12#,GUN112,123,KUN112,122,126,136,TGN11#,120..PDC,TDC,TSC,TXT;GUN122,125,126,136,KUN125,135,TGN126,136..(TDC,TXT)..(ARL,GCC,GEN,IDN,LA,PH,TAIW,VN)

 4
48252 - SILENCER, REAR SPRING
48252-0K010

GUN126..X..TH;GUN125..TDC..6FC..ARL;GUN135..6FC..(ARL,GEN,PH,VN);GUN135..TDC..6F..(GEN,LA,PH,VN);GUN125,135..(TSC,TXT)..(ARL,GCC,GEN,IDN,LA);GUN125,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,VN);GUN126,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,TAIW,VN);GGN12#,GUN112,120,122,123,KUN112,122,125,13#,TGN11#,120,121,126..TDC,TSC,TXT

 8
48252 - SILENCER, REAR SPRING
48252-0K010

GUN126..X..TH;GUN125..TDC..6FC..ARL;GUN135..6FC..(ARL,GEN,PH,VN);GUN135..TDC..6F..(GEN,LA,PH,VN);GUN125,135..(TSC,TXT)..(ARL,GCC,GEN,IDN,LA);GUN125,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,VN);GUN126,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,TAIW,VN);GGN12#,GUN112,120,122,123,KUN112,122,125,13#,TGN11#,120,121,126..TDC,TSC,TXT

 8
48252 - SILENCER, REAR SPRING
48252-0K010

GUN126..X..TH;GUN125..TDC..6FC..ARL;GUN135..6FC..(ARL,GEN,PH,VN);GUN135..TDC..6F..(GEN,LA,PH,VN);GUN125,135..(TSC,TXT)..(ARL,GCC,GEN,IDN,LA);GUN125,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,VN);GUN126,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,TAIW,VN);GGN12#,GUN112,120,122,123,KUN112,122,125,13#,TGN11#,120,121,126..TDC,TSC,TXT

 8
48252 - SILENCER, REAR SPRING
48252-0K010

GUN126..X..TH;GUN125..TDC..6FC..ARL;GUN135..6FC..(ARL,GEN,PH,VN);GUN135..TDC..6F..(GEN,LA,PH,VN);GUN125,135..(TSC,TXT)..(ARL,GCC,GEN,IDN,LA);GUN125,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,VN);GUN126,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PH,PKN,TAIW,VN);GGN12#,GUN112,120,122,123,KUN112,122,125,13#,TGN11#,120,121,126..TDC,TSC,TXT

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

GUN125,135..TSC,TXT;GUN126..PSC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,TH,VN);GGN12#,GUN112,120,122,123,136,KUN112,122,125,13#,TGN11#,120,121,126,136..TDC,TSC,TXT

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48026-0K420

GUN120,122,123,KUN122,TGN120,121..TSC

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K310

GUN125,135..TSC,TXT;GUN126..PSC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135,KUN126..(PDC,PSC,TDC)..(GCC,GEN,IDN,LA,PH,PKN,TH,VN);GGN12#,GUN112,120,122,123,136,KUN112,122,125,13#,TGN11#,120,121,126,136..TDC,TSC,TXT

 2

ILLUST NO. 1 OF 2(1505- )GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

Click highlighted areas on diagram

diagram 04483A 04483B 48046 48046A 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48341 483730K010 48409A 48530 48530B 48530B 48530C 48530C 48530H 48530H 48530H 48530H 48540 90105T0128 90105T0128 90105T0135 90105T0146 90119T0028 90178T0027 90178T0027 90178T0061 90178T0061 9017914069 90201T0006 90201T0012 90201T0014 90201T0014
Part # Description Qty Price
04483A - SHACKLE KIT, REAR SPRING, RH
04483-KK000

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

 1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-KK000

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-0K011

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-T0003

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

L=175

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-T0003

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

L=175

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-0K011

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0014

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0014

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-T0016

GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,SSC,TSC

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-T0016

GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,SSC,TSC

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0017

GUN135..L..MA;GUN125..ADC..6FC;GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 4
48341 - BUMPER, REAR SPRING
48341-0K090

GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121

 2
48409A - PIN SUB-ASSY, REAR SPRING BRACKET
48409-0K010

GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,SSC,TSC

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-8Z001

GUN112,120,122,123,KUN112,122,TGN11#,120,121..TSC

MARK 48531-0K500

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002

GUN135..TDC..S;GUN125,135..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,135..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0019

GUN135..TDC..S;GUN125..ADC..6FC;TGN136..SDC,TDC,TSC,TXT;GUN125,135..TDC..6FC..ARL;GUN125,135..SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GUN126,136,KUN125,126,13#,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,122,LAN125,TGN11#,120,121..ADC,PSC,SDC,SSC,TDC,TSC,TXT

 8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-8Z001

GUN112,120,122,123,KUN112,122,TGN11#,120,121..TSC

MARK 48531-0K500

 1
Common parts
48373-0K010
90105-T0128
90105-T0135
90105-T0146
90119-T0028
90178-T0027
90178-T0061
90179-14069
90201-T0006
90201-T0012
90201-T0014

ILLUST NO. 1 OF 2(2006- )GUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX
