GUN122L-BTMXY (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )GUN120,122,123,TGN120,121..PS,SD,SS,TD,TS,TX

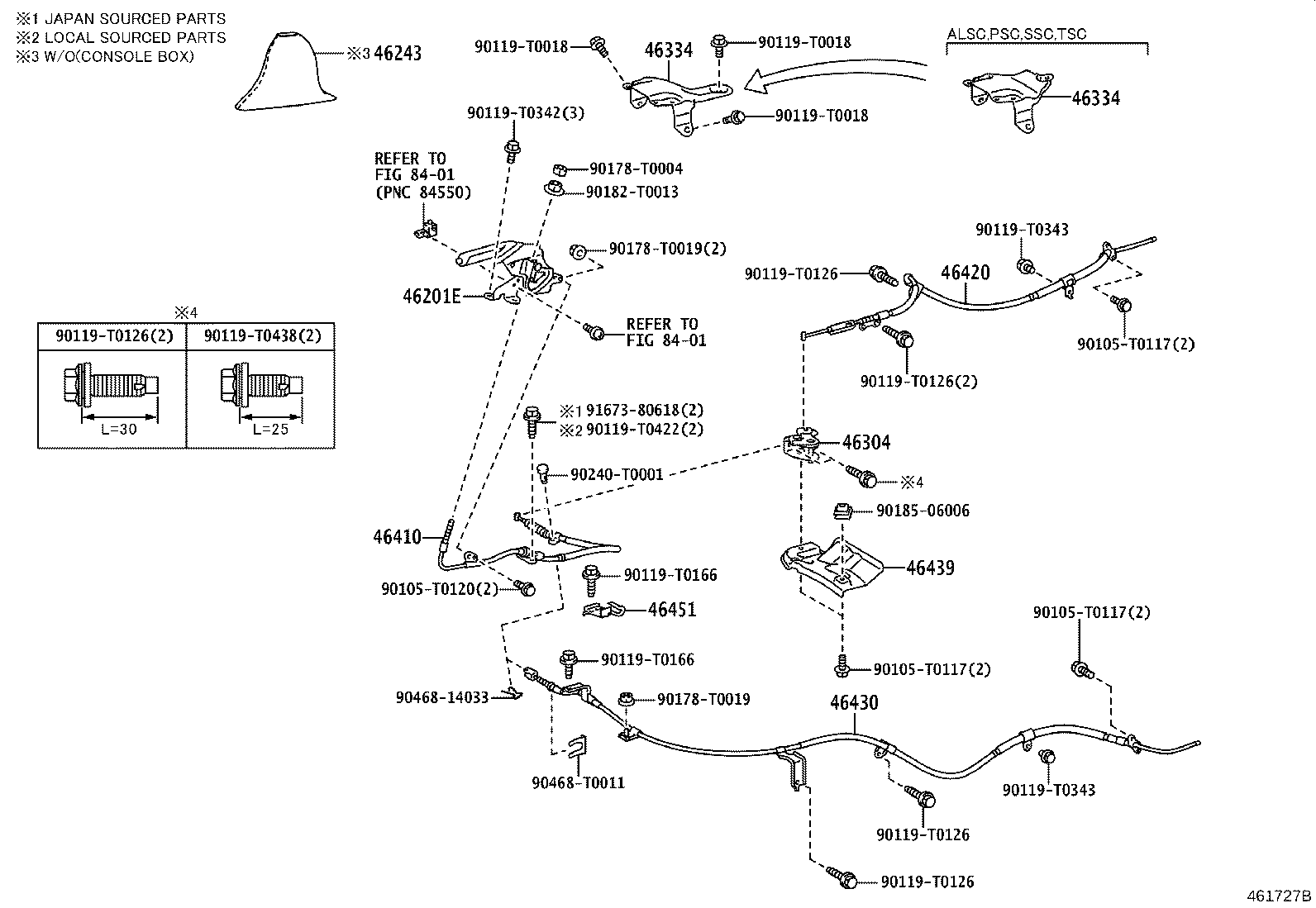

Click highlighted areas on diagram

diagram 46201E 46243 46304 46334 46334 46410 46420 46430 46439 46451 8401 8401 90105T0117 90105T0117 90105T0117 90105T0120 90119T0018 90119T0018 90119T0018 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0166 90119T0166 90119T0342 90119T0343 90119T0343 90119T0422 90119T0438 90178T0004 90178T0019 90178T0019 90182T0013 9018506006 90240T0001 9046814033 90468T0011 9167380618
Part # Description Qty Price
Common parts
90105-T0117
90105-T0120
90119-T0018
90119-T0126
90119-T0166
90119-T0342
90119-T0343
90119-T0422
90119-T0438
90178-T0004
90178-T0019
90182-T0013
90185-06006
90240-T0001
90468-14033
90468-T0011
91673-80618
Linked diagrams
8401
