GGN25R-PRASKQ (2011)
Toyota Hilux

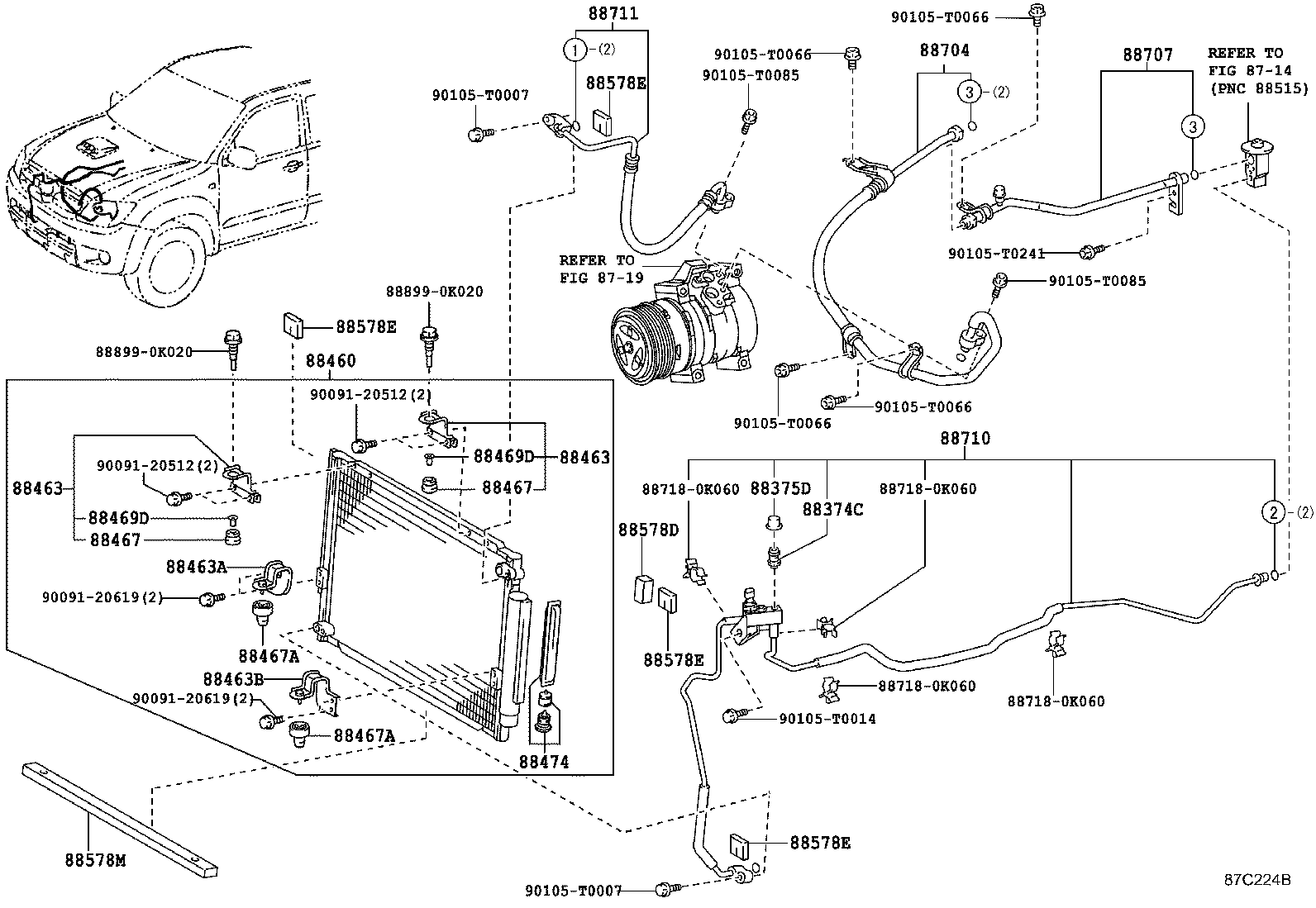

ILLUST NO. 1 OF 2(1107- )GGN15,25..SR..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374-30010 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88375-30280 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K010 |
KUN25..4FC..GEN;KUN1#,25..ARL,GCC;KUN26..DCB..5FC..IV3;KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26,35..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K020 |
GGN15,25..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
2 | ||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
2 | ||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K250 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K260 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88463-0K260 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467-12180 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467-12180 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
2 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
2 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
4 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
4 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K091 |
GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K320 |
GGN15,25..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0K010 |
GGN15,25..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K040 |
GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| 88710-0K040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K601 |
GGN15,25..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-0K020 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(1107- )KUN25..SCB..GEN,LA,MA,SA ; (1107-)KUN25..DCB,SMT,THDCB,THSCB,XTR ; (
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 2(1107- )GGN15,25,KUN10,26,TGN10,16..ARL,IDN
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578-0K110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K091 |
GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578-0K091 |
GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
