GGN25R-PRASKQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )5FC..CO ; (1107- )ARL,GCC,GEN,IDN,MA,PHL,SA,TH

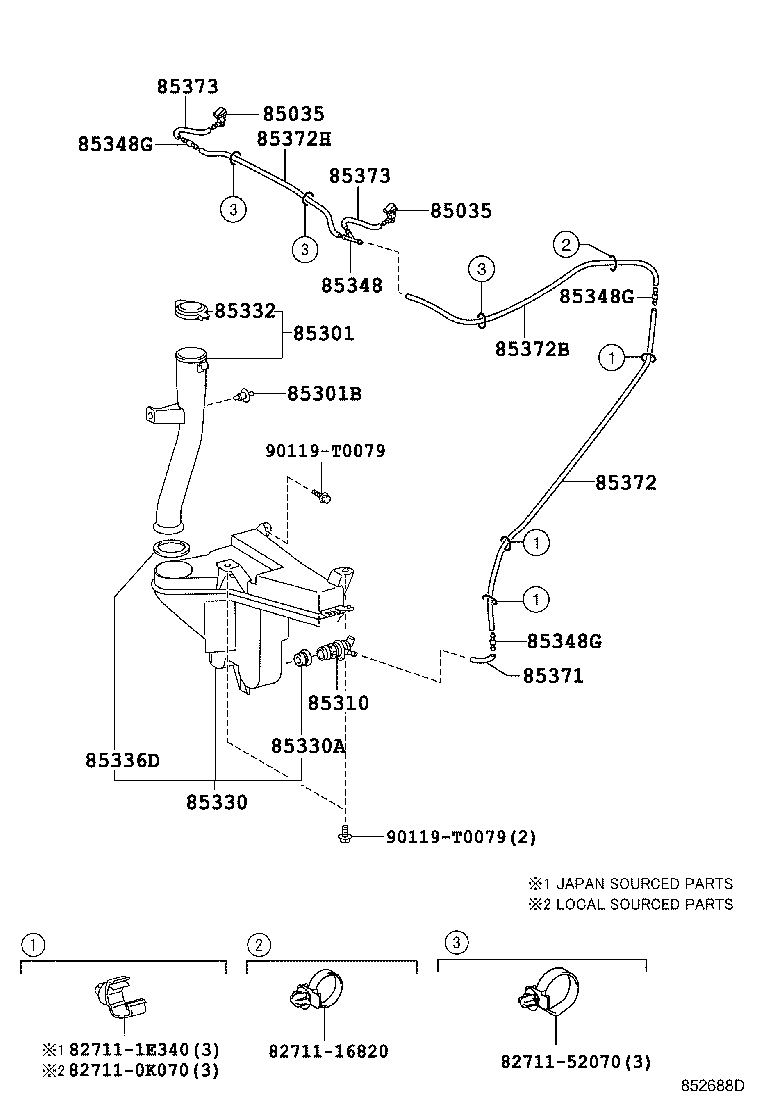

Click highlighted areas on diagram

diagram 827110K070 8271116820 827111E340 8271152070 85035 85035 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85348G 85348G 85371 85372 85372B 85372H 85373 85373 90119T0079 90119T0079
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K150

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85301B - CLIP, WASHER
90467-07076A0

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

IVORY

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0D100

KUN25..SR..IDN;GGN15,25,KUN15,16,2#,3#,TGN16..ARL,MA,TH

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K020

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33160

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59091

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=950

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33159

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=900

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-T0079

(1110- )KUN26..LA ; (1110- )KUN26..4FC,5F..CO ; (1110- )GGN25,KUN25,3#,TGN

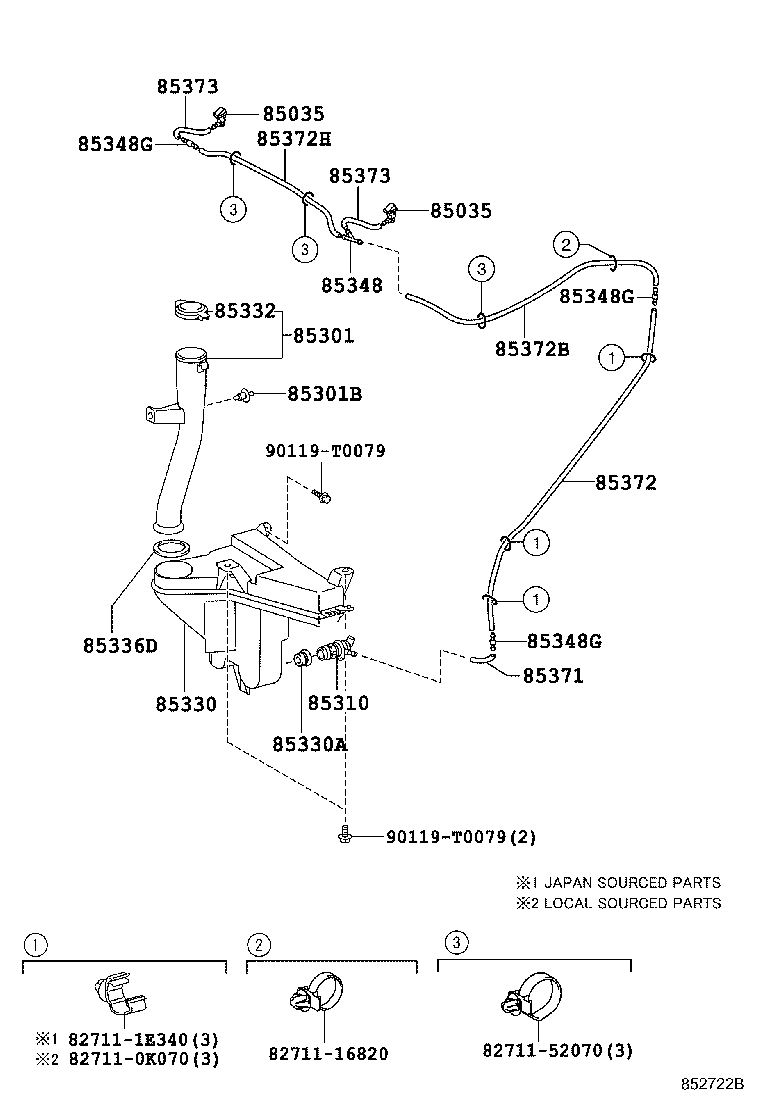

Click highlighted areas on diagram

diagram 827110K070 8271116820 827111E340 8271152070 85035 85035 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85348G 85348G 85371 85372 85372B 85372H 85373 85373 90119T0079 90119T0079
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K150

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85301B - CLIP, WASHER
90467-07076A0

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

IVORY

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0D100

KUN25..SR..IDN;GGN15,25,KUN15,16,2#,3#,TGN16..ARL,MA,TH

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K020

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33160

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59091

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=950

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33159

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=900

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-T0079
