GGN25R-PRASKQ (2011)
Toyota Hilux

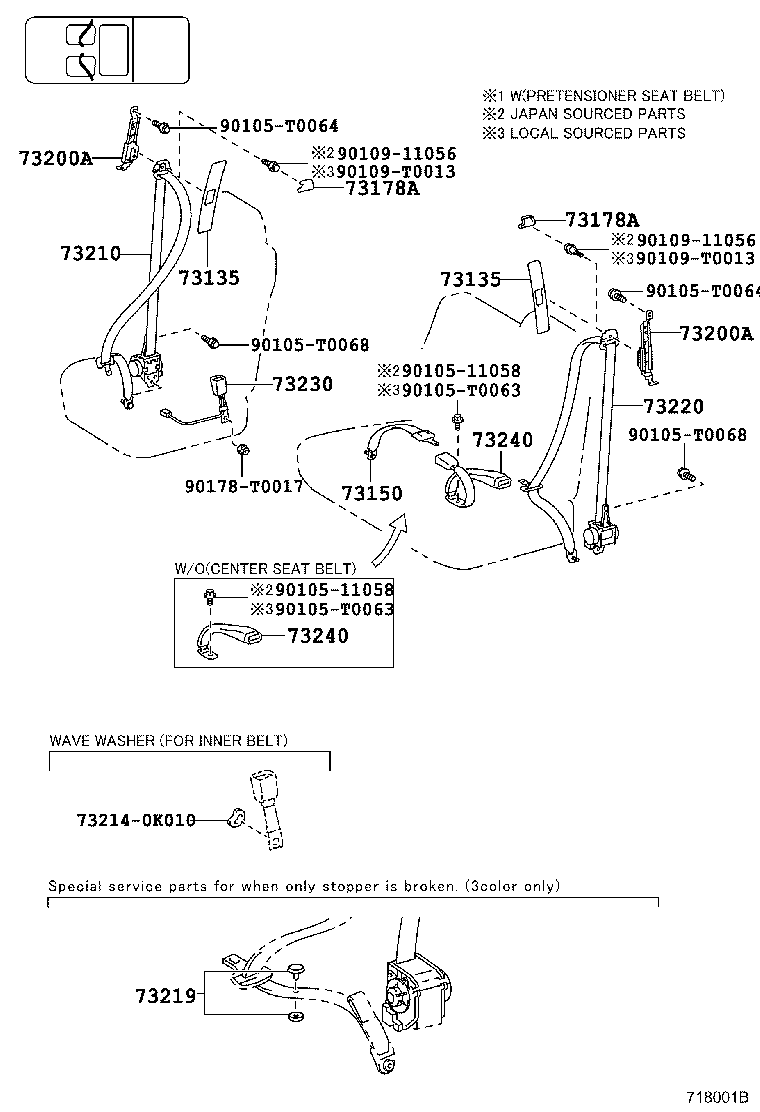

ILLUST NO. 1 OF 2(1107- )DCB,SADCB,THDCB,XTR
PASSENGER SEAT(ONE PERSON TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-0K010B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73135-0K010B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-0K010B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73135-0K010B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
TGN26..DLX..HTWCF;KUN26..5FC..SR..LA;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,MA);GGN15,TGN16..DCB..(4FC,5FC)..ARL;TGN26..(DCB,THDCB)..HTWC..(GEN,LA);KUN26,TGN36..5F..SR..(HTWC,IART)..LA;KUN15,16,25,35..(DCB,THDCB)..(ARL,CO,GEN,LA);KUN26,36,TGN16..DCB..DLX..(DCR,HTWC)..(GEN,LA);KUN26,36,TGN36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN) LT.GRAY,TRIM1#,2# |
2 | ||
| 73178-33020B3 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,SA) LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
TGN26..DLX..HTWCF;KUN26..5FC..SR..LA;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,MA);GGN15,TGN16..DCB..(4FC,5FC)..ARL;TGN26..(DCB,THDCB)..HTWC..(GEN,LA);KUN26,TGN36..5F..SR..(HTWC,IART)..LA;KUN15,16,25,35..(DCB,THDCB)..(ARL,CO,GEN,LA);KUN26,36,TGN16..DCB..DLX..(DCR,HTWC)..(GEN,LA);KUN26,36,TGN36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN) LT.GRAY,TRIM1#,2# |
2 | ||
| 73178-33020B3 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,SA) LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73200-02090B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73200-02090B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K480B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73210-0K680B0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K480B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73210-0K680B0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BEIGE |
1 | ||
| 73219-33010 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BLACK |
1 | ||
| 73219-33020 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K270B1 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73220-0K420B0 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K270B1 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73220-0K420B0 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K611B1 |
GGN15,25,KUN26..RHD..DCB..SR..(ARL,GEN) SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 73230-0K611C0 |
KUN26..DCB..5F..TH;GGN15,25..5FC..SR..ARL;KUN26..RHD..DCB..4FC..GEN;KUN26..RHD..DCB..(5F,5FC)..SR..(ARL,GEN) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73230-0K020B1 |
KUN16..5F;KUN25..4FC..GEN;KUN35..SMT..5FC;KUN35..(SCB,XTR)..SA;KUN35..DCB..DLX..GEN;KUN15,TGN16..DLX..(ARL,TH);KUN25..RHD..DCB..DLX..(IDN,SA);KUN15,16,35..RHD..SR..(GEN,SA);GGN15,25,35,KUN10,26,36,TGN10,26,36..RHD..(ARL,GEN,IDN,SA) MD.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K410B1 |
KUN35..DCB..DLX..SA;LAN15,25,35,TGN15..RHD FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1# |
1 | ||
| 73230-0K030B1 |
KUN35..SR..SA;KUN35..SMT..5FC;KUN35..DCB..DLX..GEN;KUN35..(SCB,XTR)..SA;KUN16..(DCB,SMT,XTR)..5F;GGN15,KUN16,TGN16..(4FC,5FC)..(ARL,GEN);GGN15,KUN15,25..RHD..(DCB,XTR)..5F..(ARL,SA);GGN25,35,KUN26,36,TGN36..RHD..(ARL,GEN,MA,SA) MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-11055 | ||||
| 90109-11056 | ||||
| 90109-T0013 | ||||
| 90109-T0036 | ||||
| 90178-T0017 | ||||

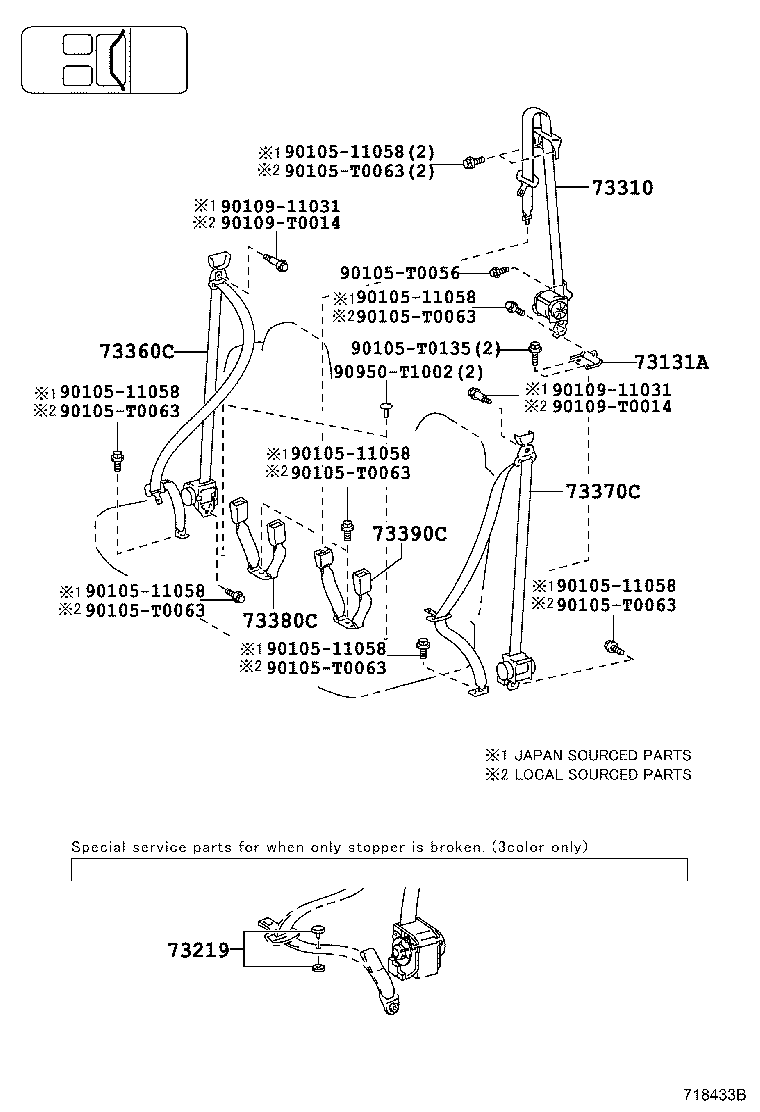

ILLUST NO. 2 OF 2(1107- )DCB,SADCB,THDCB,XTR
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BEIGE |
1 | ||
| 73219-33010 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BLACK |
1 | ||
| 73219-33020 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH GRAY |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K020B1 |
KUN15,35..DLX..PHL;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,TH) MD.GRAY,TRIM1# |
1 | ||
| 73380-0K021B1 |
KUN26..4FC..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL) GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..GEN;KUN16,36,TGN16,26,36..(DCB,THDCB)..GEN;KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,TH);KUN15,25..(DCB,THDCB)..DLX..(GEN,IDN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73380-0K430B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K430C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K020B1 |
KUN15,35..DLX..PHL;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,TH) MD.GRAY,TRIM1# |
1 | ||
| 73380-0K021B1 |
KUN26..4FC..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL) GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..GEN;KUN16,36,TGN16,26,36..(DCB,THDCB)..GEN;KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,TH);KUN15,25..(DCB,THDCB)..DLX..(GEN,IDN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73380-0K430B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K430C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-0K020B1 |
KUN15,35..DLX..PHL;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,TH) MD.GRAY,TRIM1# |
1 | ||
| 73390-0K021B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN16,36,TGN16,26,36..(DCB,THDCB)..GEN;KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH);KUN15,25..(DCB,THDCB)..DLX..(GEN,IDN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73390-0K021B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73390-0K280C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73390-0K280B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 90105-T0068 | ||||
| 90109-11044 | ||||
| 90109-T0014 | ||||
| 90109-T0026 | ||||
| 90950-T1002 | ||||
ILLUST NO. 1 OF 2(1107- )RHD..DCB
PASSENGER SEAT(TWO PERSONS TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-0K010B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73135-0K010B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-0K010B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73135-0K010B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
TGN26..DLX..HTWCF;KUN26..5FC..SR..LA;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,MA);GGN15,TGN16..DCB..(4FC,5FC)..ARL;TGN26..(DCB,THDCB)..HTWC..(GEN,LA);KUN26,TGN36..5F..SR..(HTWC,IART)..LA;KUN15,16,25,35..(DCB,THDCB)..(ARL,CO,GEN,LA);KUN26,36,TGN16..DCB..DLX..(DCR,HTWC)..(GEN,LA);KUN26,36,TGN36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN) LT.GRAY,TRIM1#,2# |
2 | ||
| 73178-33020B3 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,SA) LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
TGN26..DLX..HTWCF;KUN26..5FC..SR..LA;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,MA);GGN15,TGN16..DCB..(4FC,5FC)..ARL;TGN26..(DCB,THDCB)..HTWC..(GEN,LA);KUN26,TGN36..5F..SR..(HTWC,IART)..LA;KUN15,16,25,35..(DCB,THDCB)..(ARL,CO,GEN,LA);KUN26,36,TGN16..DCB..DLX..(DCR,HTWC)..(GEN,LA);KUN26,36,TGN36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN) LT.GRAY,TRIM1#,2# |
2 | ||
| 73178-33020B3 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(ANCOM,SA) LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73200-02090B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC,HTWCF)..(ARL,CO,GEN,IDN,LA,MA,TH) LT.GRAY,TRIM1#,2# |
2 | ||
| 73200-02090B0 |
GGN25..5FC..DLX;KUN36..DCB..5F..SA;KUN26..4FC..ARL..CBU;KUN26,TGN16..DCB..SA;KUN16,36..4FC..(SA,TH);GGN15,25,KUN25,35..DCB..(4FC,5F)..(ARL,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(ANCOM,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K480B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73210-0K680B0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BEIGE |
1 | ||
| 73219-33010 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BLACK |
1 | ||
| 73219-33020 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K270B1 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73220-0K420B0 |
TGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K611B1 |
GGN15,25,KUN26..RHD..DCB..SR..(ARL,GEN) SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 73230-0K611C0 |
KUN26..DCB..5F..TH;GGN15,25..5FC..SR..ARL;KUN26..RHD..DCB..4FC..GEN;KUN26..RHD..DCB..(5F,5FC)..SR..(ARL,GEN) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73230-0K020B1 |
KUN16..5F;KUN25..4FC..GEN;KUN35..SMT..5FC;KUN35..(SCB,XTR)..SA;KUN35..DCB..DLX..GEN;KUN15,TGN16..DLX..(ARL,TH);KUN25..RHD..DCB..DLX..(IDN,SA);KUN15,16,35..RHD..SR..(GEN,SA);GGN15,25,35,KUN10,26,36,TGN10,26,36..RHD..(ARL,GEN,IDN,SA) MD.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K410B1 |
KUN35..DCB..DLX..SA;LAN15,25,35,TGN15..RHD FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1# |
1 | ||
| 73230-0K030B1 |
KUN35..SR..SA;KUN35..SMT..5FC;KUN35..DCB..DLX..GEN;KUN35..(SCB,XTR)..SA;KUN16..(DCB,SMT,XTR)..5F;GGN15,KUN16,TGN16..(4FC,5FC)..(ARL,GEN);GGN15,KUN15,25..RHD..(DCB,XTR)..5F..(ARL,SA);GGN25,35,KUN26,36,TGN36..RHD..(ARL,GEN,MA,SA) MD.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K410B1 |
KUN35..DCB..DLX..SA;LAN15,25,35,TGN15..RHD FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MD.GRAY,TRIM1# |
1 | ||
| 73230-0K030B1 |
KUN35..SR..SA;KUN35..SMT..5FC;KUN35..DCB..DLX..GEN;KUN35..(SCB,XTR)..SA;KUN16..(DCB,SMT,XTR)..5F;GGN15,KUN16,TGN16..(4FC,5FC)..(ARL,GEN);GGN15,KUN15,25..RHD..(DCB,XTR)..5F..(ARL,SA);GGN25,35,KUN26,36,TGN36..RHD..(ARL,GEN,MA,SA) MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-11056 | ||||
| 90109-T0013 | ||||
| 90178-T0017 | ||||
ILLUST NO. 2 OF 2(1308- )GGN15..DCB..5FC ; (1308- )TGN16..ARL..CBU ; (1308- )GGN25..5FC..SR
REAR SEAT(CENTER 3-POINT TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-0K040 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BEIGE |
1 | ||
| 73219-33010 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH BLACK |
1 | ||
| 73219-33020 |
KUN25..DLX..IDN;KUN25..CO,GCC,GEN,LA,MA,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH GRAY |
1 | ||
| 73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH | ||||
| 73310-0K090B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| 73310-0K090C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-0K042B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73360-0K040B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL MD.GRAY,TRIM1# |
1 | ||
| 73360-0K041B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..(4FC,5FC)..ARL..CBU GRAY,TRIM1# |
1 | ||
| 73360-0K041C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K042C0 |
GGN15,25,KUN16,26,TGN16..DCB..ARL BLACK,TRIM2# |
1 | ||
| 73360-0K043B1 |
GGN15,25,KUN16,26,TGN16..DCB..ARL GRAY,TRIM1# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K020B1 |
KUN15,35..DLX..PHL;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,TH) MD.GRAY,TRIM1# |
1 | ||
| 73380-0K021B1 |
KUN26..4FC..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL) GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K022B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..GEN;KUN16,36,TGN16,26,36..(DCB,THDCB)..GEN;KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,TH);KUN15,25..(DCB,THDCB)..DLX..(GEN,IDN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73380-0K430B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| 73380-0K430C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-0K020B1 |
KUN15,35..DLX..PHL;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,TH) MD.GRAY,TRIM1# |
1 | ||
| 73390-0K021B1 |
GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN16,36,TGN16,26,36..(DCB,THDCB)..GEN;KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH);KUN15,25..(DCB,THDCB)..DLX..(GEN,IDN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73390-0K021B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL GRAY,TRIM1# |
1 | ||
| 73390-0K280C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 73390-0K280B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90105-T0056 | ||||
| 90105-T0063 | ||||
| 90105-T0135 | ||||
| 90109-11031 | ||||
| 90109-T0014 | ||||
| 90950-T1002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
