GGN25R-PRASKQ (2011)
Toyota Hilux

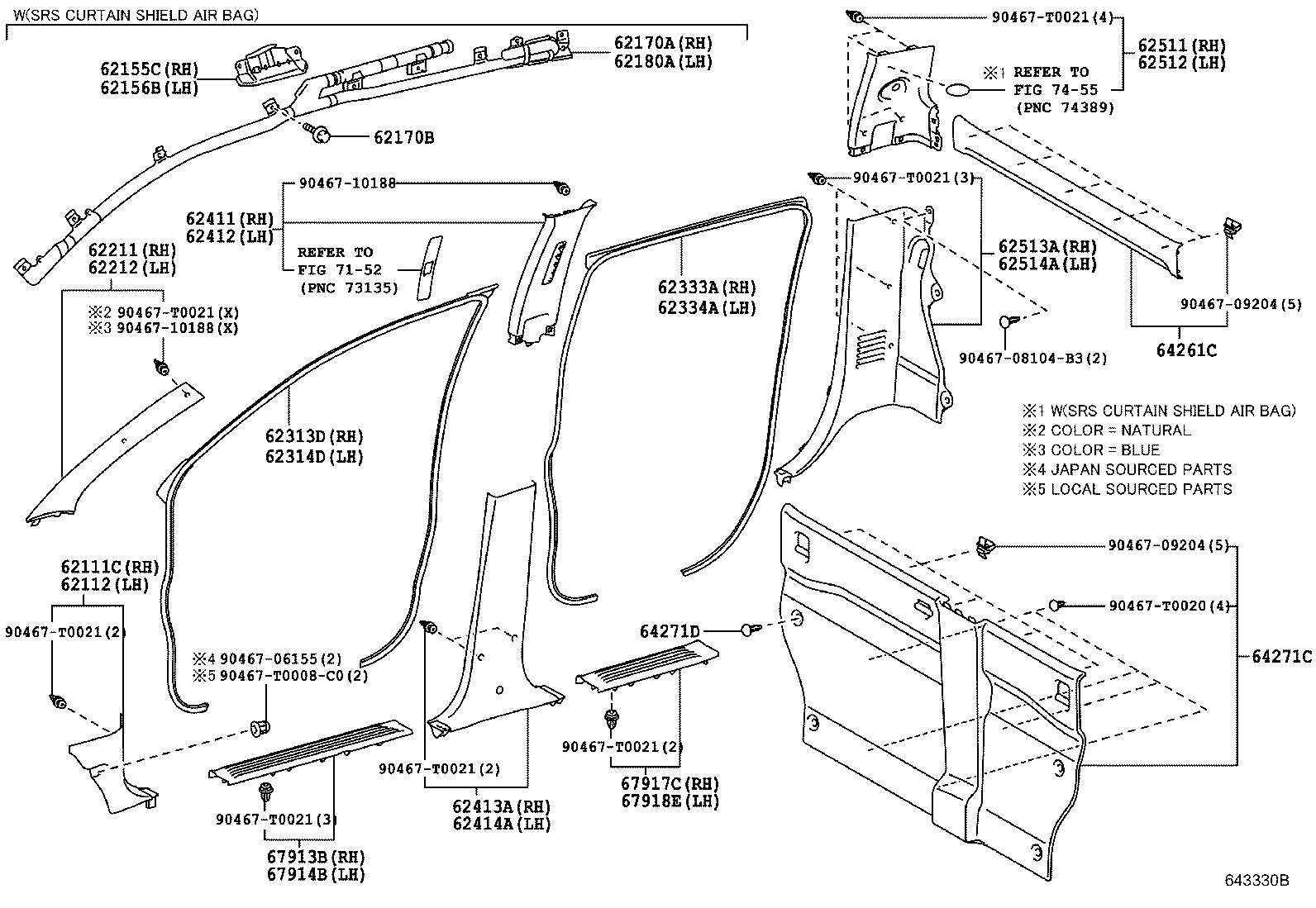

(1107- )DCB..5F..IV3 ; (1107- )DCB,SADCB,THDCB..CBU
W/O(3-POINT REAR CENTER SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0K010B1 |
KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN MD.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0K010B1 |
KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN MD.GRAY,TRIM1# |
1 | ||
| 62155C - BRACKET, CURTAIN SHIELD AIR BAG, RH | ||||
| 62155-0K030 |
GGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA |
1 | ||
| 62156B - BRACKET, CURTAIN SHIELD AIR BAG, LH | ||||
| 62156-0K010 |
GGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0K030 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62170-0K031 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GGN25..5F;GGN25..5FC..DLX;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU |
22 | ||
| 90119-06869 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL |
22 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0K030 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62180-0K031 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-0K080B0 |
GGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62211-0K080B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-0K080B0 |
GGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62212-0K080B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62311-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62312-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62331-0K070 |
KUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,THDCB)..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62332-0K070 |
KUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,THDCB)..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-0K060B1 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH) LT.GRAY,TRIM1#,2# |
1 | ||
| 62411-0K060B1 |
GGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-0K060B1 |
GGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62412-0K060B1 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH) LT.GRAY,TRIM1#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0K011C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 62413-0K011B1 |
KUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0K011C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 62414-0K011B1 |
KUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-0K230B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62511-0K230B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62511-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-0K230B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62511-0K230B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62511-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-0K200B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62512-0K200B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62512-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-0K200B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62512-0K200B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62512-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62513-0K010B2 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL MD.GRAY,TRIM1# |
1 | ||
| 62513-0K220C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 62513-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL MD.GRAY,TRIM1# |
1 | ||
| 62513-0K010B2 |
GGN25..5FC..DLX;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN15,TGN16..DCB..DLX..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,MA,PHL,TH);KUN16,TGN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,TH);GGN15,25,KUN25,36..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,IDN,MA,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62514-0K010B2 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL MD.GRAY,TRIM1# |
1 | ||
| 62514-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL MD.GRAY,TRIM1# |
1 | ||
| 62514-0K010B2 |
GGN25..5FC..DLX;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN15,TGN16..DCB..DLX..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,MA,PHL,TH);KUN16,TGN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,TH);GGN15,25,KUN25,36..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,IDN,MA,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62514-0K220C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 64261C - GARNISH, BACK PANEL, UPPER | ||||
| 64261-0K010B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 64261-0K010B1 |
KUN25..PKN;GGN25..5FC..DLX;KUN16,36..4FC..TH;KUN26..4FC..ARL..CBU;KUN25,TGN10..SCB..(IDN,MA)..CBU;GGN15,25,KUN15..DCB..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN15,16,26,TGN16..SCB..(ARL,PHL,PKN,TH) LT.GRAY,TRIM1# |
1 | ||
| 64271C - TRIM, BACK PANEL | ||||
| 64271-0K010C0 |
GGN25..5F..SR;KUN26..4FC..SR..ARL BLACK,TRIM1# |
1 | ||
| 64271-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 64271-0K010C0 |
KUN26..DCB..5F..SR..ARL;GGN15,25..DCB..5FC..SR..ARL BLACK,TRIM1# |
1 | ||
| 64271D - CLIP(FOR BACK PANEL TRIM) | ||||
| 90467-T0004C1 |
KUN26..DCB..5F..SR..ARL;GGN15,25..DCB..5FC..SR..ARL BLACK,TRIM1# |
3 | ||
| 90467-08104B3 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
4 | ||
| 90467-T0004C1 |
GGN25..ANCOM;KUN26..4FC..SR..ARL;GGN15,KUN26..SCB..(4FC,5FC);GGN25,TGN26..5F..SR..(ANCOM,ARL) BLACK,TRIM1# |
3 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67913-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67914-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67917-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67918-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-06155 | ||||
| 90467-09204 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 90467-T0008C0 | ||||
| 90467-T0021 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

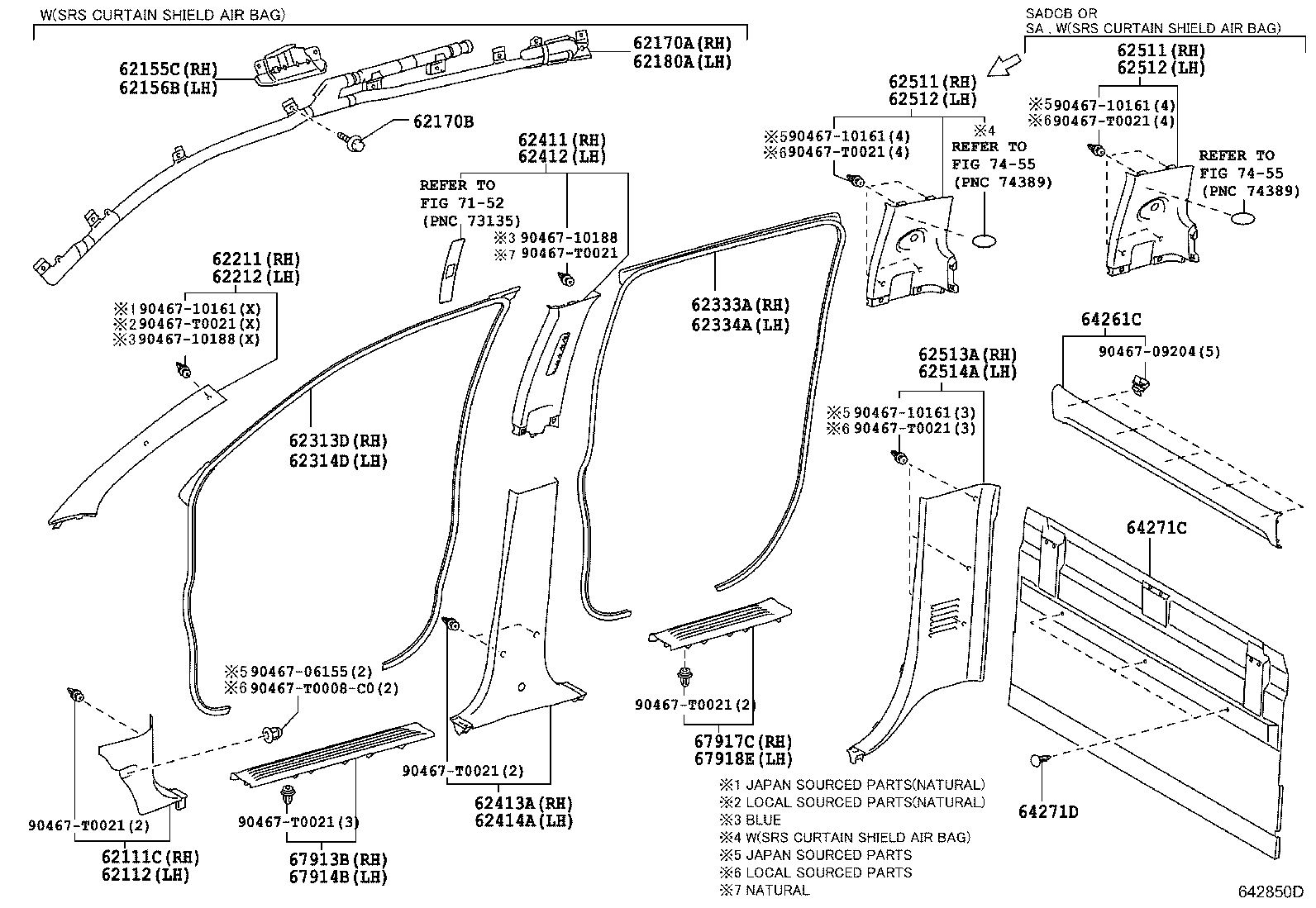

(1308- )GGN15..DCB..5FC ; (1308- )TGN16..ARL..CBU ; (1308- )GGN25..5FC..SR
W(3-POINT REAR CENTER SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0K010B1 |
KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN MD.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0K010B1 |
KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN MD.GRAY,TRIM1# |
1 | ||
| 62155C - BRACKET, CURTAIN SHIELD AIR BAG, RH | ||||
| 62155-0K030 |
GGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA |
1 | ||
| 62156B - BRACKET, CURTAIN SHIELD AIR BAG, LH | ||||
| 62156-0K010 |
GGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0K030 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62170-0K031 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GGN25..5F;GGN25..5FC..DLX;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU |
22 | ||
| 90119-06869 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL |
22 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0K030 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62180-0K031 |
GGN25,KUN26..DCB..ARL |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-0K080B0 |
GGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62211-0K080B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-0K080B0 |
GGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62212-0K080B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62311-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62312-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62331-0K070 |
KUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,THDCB)..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62332-0K070 |
KUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,THDCB)..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-0K060B1 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH) LT.GRAY,TRIM1#,2# |
1 | ||
| 62411-0K060B1 |
GGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-0K060B1 |
GGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62412-0K060B1 |
KUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH) LT.GRAY,TRIM1#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0K011C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 62413-0K011B1 |
KUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0K011C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 62414-0K011B1 |
KUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-0K230B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62511-0K230B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62511-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-0K200B0 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU LT.GRAY,TRIM1# |
1 | ||
| 62512-0K200B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL LT.GRAY,TRIM1# |
1 | ||
| 62512-0K550B0 |
GGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62513-0K010B2 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL MD.GRAY,TRIM1# |
1 | ||
| 62513-0K220C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 62513-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL MD.GRAY,TRIM1# |
1 | ||
| 62513-0K010B2 |
GGN25..5FC..DLX;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN15,TGN16..DCB..DLX..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,MA,PHL,TH);KUN16,TGN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,TH);GGN15,25,KUN25,36..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,IDN,MA,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62514-0K010B2 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL MD.GRAY,TRIM1# |
1 | ||
| 62514-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL MD.GRAY,TRIM1# |
1 | ||
| 62514-0K010B2 |
GGN25..5FC..DLX;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN15,TGN16..DCB..DLX..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,MA,PHL,TH);KUN16,TGN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,TH);GGN15,25,KUN25,36..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,IDN,MA,PKN) MD.GRAY,TRIM1# |
1 | ||
| 62514-0K220C0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL BLACK,TRIM2# |
1 | ||
| 64261C - GARNISH, BACK PANEL, UPPER | ||||
| 64261-0K010B1 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 64261-0K010B1 |
KUN25..PKN;GGN25..5FC..DLX;KUN16,36..4FC..TH;KUN26..4FC..ARL..CBU;KUN25,TGN10..SCB..(IDN,MA)..CBU;GGN15,25,KUN15..DCB..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN15,16,26,TGN16..SCB..(ARL,PHL,PKN,TH) LT.GRAY,TRIM1# |
1 | ||
| 64271C - TRIM, BACK PANEL | ||||
| 64271-0K010C0 |
GGN25..5F..SR;KUN26..4FC..SR..ARL BLACK,TRIM1# |
1 | ||
| 64271-0K220B0 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
1 | ||
| 64271-0K010C0 |
KUN26..DCB..5F..SR..ARL;GGN15,25..DCB..5FC..SR..ARL BLACK,TRIM1# |
1 | ||
| 64271D - CLIP(FOR BACK PANEL TRIM) | ||||
| 90467-T0004C1 |
KUN26..DCB..5F..SR..ARL;GGN15,25..DCB..5FC..SR..ARL BLACK,TRIM1# |
3 | ||
| 90467-08104B3 |
GGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL LT.GRAY,TRIM1#,2# |
4 | ||
| 90467-T0004C1 |
GGN25..ANCOM;KUN26..4FC..SR..ARL;GGN15,KUN26..SCB..(4FC,5FC);GGN25,TGN26..5F..SR..(ANCOM,ARL) BLACK,TRIM1# |
3 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67913-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67914-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67917-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0K010C0 |
GGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH) BLACK,TRIM2# |
1 | ||
| 67918-0K010B1 |
KUN15,35..SR..GEN;KUN16..DCB..(4FC,5F);KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN) MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-06155 | ||||
| 90467-08104B3 | ||||
| 90467-09204 | ||||
| 90467-10188 | ||||
| 90467-T0008C0 | ||||
| 90467-T0020 | ||||
| 90467-T0021 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
