GGN25R-PRASKQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN15,25,35..5FC

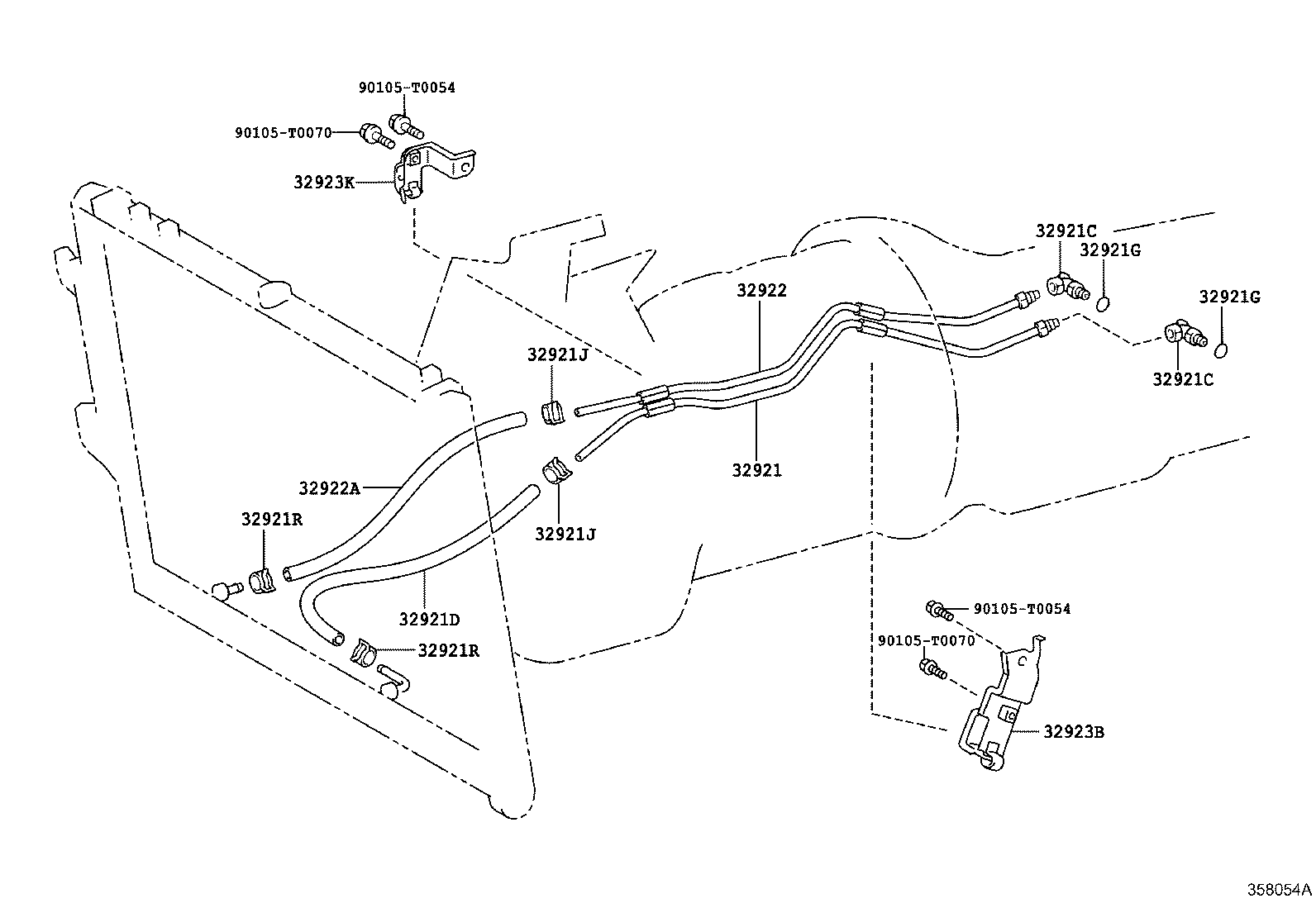

Click highlighted areas on diagram

A750E,A750F

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921R 32921R 32922 32922A 32923B 32923K 90105T0054 90105T0054 90105T0070 90105T0070
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-0K050

GGN15,25,35..5FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

GGN15,25,35,KUN16,26,3#..5FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

GGN15,25,35,KUN16,26,3#..5FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-T0013

GGN15,25,35,KUN16,26,3#..5FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..4FC,5FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..4FC,5FC

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016

GGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-0K050

GGN15,25,35..5FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-T0012

GGN15,25,35,KUN16,26,3#..5FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-0K030

KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
32909-0K080

GGN15,25,35..5FC

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32909-0K040

KUN16,2#,3#..4FC,5FC

 1
32909-0K090

GGN15,25,35..5FC

 1
Common parts
90105-T0054
90105-T0070
