Toyota Hilux GGN25 STARTER - JDM Part Detective

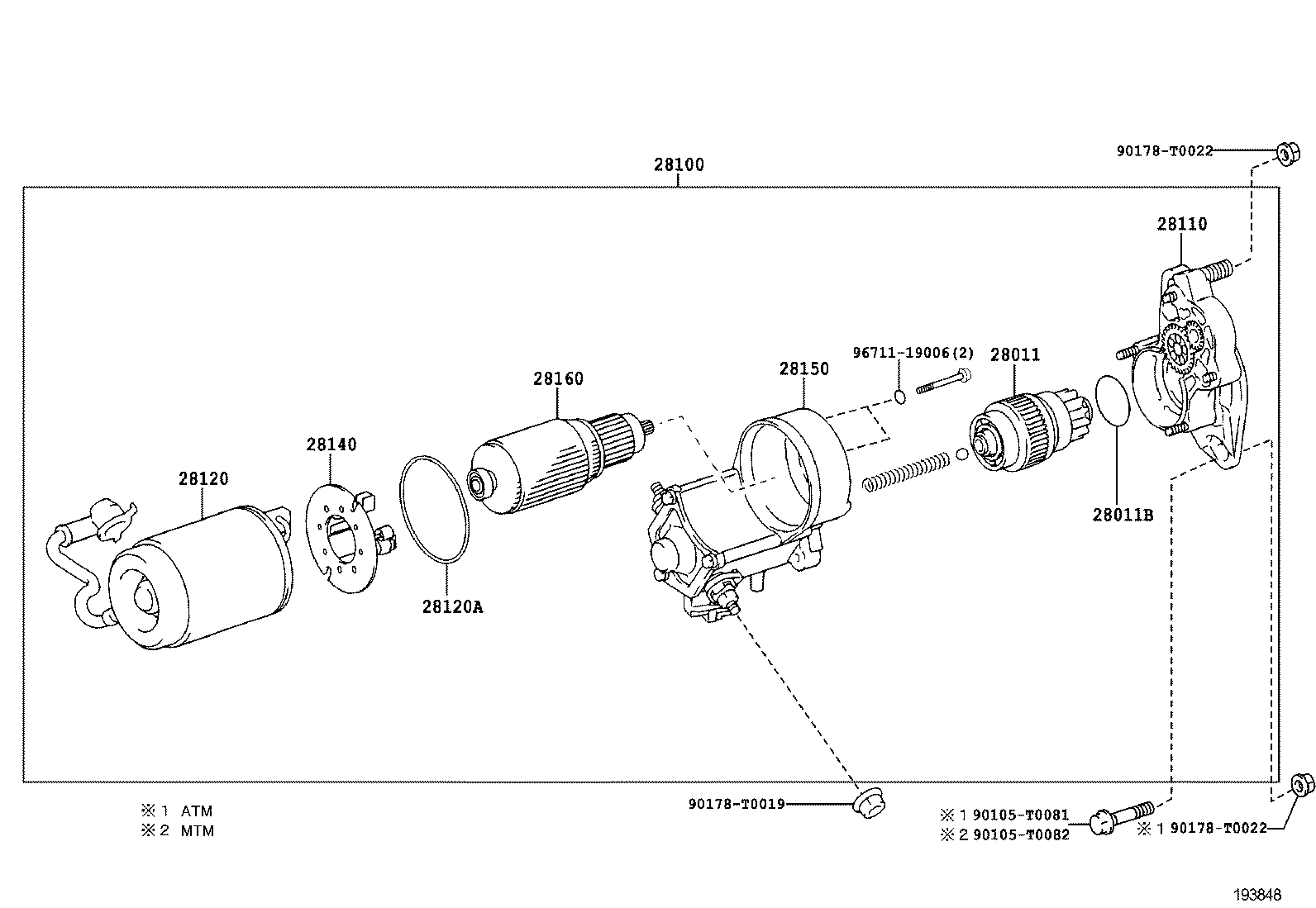

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-66020	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-31111	1GRFE..GGN15,25..ARL 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-35060	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-31110	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90119-T0432
91642-81065

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-66020	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-31111	1GRFE..GGN15,25..ARL 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-35060	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-31110	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90105-T0081
90105-T0082
90178-T0019
90178-T0022
96711-19006

GGN25R-PRASKQ (2011)
