Toyota Hilux GGN25 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
US
HILUX
GGN25R-PRASKQ (2011)
1603 - RADIATOR & WATER OUTLET

GGN25R-PRASKQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )1GRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361 - FAN
16361-31060	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16400 - RADIATOR ASSY
16400-0P030	1GRFE..GGN15,25..5F	07/2011 - 11/2013	1
16400-0P040	1GRFE..GGN15,25..5FC..(ANCOM,ARL)	07/2011 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	1
16400R - BUSHING(FOR RADIATOR)
16444-75180	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	2
16400S - COLLAR(FOR RADIATOR)
16445-0C180	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	2
16401 - CAP SUB-ASSY, RADIATOR
16401-0C030	1GRFE..GGN15,25,35	05/2014 - 12/2999	1
16401-0H060	1GRFE..GGN15,25,35	07/2011 - 09/2012	1
16401-0K040	1GRFE..GGN15,25,35	10/2012 - 04/2014	1
16417 - COCK
16417-0C180	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	1
16453 - PLATE, RADIATOR SIDE
16453-0L120	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	1
16454 - PLATE, RADIATOR SIDE
16454-0L120	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	4
16470 - TANK ASSY, RADIATOR RESERVE
16470-0C040	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
16470M - GROMMET
90480-T0003	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-0C020	1GRFE..GGN15,25,35..RHD	07/2011 - 12/2015	1
16571C - HOSE, RADIATOR, NO.1
16571-0P030	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-T0011	1GRFE..GGN15,25,35	07/2011 - 05/2013	2
90466-T0028	1GRFE..GGN15,25,35	06/2013 - 12/2999	2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-T0011	1GRFE..GGN15,25,35	07/2011 - 05/2013	2
90466-T0028	1GRFE..GGN15,25,35	06/2013 - 12/2999	2
16572D - HOSE, RADIATOR, NO.2
16572-0P030	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-T0028	1GRFE..GGN15,25,35	06/2013 - 12/2999	2
90466-T0011	1GRFE..GGN15,25,35	07/2011 - 05/2013	2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-T0028	1GRFE..GGN15,25,35	06/2013 - 12/2999	2
90466-T0011	1GRFE..GGN15,25,35	07/2011 - 05/2013	2
16711 - SHROUD, FAN
16711-0P030	1GRFE..GGN15,25..ANCOM,ARL	07/2011 - 12/2999	1
Common parts
90119-T0254
90119-T0347
90179-06293

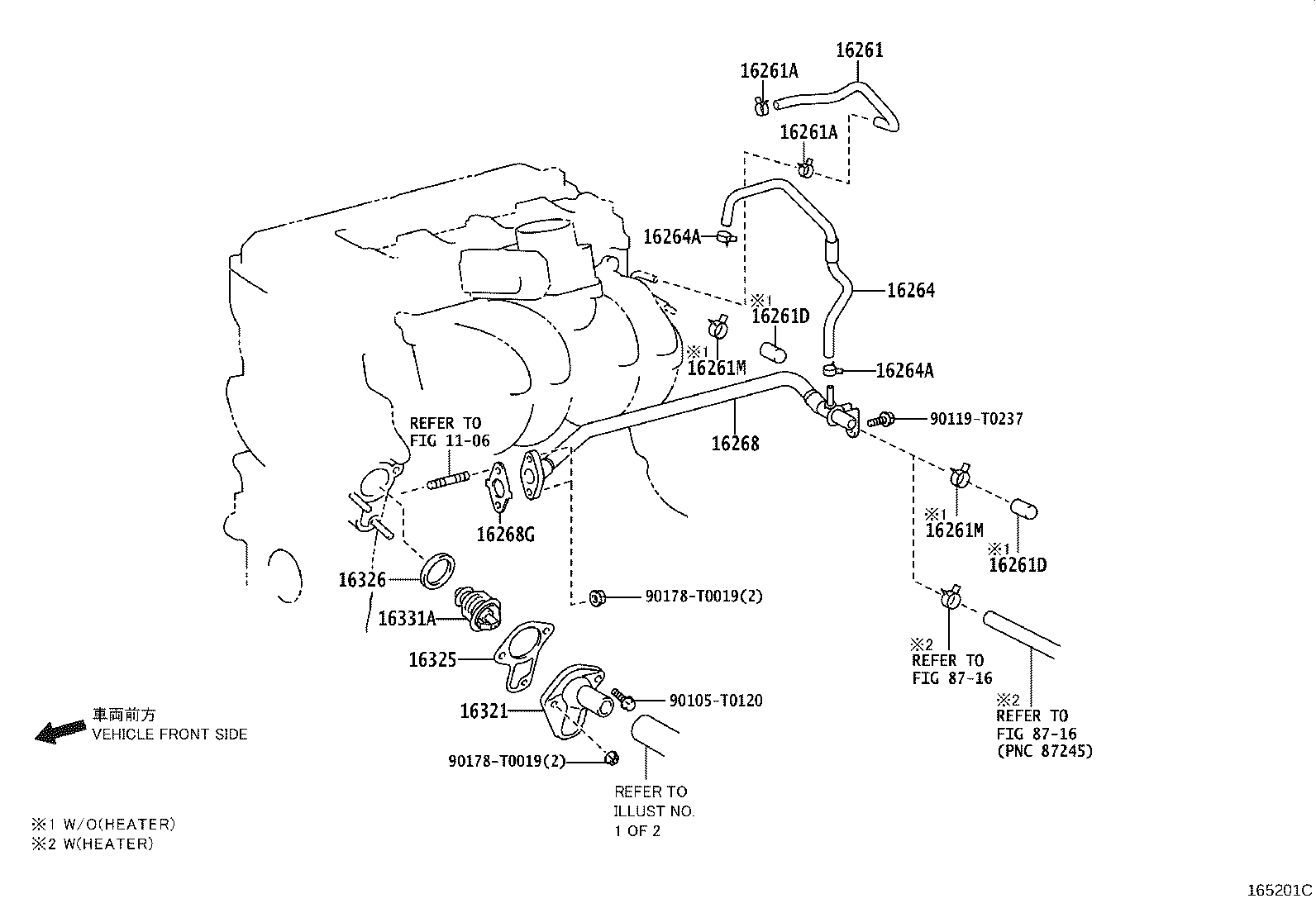

ILLUST NO. 2 OF 2(1107- )1GRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16261 - HOSE, WATER BY-PASS
16261-31100	1GRFE..GGN15,25,35 TYPE B:REFER ILLUST.	07/2011 - 12/2999	1
16261-31020	1GRFE..GGN15,25,35 TYPE A:REFER ILLUST.	07/2011 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16267 - HOSE, WATER BY-PASS, NO.3
16267-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16281 - HOSE, WATER BY-PASS, NO.4
16281-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16282 - HOSE, WATER BY-PASS, NO.5
16282-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
16323 - HOUSING, WATER INLET
16323-31021	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31020	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16332 - PIPE, WATER OUTLET, NO.1
16306-31021	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16341 - GASKET, WATER OUTLET
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16356 - JOINT, WATER BY-PASS, REAR
16356-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-28020	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
16603-28020	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
16603-28020	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-SINGLE AUTO AIR CONDITIONER(DOP)	07/2011 - 04/2015	1
16630D - PULLEY ASSY, IDLER
16630-0P010	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	1
16630-0P010	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-SINGLE AUTO AIR CONDITIONER(DOP)	07/2011 - 04/2015	1
16630-0P010	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
16649 - PLATE, IDLER PULLEY COVER
16659-31011	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-SINGLE AUTO AIR CONDITIONER(DOP)	07/2011 - 04/2015	2
16659-31011	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
16659-31011	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	2
16649 - PLATE, IDLER PULLEY COVER
16659-31011	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-SINGLE AUTO AIR CONDITIONER(DOP)	07/2011 - 04/2015	2
16659-31011	1GRFE..GGN15,25..DCB..5FC..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
16659-31011	1GRFE..GGN15,25..ARL	07/2011 - 04/2015	2
Common parts
90105-10469
90119-08B42
90126-06028
90126-06029
91551-80620
91551-80635
91671-80614
94151-80600
96761-35031
Linked diagrams
8404
8716

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-

Click highlighted areas on diagram

EXCEPT EURO 4 REGULATION

Part #	Description	Period	Qty
16341 - GASKET, WATER OUTLET
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0018
90405-08029
90405-T0002
91551-80612
91551-80812
91551-80818
91643-80635
91671-80612
94151-80600
Linked diagrams
1105
8716

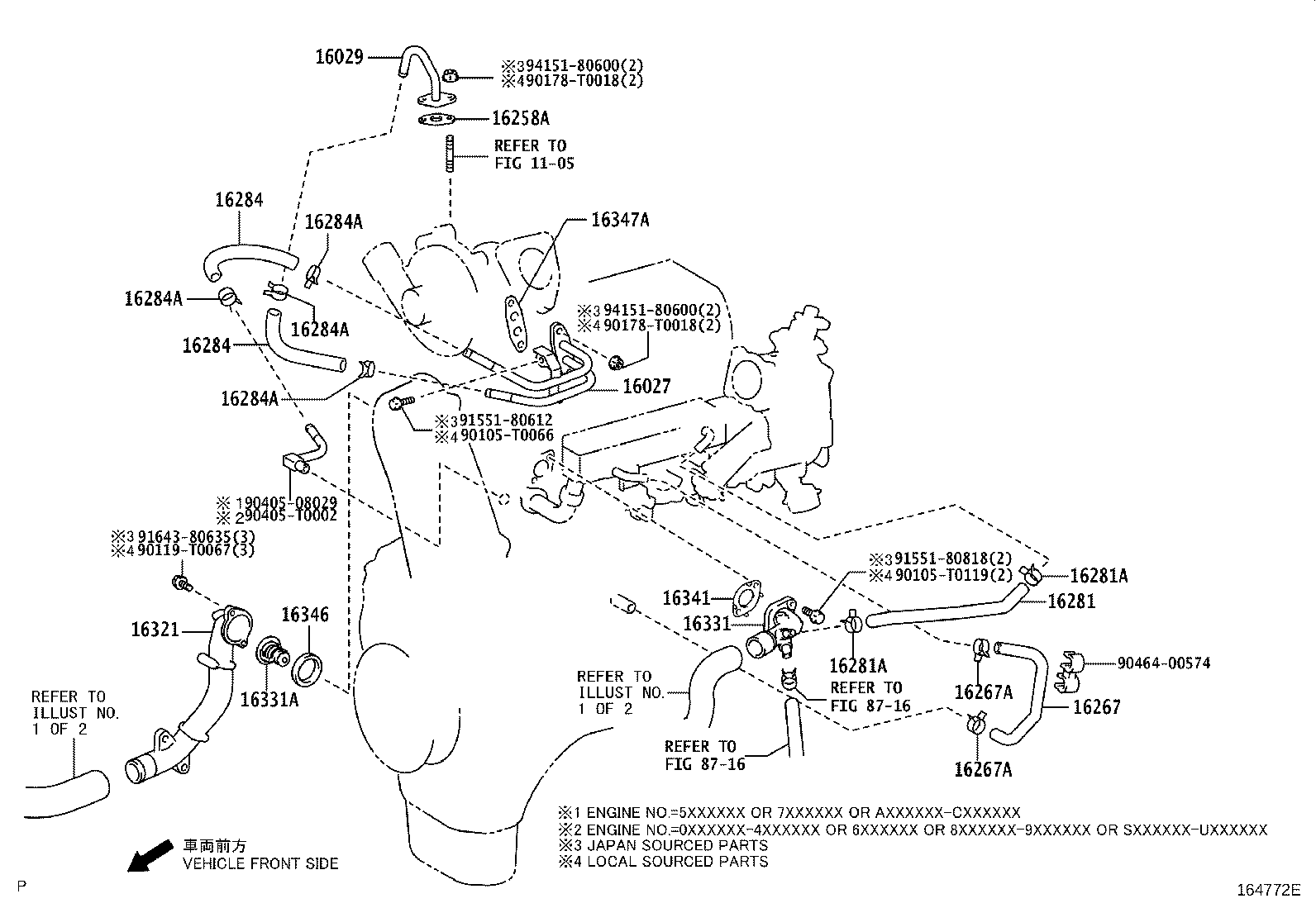

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5F..SR..TH ; (1208-)2KDFTV..KUN15..DCB..SR..TH ; (120

Click highlighted areas on diagram

WATER COOLING TURBO

Part #	Description	Period	Qty
16267 - HOSE, WATER BY-PASS, NO.3
16267-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16267-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16281 - HOSE, WATER BY-PASS, NO.4
16281-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16281-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
Common parts
90105-T0066
90105-T0119
90119-T0067
90178-T0018
90405-08029
90405-T0002
90464-00574
91551-80612
91551-80818
91643-80635
94151-80600
Linked diagrams
1105
8716

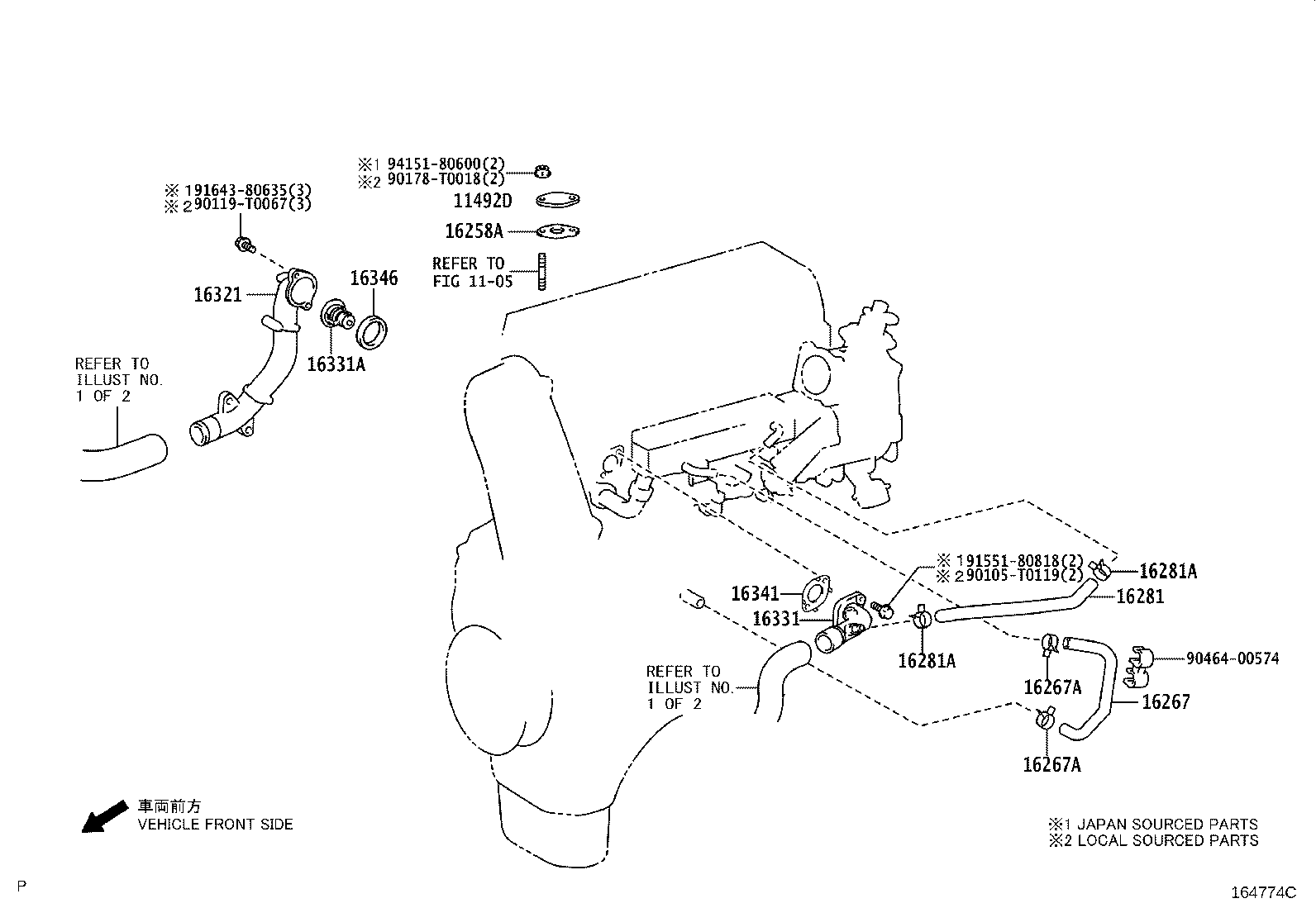

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN15..SCB,SMT..DLX..TH ; (1210- )2KDFTV..KUN35..DLX..TH ; (1

Click highlighted areas on diagram

Part #	Description	Period	Qty
16267 - HOSE, WATER BY-PASS, NO.3
16267-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16281 - HOSE, WATER BY-PASS, NO.4
16281-31011	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128	1GRFE..GGN15,25,35 NO.2,(J)	07/2011 - 12/2999	1
90466-T0014	1GRFE..GGN15,25,35 NO.2,(L)	07/2011 - 12/2016	1
96136-41501	1GRFE..GGN15,25,35 NO.1	07/2011 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
Common parts
90105-T0119
90119-T0067
90178-T0018
90464-00574
91551-80818
91643-80635
94151-80600
Linked diagrams
1105

ILLUST NO. 2 OF 2(1302-1503)2TRFE..TGN26..DCB..5F..GEN ; (1302-1504)2TRFE..TGN26..GCC ; (1302-1504)2

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-31100	1GRFE..GGN15,25,35 TYPE B:REFER ILLUST.	07/2011 - 12/2999	1
16261-31100	1GRFE..GGN15,25,35 TYPE B:REFER ILLUST.	07/2011 - 12/2999	1
16261-31020	1GRFE..GGN15,25,35 TYPE A:REFER ILLUST.	07/2011 - 12/2999	1
16261-31020	1GRFE..GGN15,25,35 TYPE A:REFER ILLUST.	07/2011 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16264-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
96137-41301	1GRFE..GGN15,25,35	07/2011 - 12/2999	2
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16325-31010	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31020	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
16326-31020	1GRFE..GGN15,25,35	07/2011 - 12/2999	1
Common parts
90105-T0120
90119-T0237
90178-T0019
Linked diagrams
1106
8716

GGN25R-PRASKQ (2011)

ILLUST NO. 1 OF 2(1107- )1GRFE

ILLUST NO. 2 OF 2(1107- )1GRFE

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5F..SR..TH ; (1208-)2KDFTV..KUN15..DCB..SR..TH ; (120

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN15..SCB,SMT..DLX..TH ; (1210- )2KDFTV..KUN35..DLX..TH ; (1

ILLUST NO. 2 OF 2(1302-1503)2TRFE..TGN26..DCB..5F..GEN ; (1302-1504)2TRFE..TGN26..GCC ; (1302-1504)2

Part Price Details
