GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

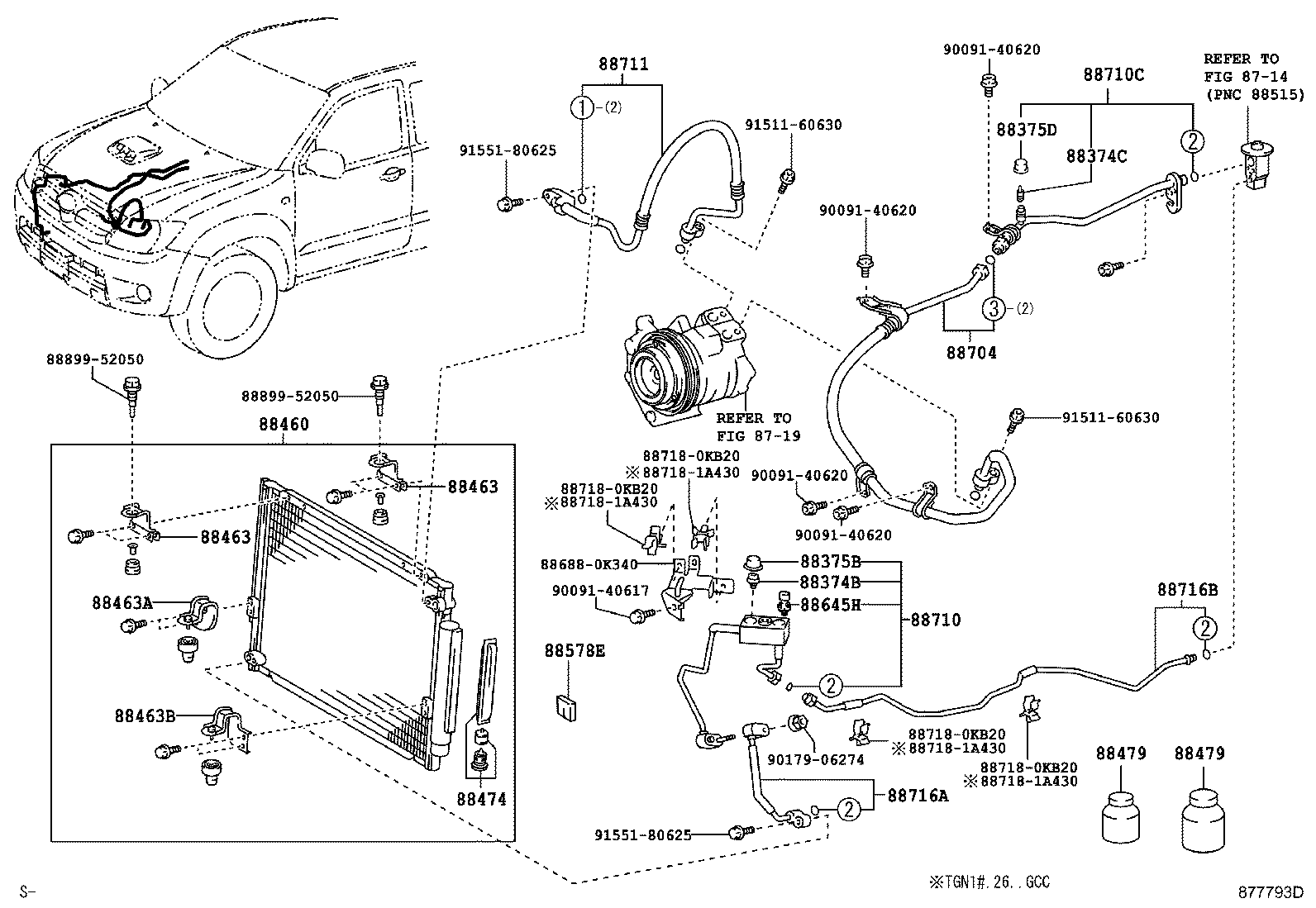

ILLUST NO. 1 OF 2(0502- )TGN26..ANCOM,GCC,GEN,SA,TH ; (0502-)GGN15,25,TGN1#..DLX,SR..ANCOM,AR

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463 88463A 88463B 88474 88479 88479 88578E 88645H 886880K340 88704 88710 88710C 88711 88716A 88716B 887180KB20 887180KB20 887180KB20 887180KB20 887181A430 887181A430 887181A430 887181A430 8889952050 8889952050 9009140617 9009140620 9009140620 9009140620 9009140620 9017906274 9151160630 9151160630 9155180625 9155180625
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K020

GGN15,25,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88460-0K020

GGN15,25,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88474 - DRYER, COOLER
88474-08010

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88474-08010

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88578-0K100

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88578-0K100

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 4
88578-0K100

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 4
88704 - HOSE SUB-ASSY, SUCTION
88704-0K320

GGN15,25..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88704-0K320

GGN15,25..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K710

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88710-0K710

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-0K700

GGN15,25,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88710-0K700

GGN15,25,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K230

GGN15,25..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88711-0K230

GGN15,25..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KB60

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88716-0KB60

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0KC20

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
88716-0KC20

GGN15,25,KUN16,26,TGN16..ARL

AIR CONDITIONER(DEALER OPTION)

 1
Common parts
88688-0K340
88718-0KB20
88718-1A430
88899-52050
90091-40617
90091-40620
90179-06274
91511-60630
91551-80625
Linked diagrams
8714
8719
