GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

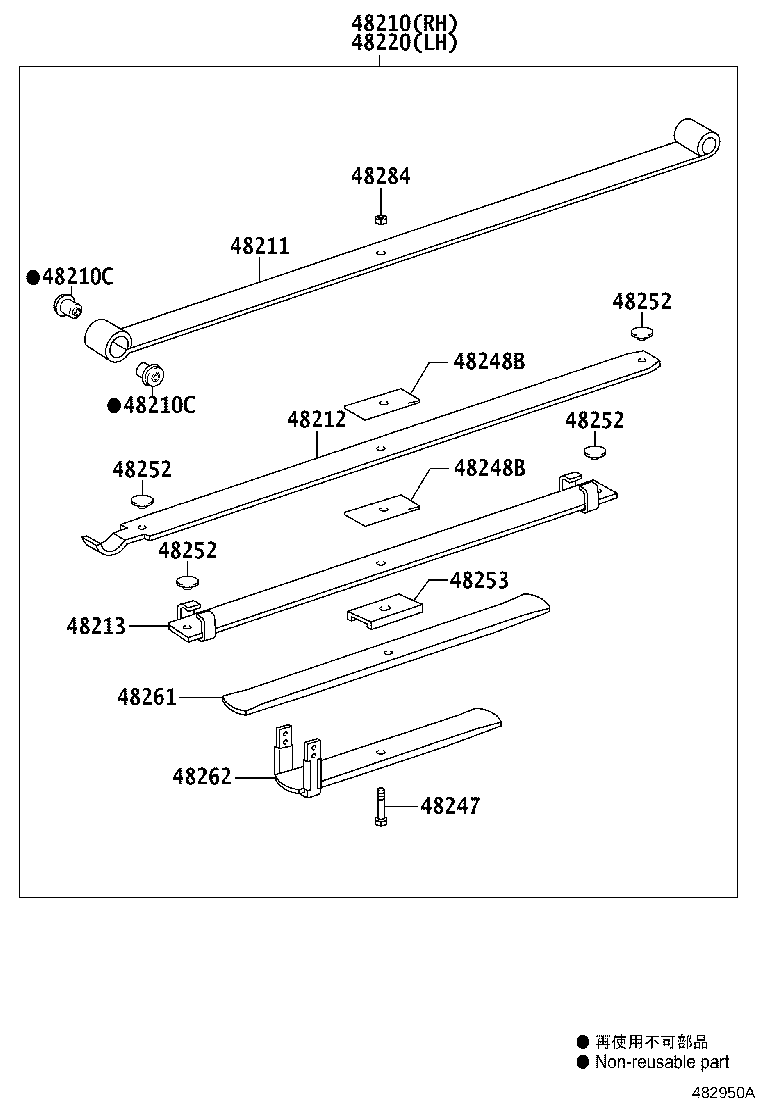

ILLUST NO. 2 OF 2(0408-0508)KUN1#,TGN16..XTR..TH ; (0408- )KUN15,TGN16..SMT,XTR..DLX ; (0408-

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48220 48247 48248B 48248B 48252 48252 48252 48252 48253 48261 48262 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0009

GGN25,KUN2#,TGN26..ARL,GCC

 4
48211 - LEAF, REAR SPRING, NO.1
48201-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48213 - LEAF, REAR SPRING, NO.3
48204-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48220 - SPRING ASSY, REAR LH
48210-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K070

TGN26..THDCB,XTR;KUN2#,36..XTR..TH;TGN26,36..DCB..(ANCOM,GCC,GEN,PHL);KUN25,35..(DCB,THDCB)..(ANCOM,GCC,GEN);GGN25,KUN26..(DCB,THDCB,XTR)..(ARL,GEN,PHL)

 2
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN16..SR;KUN15..DCB..TH;KUN26..XTR..TH;KUN15..XTR..DLX;KUN15,25..XTR..HDCR;TGN26..DCB..(GCC,GEN);GGN15,KUN3#,TGN16..THDCB,XTR;GGN25,KUN2#,TGN36..ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(GCC,GEN,TH)

 4
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN16..SR;KUN15..DCB..TH;KUN26..XTR..TH;KUN15..XTR..DLX;KUN15,25..XTR..HDCR;TGN26..DCB..(GCC,GEN);GGN15,KUN3#,TGN16..THDCB,XTR;GGN25,KUN2#,TGN36..ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(GCC,GEN,TH)

 4
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH)

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48026-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K010

KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH)

 2

ILLUST NO. 2 OF 2(0502- )KUN26,36..XTR..SA ; (0502- )GGN25,KUN2#,TGN26..ARL,GCC

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48210C 48211 48212 48213 48220 48247 48248B 48248B 48252 48252 48252 48252 48253 48261 48262 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0009

GGN25,KUN2#,TGN26..ARL,GCC

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0009

GGN25,KUN2#,TGN26..ARL,GCC

 4
48211 - LEAF, REAR SPRING, NO.1
48201-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48213 - LEAF, REAR SPRING, NO.3
48204-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48220 - SPRING ASSY, REAR LH
48210-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K070

TGN26..THDCB,XTR;KUN2#,36..XTR..TH;TGN26,36..DCB..(ANCOM,GCC,GEN,PHL);KUN25,35..(DCB,THDCB)..(ANCOM,GCC,GEN);GGN25,KUN26..(DCB,THDCB,XTR)..(ARL,GEN,PHL)

 2
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN16..SR;KUN15..DCB..TH;KUN26..XTR..TH;KUN15..XTR..DLX;KUN15,25..XTR..HDCR;TGN26..DCB..(GCC,GEN);GGN15,KUN3#,TGN16..THDCB,XTR;GGN25,KUN2#,TGN36..ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(GCC,GEN,TH)

 4
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN16..SR;KUN15..DCB..TH;KUN26..XTR..TH;KUN15..XTR..DLX;KUN15,25..XTR..HDCR;TGN26..DCB..(GCC,GEN);GGN15,KUN3#,TGN16..THDCB,XTR;GGN25,KUN2#,TGN36..ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(GCC,GEN,TH)

 4
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48252 - SILENCER, REAR SPRING
48252-0K010

KUN16,2#,36,TGN16..XTR..TH;TGN26..DCB..(ANCOM,GCC,GEN);KUN2#,TGN36..ANCOM,ARL,GCC,GEN,PHL;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,TH);KUN16,35..(DCB,SCB,THDCB)..(ANCOM,ARL,GEN,TH);GGN15,25,KUN10,15,TGN1#..(DCB,SCB,XTR)..(5F,5FC)..(ARL,GCC,GEN,IDN,PHL,TH)

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH)

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48026-0K230

GGN25,KUN2#,TGN26..DCB..(ARL,GCC)

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K010

KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH)

 2

ILLUST NO. 2 OF 2(1107-1208)KUN26..4FC..TH ; (1107- )GGN25,KUN2#..5F,5FC..ANCOM,TH ; (1208- )K

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48220 48247 48248B 48252 48252 48252 48252 48252 48252 48253 48261 48284
Part # Description Qty Price
