GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

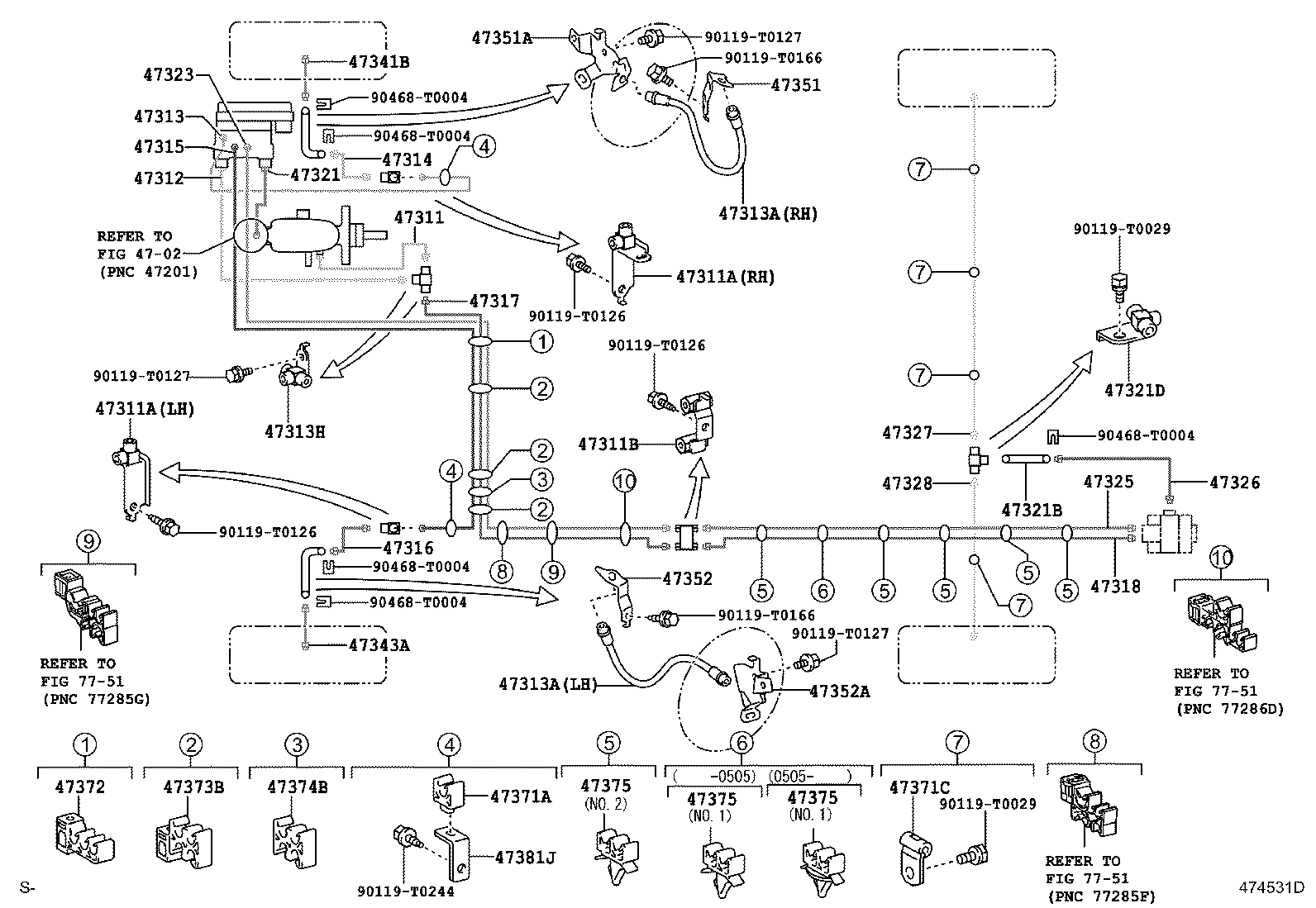

ILLUST NO. 1 OF 3(0504- )KUN35..DCB..SA ; (0504- )GGN25,35,KUN26,36,LAN25,35,TGN36..RHD..DCB,S

Click highlighted areas on diagram

W(ABS)

diagram 4702 47311 47311A 47311A 47311B 47312 47313 47313A 47313A 47313H 47314 47315 47316 47317 47318 47321 47321B 47321D 47323 47325 47326 47327 47328 47341B 47343A 47351 47351A 47352 47352A 47371A 47371C 47372 47373B 47374B 47375 47375 47375 47381J 7751 7751 7751 90119T0029 90119T0029 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0127 90119T0166 90119T0166 90119T0244 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K010

TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

RH

 1
90412-10252

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

LH

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

RH

 1
90412-10252

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

LH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0K010

KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN15,16,25..RHD..(ARL,GEN);GGN15,25,KUN26,36,TGN16..(5F,5FC)..(ARL,TH)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10309

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
90414-10055

KUN16..XTR..TH;KUN25..SCB..MA;KUN26..4FC..ARL;KUN36,TGN26..DCB..DLX..LA;TGN16..5F..(ARL,GCC,GEN,SA);KUN26,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN36..5F..DLX..(ANCOM,LA,PHL,SA);KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH);GGN15,25,KUN10,36,TGN10,11..(DCB,SCB,XTR)..(DLX,SR)..(ARL,GCC,IDN,TH);KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB)..(DLX,STD)..(ANCOM,ARL,GCC,GEN,PKN,SA,TH)

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K030

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47315-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K030

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K010

TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0K010

KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN15,16,25..RHD..(ARL,GEN);GGN15,25,KUN26,36,TGN16..(5F,5FC)..(ARL,TH)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10308

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47323-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K021

KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;TGN36..SCB..(LA,SA);TGN26..GCC,GEN,SA,TH;KUN25..SCB..(GEN,LA);TGN36..DCB..(PHL,SA);TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(GCC,GEN,LA,SA,TH);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC)..(ARL,LA,SA,TH)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K020

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K020

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K010

KUN25..RHD..SCB..SA;GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K010

KUN25..RHD..SCB..SA;GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-0K010

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1
47353-0K020

GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-0K030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1
47354-0K020

GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,LA,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,SA,TH)

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1014

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1008

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1009

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH

NO.1 & NO.2

 6
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH

NO.1 & NO.2

 6
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH

NO.1 & NO.2

 6
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 2
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0166
90119-T0244
90468-T0004
Linked diagrams
4702
7751

ILLUST NO. 1 OF 3(0507- )LAN15..RHD..SA ; (0710- )KUN35..SCB..SA ; (0710- )KUN15,25,TGN15,2

Click highlighted areas on diagram

W(ABS)

diagram 4702 47311 47311A 47311A 47311B 47312 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318 47321 47321B 47321D 47323 47325 47326 47327 47328 47351 47352 47371A 47371C 47372 47373B 47374B 47375 47375 47381J 7751 7751 7751 90119T0029 90119T0029 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0244 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K010

TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

RH

 1
90412-10252

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

LH

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

RH

 1
90412-10252

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

LH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0K010

KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN15,16,25..RHD..(ARL,GEN);GGN15,25,KUN26,36,TGN16..(5F,5FC)..(ARL,TH)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10309

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
90414-10055

KUN16..XTR..TH;KUN25..SCB..MA;KUN26..4FC..ARL;KUN36,TGN26..DCB..DLX..LA;TGN16..5F..(ARL,GCC,GEN,SA);KUN26,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN36..5F..DLX..(ANCOM,LA,PHL,SA);KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH);GGN15,25,KUN10,36,TGN10,11..(DCB,SCB,XTR)..(DLX,SR)..(ARL,GCC,IDN,TH);KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB)..(DLX,STD)..(ANCOM,ARL,GCC,GEN,PKN,SA,TH)

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K030

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47315-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K030

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K010

TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0K010

KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN15,16,25..RHD..(ARL,GEN);GGN15,25,KUN26,36,TGN16..(5F,5FC)..(ARL,TH)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10308

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K010

KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47323-0K020

KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K021

KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;TGN36..SCB..(LA,SA);TGN26..GCC,GEN,SA,TH;KUN25..SCB..(GEN,LA);TGN36..DCB..(PHL,SA);TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(GCC,GEN,LA,SA,TH);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC)..(ARL,LA,SA,TH)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K020

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K020

KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-0K010

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-0K030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001

TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,LA,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,SA,TH)

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1014

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1008

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1009

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH

NO.1 & NO.2

 6
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH

NO.1 & NO.2

 6
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 2
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0244
90468-T0004
Linked diagrams
4702
7751
