GGN25R-PRASKQ (2005)
Toyota Hilux

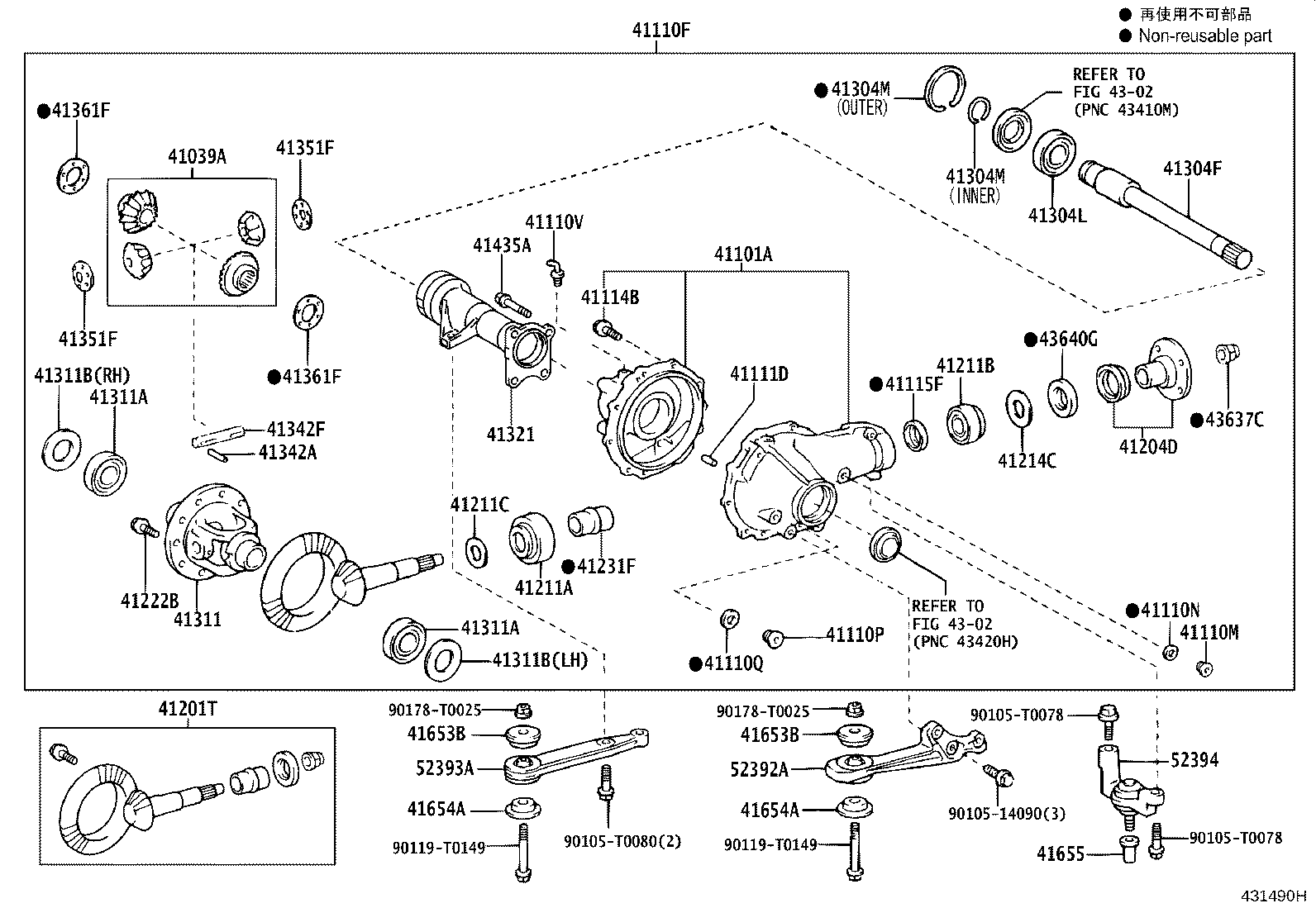

ILLUST NO. 1 OF 2(0502- )SCB..MA ; (0502- )TGN26..DCB,SCB..5F..GCC,GEN ; (0502- )GGN25,KUN2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-71020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41039-71020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41101-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-0K280 |
GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,PHL,TH) *FGR=43:12=3.583 |
1 | ||
| 41110-0K280 |
GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,PHL,TH) *FGR=43:12=3.583 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90341-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 12157-10010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-T0003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90341-T0003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90430-24003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90404-08004 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-T0004 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 90250-T0004 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-T0101 |
KUN26..4FC..DLX;KUN26..DLX..GEN;KUN25,TGN26..GCC,GEN,TH;GGN25,KUN26..SR..(ARL,GEN,PHL,TH) |
10 | ||
| 90105-T0101 |
KUN26..4FC..DLX;KUN26..DLX..GEN;KUN25,TGN26..GCC,GEN,TH;GGN25,KUN26..SR..(ARL,GEN,PHL,TH) |
10 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41115-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-79095 |
GGN25;KUN26..SCB..5F..IV3;KUN26..(DCB,THDCB,XTR)..5F *FGR=43:12=3.583 |
1 | ||
| 41201-79095 |
GGN25;KUN26..SCB..5F..IV3;KUN26..(DCB,THDCB,XTR)..5F *FGR=43:12=3.583 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41204-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-T0016 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90366-T0016 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-T0013 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90366-T0013 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90564-35111 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.76 |
1 | ||
| 90564-35111 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.76 |
1 | ||
| 90564-35113 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.82 |
1 | ||
| 90564-35113 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.82 |
1 | ||
| 90564-35112 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.79 |
1 | ||
| 90564-35112 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.79 |
1 | ||
| 90564-35116 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.91 |
1 | ||
| 90564-35116 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.91 |
1 | ||
| 90564-35109 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.70 |
1 | ||
| 90564-35109 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.70 |
1 | ||
| 90564-35123 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.09 |
1 | ||
| 90564-35123 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.09 |
1 | ||
| 90564-35110 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.73 |
1 | ||
| 90564-35110 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.73 |
1 | ||
| 90564-35119 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.00 |
1 | ||
| 90564-35119 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.00 |
1 | ||
| 90564-35118 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.97 |
1 | ||
| 90564-35118 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.97 |
1 | ||
| 90564-35124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.12 |
1 | ||
| 90564-35124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.12 |
1 | ||
| 90564-35127 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.21 |
1 | ||
| 90564-35127 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.21 |
1 | ||
| 90564-35114 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.85 |
1 | ||
| 90564-35114 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.85 |
1 | ||
| 90564-35129 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.27 |
1 | ||
| 90564-35129 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.27 |
1 | ||
| 90564-35121 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.06 |
1 | ||
| 90564-35121 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.06 |
1 | ||
| 90564-35117 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.94 |
1 | ||
| 90564-35117 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.94 |
1 | ||
| 90564-35115 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.88 |
1 | ||
| 90564-35115 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=1.88 |
1 | ||
| 90564-35126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.18 |
1 | ||
| 90564-35126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.18 |
1 | ||
| 90564-35120 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.03 |
1 | ||
| 90564-35120 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.03 |
1 | ||
| 90564-35125 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.15 |
1 | ||
| 90564-35125 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.15 |
1 | ||
| 90564-35128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.24 |
1 | ||
| 90564-35128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.24 |
1 | ||
| 90564-35130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.30 |
1 | ||
| 90564-35130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.30 |
1 | ||
| 90564-35131 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.33 |
1 | ||
| 90564-35131 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=52,T=2.33 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41214-26011 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
10 | ||
| 90901-05002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41231-35040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35060 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41337-35060 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-T0014 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90363-T0014 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-T0027 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH INNER |
1 | ||
| 90520-T0027 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH INNER |
1 | ||
| 90521-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH OUTER |
1 | ||
| 90521-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH OUTER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-T0027 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH INNER |
1 | ||
| 90520-T0027 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH INNER |
1 | ||
| 90521-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH OUTER |
1 | ||
| 90521-T0002 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH OUTER |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-0K060 |
KUN26..4FC..SR..(ARL,GEN,PHL);GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41311-0K060 |
KUN26..4FC..SR..(ARL,GEN,PHL);GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 90366-T0031 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-T0031 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 90366-T0031 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50136 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,LH |
1 | ||
| 90564-50136 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,LH |
1 | ||
| 90564-50124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,LH |
1 | ||
| 90564-50124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,LH |
1 | ||
| 90564-50130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,LH |
1 | ||
| 90564-50130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,LH |
1 | ||
| 90564-50126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,LH |
1 | ||
| 90564-50126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,LH |
1 | ||
| 90564-50138 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,LH |
1 | ||
| 90564-50138 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,LH |
1 | ||
| 90564-50132 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,LH |
1 | ||
| 90564-50132 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,LH |
1 | ||
| 90564-50134 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,LH |
1 | ||
| 90564-50134 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,LH |
1 | ||
| 90564-50128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,LH |
1 | ||
| 90564-50128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,LH |
1 | ||
| 90564-50142 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,LH |
1 | ||
| 90564-50142 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,LH |
1 | ||
| 90564-50160 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,RH |
1 | ||
| 90564-50160 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,RH |
1 | ||
| 90564-50162 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,RH |
1 | ||
| 90564-50162 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,RH |
1 | ||
| 90564-50158 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,RH |
1 | ||
| 90564-50158 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,RH |
1 | ||
| 90564-50185 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,LH |
1 | ||
| 90564-50185 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,LH |
1 | ||
| 90564-50154 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,RH |
1 | ||
| 90564-50154 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,RH |
1 | ||
| 90564-50172 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,RH |
1 | ||
| 90564-50172 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,RH |
1 | ||
| 90564-50187 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,LH |
1 | ||
| 90564-50187 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,LH |
1 | ||
| 90564-50168 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,RH |
1 | ||
| 90564-50168 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,RH |
1 | ||
| 90564-50156 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,RH |
1 | ||
| 90564-50156 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,RH |
1 | ||
| 90564-50166 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,RH |
1 | ||
| 90564-50166 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,RH |
1 | ||
| 90564-50140 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,LH |
1 | ||
| 90564-50140 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,LH |
1 | ||
| 90564-50189 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,LH |
1 | ||
| 90564-50189 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,LH |
1 | ||
| 90564-50170 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,RH |
1 | ||
| 90564-50170 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,RH |
1 | ||
| 90564-50186 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,LH |
1 | ||
| 90564-50186 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,LH |
1 | ||
| 90564-50184 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,LH |
1 | ||
| 90564-50184 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,LH |
1 | ||
| 90564-50190 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,LH |
1 | ||
| 90564-50190 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,LH |
1 | ||
| 90564-50164 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,RH |
1 | ||
| 90564-50164 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,RH |
1 | ||
| 90564-50188 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,LH |
1 | ||
| 90564-50188 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,LH |
1 | ||
| 90564-50193 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,LH |
1 | ||
| 90564-50193 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,LH |
1 | ||
| 90564-50198 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,LH |
1 | ||
| 90564-50198 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,LH |
1 | ||
| 90564-50195 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,LH |
1 | ||
| 90564-50195 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,LH |
1 | ||
| 90564-50203 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,LH |
1 | ||
| 90564-50203 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,LH |
1 | ||
| 90564-50202 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,LH |
1 | ||
| 90564-50202 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,LH |
1 | ||
| 90564-50200 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,LH |
1 | ||
| 90564-50200 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,LH |
1 | ||
| 90564-50191 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,LH |
1 | ||
| 90564-50191 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,LH |
1 | ||
| 90564-50201 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,LH |
1 | ||
| 90564-50201 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,LH |
1 | ||
| 90564-50199 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,LH |
1 | ||
| 90564-50199 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,LH |
1 | ||
| 90564-50197 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,LH |
1 | ||
| 90564-50197 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,LH |
1 | ||
| 90564-50192 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,LH |
1 | ||
| 90564-50192 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,LH |
1 | ||
| 90564-50206 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,RH |
1 | ||
| 90564-50206 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,RH |
1 | ||
| 90564-50209 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,RH |
1 | ||
| 90564-50209 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,RH |
1 | ||
| 90564-50208 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,RH |
1 | ||
| 90564-50208 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,RH |
1 | ||
| 90564-50205 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,RH |
1 | ||
| 90564-50205 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,RH |
1 | ||
| 90564-50207 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,RH |
1 | ||
| 90564-50207 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,RH |
1 | ||
| 90564-50194 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,LH |
1 | ||
| 90564-50194 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,LH |
1 | ||
| 90564-50204 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,RH |
1 | ||
| 90564-50204 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,RH |
1 | ||
| 90564-50210 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,RH |
1 | ||
| 90564-50210 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,RH |
1 | ||
| 90564-50213 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,RH |
1 | ||
| 90564-50213 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,RH |
1 | ||
| 90564-50211 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,RH |
1 | ||
| 90564-50211 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,RH |
1 | ||
| 90564-50219 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,RH |
1 | ||
| 90564-50219 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,RH |
1 | ||
| 90564-50214 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,RH |
1 | ||
| 90564-50214 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,RH |
1 | ||
| 90564-50215 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,RH |
1 | ||
| 90564-50215 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,RH |
1 | ||
| 90564-50196 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,LH |
1 | ||
| 90564-50196 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,LH |
1 | ||
| 90564-50217 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,RH |
1 | ||
| 90564-50217 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,RH |
1 | ||
| 90564-50216 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,RH |
1 | ||
| 90564-50216 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,RH |
1 | ||
| 90564-50212 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,RH |
1 | ||
| 90564-50212 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,RH |
1 | ||
| 90564-50221 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,RH |
1 | ||
| 90564-50221 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,RH |
1 | ||
| 90564-50223 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,RH |
1 | ||
| 90564-50223 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,RH |
1 | ||
| 90564-50220 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,RH |
1 | ||
| 90564-50220 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,RH |
1 | ||
| 90564-50222 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,RH |
1 | ||
| 90564-50222 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,RH |
1 | ||
| 90564-50218 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,RH |
1 | ||
| 90564-50218 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,RH |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50136 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,LH |
1 | ||
| 90564-50124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,LH |
1 | ||
| 90564-50124 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,LH |
1 | ||
| 90564-50130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,LH |
1 | ||
| 90564-50130 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,LH |
1 | ||
| 90564-50126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,LH |
1 | ||
| 90564-50126 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,LH |
1 | ||
| 90564-50138 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,LH |
1 | ||
| 90564-50138 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,LH |
1 | ||
| 90564-50132 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,LH |
1 | ||
| 90564-50132 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,LH |
1 | ||
| 90564-50134 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,LH |
1 | ||
| 90564-50134 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,LH |
1 | ||
| 90564-50128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,LH |
1 | ||
| 90564-50128 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,LH |
1 | ||
| 90564-50142 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,LH |
1 | ||
| 90564-50142 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,LH |
1 | ||
| 90564-50160 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,RH |
1 | ||
| 90564-50160 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.78,RH |
1 | ||
| 90564-50136 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,LH |
1 | ||
| 90564-50162 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,RH |
1 | ||
| 90564-50162 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.84,RH |
1 | ||
| 90564-50158 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,RH |
1 | ||
| 90564-50158 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.72,RH |
1 | ||
| 90564-50185 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,LH |
1 | ||
| 90564-50185 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,LH |
1 | ||
| 90564-50154 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,RH |
1 | ||
| 90564-50154 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60,RH |
1 | ||
| 90564-50172 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,RH |
1 | ||
| 90564-50172 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.14,RH |
1 | ||
| 90564-50187 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,LH |
1 | ||
| 90564-50187 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,LH |
1 | ||
| 90564-50168 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,RH |
1 | ||
| 90564-50168 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.02,RH |
1 | ||
| 90564-50156 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,RH |
1 | ||
| 90564-50156 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.66,RH |
1 | ||
| 90564-50166 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,RH |
1 | ||
| 90564-50166 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.96,RH |
1 | ||
| 90564-50140 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,LH |
1 | ||
| 90564-50140 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,LH |
1 | ||
| 90564-50189 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,LH |
1 | ||
| 90564-50189 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,LH |
1 | ||
| 90564-50170 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,RH |
1 | ||
| 90564-50170 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.08,RH |
1 | ||
| 90564-50186 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,LH |
1 | ||
| 90564-50186 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,LH |
1 | ||
| 90564-50184 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,LH |
1 | ||
| 90564-50184 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,LH |
1 | ||
| 90564-50190 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,LH |
1 | ||
| 90564-50190 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,LH |
1 | ||
| 90564-50164 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,RH |
1 | ||
| 90564-50164 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90,RH |
1 | ||
| 90564-50188 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,LH |
1 | ||
| 90564-50188 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,LH |
1 | ||
| 90564-50193 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,LH |
1 | ||
| 90564-50193 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,LH |
1 | ||
| 90564-50198 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,LH |
1 | ||
| 90564-50198 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,LH |
1 | ||
| 90564-50195 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,LH |
1 | ||
| 90564-50195 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,LH |
1 | ||
| 90564-50203 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,LH |
1 | ||
| 90564-50203 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,LH |
1 | ||
| 90564-50202 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,LH |
1 | ||
| 90564-50202 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,LH |
1 | ||
| 90564-50200 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,LH |
1 | ||
| 90564-50200 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,LH |
1 | ||
| 90564-50191 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,LH |
1 | ||
| 90564-50191 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,LH |
1 | ||
| 90564-50201 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,LH |
1 | ||
| 90564-50201 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,LH |
1 | ||
| 90564-50199 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,LH |
1 | ||
| 90564-50199 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,LH |
1 | ||
| 90564-50197 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,LH |
1 | ||
| 90564-50197 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,LH |
1 | ||
| 90564-50192 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,LH |
1 | ||
| 90564-50192 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,LH |
1 | ||
| 90564-50206 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,RH |
1 | ||
| 90564-50206 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.64,RH |
1 | ||
| 90564-50209 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,RH |
1 | ||
| 90564-50209 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.74,RH |
1 | ||
| 90564-50208 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,RH |
1 | ||
| 90564-50208 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70,RH |
1 | ||
| 90564-50205 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,RH |
1 | ||
| 90564-50205 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.62,RH |
1 | ||
| 90564-50207 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,RH |
1 | ||
| 90564-50207 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.68,RH |
1 | ||
| 90564-50194 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,LH |
1 | ||
| 90564-50194 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,LH |
1 | ||
| 90564-50204 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,RH |
1 | ||
| 90564-50204 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.58,RH |
1 | ||
| 90564-50210 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,RH |
1 | ||
| 90564-50210 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.76,RH |
1 | ||
| 90564-50213 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,RH |
1 | ||
| 90564-50213 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.86,RH |
1 | ||
| 90564-50211 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,RH |
1 | ||
| 90564-50211 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80,RH |
1 | ||
| 90564-50219 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,RH |
1 | ||
| 90564-50219 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.04,RH |
1 | ||
| 90564-50214 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,RH |
1 | ||
| 90564-50214 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.88,RH |
1 | ||
| 90564-50215 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,RH |
1 | ||
| 90564-50215 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.92,RH |
1 | ||
| 90564-50196 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,LH |
1 | ||
| 90564-50196 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,LH |
1 | ||
| 90564-50217 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,RH |
1 | ||
| 90564-50217 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.98,RH |
1 | ||
| 90564-50216 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,RH |
1 | ||
| 90564-50216 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.94,RH |
1 | ||
| 90564-50212 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,RH |
1 | ||
| 90564-50212 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.82,RH |
1 | ||
| 90564-50221 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,RH |
1 | ||
| 90564-50221 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.10,RH |
1 | ||
| 90564-50223 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,RH |
1 | ||
| 90564-50223 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.16,RH |
1 | ||
| 90564-50220 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,RH |
1 | ||
| 90564-50220 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.06,RH |
1 | ||
| 90564-50222 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,RH |
1 | ||
| 90564-50222 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.12,RH |
1 | ||
| 90564-50218 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,RH |
1 | ||
| 90564-50218 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=2.00,RH |
1 | ||
| 41321 - TUBE, DIFFERENTIAL EXTENSION FLANGE | ||||
| 41321-0K020 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41321-0K020 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90250-T0006 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41342-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41351-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41351-0K010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.55 |
2 | ||
| 41361-0K020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.55 |
2 | ||
| 41361-0K080 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.85 |
2 | ||
| 41361-0K080 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.85 |
2 | ||
| 41361-0K090 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90 |
2 | ||
| 41361-0K090 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90 |
2 | ||
| 41361-0K050 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70 |
2 | ||
| 41361-0K050 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70 |
2 | ||
| 41361-0K070 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80 |
2 | ||
| 41361-0K070 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80 |
2 | ||
| 41361-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60 |
2 | ||
| 41361-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60 |
2 | ||
| 41361-0K060 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.75 |
2 | ||
| 41361-0K060 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.75 |
2 | ||
| 41361-0K040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.65 |
2 | ||
| 41361-0K040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.65 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.55 |
2 | ||
| 41361-0K020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.55 |
2 | ||
| 41361-0K080 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.85 |
2 | ||
| 41361-0K080 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.85 |
2 | ||
| 41361-0K090 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90 |
2 | ||
| 41361-0K090 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.90 |
2 | ||
| 41361-0K050 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70 |
2 | ||
| 41361-0K050 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.70 |
2 | ||
| 41361-0K070 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80 |
2 | ||
| 41361-0K070 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.80 |
2 | ||
| 41361-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60 |
2 | ||
| 41361-0K030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.60 |
2 | ||
| 41361-0K060 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.75 |
2 | ||
| 41361-0K060 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.75 |
2 | ||
| 41361-0K040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.65 |
2 | ||
| 41361-0K040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH T=1.65 |
2 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-T0001 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) *12-1.25PX78-30 |
4 | ||
| 90107-T0001 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) *12-1.25PX78-30 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41653-60030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41653-60030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41654-60010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41654-60010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-0K011 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41655-0K011 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90177-22003 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90177-22003 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-T0013 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 90311-T0013 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 | ||||
| 52380-71010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52380-71010 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52380-71020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52380-71020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 | ||||
| 52380-71030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 52380-71030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90119-T0149 | ||||
| 90178-T0025 | ||||
| Linked diagrams | ||||
| 4302 | ||||

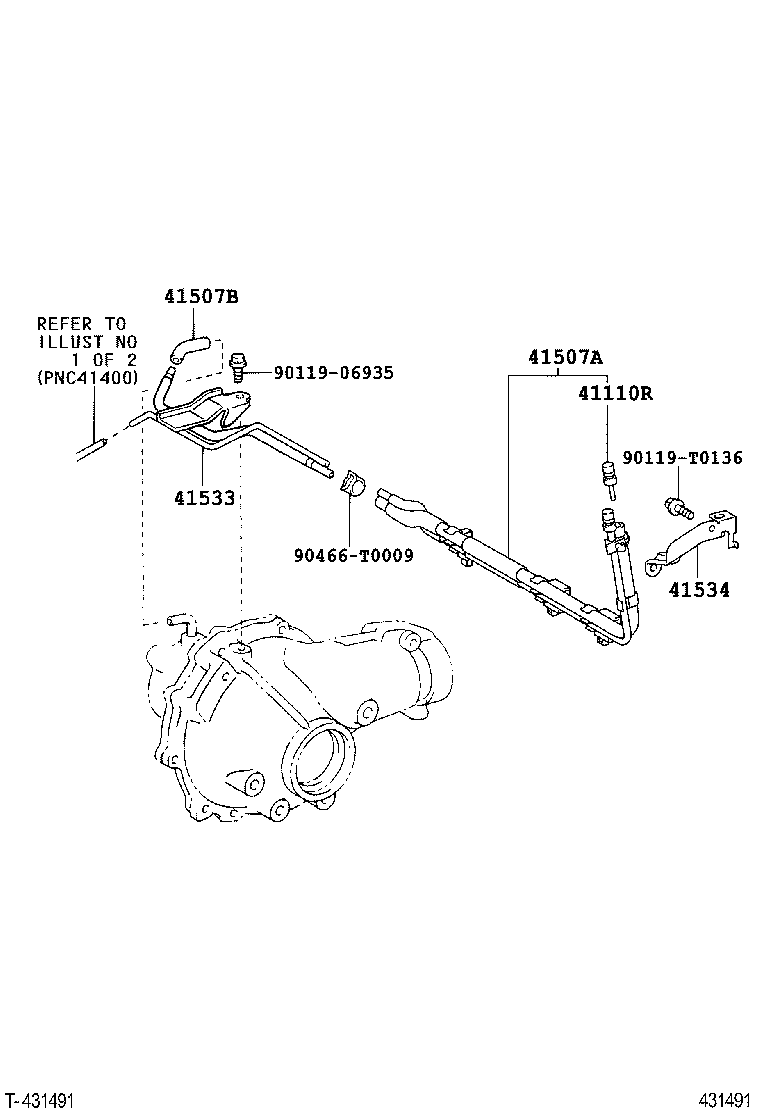

ILLUST NO. 2 OF 2(0502- )GGN25..SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 | ||||
| 41507-0K052 |
GGN25..SR..ARL |
1 | ||
| 41507-0K051 |
GGN25..SR |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90445-T0014 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-0K030 |
GGN25..SR |
1 | ||
| 41533-0K031 |
GGN25..SR..ARL |
1 | ||
| 41534 - BRACKET, FRONT DIFFERENTIAL BREATHER | ||||
| 41534-71020 |
GGN25..ARL |
1 | ||
| Common parts | ||||
| 90119-06935 | ||||
| 90119-T0136 | ||||
| 90466-T0009 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
