GGN25R-PRASKQ (2005)
Toyota Hilux
(0502- )GGN25,LAN25,TGN26..5F

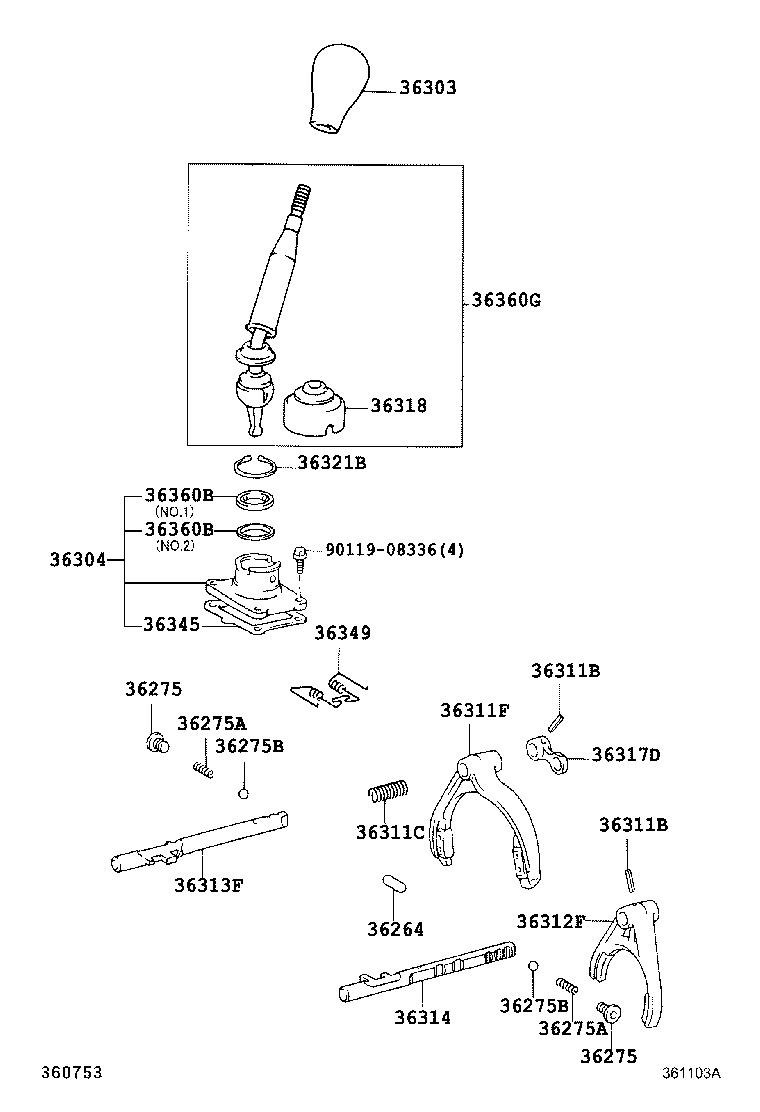

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH L=25.7,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH L=23 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH L=23 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=9.52,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-0K020B0 |
GGN25,KUN2#,TGN26..ARL,GEN,PHL,TH DK.GRAY,TRIM1# |
1 | ||
| 36303-0K020E0 |
GGN25,KUN2#,TGN26..SR..(ARL,PHL,TH) SANDAL WOOD,TRIM0# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35051 |
GGN25,KUN26,TGN26..(4FC,5FC)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 36304-35061 |
GGN25,TGN26..5F..(ARL,GCC,GEN) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..ANCOM,GCC,GEN,LA,SA;GGN25,TGN26..(4FC,5FC)..(ANCOM,ARL,GCC,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..ANCOM,GCC,GEN,LA,SA;GGN25,TGN26..(4FC,5FC)..(ANCOM,ARL,GCC,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) L=22 |
4 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20088 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35030 |
TGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH) |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-35070 |
GGN25,TGN26..5F..(ARL,GCC,GEN) |
1 | ||
| 36313-71010 |
GGN25..5FC..ARL |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-71010 |
GGN25..5FC..ARL |
1 | ||
| 36314-35140 |
GGN25,TGN26..5F..(ARL,GCC,GEN) |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
GGN25,TGN26..5F..(ARL,GCC,GEN) |
1 | ||
| 36345-35040 |
KUN26..4FC..TH;KUN2#..ARL,GCC,GEN,PHL;GGN25,TGN26..(4FC,5FC)..(ARL,GCC,TH) |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35020 |
KUN2#..ARL,GCC,GEN,PHL,TH;GGN25,TGN26..(4FC,5FC)..(ARL,GCC,TH) |
1 | ||
| 36349-35010 |
GGN25,TGN26..5F..(ARL,GCC,GEN) |
1 | ||
| 36360B - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14020 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) NO.2 |
1 | ||
| 33556-14010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) NO.1 |
1 | ||
| 36360B - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14020 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) NO.2 |
1 | ||
| 33556-14010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) NO.1 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
