GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5FC

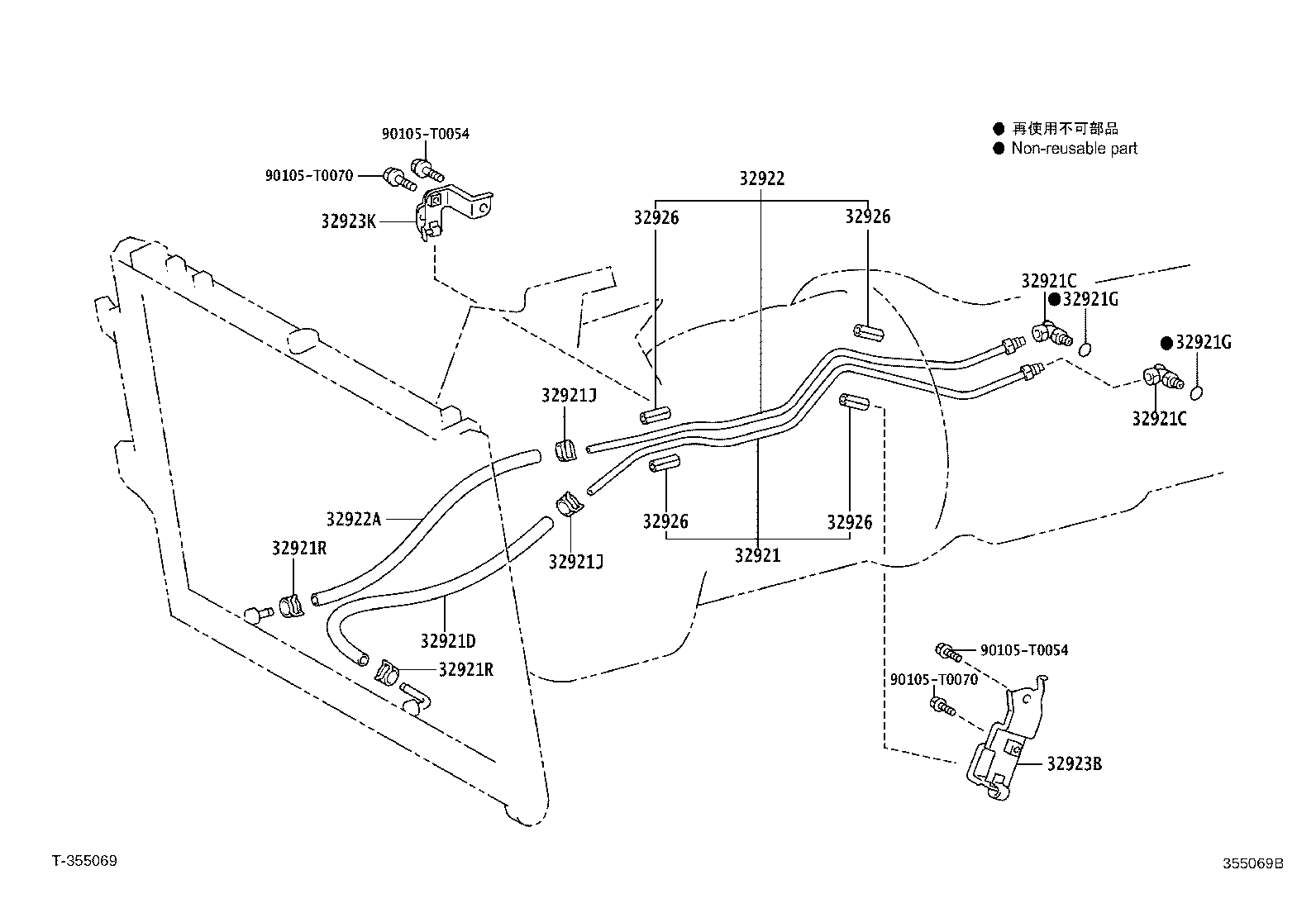

Click highlighted areas on diagram

A750E,A750F

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921R 32921R 32922 32922A 32923B 32923K 32926 32926 32926 32926 90105T0054 90105T0054 90105T0070 90105T0070
Part # Description Qty Price
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 2
Common parts
90105-T0054
90105-T0070
