GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5FC

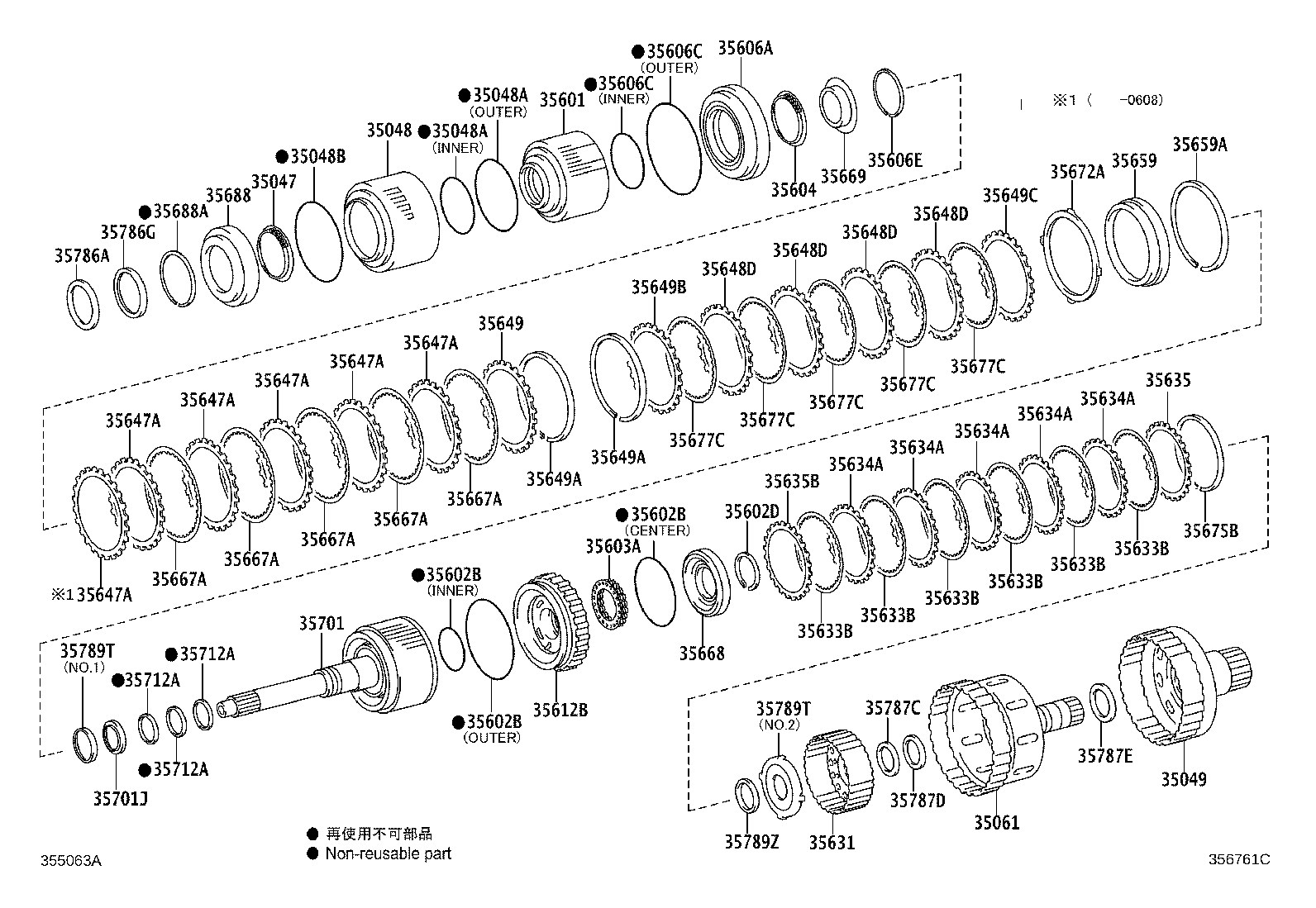

Click highlighted areas on diagram

A750E,A750F

diagram 35047 35048 35048A 35048A 35048B 35049 35061 35601 35602B 35602B 35602B 35602D 35603A 35604 35606A 35606C 35606C 35606E 35612B 35631 35633B 35633B 35633B 35633B 35633B 35633B 35634A 35634A 35634A 35634A 35634A 35635 35635B 35647A 35647A 35647A 35647A 35647A 35647A 35648D 35648D 35648D 35648D 35649 35649A 35649A 35649B 35649C 35659 35659A 35667A 35667A 35667A 35667A 35667A 35668 35669 35672A 35675B 35677C 35677C 35677C 35677C 35677C 35688 35688A 35701 35701J 35712A 35712A 35712A 35786A 35786G 35787C 35787D 35787E 35789T 35789T 35789Z
Part # Description Qty Price
35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35047-60010

GGN15,25..5FC..ARL

 1
35048 - PISTON SUB-ASSY, REVERSE CLUTCH
35048-60010

GGN15,25..5FC..ARL

 1
35048A - RING, O (FOR REVERSE CLUTCH PISTON)
90301-99147

GGN15,25..5FC..ARL

INNER

 1
90301-99141

GGN15,25..5FC..ARL

OUTER

 1
35048A - RING, O (FOR REVERSE CLUTCH PISTON)
90301-99147

GGN15,25..5FC..ARL

INNER

 1
90301-99141

GGN15,25..5FC..ARL

OUTER

 1
35048B - RING, O (FOR REVERSE CLUTCH PISTON)
90301-99140

GGN15,25..5FC..ARL

 1
35049 - HUB SUB-ASSY, REVERSE CLUTCH
35049-60010

GGN15,25..5FC..ARL

 1
35061 - HUB SUB-ASSY, FORWARD CLUTCH
35061-50010

GGN15,25..5FC..ARL

 1
35601 - DRUM SUB-ASSY, CLUTCH
35601-50030

GGN15,25..5FC..ARL

 1
35606A - PISTON SUB-ASSY, DIRECT CLUTCH
35652-60020

GGN15,25..5FC

 1
35612B - PISTON, FORWARD CLUTCH
35612-60010

GGN15,25..5FC..ARL

 1
35635B - FLANGE, FORWARD CLUTCH
35635-60010

GGN15,25..5FC..ARL

 1
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

GGN15,25..5FC

 6
35647-60010

GGN15,25..5FC..ARL

 5
35648D - PLATE, CLUTCH, NO.3
35648-60010

GGN15,25..5FC..ARL

 4
35648D - PLATE, CLUTCH, NO.3
35648-60010

GGN15,25..5FC..ARL

 4
35648D - PLATE, CLUTCH, NO.3
35648-60010

GGN15,25..5FC..ARL

 4
35648D - PLATE, CLUTCH, NO.3
35648-60010

GGN15,25..5FC..ARL

 4
35649 - FLANGE, REVERSE CLUTCH
35649-60040

GGN15,25..5FC..ARL

T=3.1,MARK 3

 1
35649-60090

GGN15,25..5FC..ARL

T=3.6,MARK 8

 1
35649-60070

GGN15,25..5FC..ARL

T=3.4,MARK 6

 1
35649-60110

GGN15,25..5FC..ARL

T=3.8,MARK 10

 1
35649-60080

GGN15,25..5FC..ARL

T=3.5,MARK 7

 1
35649-60060

GGN15,25..5FC..ARL

T=3.3,MARK 5

 1
35649-60050

GGN15,25..5FC..ARL

T=3.2,MARK 4

 1
35649-60100

GGN15,25..5FC..ARL

T=3.7,MARK 9

 1
35649-60030

GGN15,25..5FC..ARL

T=3.0,MARK 2

 1
35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074

GGN15,25..5FC..ARL

 2
35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074

GGN15,25..5FC..ARL

 2
35649B - FLANGE, REVERSE CLUTCH
35649-60030

GGN15,25..5FC..ARL

 1
35649C - FLANGE, REVERSE CLUTCH
35649-60040

GGN15,25..5FC..ARL

T=3.1.MARK 3

 1
35649-60010

GGN15,25..5FC..ARL

T=2.8,MARK 0

 1
35649-60100

GGN15,25..5FC..ARL

T=3.7,MARK 9

 1
35649-60030

GGN15,25..5FC..ARL

T=3.0,MARK 2

 1
35649-60080

GGN15,25..5FC..ARL

T=3.5,MARK 7

 1
35649-60050

GGN15,25..5FC..ARL

T=3.2,MARK 4

 1
35649-60090

GGN15,25..5FC..ARL

T=3.6,MARK 8

 1
35649-60070

GGN15,25..5FC..ARL

T=3.4,MARK 6

 1
35649-60060

GGN15,25..5FC..ARL

T=3.3,MARK 5

 1
35649-60020

GGN15,25..5FC..ARL

T=2.9,MARK 1

 1
35649-60110

GGN15,25..5FC..ARL

T=3.8,MARK A

 1
35659 - SLEEVE, REVERSE CLUTCH REACTION
35659-60020

GGN15,25..5FC..ARL

 1
35659A - RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
90520-99083

GGN15,25..5FC..ARL

 1
35667A - DISK, DIRECT CLUTCH
35667-60020

GGN15,25..5FC..ARL

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

GGN15,25..5FC..ARL

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

GGN15,25..5FC..ARL

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

GGN15,25..5FC..ARL

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

GGN15,25..5FC..ARL

 5
35668 - BALANCER, CLUTCH, NO.1
35668-60010

GGN15,25..5FC..ARL

 1
35669 - BALANCER, CLUTCH, NO.2
35669-60010

GGN15,25..5FC..ARL

 1
35672A - PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35672-60020

GGN15,25..5FC..ARL

 1
35677C - DISC, REAR CLUTCH
35677-60030

GGN15,25..5FC..ARL

 5
35677C - DISC, REAR CLUTCH
35677-60030

GGN15,25..5FC..ARL

 5
35677C - DISC, REAR CLUTCH
35677-60030

GGN15,25..5FC..ARL

 5
35677C - DISC, REAR CLUTCH
35677-60030

GGN15,25..5FC..ARL

 5
35677C - DISC, REAR CLUTCH
35677-60030

GGN15,25..5FC..ARL

 5
35688 - BALANCER, CLUTCH, NO.3
35688-50010

GGN15,25..5FC..ARL

 1
35688A - RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
90520-79001

GGN15,25..5FC..ARL

 1
35786A - RACE, THRUST BEARING, NO.1
35786-60010

GGN15,25..5FC..ARL

 1
35786G - BEARING,THRUST NEEDLE ROLLER
90374-71001

GGN15,25..5FC..ARL

 1
35787C - RACE, THRUST BEARING, NO.2
35787-60010

GGN15,25..5FC..ARL

 1
35787D - BEARING, THRUST NEEDLE ROLLER
90374-38005

GGN15,25..5FC..ARL

 1
35787E - BEARING, THRUST NEEDLE ROLLER
90374-42008

GGN15,25..5FC..ARL

 1
35789T - RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-60040

GGN15,25..5FC..ARL

NO.2

 1
35789-50060

GGN15,25..5FC..ARL

NO.1

 1
35789T - RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-60040

GGN15,25..5FC..ARL

NO.2

 1
35789-50060

GGN15,25..5FC..ARL

NO.1

 1
35789Z - BEARING, THRUST NEEDLE ROLLER
90374-21004

GGN15,25..5FC..ARL

 1
