GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5FC

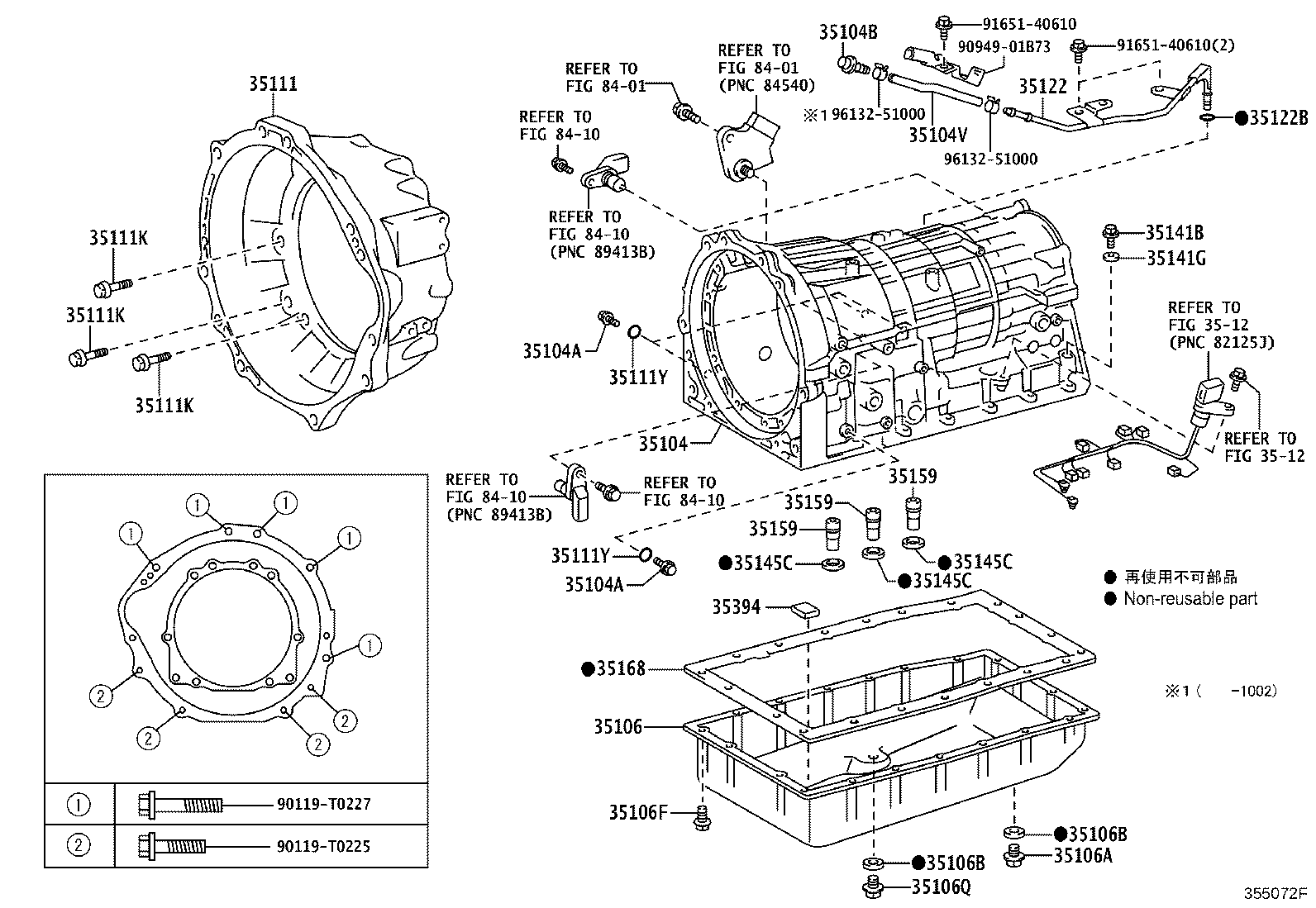

Click highlighted areas on diagram

A750E,A750F

diagram 35104 35104A 35104A 35104B 35104V 35106 35106A 35106B 35106B 35106F 35106Q 35111 35111K 35111K 35111K 35111Y 35111Y 3512 3512 35122 35122B 35141B 35141G 35145C 35145C 35145C 35159 35159 35159 35168 35394 8401 8401 8410 8410 8410 8410 90119T0225 90119T0227 9094901B73 9165140610 9165140610 9613251000 9613251000
Part # Description Qty Price
35104V - HOSE (FOR BREATHER PLUG)
90445-11118

KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011

TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06117

GGN15,25..5FC

 20
35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
90341-10021

GGN15,25..5FC..ARL

 1
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GGN15,25..5FC..ARL

*10-1.5PX35-30

 6
90119-12378

GGN15,25..5FC..ARL

*12-1.75PX38-30

 2
90119-10947

GGN15,25..5FC..ARL

*10-1.50PX35-29.3

 2
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GGN15,25..5FC..ARL

*10-1.5PX35-30

 6
90119-12378

GGN15,25..5FC..ARL

*12-1.75PX38-30

 2
90119-10947

GGN15,25..5FC..ARL

*10-1.50PX35-29.3

 2
35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
90119-10232

GGN15,25..5FC..ARL

*10-1.5PX35-30

 6
90119-12378

GGN15,25..5FC..ARL

*12-1.75PX38-30

 2
90119-10947

GGN15,25..5FC..ARL

*10-1.50PX35-29.3

 2
35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
35122-60020

GGN15,25..5FC..ARL

 1
35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
90301-04014

GGN15,25..5FC..ARL

 1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-14011

GGN15,25..5FC..ARL

 1
35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-11030

GGN15,25..5FC..ARL

 1
35145C - GASKET, TRANSAXLE CASE
35145-60020

GGN15,25..5FC..ARL

 3
35145C - GASKET, TRANSAXLE CASE
35145-60020

GGN15,25..5FC..ARL

 3
35145C - GASKET, TRANSAXLE CASE
35145-60020

GGN15,25..5FC..ARL

 3
Common parts
90119-T0225
90119-T0227
90949-01B73
91651-40610
96132-51000
Linked diagrams
3512
8401
8410
