GGN25R-PRASKQ (2005)
Toyota Hilux
ILLUST NO. 2 OF 2(0408-0908)2KDFTV ; (0908- )2KDFTV..KUN10,15; (0908- )2KDFTV..KUN35..DLX ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0004 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0408-0808)1KDFTV,2KDFTV ; (0808-0809)1KDFTV,2KDFTV..KUN15,2#,3#..ANCOM,LA,MA,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16361 - FAN | ||||
| 16361-31060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16361-31060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P040 |
1GRFE..GGN15,25..5FC..ARL |
1 | ||
| 16400-0P040 |
1GRFE..GGN15,25..5FC..ARL |
1 | ||
| 16400-0P030 |
1GRFE..GGN15,25..5F..ARL |
1 | ||
| 16400-0P030 |
1GRFE..GGN15,25..5F..ARL |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16453-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16454-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1GRFE..GGN15,25..ARL |
4 | ||
| 91651-B0820 |
1GRFE..GGN15,25..ARL |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C040 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16470-0C040 |
1GRFE..GGN15,25..ARL |
1 | ||
| Common parts | ||||
| 90119-T0346 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||

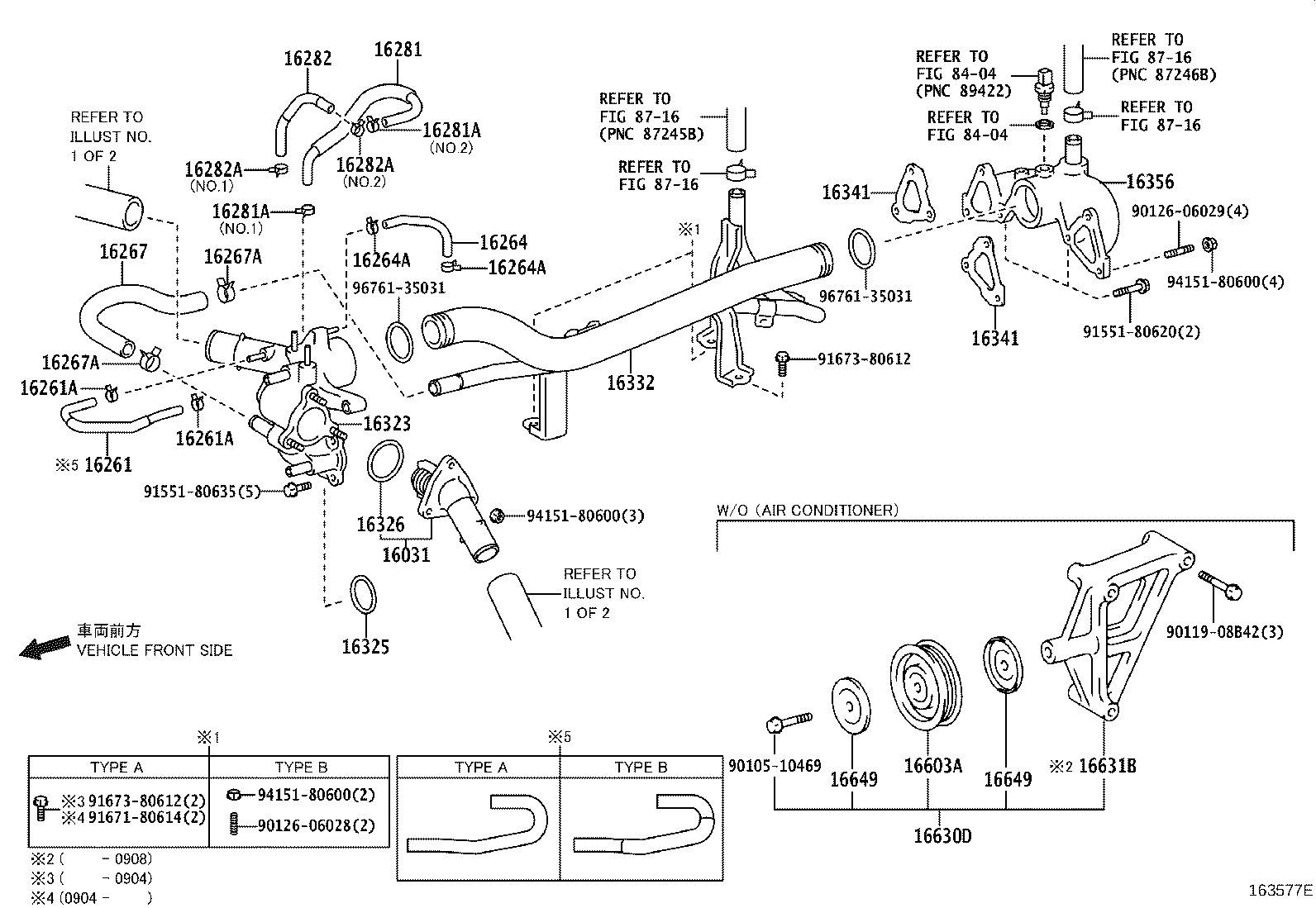

ILLUST NO. 2 OF 2(0502- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31010 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96134-42100 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96134-42100 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0014 |
1GRFE..GGN15,25..ARL NO.2,(L) |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25..ARL NO.2,(J) |
1 | ||
| 96136-41501 |
1GRFE..GGN15,25..ARL NO.1 |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25 NO.2 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0014 |
1GRFE..GGN15,25..ARL NO.2,(L) |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25..ARL NO.2,(J) |
1 | ||
| 96136-41501 |
1GRFE..GGN15,25..ARL NO.1 |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25 NO.2 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-31010 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13073 |
1GRFE..GGN15,25..ARL NO.2,(J) |
1 | ||
| 90466-T0014 |
1GRFE..GGN15,25..ARL NO.2,(L) |
1 | ||
| 96136-41501 |
1GRFE..GGN15,25..ARL NO.1 |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25 NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13073 |
1GRFE..GGN15,25..ARL NO.2,(J) |
1 | ||
| 90466-T0014 |
1GRFE..GGN15,25..ARL NO.2,(L) |
1 | ||
| 96136-41501 |
1GRFE..GGN15,25..ARL NO.1 |
1 | ||
| 90467-13073 |
1GRFE..GGN15,25 NO.2 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31021 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-31010 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-31010 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16306-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-28020 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16630D - PULLEY ASSY, IDLER | ||||
| 16630-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16631B - BRACKET, IDLER PULLEY | ||||
| 16631-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16659-31011 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16659-31011 |
1GRFE..GGN15,25..ARL |
2 | ||
| Common parts | ||||
| 90105-10469 | ||||
| 90119-08B42 | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91671-80614 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| 96761-35031 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||

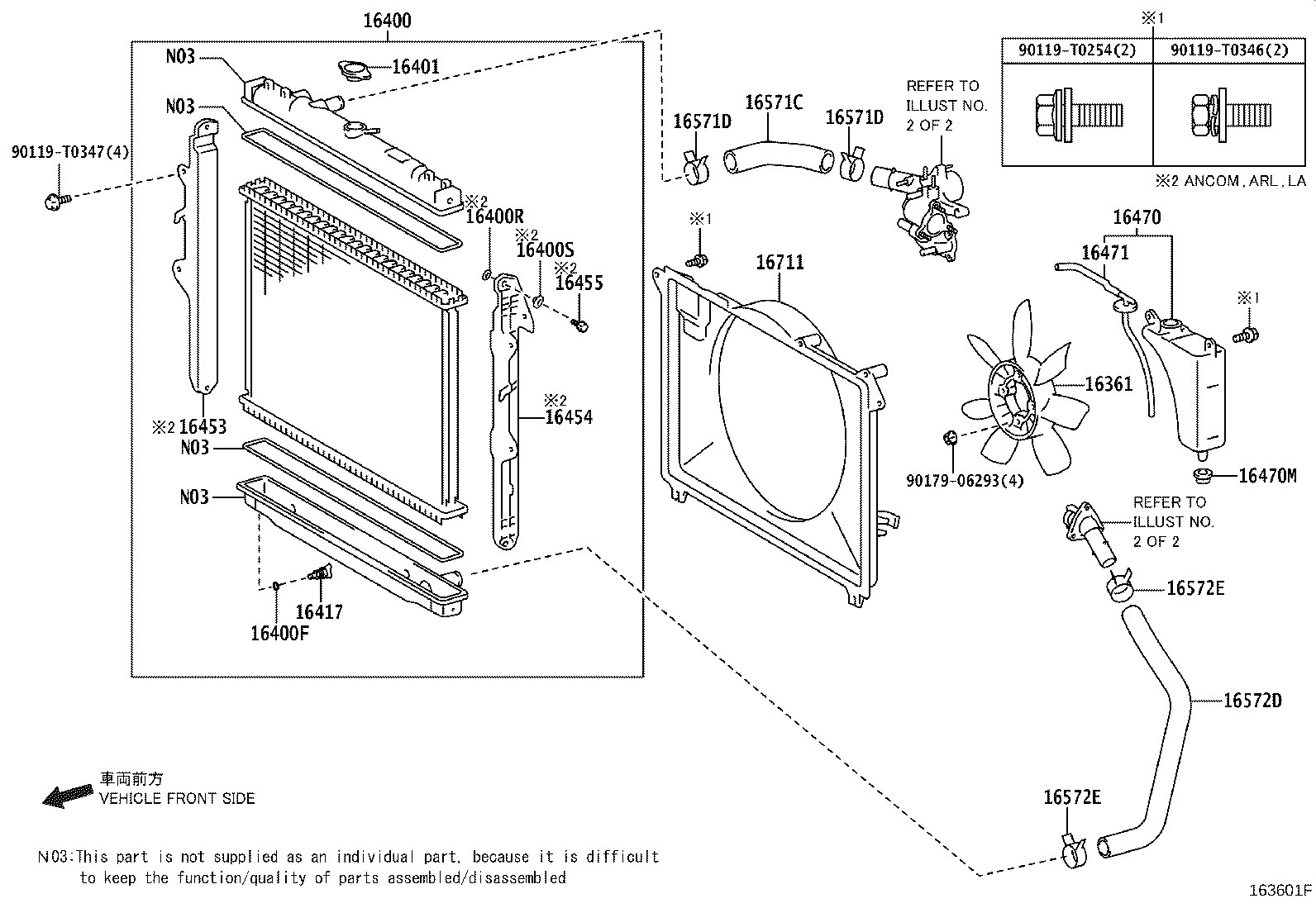

ILLUST NO. 1 OF 2(0502- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-31060 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P040 |
1GRFE..GGN15,25..5FC..ARL |
1 | ||
| 16400-0P030 |
1GRFE..GGN15,25..5F..ARL |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0L120 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1GRFE..GGN15,25..ARL |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C040 |
1GRFE..GGN15,25..ARL |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1GRFE..GGN15,25..ARL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1GRFE..GGN15,25..ARL |
2 | ||
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0346 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||
