GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )1GRFE

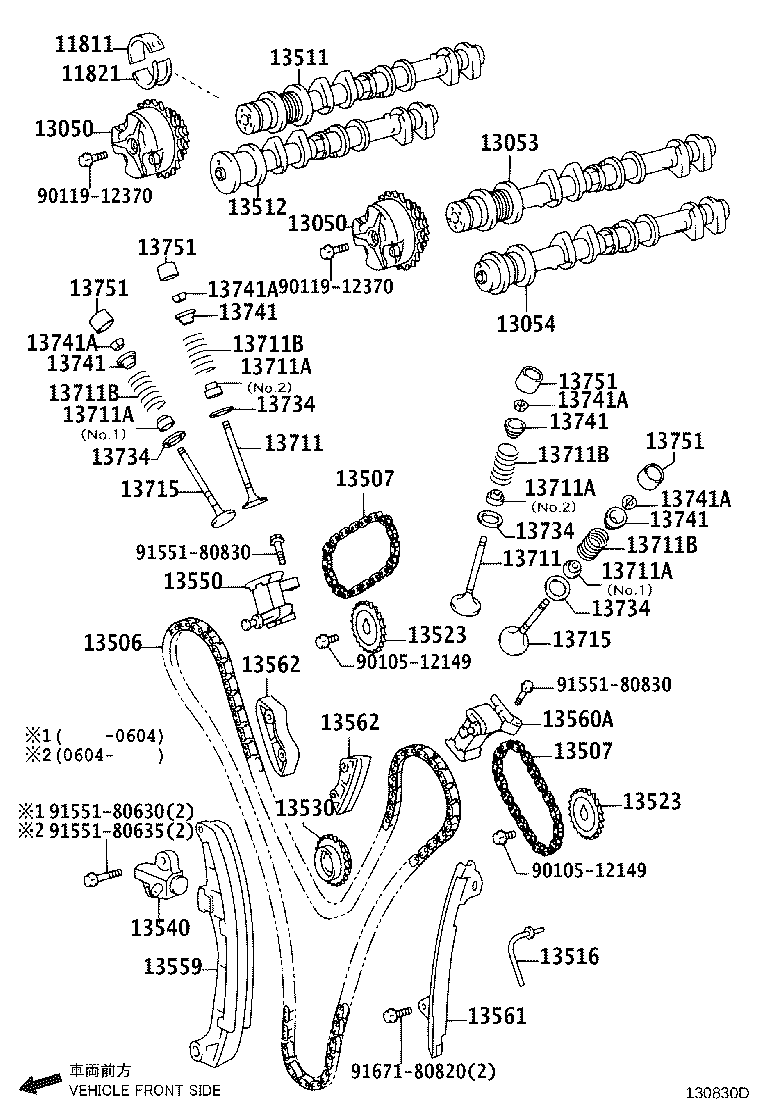

Click highlighted areas on diagram

diagram 11811 11821 13050 13050 13053 13054 13506 13507 13507 13511 13512 13516 13523 13523 13530 13540 13550 13559 13560A 13561 13562 13562 13711 13711 13711A 13711A 13711A 13711A 13711B 13711B 13711B 13711B 13715 13715 13734 13734 13734 13734 13741 13741 13741 13741 13741A 13741A 13741A 13741A 13751 13751 13751 13751 9010512149 9010512149 9011912370 9011912370 9155180630 9155180635 9155180830 9155180830 9167180820
Part # Description Qty Price
13530 - SPROCKET ASSY, IDLE
13530-31010

1GRFE..GGN15,25

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-31010

1GRFE..GGN15,25

 1
13741 - RETAINER, VALVE SPRING
13741-20020

1GRFE..GGN15,25

 24
13741 - RETAINER, VALVE SPRING
13741-20020

1GRFE..GGN15,25

 24
13741 - RETAINER, VALVE SPRING
13741-20020

1GRFE..GGN15,25

 24
13741 - RETAINER, VALVE SPRING
13741-20020

1GRFE..GGN15,25

 24
Common parts
90105-12149
90119-12370
91551-80630
91551-80635
91551-80830
91671-80820
