GGN25R-PRASKQ (2005)
Toyota Hilux
(0502- )1GRFE

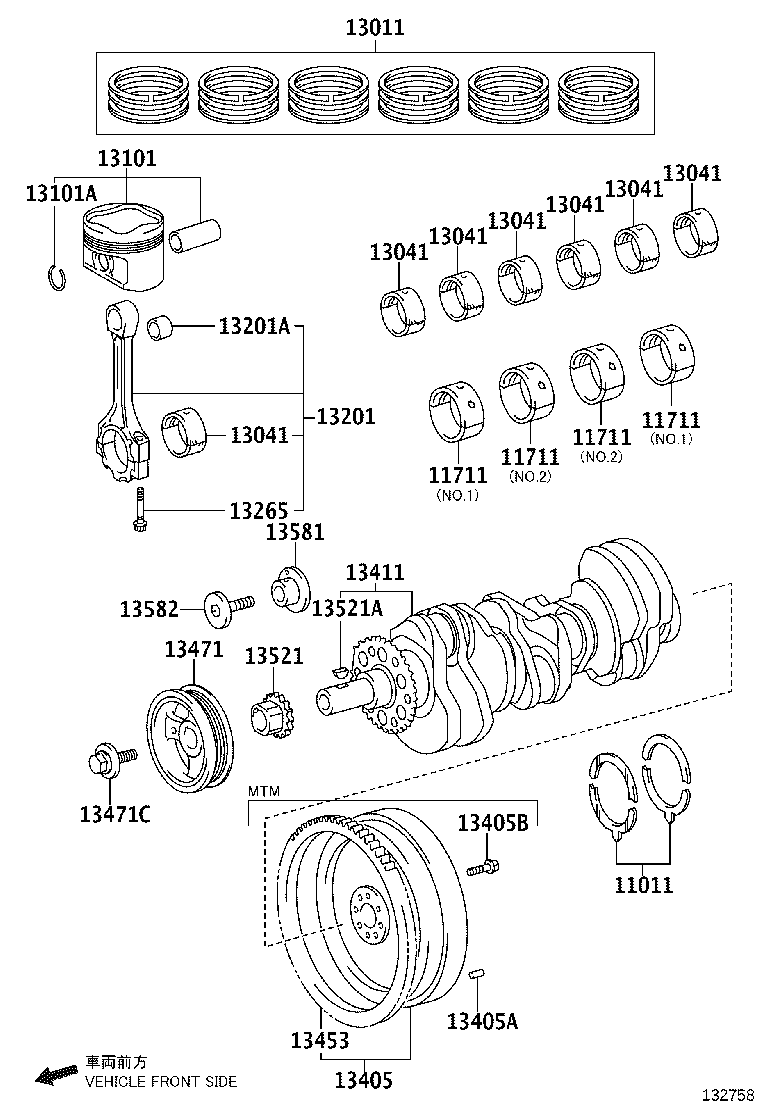

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31040 |
1GRFE..GGN15,25..ARL STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3101101 |
1GRFE..GGN15,25..ARL MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3101102 |
1GRFE..GGN15,25..ARL MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3101104 |
1GRFE..GGN15,25..ARL MARK4,NO.2,REFER R/M |
2 | ||
| 11701-3104102 |
1GRFE..GGN15,25..ARL MARK2,NO.1,REFER R/M |
2 | ||
| 11701-3104104 |
1GRFE..GGN15,25..ARL MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3101103 |
1GRFE..GGN15,25..ARL MARK3,NO.2,REFER R/M |
2 | ||
| 11701-3104105 |
1GRFE..GGN15,25..ARL MARK5,NO.1,REFER R/M |
2 | ||
| 11701-3104101 |
1GRFE..GGN15,25..ARL MARK1,NO.1,REFER R/M |
2 | ||
| 11071-3101105 |
1GRFE..GGN15,25..ARL MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3104103 |
1GRFE..GGN15,25..ARL MARK3,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3101101 |
1GRFE..GGN15,25..ARL MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3101102 |
1GRFE..GGN15,25..ARL MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3101104 |
1GRFE..GGN15,25..ARL MARK4,NO.2,REFER R/M |
2 | ||
| 11701-3104102 |
1GRFE..GGN15,25..ARL MARK2,NO.1,REFER R/M |
2 | ||
| 11701-3104104 |
1GRFE..GGN15,25..ARL MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3101103 |
1GRFE..GGN15,25..ARL MARK3,NO.2,REFER R/M |
2 | ||
| 11701-3104105 |
1GRFE..GGN15,25..ARL MARK5,NO.1,REFER R/M |
2 | ||
| 11701-3104101 |
1GRFE..GGN15,25..ARL MARK1,NO.1,REFER R/M |
2 | ||
| 11071-3101105 |
1GRFE..GGN15,25..ARL MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3104103 |
1GRFE..GGN15,25..ARL MARK3,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3101101 |
1GRFE..GGN15,25..ARL MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3101102 |
1GRFE..GGN15,25..ARL MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3101104 |
1GRFE..GGN15,25..ARL MARK4,NO.2,REFER R/M |
2 | ||
| 11701-3104102 |
1GRFE..GGN15,25..ARL MARK2,NO.1,REFER R/M |
2 | ||
| 11701-3104104 |
1GRFE..GGN15,25..ARL MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3101103 |
1GRFE..GGN15,25..ARL MARK3,NO.2,REFER R/M |
2 | ||
| 11701-3104105 |
1GRFE..GGN15,25..ARL MARK5,NO.1,REFER R/M |
2 | ||
| 11701-3104101 |
1GRFE..GGN15,25..ARL MARK1,NO.1,REFER R/M |
2 | ||
| 11071-3101105 |
1GRFE..GGN15,25..ARL MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3104103 |
1GRFE..GGN15,25..ARL MARK3,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-3101101 |
1GRFE..GGN15,25..ARL MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3101102 |
1GRFE..GGN15,25..ARL MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3101104 |
1GRFE..GGN15,25..ARL MARK4,NO.2,REFER R/M |
2 | ||
| 11701-3104102 |
1GRFE..GGN15,25..ARL MARK2,NO.1,REFER R/M |
2 | ||
| 11701-3104104 |
1GRFE..GGN15,25..ARL MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3101103 |
1GRFE..GGN15,25..ARL MARK3,NO.2,REFER R/M |
2 | ||
| 11701-3104105 |
1GRFE..GGN15,25..ARL MARK5,NO.1,REFER R/M |
2 | ||
| 11701-3104101 |
1GRFE..GGN15,25..ARL MARK1,NO.1,REFER R/M |
2 | ||
| 11071-3101105 |
1GRFE..GGN15,25..ARL MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3104103 |
1GRFE..GGN15,25..ARL MARK3,NO.1,REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-31100 |
1GRFE..GGN15,25..ARL STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3104202 |
1GRFE..GGN15,25..ARL MARK2 |
6 | ||
| 13041-3104204 |
1GRFE..GGN15,25..ARL MARK4 |
6 | ||
| 13041-3104203 |
1GRFE..GGN15,25..ARL MARK3 |
6 | ||
| 13041-3104201 |
1GRFE..GGN15,25..ARL MARK1 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
1GRFE..GGN15,25..ARL |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39126 |
1GRFE..GGN15,25..ARL |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
1GRFE..GGN15,25..ARL |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
1GRFE..GGN15,25..ARL |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-31090 |
1GRFE..GGN15,25..5F |
1 | ||
| 13405-31091 |
1GRFE..GGN15,25..5F..ARL |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10017 |
1GRFE..GGN15,25..5F..ARL L=20,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10294 |
1GRFE..GGN15,25..5F..ARL |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31011 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13401-31010 |
1GRFE..GGN15,25 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-31020 |
1GRFE..GGN15,25..5F..ARL |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31013 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16004 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31030 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-31030 |
1GRFE..GGN15,25..ARL |
1 | ||
| 13581-31010 |
1GRFE..GGN15,25 |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31010 |
1GRFE..GGN15,25..ARL |
1 | ||
