GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )1GRFE

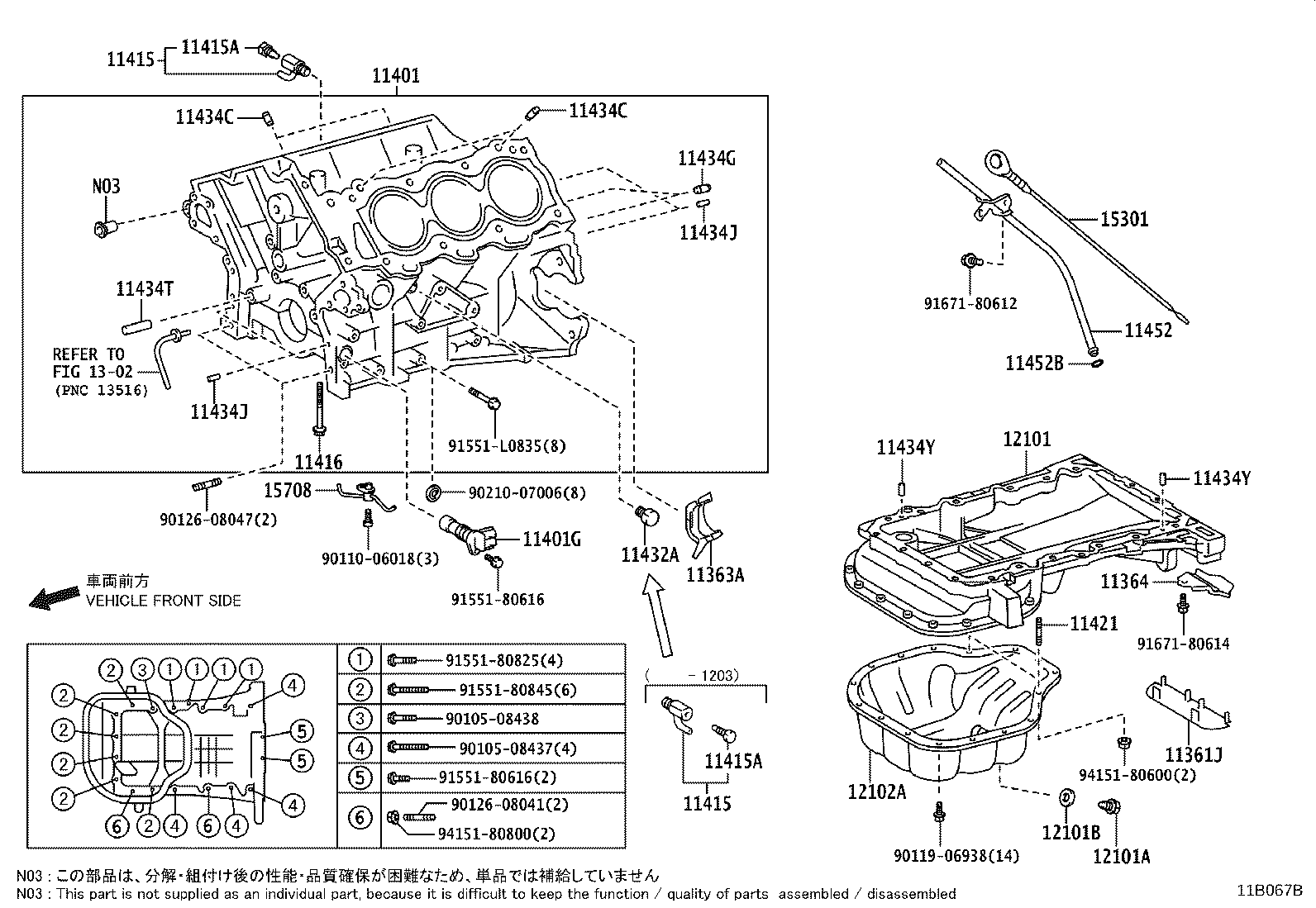

Click highlighted areas on diagram

diagram 11361J 11363A 11364 11401 11401G 11415 11415 11415A 11415A 11416 11421 11432A 11434C 11434C 11434G 11434J 11434J 11434T 11434Y 11434Y 11452 11452B 12101 12101A 12101B 12102A 1302 15301 15708 9010508437 9010508438 9011006018 9011906938 9012608041 9012608047 9021007006 9155180616 9155180616 9155180825 9155180845 91551L0835 9167180612 9167180614 9415180600 9415180800
Part # Description Qty Price
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09125

1GRFE..GGN15,25

 2
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09125

1GRFE..GGN15,25

 2
Common parts
90105-08437
90105-08438
90110-06018
90119-06938
90126-08041
90126-08047
90210-07006
91551-80616
91551-80825
91551-80845
91551-L0835
91671-80612
91671-80614
94151-80600
94151-80800
Linked diagrams
1302
