GGN25R-PRASKQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

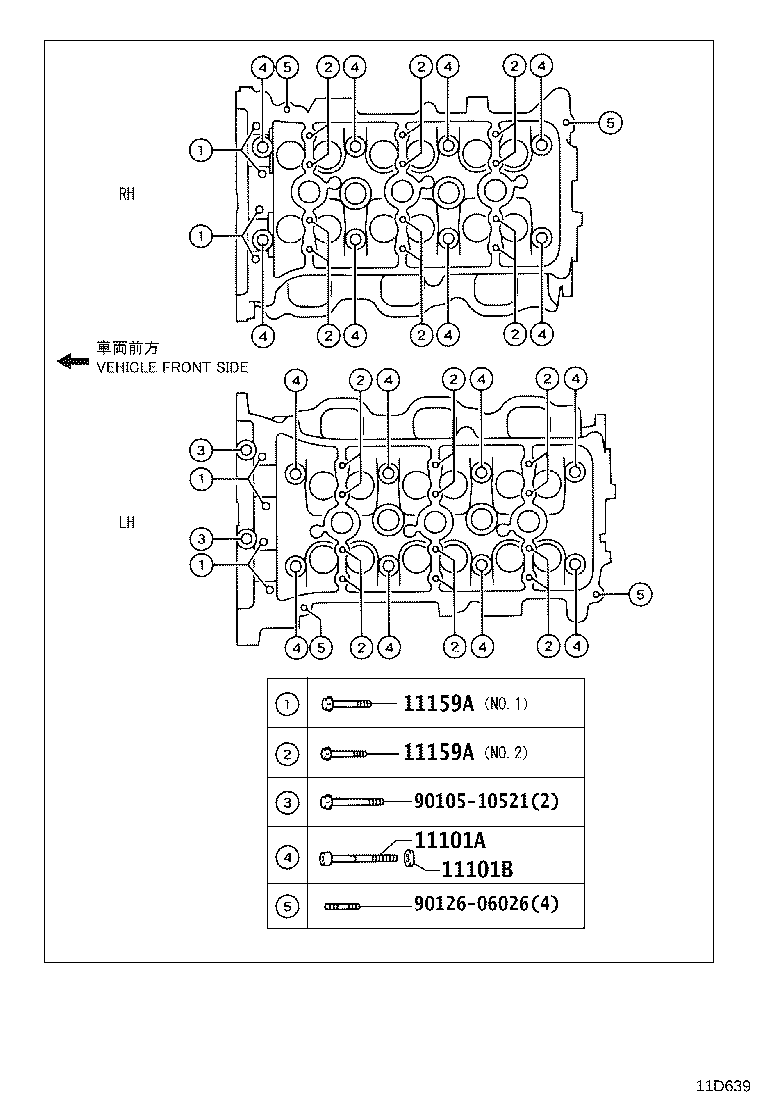

ILLUST NO. 2 OF 2(0502- )1GRFE

Click highlighted areas on diagram

diagram 11101A 11101B 11159A 11159A 9010510521 9012606026
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02149

1GRFE..GGN15,25

 16
Common parts
90105-10521
90126-06026

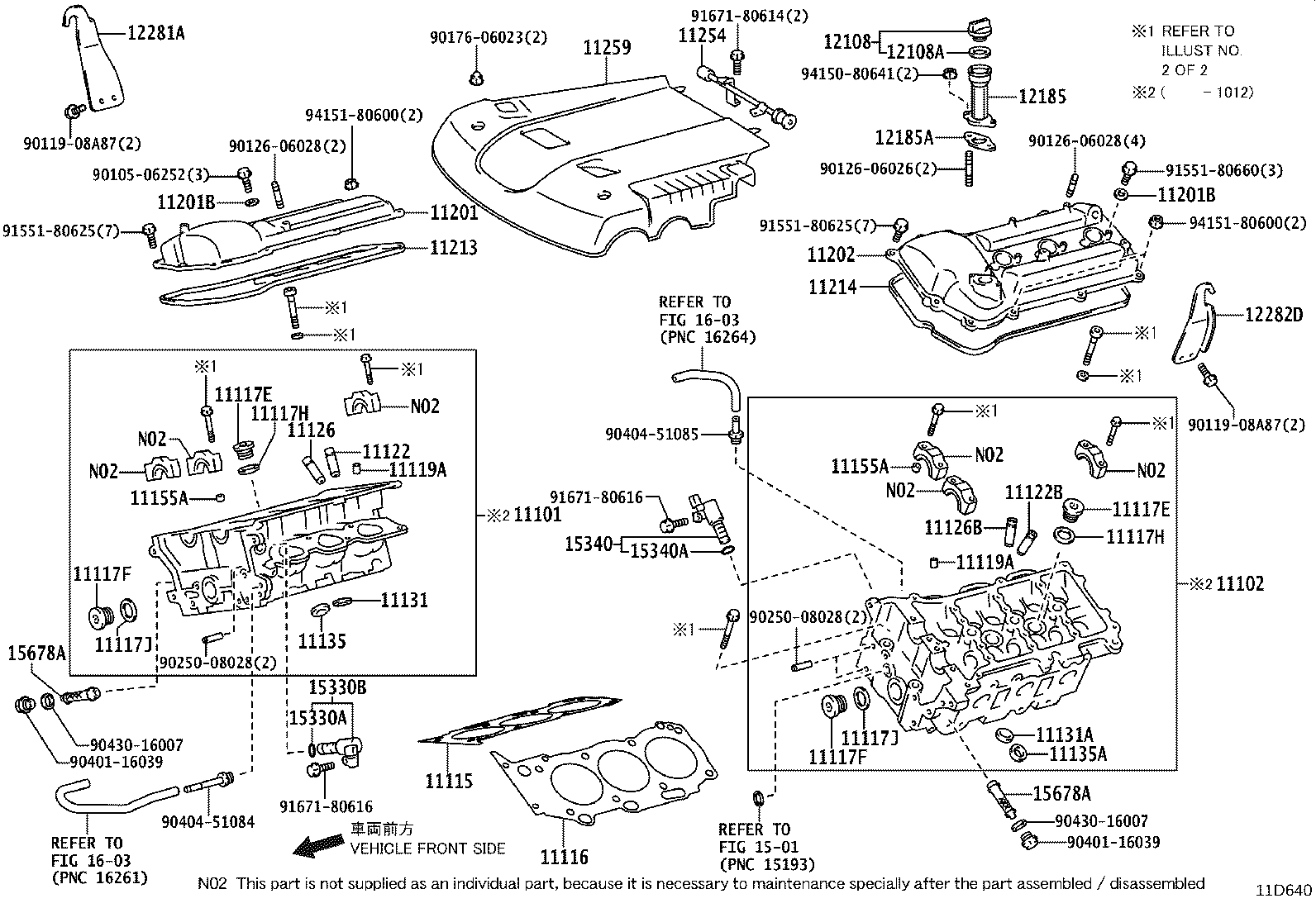

ILLUST NO. 1 OF 2(0502- )1GRFE

Click highlighted areas on diagram

diagram 11101 11102 11115 11116 11117E 11117E 11117F 11117F 11117H 11117H 11117J 11117J 11119A 11119A 11122 11122B 11126 11126B 11131 11131A 11135 11135A 11155A 11155A 11201 11201B 11201B 11202 11213 11214 11254 11259 12108 12108A 12185 12185A 12281A 12282D 1501 15330A 15330B 15340 15340A 15678A 15678A 1603 1603 9010506252 9011908A87 9011908A87 9012606026 9012606028 9012606028 9017606023 9025008028 9025008028 9040116039 9040116039 9040451084 9040451085 9043016007 9043016007 9155180625 9155180625 9155180660 9167180614 9167180616 9167180616 9415080641 9415180600 9415180600
Part # Description Qty Price
11115 - GASKET, CYLINDER HEAD
11115-31030

1GRFE..GGN15,25

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-31010

1GRFE..GGN15,25

 1
Common parts
90105-06252
90119-08A87
90126-06026
90126-06028
90176-06023
90250-08028
90401-16039
90404-51084
90404-51085
90430-16007
91551-80625
91551-80660
91671-80614
91671-80616
94150-80641
94151-80600
Linked diagrams
1501
1603
