GGN25L-PRASKL (2012)

Toyota Hilux

Production Apr 2012 - Sep 9999
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )GGN25..ANCOM

Click highlighted areas on diagram

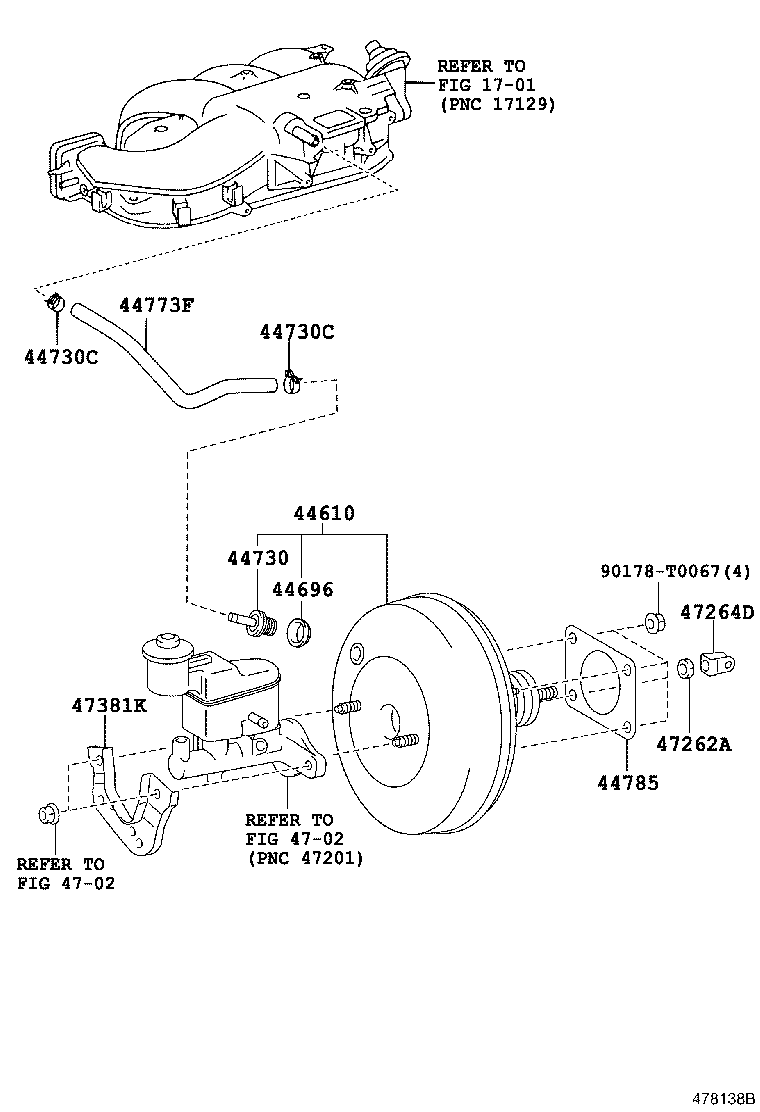

diagram 1701 44610 44696 44730 44730C 44730C 44773F 44785 4702 4702 47262A 47264D 47381K 90178T0067
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0K170

GGN25..5F

VSC-WITH

 1
44610-0K220

GGN25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN)

 1
44610-0K110

GGN25..5F;GGN25..5FC..DLX;GGN15,TGN10,16,26..RHD

 1
44696 - GROMMET, CHECK VALVE
90080-48050

KUN35..XTR;KUN15,25..DCB..SR..SA;KUN26..(DCB,SCB,THDCB)..4FC..(ARL,GEN,MA,PHL);KUN26..(DCB,SMT,THDCB)..(5F,5FC)..(GEN,PHL,TH);GGN15,25,KUN1#,25,3#,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KUN35..XTR;KUN36..SR..(GEN,LA,TH);KUN15,2#..LHD..(5F,5FC)..SR..(DCR,HDCR)..(LA,SA);GGN15,25,KUN1#,2#,35,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH)

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN25,TGN1#,26,36..LHD

 2
90466-T0019

KUN15,2#,3#..LHD;LAN15,25,TGN10,15,16,26..RHD;GGN15,25,35,KUN10,LAN35,TGN36..ARL,GCC,SA

 4
90466-T0019

LAN15,25..LHD;KUN1#,2#,3#..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN25,TGN1#,26,36..LHD

 2
90466-T0019

KUN15,2#,3#..LHD;LAN15,25,TGN10,15,16,26..RHD;GGN15,25,35,KUN10,LAN35,TGN36..ARL,GCC,SA

 4
90466-T0019

LAN15,25..LHD;KUN1#,2#,3#..RHD

 6
44773F - HOSE, UNION TO CHECK VALVE
44773-0K040

GGN25..ANCOM

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

KUN35..XTR;TGN16..4FC..GCC;KUN16,3#..ARL,GEN,PHL,TH;TGN16..5F..(ARL,GCC,GEN,TH);TGN26..LHD..(ANCOM,GCC,GEN);GGN25,KUN15,25..LHD..SR..(ANCOM,SA);KUN26..(DCB,SCB,THDCB)..4FC..(ARL,GEN,MA,PHL);KUN26..(DCB,SMT,THDCB)..(5F,5FC)..(GEN,PHL,TH);GGN15,25,KUN10,15,25,TGN10,11,15,36..(4FC,5F)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH)

(J)

 1
90016-AC101

KUN35..XTR;TGN16..4FC..GCC;KUN16,3#..ARL,GEN,PHL,TH;TGN16..5F..(ARL,GCC,GEN,TH);TGN26..LHD..(ANCOM,GCC,GEN);GGN25,KUN15,25..LHD..SR..(ANCOM,SA);KUN26..(DCB,SCB,THDCB)..4FC..(ARL,GEN,MA,PHL);KUN26..(DCB,SMT,THDCB)..(5F,5FC)..(GEN,PHL,TH);GGN15,25,KUN10,15,25,TGN10,11,15,36..(4FC,5F)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH)

(L)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010

GGN25..5F;KUN35..XTR;GGN25..5FC..DLX;GGN25,KUN15,25..LHD..SR..(ANCOM,SA);KUN26..(DCB,SCB,THDCB)..4FC..(ARL,GEN,MA,PHL);KUN26..(DCB,SMT,THDCB)..(5F,5FC)..(GEN,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

GGN25..5F;KUN35..XTR;GGN25..5FC..DLX;GGN25,KUN15,25..LHD..SR..(ANCOM,SA);KUN26..(DCB,SCB,THDCB)..4FC..(ARL,GEN,MA,PHL);KUN26..(DCB,SMT,THDCB)..(5F,5FC)..(GEN,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH

 1
