GGN25L-PRASKL (2005)
Toyota Hilux
Production
Jul 2005
-
Dec 2008
Engine
1GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )LAN15,25,35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-0K060 | ||||
| 87124-42030 | ||||
| 90105-T0054 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8714 | ||||

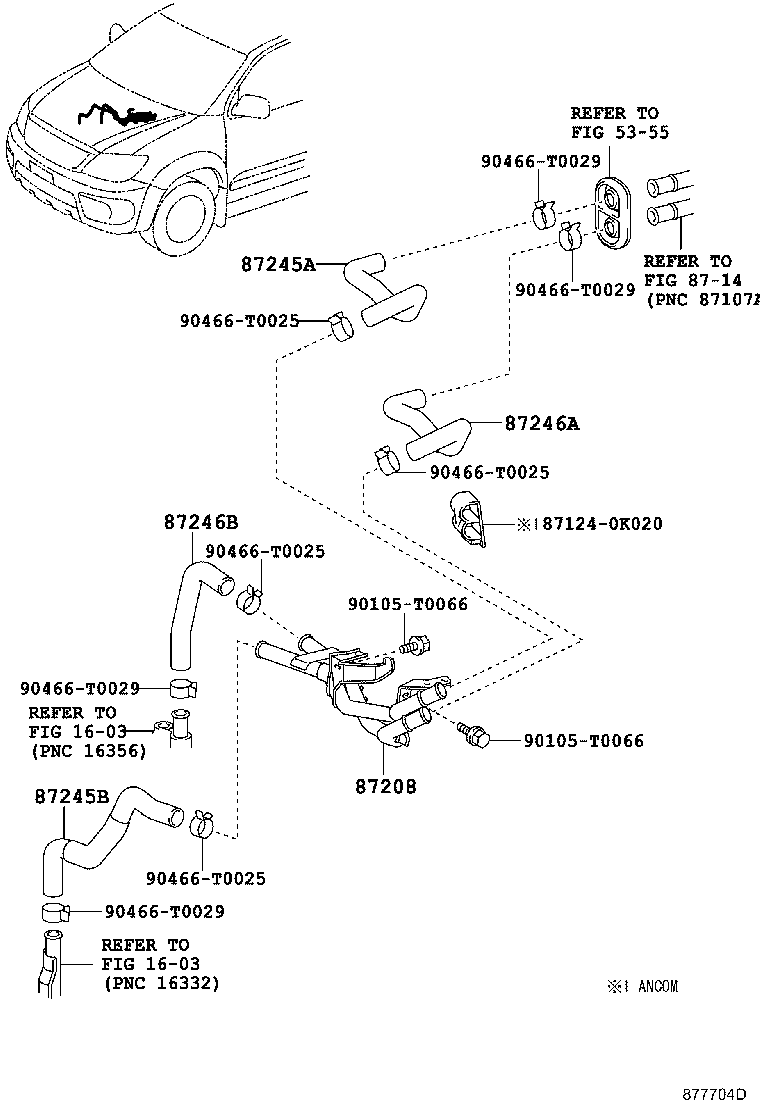

(0507- )GGN25..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-0K050 |
GGN25..ANCOM |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0K330 |
GGN25..ANCOM |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-0K390 |
GGN25..ANCOM |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-0K340 |
GGN25..ANCOM |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-0K380 |
GGN25..ANCOM |
1 | ||
| Common parts | ||||
| 87124-0K020 | ||||
| 90105-T0066 | ||||
| 90466-T0025 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8714 | ||||
