GGN125R-DNTHKN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )GGN125..SA

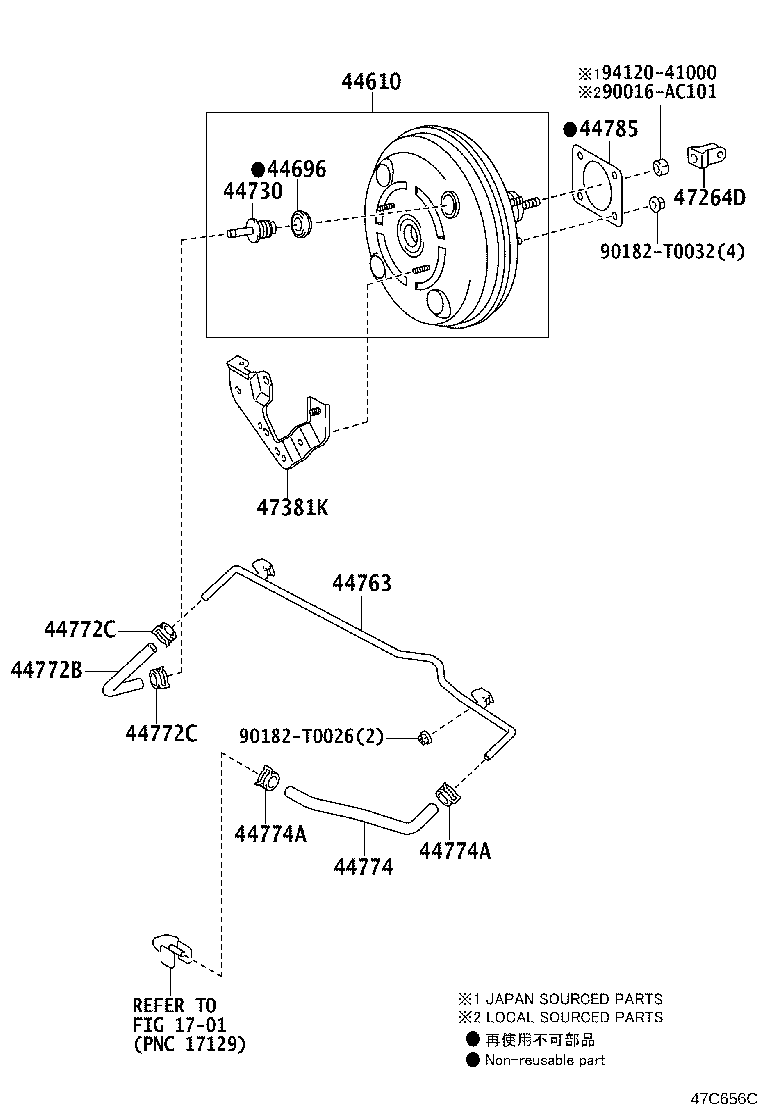

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763 44772B 44772C 44772C 44774 44774A 44774A 44785 47264D 47381K 90016AC101 90182T0026 90182T0032 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0K580

GUN122,125,126,13#..RHD..(MA,SA)

 1
44610-0K570

GGN125..SA

 1
44696 - GROMMET, CHECK VALVE
90016-AT003

GGN125,GUN122,125,126,13#,LAN125..MA,SA

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

GGN125,GUN122,125,126,13#,LAN125..MA,SA

 1
44763 - TUBE, BOOSTER VACUUM
44763-KK010

GGN125..SA

 1
44763-KK040

GUN112,12#,13#..RHD..(ARL,GEN,IDN,KEN,MA,SA,TH)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-KK010

GGN125..SA

 1
44772-KK020

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

NO.1

 1
44772-KK030

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

NO.2

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-T0019

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

 4
90466-T0019

GGN125..SA

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-T0019

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

 4
90466-T0019

GGN125..SA

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-KK040

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
44774-KK030

GGN125..SA

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

GGN125,GUN112,123,TGN11#..SD,TS;GUN120,122,125,126,13#,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

GGN125,GUN112,123,TGN11#..SD,TS;GUN120,122,125,126,13#,TGN12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 2
44785 - GASKET, BRAKE BOOSTER
44785-17010

GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..MA,SA

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-04010

GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..MA,SA

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K071

GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..MA,SA

 1
47381-0K070

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,MD,MS,SD,SS,SX,TD,TS,TX

 1
Common parts
90016-AC101
90182-T0026
90182-T0032
94120-41000
Linked diagrams
1701
