GGN125R-DNTHKN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )GGN125..SA

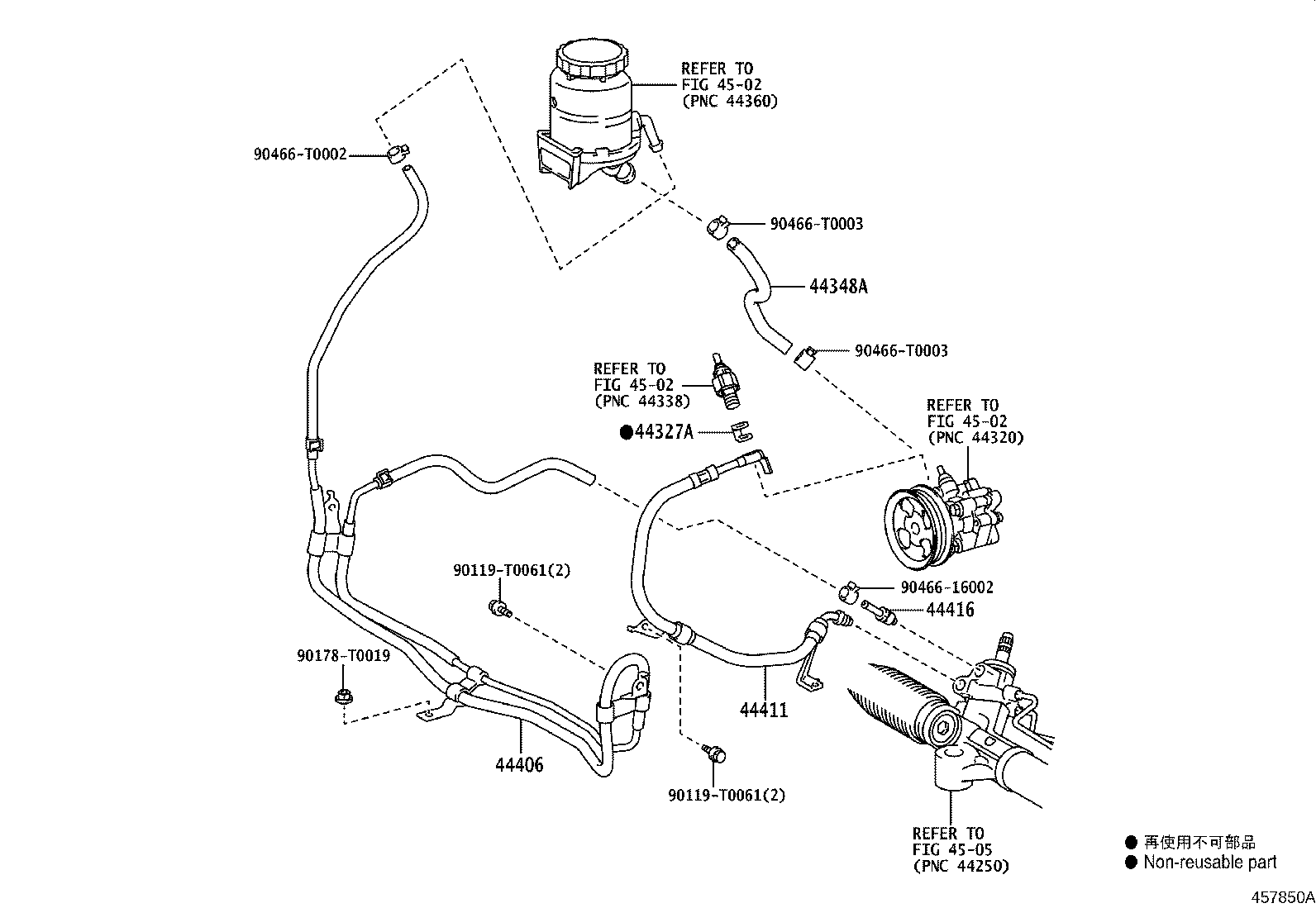

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44411 44416 4502 4502 4502 4505 90119T0061 90119T0061 90178T0019 9046616002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K110

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
44348-0K080

GGN125

 1
44406 - TUBE SUB-ASSY, RETURN
44406-0K220

GGN125..SA

 1
44411 - HOSE, PRESSURE FEED
44411-0K120

GGN125..SA

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K040

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
Common parts
90119-T0061
90178-T0019
90466-16002
90466-T0002
90466-T0003
Linked diagrams
4502
4505
