MHU28L-BWXNKA (2005)
Toyota Highlander Hv
Production
Mar 2005
-
May 2007
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0503- )

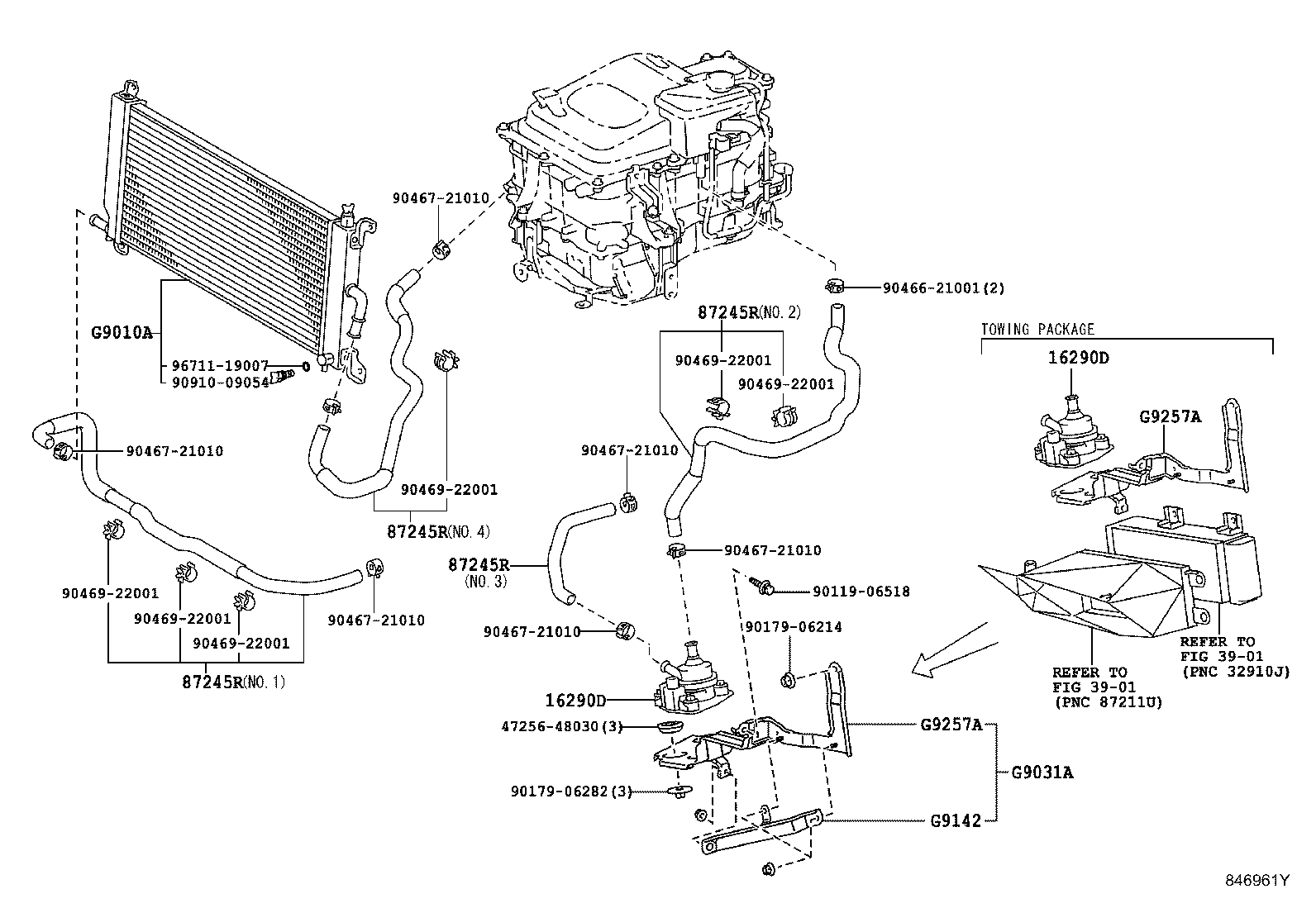

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16290D - PUMP ASSY, WATER W/MOTOR | ||||
| G9040-48080 |
3MZFE..MHU2# |
1 | ||
| 16290D - PUMP ASSY, WATER W/MOTOR | ||||
| G9040-48080 |
3MZFE..MHU2# |
1 | ||
| 87245R - HOSE, WATER | ||||
| 87245-48670 |
MHU2# NO.2 |
1 | ||
| 87245-48640 |
MHU2# NO.1 |
1 | ||
| 87245-48690 |
MHU2# NO.4 |
1 | ||
| 87245-48680 |
MHU2# NO.3 |
1 | ||
| 87245R - HOSE, WATER | ||||
| 87245-48670 |
MHU2# NO.2 |
1 | ||
| 87245-48640 |
MHU2# NO.1 |
1 | ||
| 87245-48690 |
MHU2# NO.4 |
1 | ||
| 87245-48680 |
MHU2# NO.3 |
1 | ||
| 87245R - HOSE, WATER | ||||
| 87245-48670 |
MHU2# NO.2 |
1 | ||
| 87245-48640 |
MHU2# NO.1 |
1 | ||
| 87245-48690 |
MHU2# NO.4 |
1 | ||
| 87245-48680 |
MHU2# NO.3 |
1 | ||
| 87245R - HOSE, WATER | ||||
| 87245-48670 |
MHU2# NO.2 |
1 | ||
| 87245-48640 |
MHU2# NO.1 |
1 | ||
| 87245-48690 |
MHU2# NO.4 |
1 | ||
| 87245-48680 |
MHU2# NO.3 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-48010 |
MHU2# |
1 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9257-48080 |
MHU2# |
1 | ||
| G9142 - BRACKET, HYBRID WATER PUMP, NO.2 | ||||
| G9257-48070 |
MHU2# |
1 | ||
| G9257A - BRACKET, INVERTER, NO.5 | ||||
| G9257-48150 |
MHU2# |
1 | ||
| G9257-48060 |
MHU2# |
1 | ||
| G9257A - BRACKET, INVERTER, NO.5 | ||||
| G9257-48150 |
MHU2# |
1 | ||
| G9257-48060 |
MHU2# |
1 | ||
| Common parts | ||||
| 47256-48030 | ||||
| 90119-06518 | ||||
| 90179-06214 | ||||
| 90179-06282 | ||||
| 90466-21001 | ||||
| 90467-21010 | ||||
| 90469-22001 | ||||
| 90910-09054 | ||||
| 96711-19007 | ||||
| Linked diagrams | ||||
| 3901 | ||||
