MHU28L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

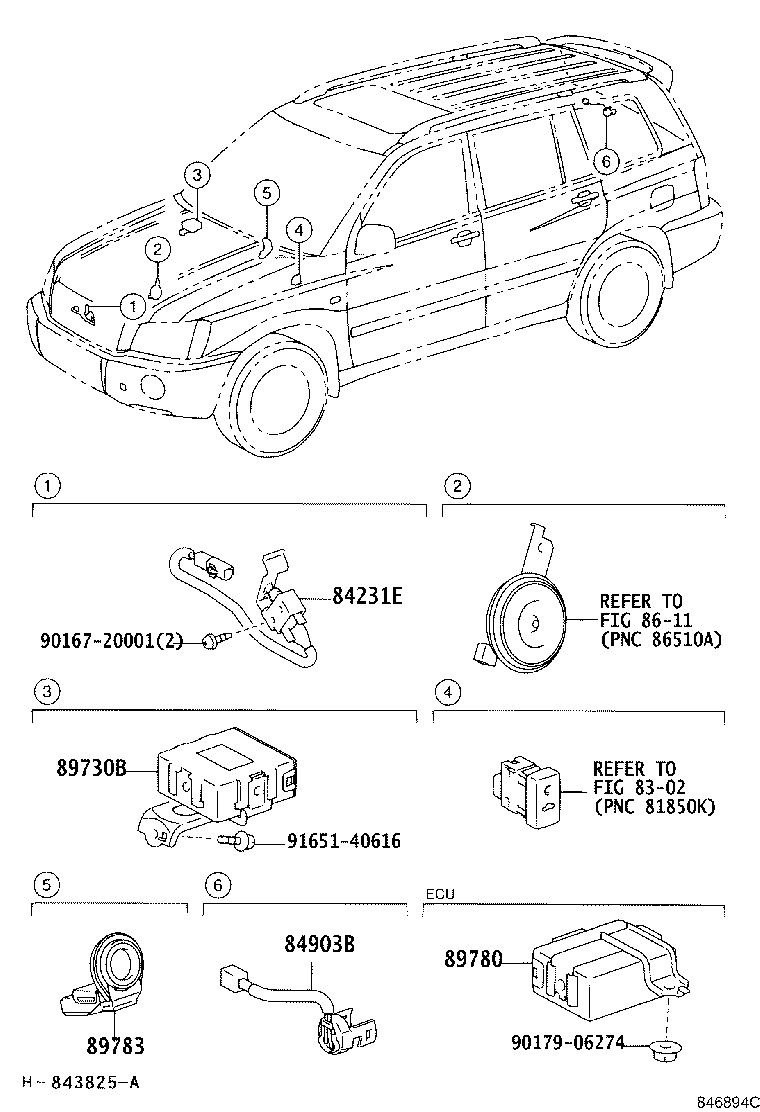

diagram 8302 84231E 84903B 8611 89730B 89780 89783 9016720001 9017906274 9165140616
Part # Description Qty Price
84231E - SWITCH, COURTESY(FOR SECURITY)
84231-48060

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-48010

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
89730B - COMPUTER ASSY, THEFT WARNING
89730-48050

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
89730-48070

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-48040

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER ONLY)

 1
89780-48040

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)&WIRELESS DOOR LOCK-3 BUTTON KEY HOLDER TYPE

 1
89780-48040

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-48080

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER ONLY)

 1
89783-48080

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)&WIRELESS DOOR LOCK-3 BUTTON KEY HOLDER TYPE

 1
89783-48080

MHU2#

ANTI-THEFT SYSTEM-W(ENGINE IMMOBILIZER & AUTO ALARM)

 1
Common parts
90167-20001 None epc.PartDetail.None
90179-06274 None epc.PartDetail.None
91651-40616 None epc.PartDetail.None
Linked diagrams
8302
8611
