MHU28L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

Click highlighted areas on diagram

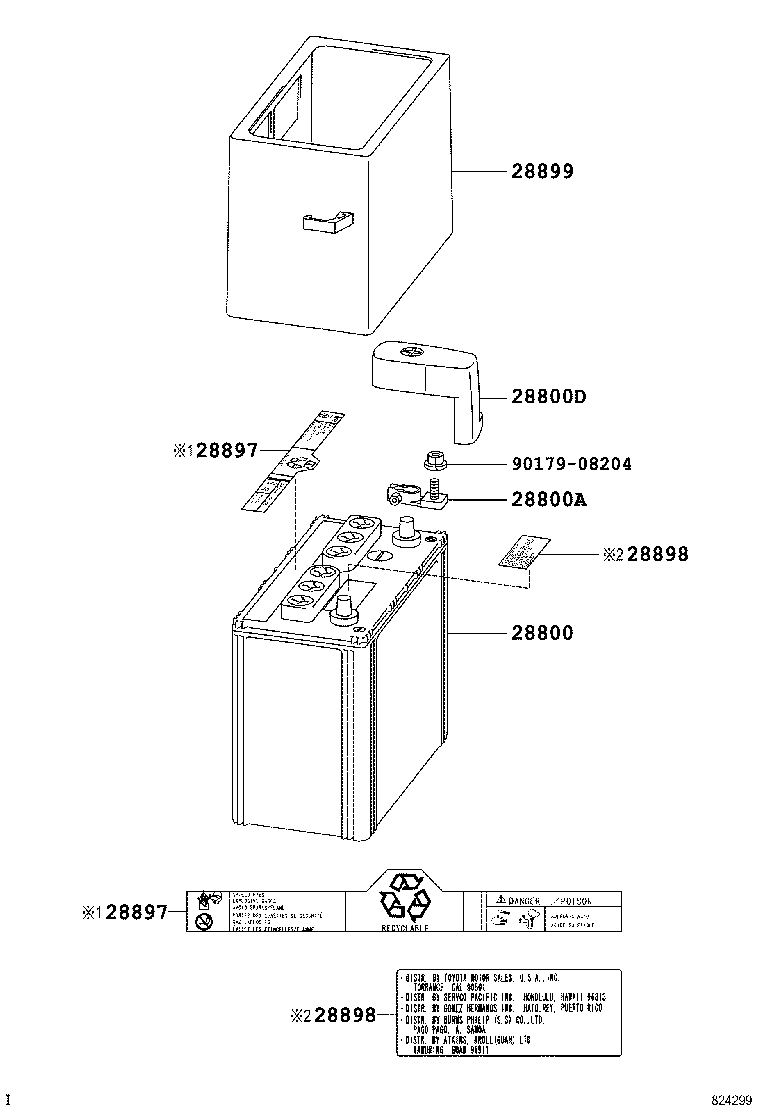

12V BATTERY

diagram 28800 28800A 28800D 28897 28897 28898 28898 28899 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-20060

3MZFE..MHU2#

55B24L(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

3MZFE..MHU2#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20440

3MZFE..MHU2#

 1
28897 - PLATE, BATTERY CAUTION
28897-20010

3MZFE..MHU28

CANADA SPEC

 1
28897 - PLATE, BATTERY CAUTION
28897-20010

3MZFE..MHU28

CANADA SPEC

 1
28898 - PLATE, BATTERY
28898-20020

3MZFE..MHU2#

 1
28898 - PLATE, BATTERY
28898-20020

3MZFE..MHU2#

 1
28899 - INSULATOR, BATTERY
28899-20010

3MZFE..MHU2#

 1
28899-20011

3MZFE..MHU2#

 1
Common parts
90179-08204

(0503- )

Click highlighted areas on diagram

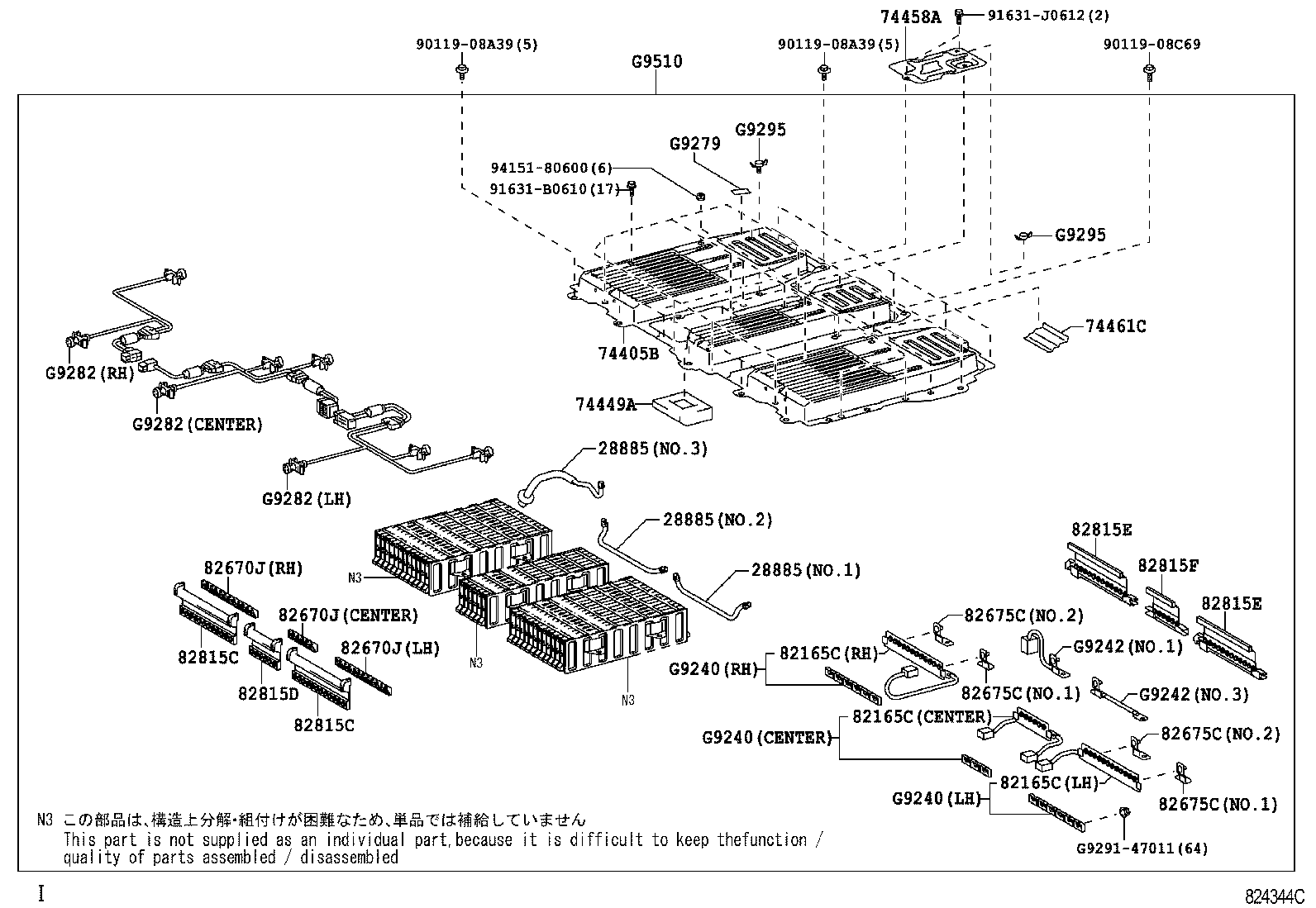

HV BATTERY

diagram 28885 28885 28885 74405B 74449A 74458A 74461C 82165C 82165C 82165C 82670J 82670J 82670J 82675C 82675C 82675C 82675C 82815C 82815C 82815D 82815E 82815E 82815F 9011908A39 9011908A39 9011908C69 91631B0610 91631J0612 9415180600 G9240 G9240 G9240 G9242 G9242 G9279 G9282 G9282 G9282 G929147011 G9295 G9295 G9510
Part # Description Qty Price
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU2#

NO.1

 1
28885-20030

3MZFE..MHU2#

NO.3

 1
28885-20020

3MZFE..MHU2#

NO.2

 1
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU2#

NO.1

 1
28885-20030

3MZFE..MHU2#

NO.3

 1
28885-20020

3MZFE..MHU2#

NO.2

 1
28885 - HOSE, BATTERY ROOM VENTILATION
28885-20010

3MZFE..MHU2#

NO.1

 1
28885-20030

3MZFE..MHU2#

NO.3

 1
28885-20020

3MZFE..MHU2#

NO.2

 1
74405B - COVER SUB-ASSY, BATTERY
74405-48010

MHU2#

 1
74449A - PACKING, BATTERY, NO.2
74448-48010

MHU2#

 1
74458A - LID, BATTERY COVER, NO.1
74458-48010

MHU2#

 1
74461C - COVER, BATTERY
74461-48030

MHU2#

 1
82165C - WIRE, FRAME, NO.2
82165-48051

MHU2#

LH

 1
82165-48071

MHU2#

RH

 1
82165-48061

MHU2#

CENTER

 1
82165C - WIRE, FRAME, NO.2
82165-48051

MHU2#

LH

 1
82165-48071

MHU2#

RH

 1
82165-48061

MHU2#

CENTER

 1
82165C - WIRE, FRAME, NO.2
82165-48051

MHU2#

LH

 1
82165-48071

MHU2#

RH

 1
82165-48061

MHU2#

CENTER

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU2#

RH & LH

 2
82670-48081

MHU2#

CENTER

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU2#

RH & LH

 2
82670-48081

MHU2#

CENTER

 1
82670J - BLOCK ASSY, JUNCTION
82670-48071

MHU2#

RH & LH

 2
82670-48081

MHU2#

CENTER

 1
82675C - TERMINAL, JUNCTION
82675-48070

MHU2#

NO.2

 2
82675-48060

MHU2#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU2#

NO.2

 2
82675-48060

MHU2#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU2#

NO.2

 2
82675-48060

MHU2#

NO.1

 2
82675C - TERMINAL, JUNCTION
82675-48070

MHU2#

NO.2

 2
82675-48060

MHU2#

NO.1

 2
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-48311

MHU2#

 2
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-48311

MHU2#

 2
82815D - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-48321

MHU2#

 1
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-48331

MHU2#

 2
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-48331

MHU2#

 2
82815F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-48341

MHU2#

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48021

MHU2#

CENTER

 1
G9240-48031

MHU2#

RH

 1
G9240-48011

MHU2#

LH

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48021

MHU2#

CENTER

 1
G9240-48031

MHU2#

RH

 1
G9240-48011

MHU2#

LH

 1
G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE
G9240-48021

MHU2#

CENTER

 1
G9240-48031

MHU2#

RH

 1
G9240-48011

MHU2#

LH

 1
G9242 - CABLE, MAIN BATTERY
G9242-48020

MHU2#

NO.2

 1
G9242-48010

MHU2#

NO.1

 1
G9242-48040

MHU2#

NO.4

 1
G9242-48030

MHU2#

NO.3

 1
G9242 - CABLE, MAIN BATTERY
G9242-48020

MHU2#

NO.2

 1
G9242-48010

MHU2#

NO.1

 1
G9242-48040

MHU2#

NO.4

 1
G9242-48030

MHU2#

NO.3

 1
G9279 - LABEL, BATTERY CAUTION, NO.4
G9279-47040

MHU2#

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48030

MHU2#

CENTER

 1
G9282-48020

MHU2#

LH

 1
G9282-48010

MHU2#

RH

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48030

MHU2#

CENTER

 1
G9282-48020

MHU2#

LH

 1
G9282-48010

MHU2#

RH

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-48030

MHU2#

CENTER

 1
G9282-48020

MHU2#

LH

 1
G9282-48010

MHU2#

RH

 1
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU2#

 2
G9295 - BRACKET, EV BATTERY WATER TANK
G9295-28030

MHU2#

 2
G9510 - BATTERY ASSY, HV SUPPLY
G9510-48010

MHU2#

 1
Common parts
90119-08A39
90119-08C69
91631-B0610
91631-J0612
94151-80600
G9291-47011

(0503- )

Click highlighted areas on diagram

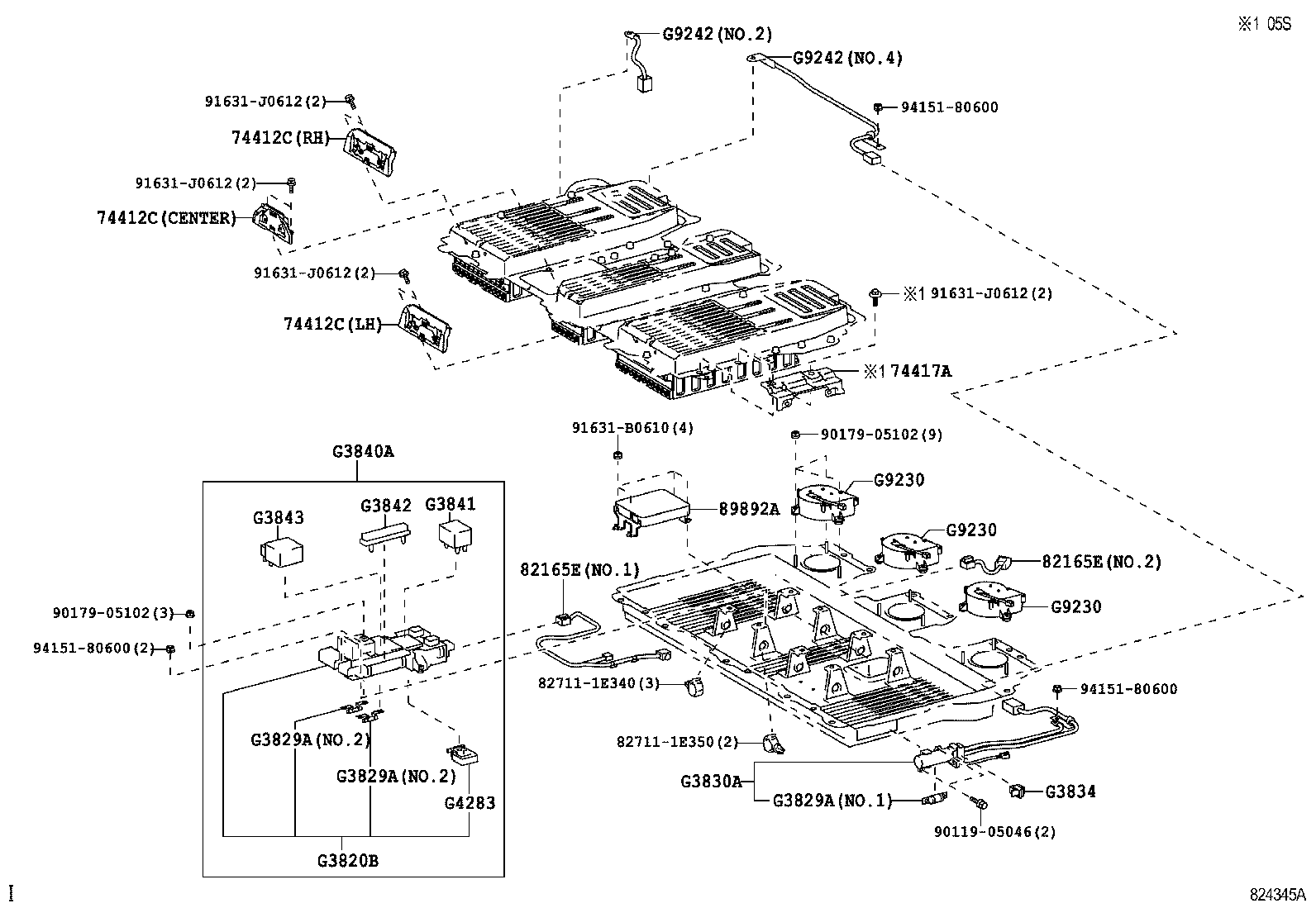

HV BATTERY

diagram 74412C 74412C 74412C 74417A 82165E 82165E 827111E340 827111E350 89892A 9011905046 9017905102 9017905102 91631B0610 91631J0612 91631J0612 91631J0612 91631J0612 9415180600 9415180600 9415180600 G3820B G3829A G3829A G3829A G3830A G3834 G3840A G3841 G3842 G3843 G4283 G9230 G9230 G9230 G9242 G9242
Part # Description Qty Price
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU2#

CENTER

 1
74412-48010

MHU2#

RH & LH

 2
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU2#

CENTER

 1
74412-48010

MHU2#

RH & LH

 2
74412C - DUCT, BATTERY CARRIER
74412-48020

MHU2#

CENTER

 1
74412-48010

MHU2#

RH & LH

 2
74417A - BRACKET, BATTERY CARRIER
74417-48010

MHU2#..05S

 1
82165E - WIRE, BATTERY PACK
82165-48030

MHU2#

NO.1

 1
82165-48040

MHU2#

NO.2

 1
82165E - WIRE, BATTERY PACK
82165-48030

MHU2#

NO.1

 1
82165-48040

MHU2#

NO.2

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-48010

MHU2#

 1
G3820B - BOX ASSY, ELECTRIC VEHICLE JUNCTION, NO.3
G3820-48010

MHU2#

 1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11046

MHU2#

15A,NO.2

 2
90982-11049

MHU2#

125A,MARK90982-11049,NO.1

 1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11046

MHU2#

15A,NO.2

 2
90982-11049

MHU2#

125A,MARK90982-11049,NO.1

 1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11046

MHU2#

15A,NO.2

 2
90982-11049

MHU2#

125A,MARK90982-11049,NO.1

 1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-48011

MHU2#

 1
G3834 - GRIP, SERVICE PLUG
G3834-47020

MHU2#

 1
G3840A - RELAY ASSY, HYBRID VEHICLE
G3840-48010

MHU2#

 1
G3841 - RELAY, SYSTEM VEHICLE
G3841-48010

MHU2#

 1
G3842 - RESISTOR, SYSTEM MAIN
G3842-48010

MHU2#

 1
G3843 - RELAY, SYSTEM MAIN, NO.2
G3843-48010

MHU2#

 2
G4283 - SENSOR, BATTERY CURRENT
G4283-47030

MHU2#

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU2#

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU2#

 3
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-48010

MHU2#

 3
G9242 - CABLE, MAIN BATTERY
G9242-48020

MHU2#

NO.2

 1
G9242-48010

MHU2#

NO.1

 1
G9242-48040

MHU2#

NO.4

 1
G9242-48030

MHU2#

NO.3

 1
G9242 - CABLE, MAIN BATTERY
G9242-48020

MHU2#

NO.2

 1
G9242-48010

MHU2#

NO.1

 1
G9242-48040

MHU2#

NO.4

 1
G9242-48030

MHU2#

NO.3

 1
Common parts
82711-1E340
82711-1E350
90119-05046
90179-05102
91631-B0610
91631-J0612
94151-80600
