MHU28L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0503- )

Click highlighted areas on diagram

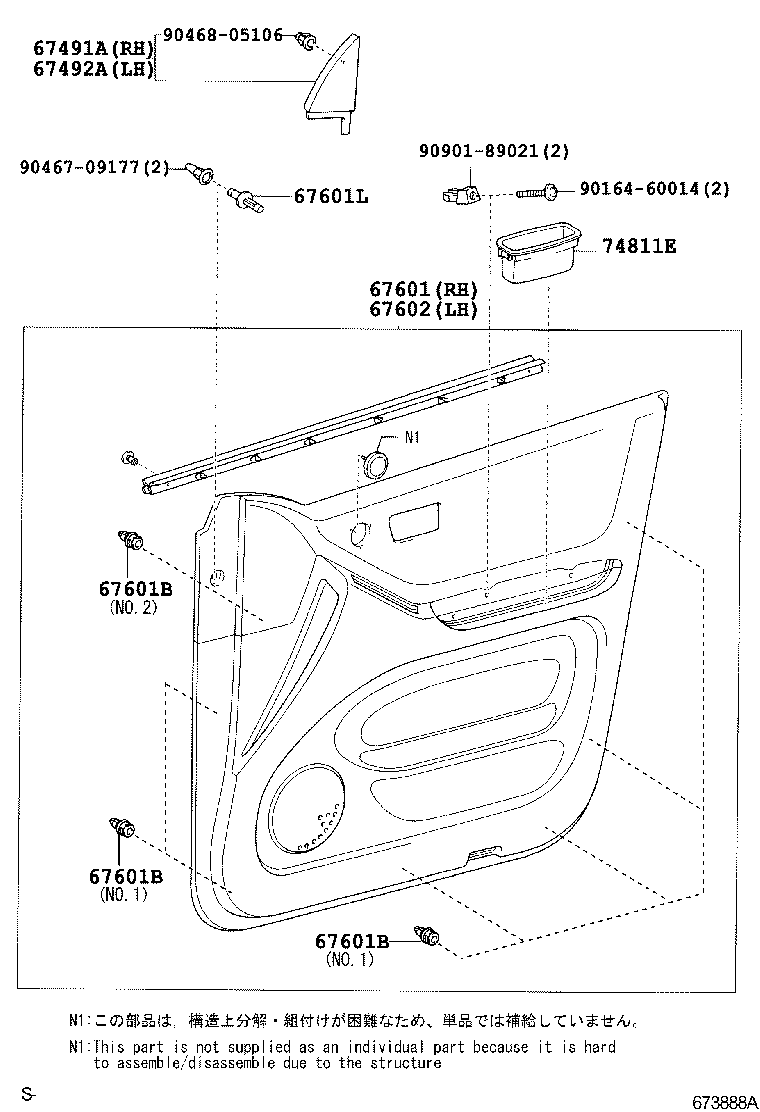

diagram 67491A 67492A 67601 67601B 67601B 67601B 67601L 67602 74811E 9016460014 9046709177 9046805106 9090189021
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-48020

MHU2#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-48020

MHU2#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-48321A0

MHU2#

IVORY,TRIM0#

 1
67610-48351B0

MHU2#

LEATHER SEAT,GRAY,TRIM1#

 1
67610-48361A0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331A0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331A0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331A0

MHU2#

AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331B0

MHU2#

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48361B0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48331B0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48361A0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331A0

MHU2#

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48331B0

MHU2#

AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48361B0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48331B0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48351A0

MHU2#

LEATHER SEAT,IVORY,TRIM0#

 1
67610-48361B0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48361A0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67610-48361B0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67610-48321B0

MHU2#

GRAY,TRIM1#

 1
67610-48361A0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

MHU2#

NO.2

 2
90467-09206

MHU2#

NO.1

 12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

MHU2#

NO.2

 2
90467-09206

MHU2#

NO.1

 12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

MHU2#

NO.2

 2
90467-09206

MHU2#

NO.1

 12
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07076A0

MHU2#

IVORY,TRIM0#

 2
90467-07076P5

MHU2#

GRAY,TRIM1#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-48351B0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48351A0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48351B0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48341A0

MHU2#

IVORY,TRIM0#

 1
67620-48341B0

MHU2#

GRAY,TRIM1#

 1
67620-48351A0

MHU2#

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48371B0

MHU2#

LEATHER SEAT,GRAY,TRIM1#

 1
67620-48351A0

MHU2#

LIMITED(USA)&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48351B0

MHU2#

AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48381A0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48371A0

MHU2#

LEATHER SEAT,IVORY,TRIM0#

 1
67620-48351B0

MHU2#

AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48351A0

MHU2#

AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48381A0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48381A0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),IVORY,TRIM0#

 1
67620-48381B0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48381B0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48381B0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48381B0

MHU2#

LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),GRAY,TRIM1#

 1
67620-48381A0

MHU2#

LIMITED(USA)&LEATHER SEAT&AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL),IVORY,TRIM0#

 1
74811E - HANDLE, DOOR PULL
74811-22010B4

MHU2#

GRAY,TRIM1#

 2
74811-22010A0

MHU2#

IVORY,TRIM0#

 2
Common parts
90164-60014
90467-09177
90468-05106
90901-89021

ILLUST NO. 2 OF 2(0503- )

Click highlighted areas on diagram

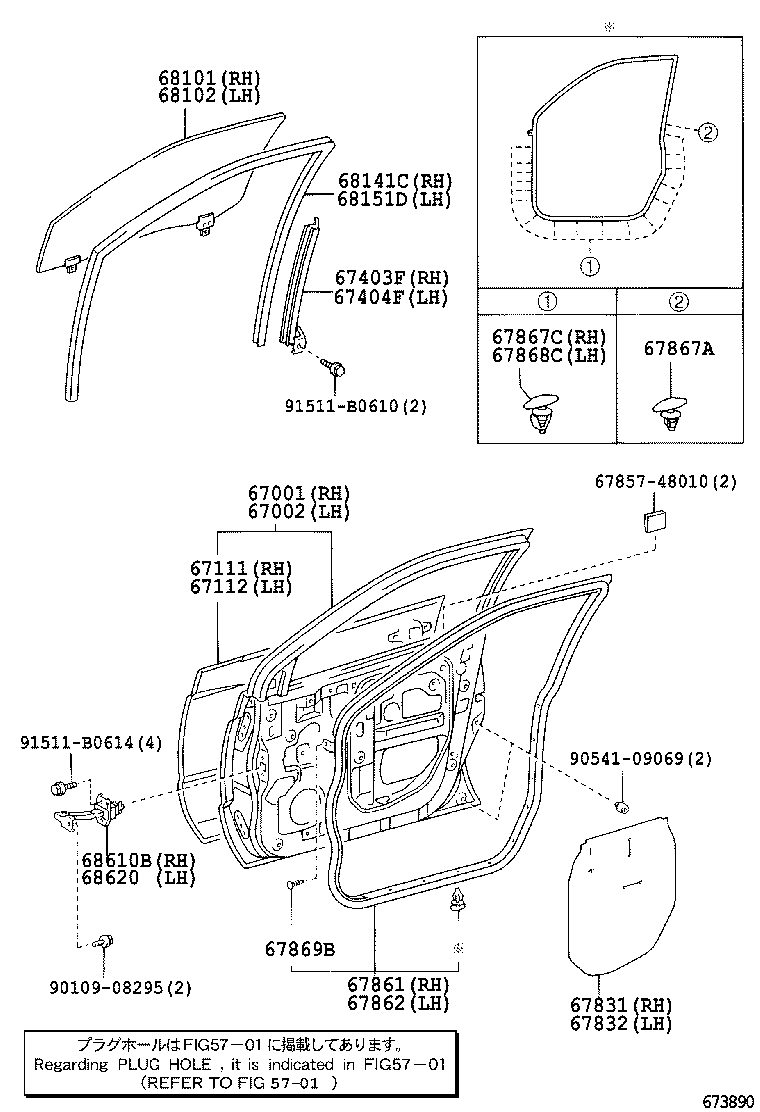

diagram 5701 67001 67002 67111 67112 67403F 67404F 67831 67832 6785748010 67861 67862 67867A 67867C 67868C 67869B 68101 68102 68141C 68151D 68610B 68620 9010908295 9054109069 91511B0610 91511B0614
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-48050

MHU2#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-48050

MHU2#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-48020

MHU2#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-48020

MHU2#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-48030

MHU2#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-48030

MHU2#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-48020

MHU2#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-48020

MHU2#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-48021

MHU2#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-48021

MHU2#

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-48010

MHU2#

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

MHU2#

 17
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

MHU2#

 17
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

MHU2#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-48050

MHU2#

*TEM,T=4.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-48050

MHU2#

*TEM,T=4.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-48020

MHU2#

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-48020

MHU2#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-48020

MHU2#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-48010

MHU2#

 1
Common parts
67857-48010
90109-08295
90541-09069
91511-B0610
91511-B0614
Linked diagrams
5701
