MHU28L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

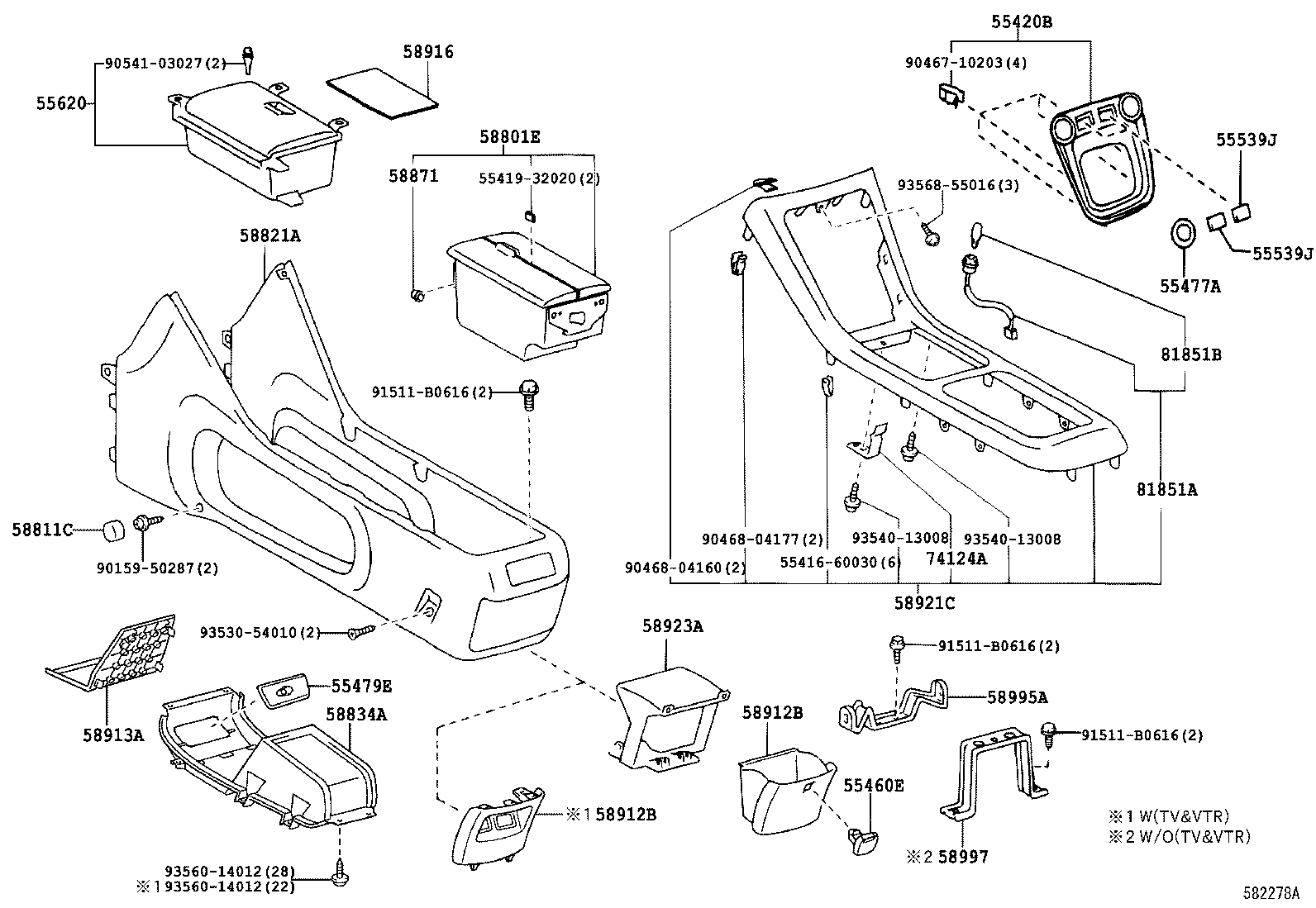

Click highlighted areas on diagram

diagram 5541660030 5541932020 55420B 55460E 55477A 55479E 55539J 55539J 55620 58801E 58811C 58821A 58834A 58871 58912B 58912B 58913A 58916 58921C 58923A 58995A 58997 74124A 81851A 81851B 9015950287 9046710203 9046804160 9046804177 9054103027 91511B0616 91511B0616 91511B0616 9353054010 9354013008 9354013008 9356014012 9356014012 9356855016
Part # Description Qty Price
55420B - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55420-48070B0

MHU2#

SILVER,TRIM0#,1#

 1
55420-48080E0

MHU2#

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

 1
55460E - LOCK ASSY, INSTRUMENT PANEL BOX
55460-33010A1

MHU2#

IVORY,TRIM0#

 1
55460-33010B8

MHU2#

GRAY,TRIM1#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-48020

MHU2#

 1
55479E - COVER, INSTRUMENT, LOWER CENTER
55479-48010A0

MHU2#

IVORY,TRIM0#

 1
55479-48010B0

MHU2#

GRAY,TRIM1#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-48010

MHU2#

 1
55539-48010

MHU2#

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
55539J - COVER, SPARE SWITCH HOLE
55539-48010

MHU2#

 1
55539-48010

MHU2#

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-48020E1

MHU2#

LIMITED(USA)&W(TELEVISION & VTR),BROWN MOKUME,TRIM0#,1#

 1
55620-48060B0

MHU2#

SILVER,TRIM0#,1#

 1
55620-48020E1

MHU2#

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

 1
58801E - BOX SUB-ASSY, CONSOLE, UPPER
58801-48040B1

MHU2#

GRAY,TRIM1#

 1
58801-48040A0

MHU2#

IVORY,TRIM0#

 1
58811C - CAP(FOR CONSOLE)
90339-10014A0

MHU2#

IVORY,TRIM0#

 2
90339-10014B5

MHU2#

GRAY,TRIM1#

 2
58821A - PANEL, CONSOLE
58821-48020B2

MHU2#

GRAY,TRIM1#

 1
58821-48020A0

MHU2#

IVORY,TRIM0#

 1
58834A - COVER, CONSOLE, LOWER
58834-48060B0

MHU2#

GRAY,TRIM1#

 1
58834-48060A0

MHU2#

IVORY,TRIM0#

 1
58871 - CUSHION, CONSOLE BOX
58871-30050

MHU2#

 4
58912B - BOX, REAR CONSOLE, LOWER
58912-48030B1

MHU2#

GRAY,TRIM1#

 1
58912-48050A0

MHU2#

LIMITED(USA)&W(TELEVISION & VTR),IVORY,TRIM0#

 1
58912-48050B0

MHU2#

LIMITED(USA)&W(TELEVISION & VTR),GRAY,TRIM1#

 1
58912-48050A0

MHU2#

W(TELEVISION & VTR),IVORY,TRIM0#

 1
58912-48050B0

MHU2#

W(TELEVISION & VTR),GRAY,TRIM1#

 1
58912-48030A0

MHU2#

IVORY,TRIM0#

 1
58912B - BOX, REAR CONSOLE, LOWER
58912-48030B1

MHU2#

GRAY,TRIM1#

 1
58912-48050A0

MHU2#

LIMITED(USA)&W(TELEVISION & VTR),IVORY,TRIM0#

 1
58912-48050B0

MHU2#

LIMITED(USA)&W(TELEVISION & VTR),GRAY,TRIM1#

 1
58912-48050A0

MHU2#

W(TELEVISION & VTR),IVORY,TRIM0#

 1
58912-48050B0

MHU2#

W(TELEVISION & VTR),GRAY,TRIM1#

 1
58912-48030A0

MHU2#

IVORY,TRIM0#

 1
58913A - PANEL, BOX, NO.3
58913-48020A0

MHU2#

IVORY,TRIM0#

 1
58913-48020B0

MHU2#

GRAY,TRIM1#

 1
58916 - MAT, BOX BOTTOM
58916-48020

MHU2#

 1
58921C - PLATE, BOX, UPPER NO.1
58921-48030A0

MHU2#

IVORY,TRIM0#

 1
58921-48030B1

MHU2#

GRAY,TRIM1#

 1
58923A - PANEL, CONSOLE REAR END
58923-48010B2

MHU2#

GRAY,TRIM1#

 1
58923-48010A0

MHU2#

IVORY,TRIM0#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-48030

MHU2#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-48020

MHU2#

 1
74124A - SPRING, ASH RECEPTACLE
74124-20120

MHU2#

 1
81851A - LAMP ASSY, INDICATOR
81850-48040

MHU2#

 1
81851B - BULB (FOR INDICATOR LAMP)
90981-11014

MHU2#

 1
Common parts
55416-60030
55419-32020
90159-50287
90467-10203
90468-04160
90468-04177
90541-03027
91511-B0616
93530-54010
93540-13008
93560-14012
93568-55016
