MHU28L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

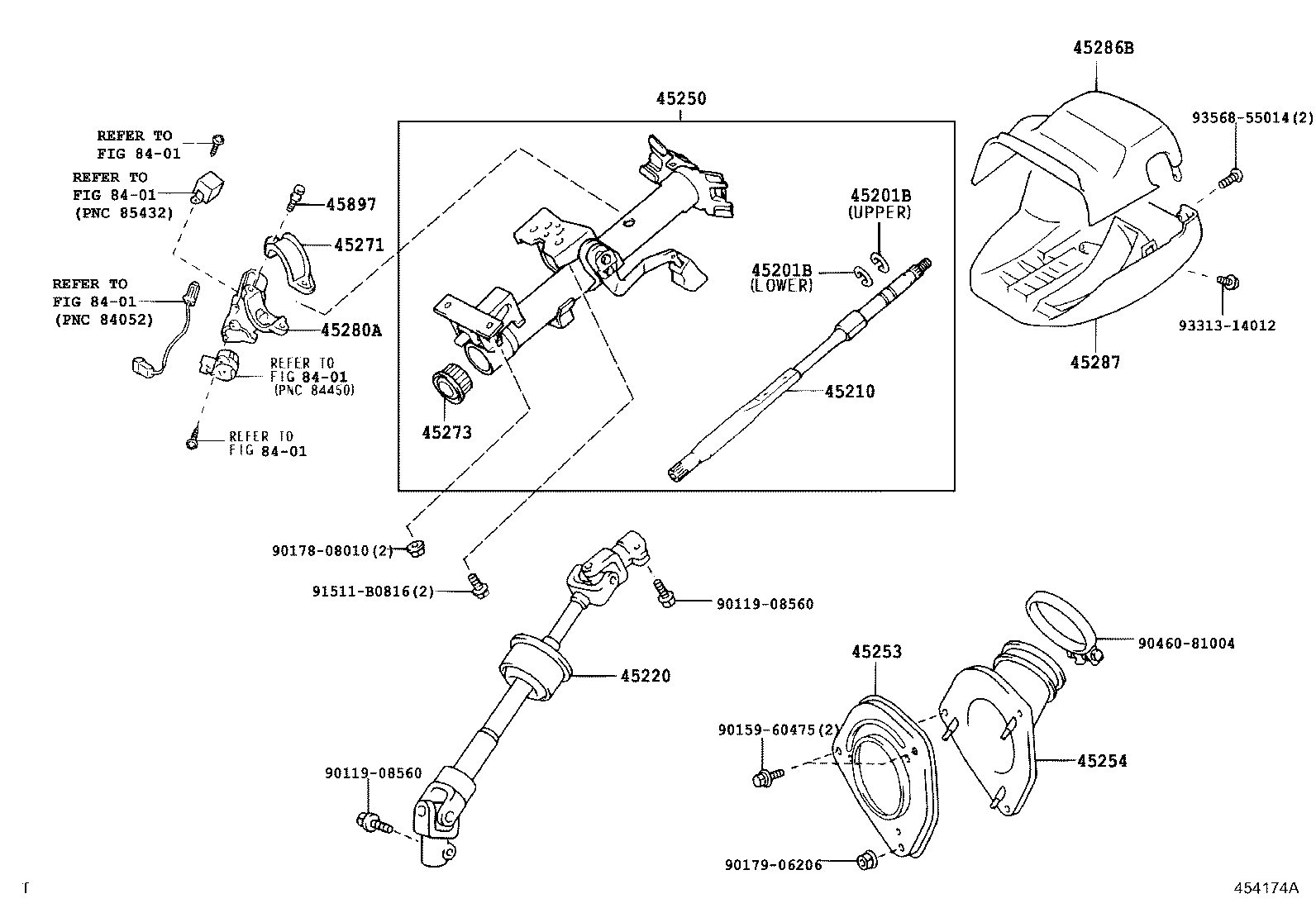

Click highlighted areas on diagram

diagram 45201B 45201B 45210 45220 45250 45253 45254 45271 45273 45280A 45286B 45287 45897 8401 8401 8401 8401 8401 9011908560 9011908560 9015960475 9017808010 9017906206 9046081004 91511B0816 9331314012 9356855014
Part # Description Qty Price
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

MHU2#

T=1.20,LOWER

 1
90520-17269

MHU2#

T=1.20,UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

MHU2#

T=1.20,LOWER

 1
90520-17269

MHU2#

T=1.20,UPPER

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-48010

MHU2#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-48160

MHU2#

 1
45220-48080

MHU2#

 1
45250 - COLUMN ASSY, STEERING
45250-48080

MHU2#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-48040

MHU2#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-48040

MHU2#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-48010

MHU2#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-12020

MHU2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-48060

MHU2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-48050E0

MHU2#

SANDAL WOOD,TRIM0#

 1
45286-48050B0

MHU2#

SADDLE GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-48080B0

MHU2#

SADDLE GRAY,TRIM1#

 1
45024-48080E0

MHU2#

SANDAL WOOD,TRIM0#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MHU2#

 2
Common parts
90119-08560
90159-60475
90178-08010
90179-06206
90460-81004
91511-B0816
93313-14012
93568-55014
Linked diagrams
8401
