MHU28L-BWXNKA (2005)
Toyota Highlander Hv
Production
Mar 2005
-
May 2007
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

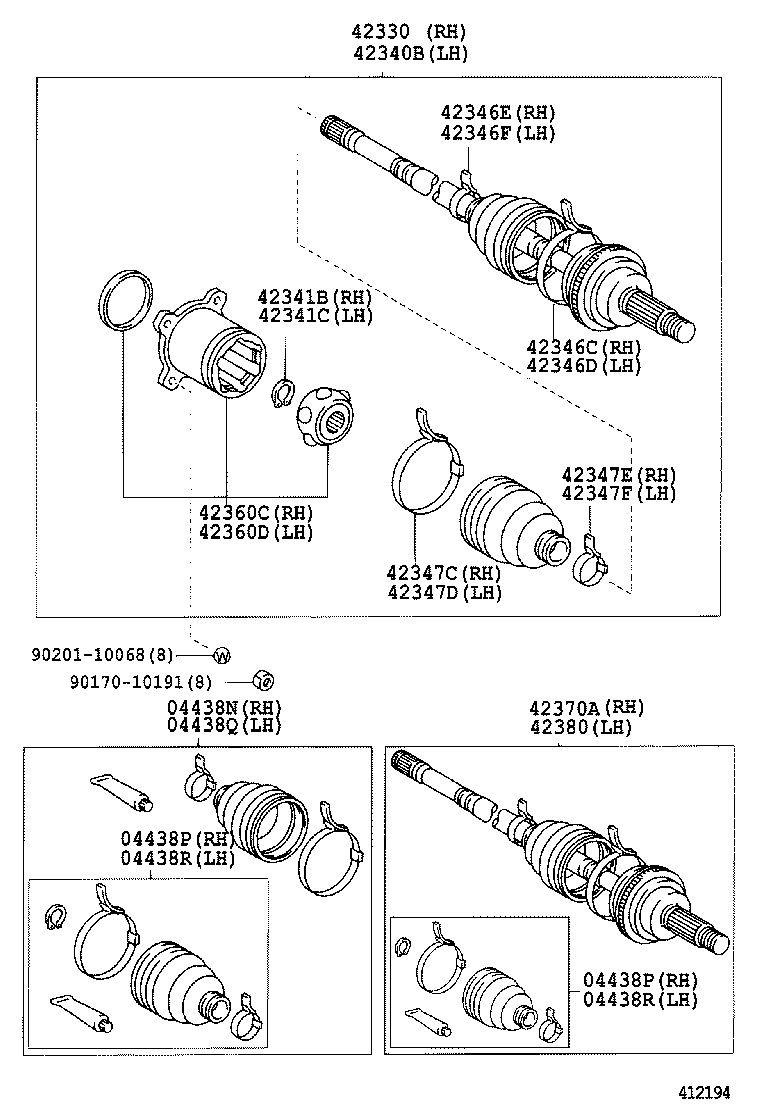

ILLUST NO. 1 OF 2(0503- )MHU28
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-12020 |
MHU28 |
1 | ||
| 04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH | ||||
| 04439-12010 |
MHU28 |
1 | ||
| 04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH | ||||
| 04439-12010 |
MHU28 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-12020 |
MHU28 |
1 | ||
| 04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH | ||||
| 04439-12010 |
MHU28 |
1 | ||
| 04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH | ||||
| 04439-12010 |
MHU28 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-28090 |
MHU28 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-28090 |
MHU28 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-21020 |
MHU28 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-21020 |
MHU28 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
MHU28 ID=74.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
MHU28 ID=74.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12130 |
MHU28 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-12130 |
MHU28 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
MHU28 ID=74.3 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
MHU28 ID=74.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12130 |
MHU28 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12130 |
MHU28 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-28010 |
MHU28 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-28010 |
MHU28 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-29435 |
MHU28 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-29435 |
MHU28 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||

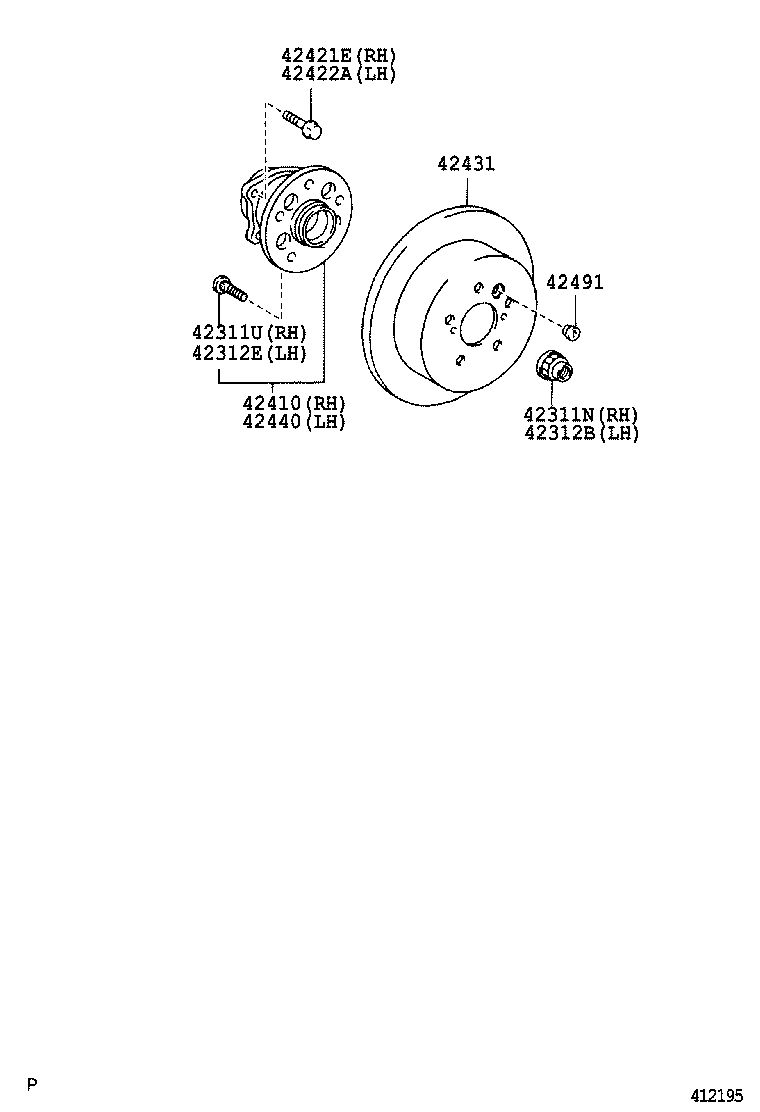

ILLUST NO. 2 OF 2(0503- )MHU28
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
MHU28 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
MHU2# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
MHU28 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
MHU2# |
5 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-48041 |
MHU28 |
1 | ||
| 42410-48040 |
MHU28 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12332 |
MHU2# |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12332 |
MHU2# |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-48041 |
MHU2# |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-48040 |
MHU28 |
1 | ||
| 42410-48041 |
MHU28 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
MHU2# |
2 | ||
