MHU28L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

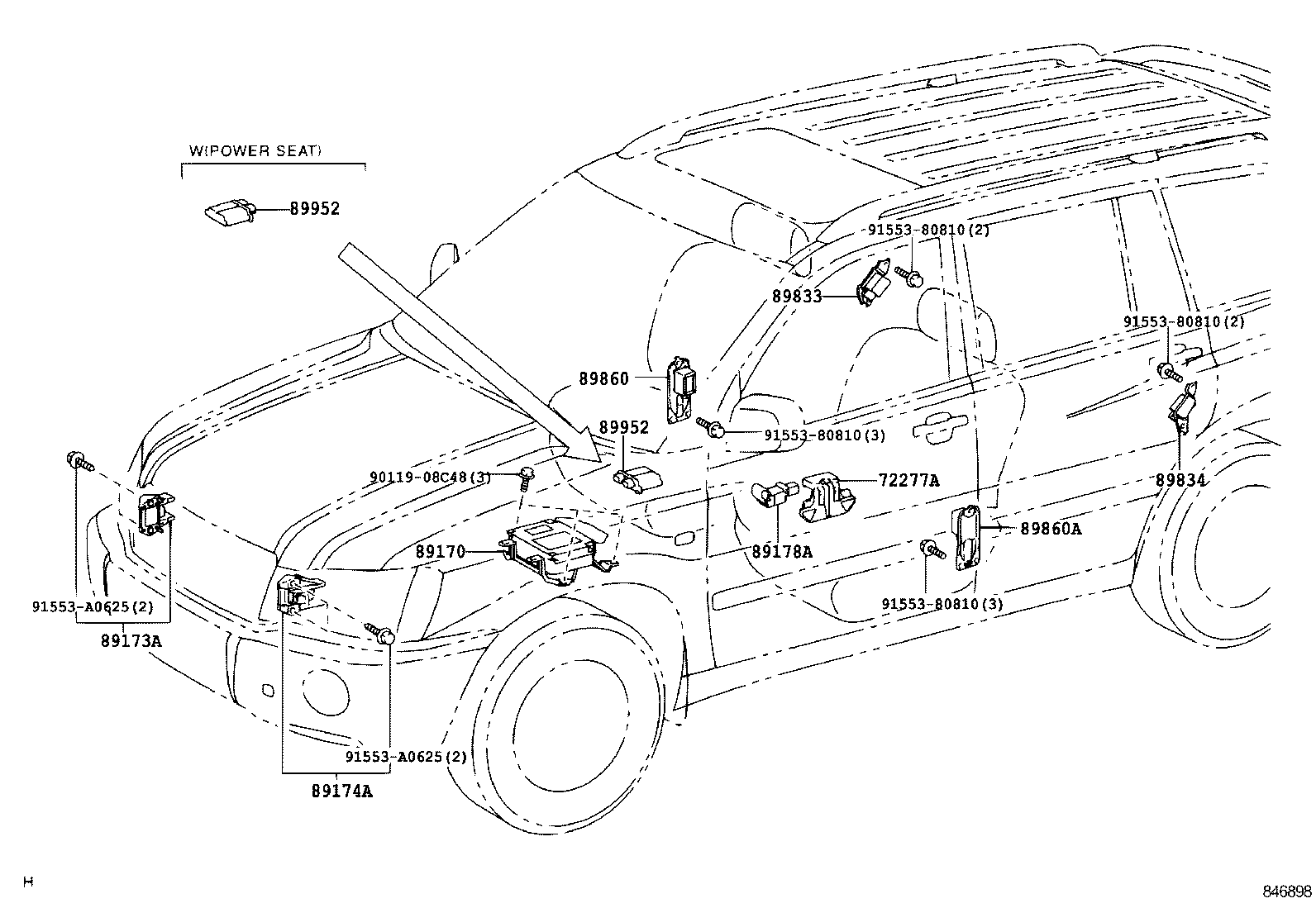

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89833 89834 89860 89860A 89952 89952 9011908C48 9155380810 9155380810 9155380810 9155380810 91553A0625 91553A0625
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

MHU2#

LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33010

MHU2#

 1
72277-33021

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33021

MHU2#

LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33021

MHU2#

LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33021

MHU2#

LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
72277-33021

MHU2#

LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33021

MHU2#

LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
72277-33021

MHU2#

LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
72277-33021

MHU2#

LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
72277-33021

MHU2#

LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
72277-33021

MHU2#

LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
72277-33021

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
89170 - SENSOR ASSY, AIR BAG
89170-48191

MHU2#

 1
89170-48190

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89170-48191

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89170-48170

MHU2#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49295

MHU2#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49295

MHU2#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

MHU2#

LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-33050

MHU2#

LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-33050

MHU2#

LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-33050

MHU2#

LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
89178-33050

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-33050

MHU2#

LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
89178-33050

MHU2#

DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
89178-33050

MHU2#

LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:MANUAL SEAT

 1
89178-33050

MHU2#

LIMITED(USA)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
89178-33040

MHU2#

 1
89178-33050

MHU2#

LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT

 1
89178-33050

MHU2#

LIMITED(USA)&LEATHER SEAT&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89178-33050

MHU2#

LIMITED(USA)&LEATHER SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DRIVER:POWER SEAT/PASSENGER:POWER SEAT&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-48020

MHU2#

 1
89833-48020

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-48020

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89834-48020

MHU2#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-48030

MHU2#

 1
89860-48030

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89860-48030

MHU2#

 1
89860-48030

MHU2#

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

MHU2#

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

MHU2#

 1
Common parts
90119-08C48
91553-80810
91553-A0625
