MHU28L-BRXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

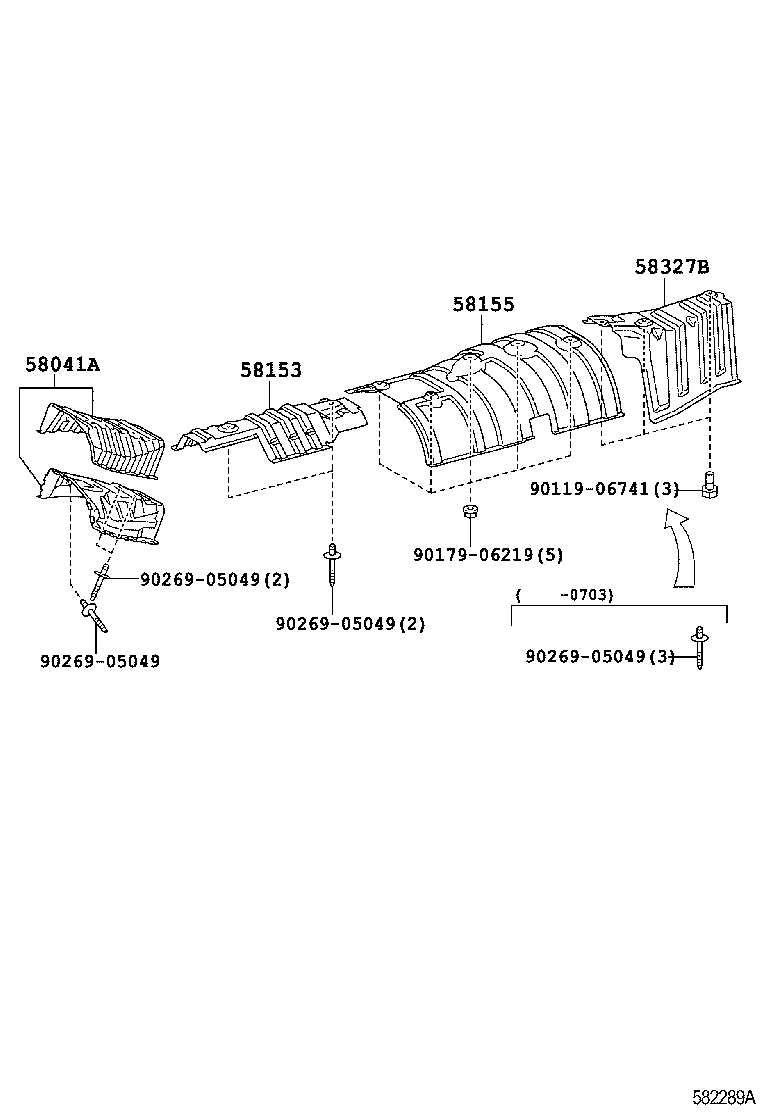

Click highlighted areas on diagram

diagram 58041A 58153 58155 58327B 9011906741 9017906219 9026905049 9026905049 9026905049 9026905049
Part # Description Qty Price
58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-48020

MHU2#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48020

MHU2#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-48030

MHU2#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-48031

MHU2#

 1
58327-48030

MHU2#

 1
Common parts
90119-06741
90179-06219
90269-05049
