MHU28L-BRXNKA (2005)
Toyota Highlander Hv
Production
Mar 2005
-
May 2007
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0503- )

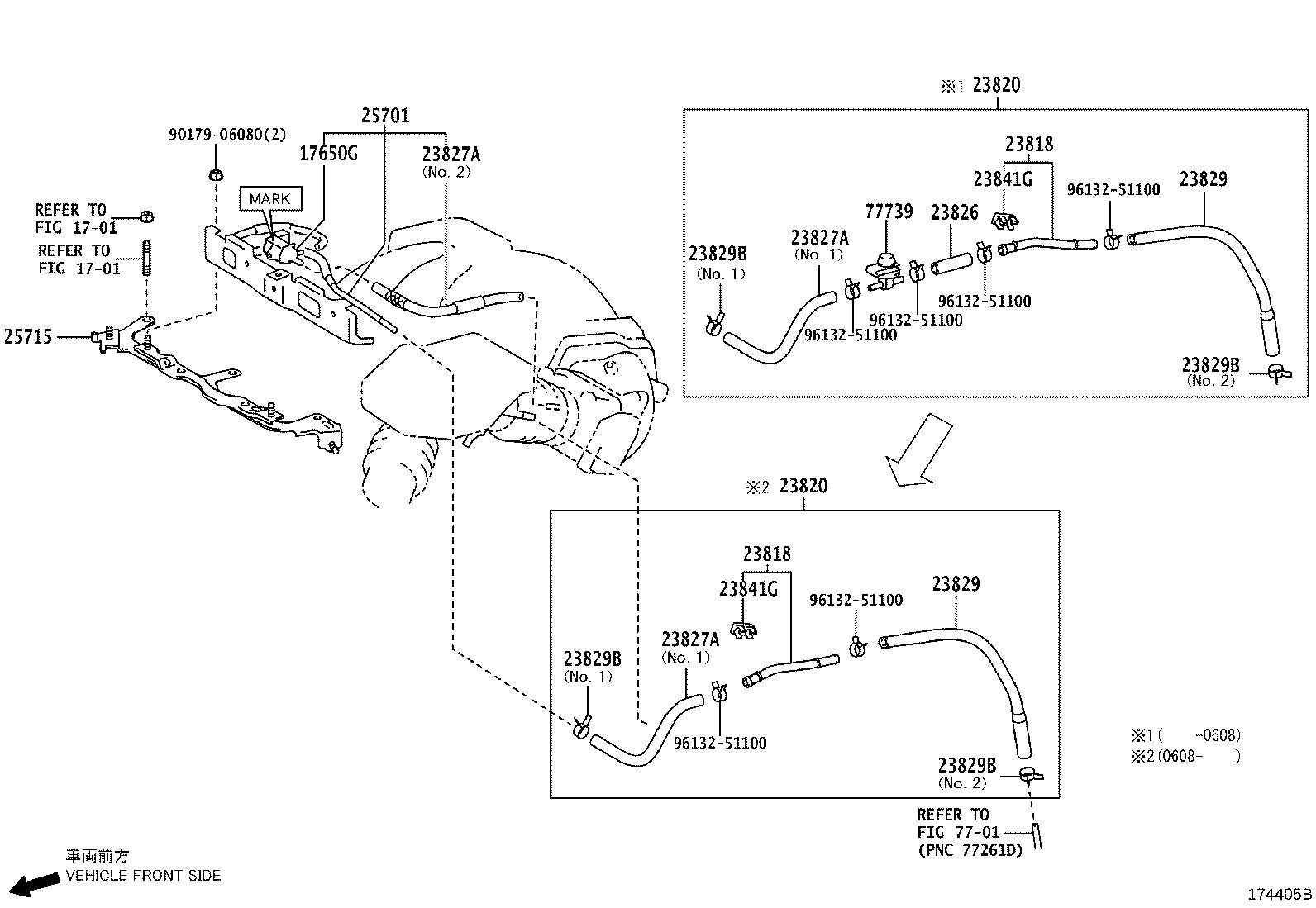

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12272 |
3MZFE..MHU2# MARK 90910-12272 |
1 | ||
| 90910-12259 |
3MZFE..MHU2# MARK 90910-12259 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-20010 |
3MZFE..MHU2# |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-20010 |
3MZFE..MHU2# |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-20240 |
3MZFE..MHU2# |
1 | ||
| 23820-20230 |
3MZFE..MHU2# |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-20240 |
3MZFE..MHU2# |
1 | ||
| 23820-20230 |
3MZFE..MHU2# |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-20110 |
3MZFE..MHU2# |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-20120 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20110 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20060 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-20120 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20110 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20060 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-20120 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20110 |
3MZFE..MHU2# NO.1 |
1 | ||
| 23827-20060 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-20150 |
3MZFE..MHU2# |
1 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-20150 |
3MZFE..MHU2# |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
3MZFE..MHU2# NO.1 |
1 | ||
| 96133-41300 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
3MZFE..MHU2# NO.1 |
1 | ||
| 96133-41300 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
3MZFE..MHU2# NO.1 |
1 | ||
| 96133-41300 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
3MZFE..MHU2# NO.1 |
1 | ||
| 96133-41300 |
3MZFE..MHU2# NO.2 |
1 | ||
| 23841G - CLAMP, FUEL HOSE | ||||
| 23841-20050 |
3MZFE..MHU2# |
1 | ||
| 23841G - CLAMP, FUEL HOSE | ||||
| 23841-20050 |
3MZFE..MHU2# |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-20240 |
3MZFE..MHU2# |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-20021 |
3MZFE..MHU2# |
1 | ||
| 77739 - VALVE, EVAP SERVICE PORT | ||||
| 77739-33010 |
MHU2# |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7701 | ||||
