MHU23L-BWXNKA (2005)

Toyota Highlander Hv

Production Mar 2005 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0503- )

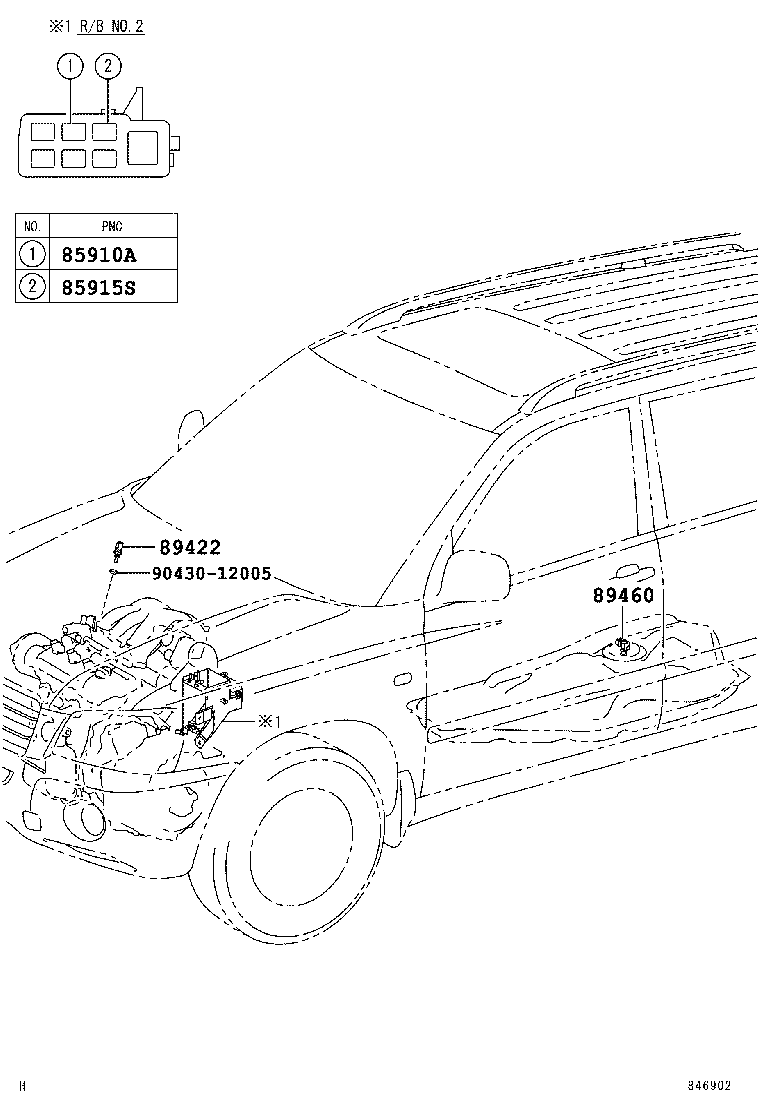

Click highlighted areas on diagram

diagram 85910A 85915S 89422 89460 9043012005
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

MHU2#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027

MHU2#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

MHU2#

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89461-48020

MHU2#

 1
Common parts
90430-12005
